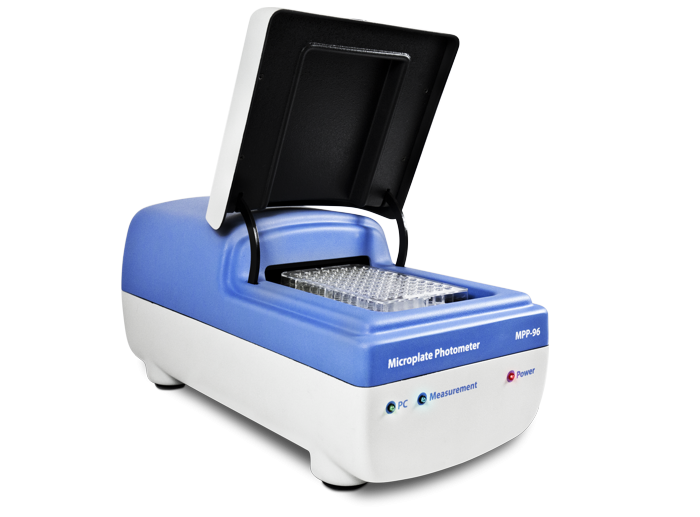

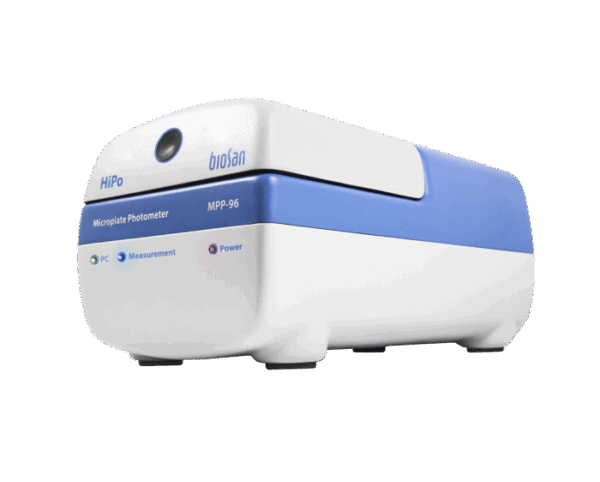

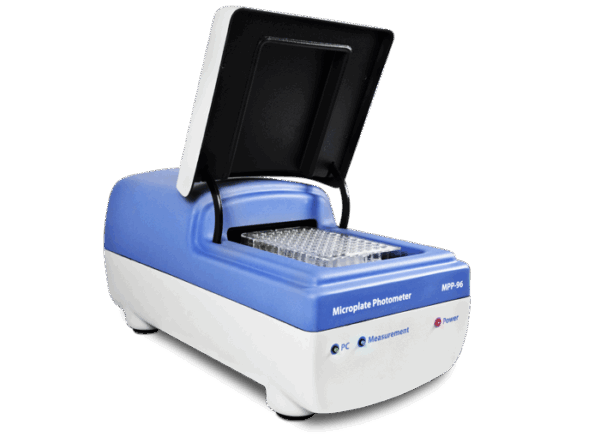

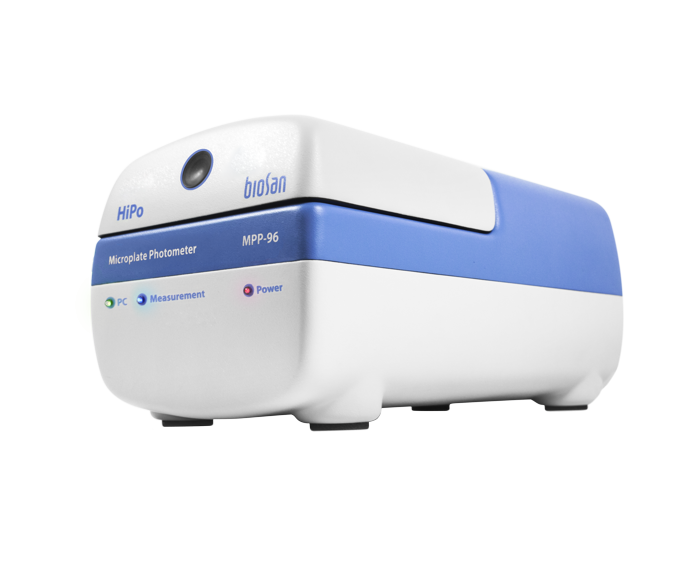

Microplate Photometer HiPo MPP-96 is a compact tabletop device for measuring the results of ELISA and microbiological studies in 96-well microplates. Photometer is controlled and outputs data via computer. The device is supplied with specialized software QuantAssay.
Microplate Photometer HiPo MPP-96 can be used with IDEXX xChekPlus™ software. Please contact your distributor for more information.
Features of QuantAssay software:
- ELISA assays of any complexity can be carried out via robust assay editor with help of Assay Wizzard
- Quantitative assay includes up to 20 standards
- Avidity/Affinity assays
- Multiplex assays with up to 7 assays on one plate
- Qualitative assay includes up to 11 controls
- BestFit function for selecting the best calibration curve
- User friendly interface: get your results in 3 clicks
- Save, load and export results
- Creates visual reports
Accuracy (405, 450, 492, 620 nm)
0.000 – 2.000 OD ≤ (0.5 % ± 0.010 OD) typical
2.000 – 3.000 OD ≤ (1 % ± 0.010 OD) typical
Precision / Reproducibility (405, 450, 492, 620 nm)
0.000 – 2.000 OD ≤ (0.5 % ± 0.005 OD)
2.000 – 3.000 OD ≤ (1.0 % ± 0.005 OD)
* – optical absorption of standard filters 3.5 OD
** – up to 4 custom filters can be fitted on demand, up to 4.3 OD
| Detection mode | Absorbance |
|---|---|
| Light source | LED, self-calibrating |
| Photodetector | 8 silicon photodiodes |

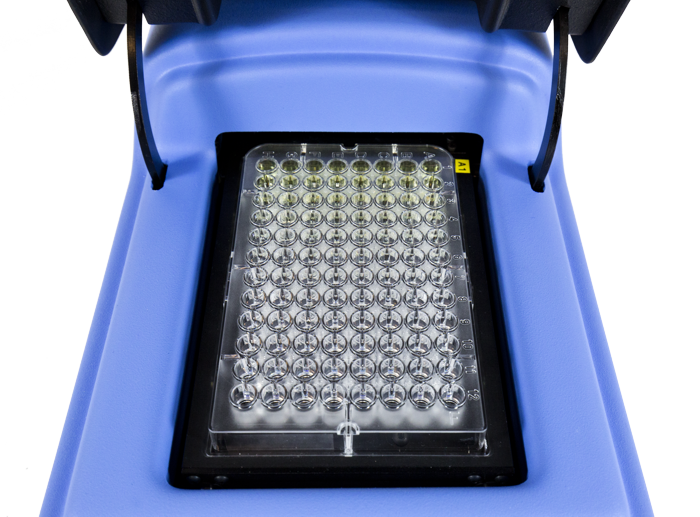

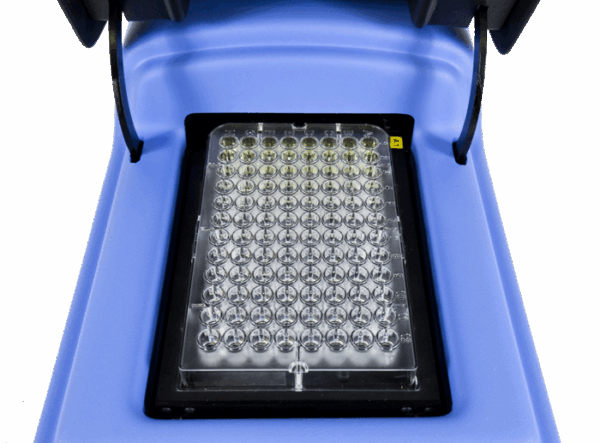

| Plate type | 96-well microplates (including strip-well microplates) |
| Reading speed | 5-8 s per wavelength |
| Measurement modes | Endpoint, kinetic and multi-label measurements |
| Measurement channels | 8 |
| Reference channel | 1 |
| Measurement range | 0 – 4.3* OD |
| Resolution | 0.0001 OD |
| Wavelength range | 400 – 700 nm |
| Wavelength selection | up to 8** filters on wheel, standard filters 405, 450, 492 and 620 nm |
| Shaking speed control range | 4 amplitudes, 4 speeds |
| Software | QuantAssay
Reader is compatible with IDEXX xChekPlus software |
| PC system requirements: | Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/10/11, USB |
| Overall dimensions (W×D×H) | 140 х 300 х 130 mm |
| Weight | 4.6 kg |
| Input current/power consumption | 12 V, 5 A / 60 W |
| External power supply | Input AC 100–240 V, 50/60 Hz; Output DC 12 V |
Accessories
OD Plate is the measurement verification instrument for microplate photometer MPP-96 HiPo.
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| HiPo MPP-96 | HiPo MPP-96 | Brochure | English | Download |
| HiPo MPP-96 | HiPo MPP-96 | User Instructions | English | Download |
| HiPo MPP-96 | HiPo MPP-96 | White Paper | English | Download |
| HiPo MPP-96 | HiPo MPP-96 | Declaration of Conformity | English | Download |
| Weight | 4,6 kg |
|---|---|
| Dimensions | 140 × 300 × 130 mm |
| Product class | Smart Plus |
| Optional light filters | 400 nm, 455 nm, 458 nm, 460 nm, 470 nm, 480 nm, 486 nm, 488 nm, 500 nm, 508 nm, 510 nm, 515 nm, 520 nm, 532 nm, 535 nm, 540 nm, 546 nm, 550 nm, 560 nm, 568 nm, 580 nm, 589 nm, 594 nm, 600 nm, 610 nm, 632 nm, 636 nm, 640 nm, 647 nm, 650 nm, 656 nm, 660 nm, 671 nm, 676 nm, 680 nm, 685 nm, 690 nm, 694 nm |
