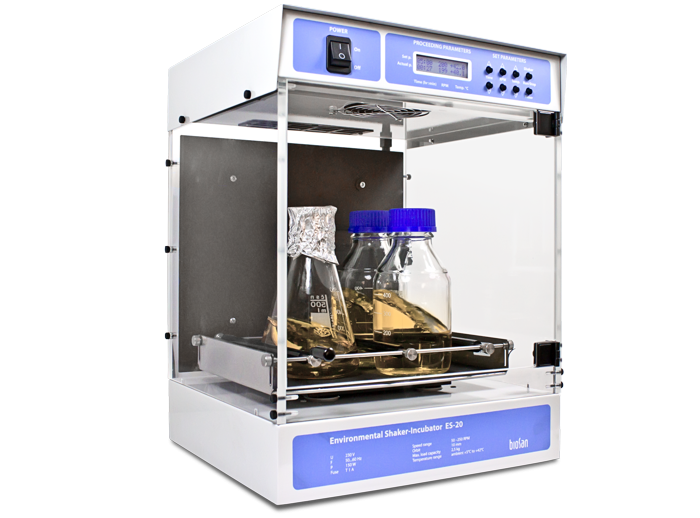

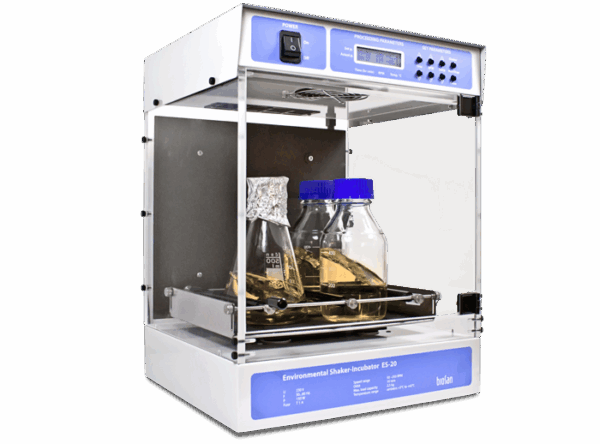

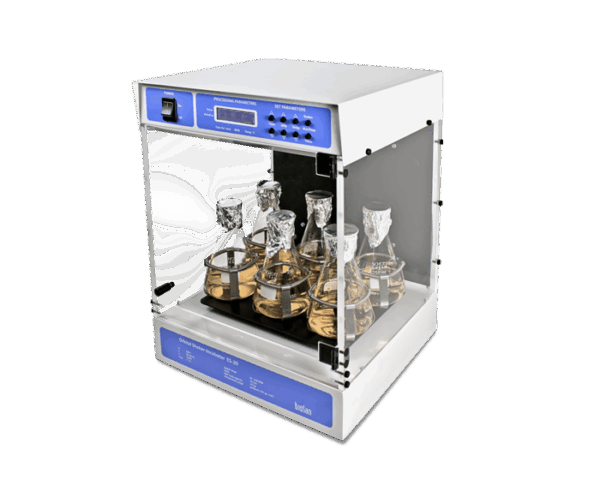

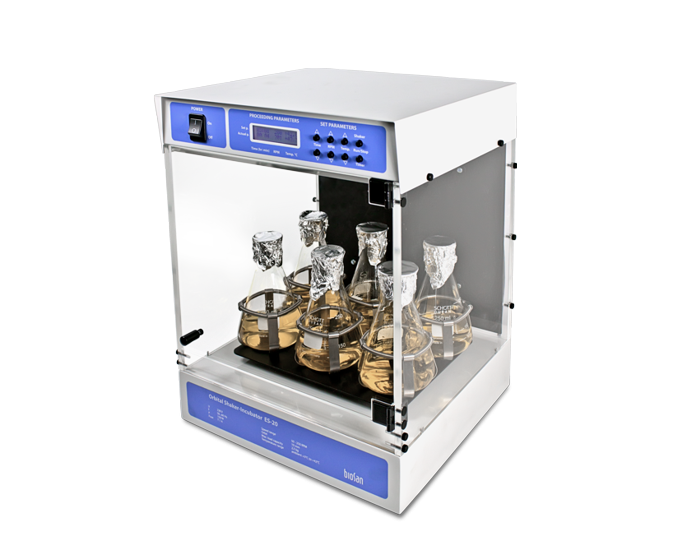

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program
Built–in microprocessor thermocontroller provides constant temperature control in the incubator chamber. Forced heated air circulation inside the transparent plexiglas chamber guarantees even temperature distribution. Dismountable construction makes transportation easy.
Orbital shaking is controlled by the digital tachometer (rpm) and Digital time setting regardless of the temperature. The unit is equipped with the direct–drive system ensuring most reliable stable long–time operation (up to 30 day nights).
The ES-20 is extremely easy to operate, with very straightforward setup of temperature, speed and time, using the two line set–up and status display, which clearly indicates both set and actual values for each of the three parameters.
Five interchangeable platforms allow using the ES-20 for:
- Growing cell cultures in flasks and other laboratory glassware;
- Extracting tissue samples at physiological temperatures;
- Other sample preparation processes.

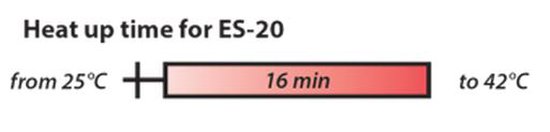

| Temperature setting range | +25°C ... + 42°C |
|---|---|
| Temperature control range | 5°C above ambient ... + 42°C |
| Speed control range | 50–250 rpm (increment 10 rpm) |
| Temperature setting resolution | 0.1°C |
| Temperature stability | ±0.5°C |
| Temperature accuracy at +37°C | ±0.5°C |
| Temperature uniformity at +37°C | ±0.5°C |
| Orbit | 10 mm |
| Display | LCD, 2 × 16 signs |
| Digital time setting | 1 min–96 hrs / non–stop (1 min increment) |
| Timer sound signal | + |
| Plexiglas walls thickness | 7 mm |
| Maximum load | 2.5 kg |
| Maximum continuous operation time | 30 days |
| Dimensions of the inner chamber | 305×260×250 mm |
| Overall dimensions (W×D×H) | 340x340x435 mm |
| Weight | 13.2 kg |
| Power consumption (230V / 120 V) | 160 W (0.7 A) / 170 W (1.6 A) |
| Nominal operating voltage | 230 V, 50/60 Hz or 120 V, 50/60 Hz |
Accessories
Universal platform with adjustable bars for different types of flasks, bottles, and beakers with silicone mat.
Platform with spring holders for up to 88 tubes up to 30 mm diameter (e. g. 10 ml, 15 ml, 50 ml tubes).
Flat platform with non-slip silicone mat for Petri dishes, culture flasks, agglutination cards.
Convenient alternative to traditional steel holders, an easy way to fix tubes, plates, flasks and other laboratory wares on platforms for cultivation, incubation and mixing.
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| ES-20 | ES-20 | Brochure | English | Download |
| ES-20 | ES-20 | Brochure | English | Download |
| ES-20 | ES-20 | Brochure | English | Download |
General Documents
| Type | Name | Language | File |
|---|---|---|---|
| Catalogue | English | Download |
| Weight | 13,2 kg |
|---|---|
| Dimensions | 340 × 340 × 435 mm |
| Product class | Basic Plus |
