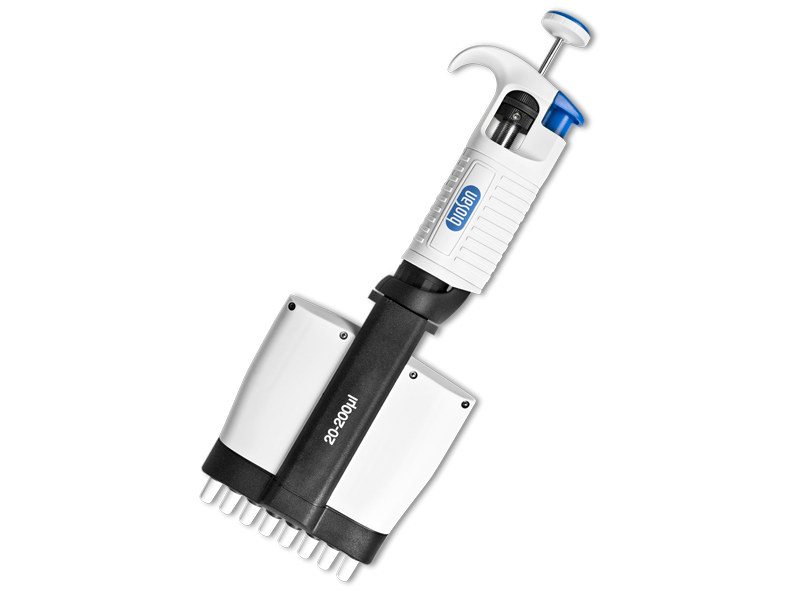

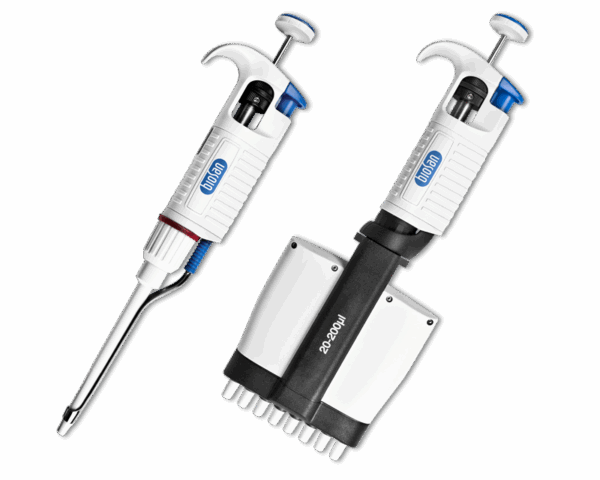

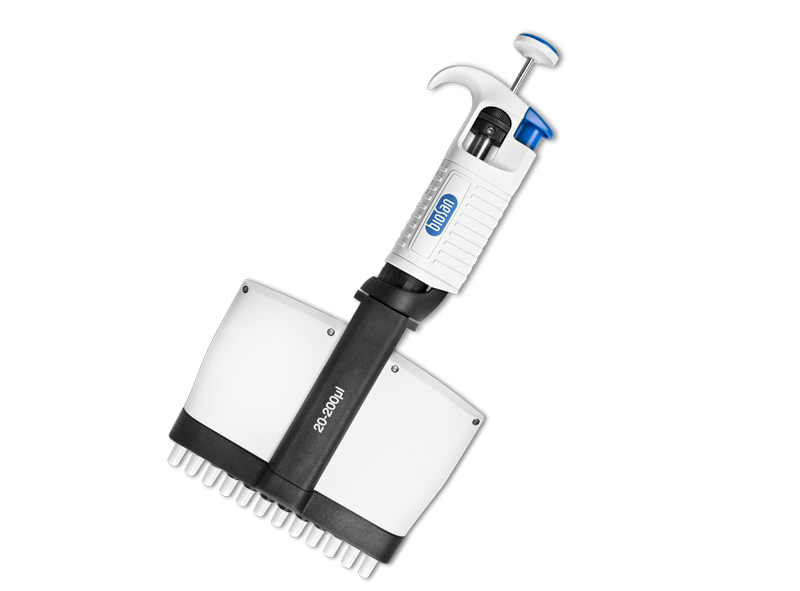

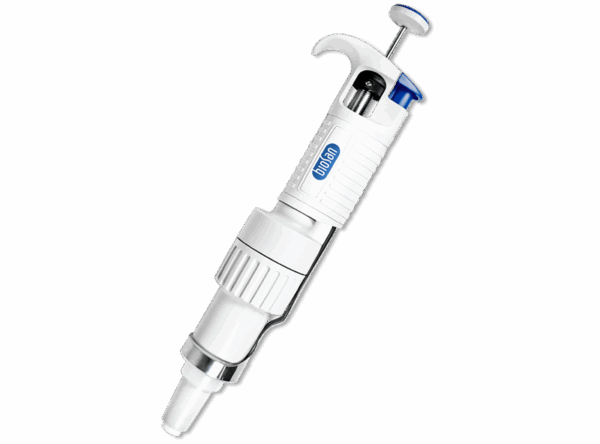

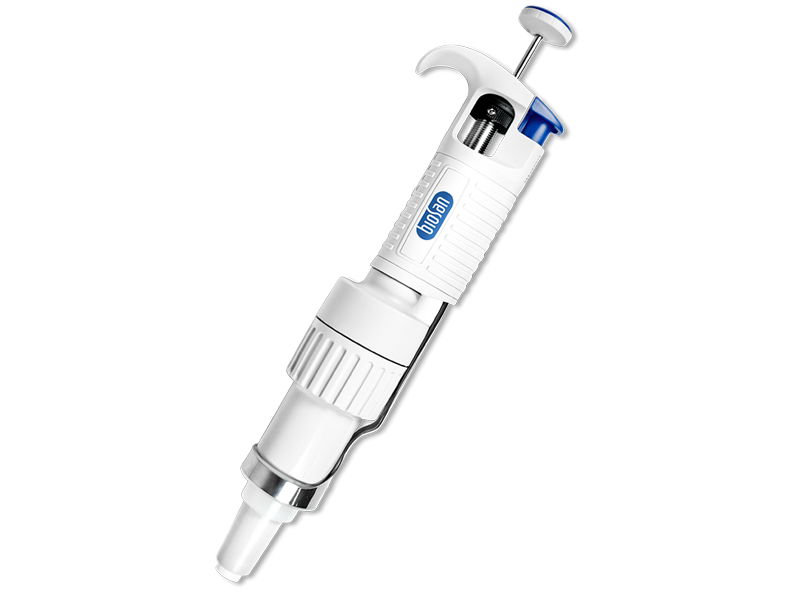

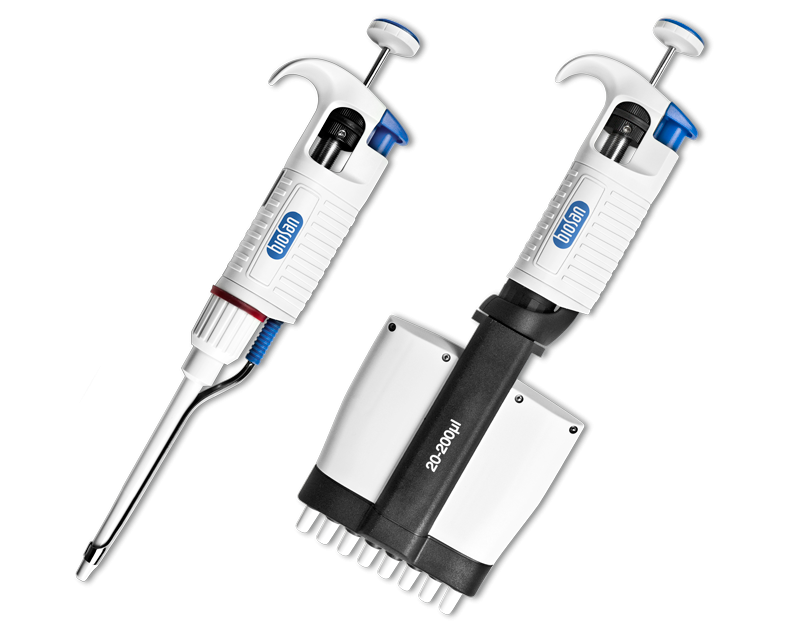

The Assist series pipettes are single or 8, 12 channel variable volume pipettes designed to measure and transfer volumes from 0.1 μl to 10000 μl depending on the model.
Multichannel pipettes are produced in four ranges of volumes: 0.5-10 μl, 5-50 μl, 20-200 μl, 50-300 μl.
The pipettes are equipped with a analog counter which shows the pipetting volume. The volume setting is done by turning the pipetting pushbutton knob or the black adjustment knob in the right direction. The volume range is shown on the pipetting pushbutton.
Features:
- Contoured shape of the handle and light weight
- Proven accuracy and precision
- UV resistant & fully autoclavable
- 5 & 10 ml shaft protected by filter
- Available in 8- & 12-channel version
- Colour coded for easy volume identification
- The adjustable ejector height system – to accommodate virtually all brands of tips
- Dual volume setting using the pushbutton or the thumbwheel
- Soft spring system for smooth, effortless pipetting
Common pipettes usage depending on the volume:
- 2 – 10 μl
Measurement and transfer of microvolumes, DNA sequencing and enzyme assay applications. - 10 – 1000 μl
Measurement and transfer of general aqueous solution, acids and bases. - 5000 – 10000 μl
Measurement and transfer of large volumes.
Pipette – Max. volume
AP2 – 2μl
AP10 – 10μl
AP20 – 20μl
AP50 – 50μl
AP100 – 100μl
AP200 – 200μl
AP250 – 250μl
AP1000 – 1000μl
AP5000 – 5000μl
AP10000 – 10000μl
8 ch Pipette – Max. volume
AP8-10 – 8 x 10μl
AP8-50 – 8 x 50μl
AP8-200 – 8 x 200μl
AP8-300 – 8 x 300μl
12 ch Pipette – Max. volume
AP12-10 – 12 x 10μl
AP12-50 – 12 x 50μl
AP12-200 – 12 x 200μl
AP12-300 – 12 x 300μl
Pipette sets
AP10, AP20, AP200, AP1000
AP10, AP100, AP1000, AP5000
Specification:
| Single channel | AP10 — 0.5-10 μl, AP100 — 10-100 μl, AP1000 — 100-1000 μl, AP10000 — 1000-10000 μl, AP2 — 0.1-2 μl, AP20 — 2-20 μl, AP200 — 20-200 μl, AP250 — 50-250 μl, AP50 — 5-50 μl, AP5000 — 500-5000 μl |
|---|---|
| 8 channels | AP8-10 — 0.5-10 μl, AP8-50 — 5-50 μl, AP8-200 — 20-200 μl, AP8-300 — 50-300 μl |
| 12 channels | AP12-10 — 0.5-10 μl, AP12-50 — 5-50 μl, AP12-200 — 20-200 μl, AP12-300 — 50-300 μl |
| Sets | AP10, AP20, AP200, AP1000, 4-position stand, demo tips, AP10, AP100, AP1000, AP5000, 4-position stand, demo tips |
