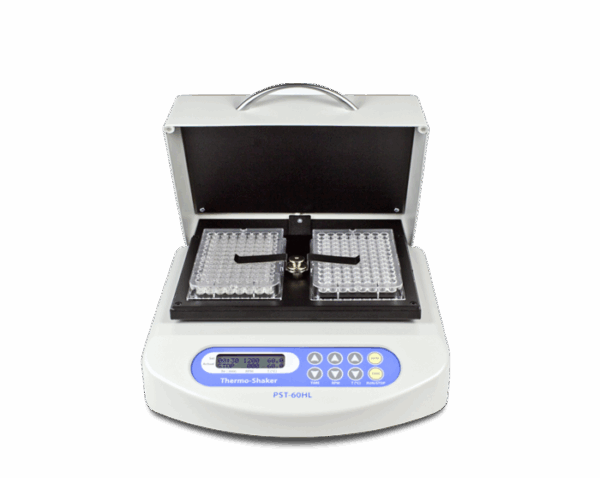

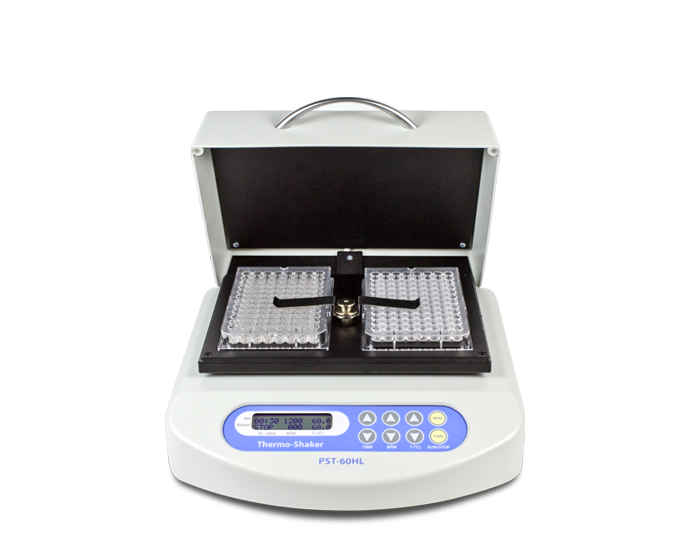

Plate Thermo–Shakers are designed for shaking and thermostating 2 standard 96–well microplates.

A multisystem principle, used in design of the Thermo–Shaker, allows operating it as 3 independent devices:

  • Incubator;
  • Microplate shaker;
  • Thermo–Shaker.

A distinctive feature of Biosan Plate Thermo–Shakers is the patented by the company Two–Side Microplates Heating, which allows to achieve full correspondence of the set and actual temperature in the microplate wells.

Thermo-shaker provides heating up to 60°C, which is sufficient for carrying out ELISA tests.

Plate Shaker–Thermostat provides:

  • Soft or intensive sample shaking
  • Rotation speed regulation, stabilization and indication
  • Even rotation amplitude throughout the Thermo-Shaker platform
  • Required operation time setting and indication
  • Automatic stopping of the platform movement after expiration of the set time
  • Setting and indication of the required temperature on the platform
  • Automatic fault diagnostics (temperature sensor, platform heating, lid heating etc.)

Application fields:

  • Сytochemistry — for in situ reactions
  • Immunochemistry — for immunofermentative reactions
  • Biochemistry — for enzyme and protein analysis
  • Molecular biology — for micro array analysis

Temperature Calibration Function

With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of plates from different manufacturers.

Temperature setting range +25°C ... +60°C
Temperature control range +5°C above ambient... +60°C
Temperature setting resolution 0.1°C
Temperature stability ±0.1°C
Temperature uniformity at +37°C ±0.25°C
Temperature calibration coefficient range 0.936...1.063 (± 0.063)
Heating Patented two–side microplate heating
Speed control range 250–1200 rpm (increment 10 rpm)
Digital time setting 1 min–96 hrs / non–stop (increment 1 min)
Timer sound signal +
Orbit 2 mm
Display LCD, 16 x 2 signs
Maximum continuous operation time 168 h
Max. height of microtest plate 18 mm
Number of microtest plates 2
Platform dimensions (w x d) 250 x 150 mm
Overall dimensions (W×D×H) 270 x 260 x 125 mm
Weight 6.1 kg
Input current/power consumption 12 V DC, 3.3 A / 40 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Documentation

SKUProductTypeLanguageFile
PST-60HLPST-60HLDeclaration of ConformityEnglishDownload
PST-60HLPST-60HLBrochureEnglishDownload
PST-60HLPST-60HLUser InstructionsEnglishDownload
Weight 6,1 kg
Dimensions 270 × 260 × 125 mm
