Key Features:

  • Vertical laminar flow,
  • 30% air recirculation,
  • 1 stainless steel piece,
  • LED 2000 Lux,
  • low noise,
  • Easy-to-clean.

Available in sizes 900, 1200, 1500 and 1800.

Technical specifications

Category Parameter Unit 900 1200 1500 1800
Size External dimensions excl support, WxDxH mm 1003x799x1329 1303x799x1329 1603x799x1329 1907x799x1329
Size External dimensions incl support, table top at 800 mm, WxDxH mm 1003x799x2053 1303x799x2053 1603x799x2053 1907x799x2053
Size Internal dimensions, WxDxH mm 900x520(625)x700 1200x520(625)x700 1500x520(625)x700 1800x520(625)x700
Size Front window opening mm 300 (adjustable 200–500)
Size Work height, basic support stand mm 800 or 900 (±25)
Size Work height, adjustable support stand mm 700–1050
Size Work height, electrically elevated support stand mm 750–1050
Size Minimum door way mm 800
Weight Equipment kg 180 220 240 270
Air Velocity Vertical Flow m/s 0.28 (adjustable 0.25–0.53)
Air Velocity Deviation +-% <8
Noise Noise level (EN12469) dB(A) 46 46 47 47
Ventilation Down flow rate m³/h 510 680 840 1010
Filter Technology Main filter type HEPA H14 EN1822, 99.999% at 0.3 µm particle size
Filter Technology Prefilter type G4
Light LED lux 0–2000, dimmable
Electrical data Voltage frequency V/Hz 220–240/50–60 or 110–120/50–60
Electrical data Power consumption W 90 100 130 140

Dimensions

Cabinet A - Length B - Work height C - Top cabinet D - Highest point E - Work opening W - Weight
n-SAFE Sterile 900 1003 mm 700–1050 mm 1953–2303 mm 1958–2308 mm 900 mm 180 kilo
n-SAFE Sterile 1200 1303 mm 700–1050 mm 1953–2303 mm 1958–2308 mm 1200 mm 220 kilo
n-SAFE Sterile 1500 1603 mm 700–1050 mm 1953–2303 mm 1958–2308 mm 1500 mm 240 kilo
n-SAFE Sterile 1800 1907 mm 700–1050 mm 1953–2303 mm 1958–2308 mm 1800 mm 270 kilo



Documentation

SKUProductTypeLanguageFile
BrochureEnglishDownload
Dimensions

900, 1200, 1500, 1800

Related Products

The n-Safe Class I for operator protection against low/moderate risk agents. No recirculation. Simple, robust and silent, according to EN 12469.

This product has multiple variants. The options may be chosen on the product page

Economical variant of the n-SAFE Class II Pro, it maintains essential security but with reduced options. Good for labs on a budget.

This product has multiple variants. The options may be chosen on the product page

The n-Safe Pro cabinets are designed, to provide superior operator and product protection according to EN-12469 and NSF/ANSI 49 The most versatile and popular model in the range, offering high performance, ergonomic design, quiet operation, and touchscreen. Ideal for routine and research labs.

This product has multiple variants. The options may be chosen on the product page

A highly reliable Class III cabinet, designed and manufactured according to EN 12469. Ermetic glove box for work with highly dangerous agents. Full containment, with dual HEPA filters, leak-tight valves and optional shielding.

Larger version of the nSafe Sterile model. Suitable for sterile work with bulky equipment and manufactured according to EN 12469. Custom Order only.

Specialized for handling cytotoxic drugs. Features triple HEPA H14 filtration, low noise, and enhanced ergonomics. Complies with EN 12469 and DIN 12980, ideal for hazardous compounds.

This product has multiple variants. The options may be chosen on the product page

The n-Safe B2 cabinets are microbiological safety cabinets according to EN 12469. It protects the product as well as the operator and has 100% exhaust which means no recirculating air, making it ideal for volatile chemicals.

This product has multiple variants. The options may be chosen on the product page

The n-Safe XL cabinets offer extraordinary inner dimensions, whenever the working space of a standard cabinet isn ́t sufficient: XL cabinets come with an interior height of 1000mm and an interior depth of 900 mm. The complete front can be opened to easily fit in large devices, e.g. a pipetting robot.

This product has multiple variants. The options may be chosen on the product page

Recently Viewed

Mini–Shaker PSU-2T is designed for immunoassays and provides adjustable mixing of reagents in microplates. The device ensures smooth movement of the platform even at low speeds. Shaker is a compact and user-friendly device. It takes up little space on a desk and is ideal for personal use.

Platforms

Platform PRS-10

10 tubes 20-30 mm diameter (up to 50 ml tubes).

Platforms

Platform PRS-26

Can accommodate 26 tubes 10-16 mm diameter (1.5-15 ml).

Reagents

L-SERINE LR

(S)-2-Amino-3-hydroxypropionic acid

Products Best Selling

Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.

20 × 0.2 ml microtubes + 12 × 1.5 ml microtubes

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

New modular design of laboratory furniture provides flexibility and ease of use.

Contamination is especially problematic in the highly sensitive PCR technique. Originating from aerosolized fragments, contaminant DNA can lead to cross contamination thus resulting in inaccurate data and as a result misinterpreted analysis.

DNA/RNA UV-cleaner box UVC/T-M-AR is designed for clean operations with DNA samples. UV-cleaner box provide protection against contamination.

DNA/RNA UV-cleaner box UVT-B-AR is designed for clean operations with DNA samples. UV-Cabinet provide protection against contamination.

LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.

Products Favourite

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.

20 × 0.2 ml microtubes + 12 × 1.5 ml microtubes

Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

The new CAPPSolo single channel pipettes are built to meet the liquid-transfer needs of the modern laboratory. These dependable work-horses are the ideal micropipette for research, clinical and academic laboratories that require great quality without breaking the bank. Here are some brief highlights of what you can expect from these excellent mechanical pipettes.

This product has multiple variants. The options may be chosen on the product page

Applicable for blood stations, hospitals, CDC's, scientific research institutes, chemical industry and other related industries. The -30°C Biomedical Freezer can cryopreserve plasma, biological products, components, materials, and other items that need to be kept at low temperature.

This product has multiple variants. The options may be chosen on the product page

LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.

A-12, adapter for work with tubes which are 12 mm in external diameter.

The n-Safe Pro cabinets are designed, to provide superior operator and product protection according to EN-12469 and NSF/ANSI 49 The most versatile and popular model in the range, offering high performance, ergonomic design, quiet operation, and touchscreen. Ideal for routine and research labs.

This product has multiple variants. The options may be chosen on the product page

This product is used in micro centrifugal scenarios (single tube capacity is less than or equal to 2ml)

This product has multiple variants. The options may be chosen on the product page

Cover of a unique sealed structure design provides a two-way guarantee and ensures the sealing property Conical thickened design at the bottom to increase the maximum centrifugal limit Max. centrifugal force: 7000 xg Tolerable temperature range: -80℃-120℃ Clear scale for accurate and convenient data reading Sterile and RNase, DNase, human DNA and Pyrogen Free

This product has multiple variants. The options may be chosen on the product page

nSAFE Sterile

SKU: N/A Category: Brand:

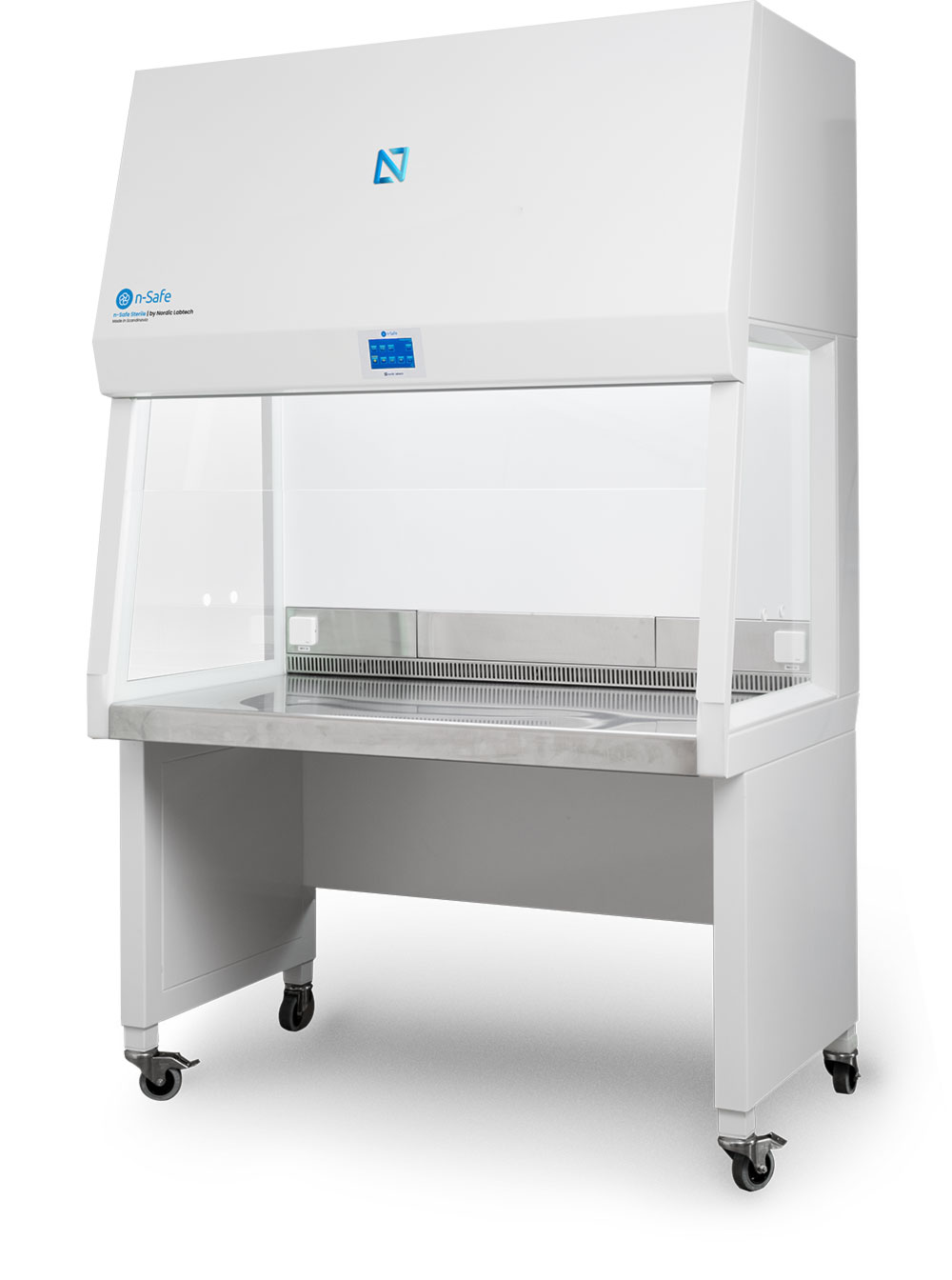

The n-Safe Sterile is an Open Laminar Flow Cabinet, which provides a controlled environment whit vertical laminar flow. The products, which are handled inside the n-Safe Sterile are protected from any kind of contamination which makes it ideal for sterile environments.
