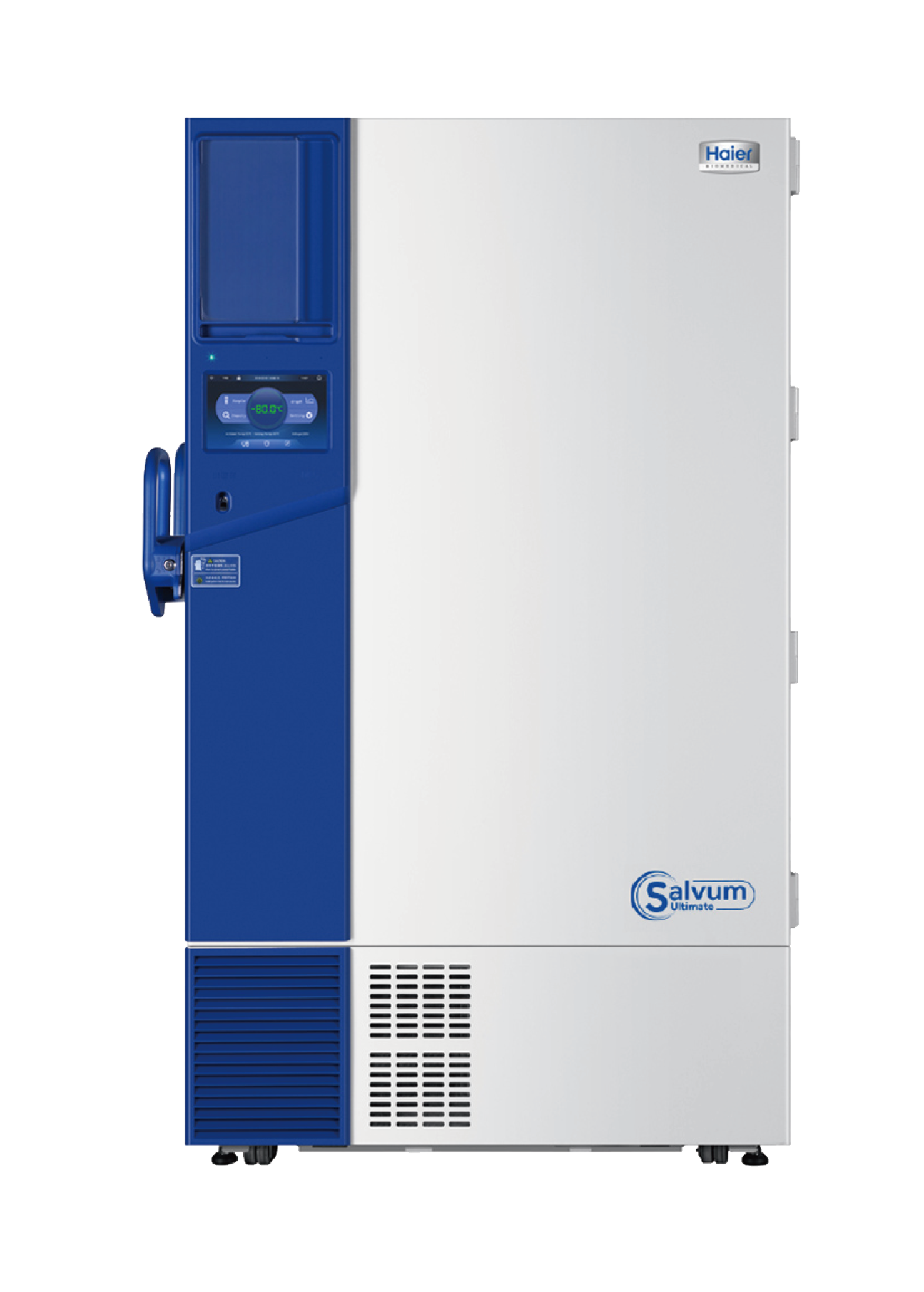

Water cooled ULT freezers use less energy and heat emissions are reduced by 90%. Suitable for high ambient environments with limited options for air conditioning.
Product Features
Microcomputer control system
Microcomputer control, 10′ inch LCD temperature display, display precision 0.1ºC, inside temperature adjustable set point -40-86ºC. Displays operating data such as temperature, voltage and ambient temperature.
Stand-alone sample management system
The software allows users to manage sample inventory within the freezer.
Memory
USB with up to 10 years of the life temperature monitoring data can be downloaded & exported as needed.
Alarm back-up battery
When powered off , two lithium batteries can maintain the refrigerator LCD screen for 22 hours.
Multiple safety locks
The handle incorporates a keylock and facility for padlock. There is the option to have an electromagnetic lock and fingerprint recognition. Multiple of options for users to ensure samples are secure.
Superior thermal insulation performance
The door is 90mm VIP + polyurethane foam with four seals and a single seal on each inner door reduces loss of internal cold air.
Multiple alarm functions
Including high/low temperature,hot condenser,power failure,low battery,high ambient temperature and door ajar.
Networking function
R485 interface is standard, which secures multi-refrigerator networking.
| Model | Cabinet Type | Capacity (L/Cu.Ft) | Power Supply (V/Hz) | Display | Inner Doors | Certificate |
| DW-86L828W | Upright | 828/29.2 | 208～230/50/60 | LCD | Four Solid Doors | CE |
| DW-86L959W | Upright | 959/33.9 | 208～230/50/60 | LCD | Four Solid Doors | CE |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| Flyer | English | Download |
| Model | DW-86L828W, DW-86L959W |
|---|
