Integral Cold Store Unit

• The cold room is suitable for a variety of applications; it can be used to freeze or refrigerate samples for healthcare, research, agriculture, and biotechnology purposes. In the walk-in cold room (WIC), the interior temperature can be controlled within a range of 2°C to 8°C. In the walk-in freezer (WIF), the temperature is set at -20°C.

Features of the Cold Room

• The set point of the cold room has an adjustable range of 0°C to 10°C (or -15°C to -25°C for the Freezer Room) with a resolution of 0.1°C.

• High-efficiency CFC-free polyurethane insulation foamed into place. With a density of 42kg/m3, a thickness of 100mm and an insulation K-value of 0.22 W/(m2)(K) or better.

• Internal and exterior surfaces are made up of hot-dipped galvanized steel sheet, coated in a white polyester coating. The floor is clad with non-slip material.

• Rooms are equipped with tungsten lighting.

• Rooms are equipped with shelving systems on 3 of their walls.

• Dual refrigeration system – while one system is working, the other one is reserved as a back-up.

• Forced air-cooling system

• Door equipped with a lock and heavy-duty hinges, with an internal safety release.

• CFC-free refrigerant

• Automatic defrosting

• A manual change-over switch is offered as standard, an automatic change-over switch is available as an optional extra.

• Temperature recorder and audible alarm system.

Technical Characteristics of the Refrigerating Unit

• An integrated condenser unit, called Mono block, integrating evaporator, condenser, compressor, electrical control units into one compact body, is used in cold storage rooms with temperature control of

-5°C~5°C or -15°C~-20°C, in medical, clinical, agricultural and chemical industries where large scale cold storage is needed.

• Small compact structure.

• Comprises of TECUMSEH hermetic compressors, hight efficient, in-grooved copper tube and aluminium fin heat exchangers and leading brand refrigeration parts.

• The electronic control boards manage following parameters: automatic temperature setpoint and control,

electric heater defrosting, protection devices for over loading, over-heating, lack of phase, high and low pressure.

• Safe, easy to use and is economical, low cost installation and operation.

Temperature Recorder

• Upper and lower limits +50°C to -30°C

• Accuracy ±1°C

• Resolution ±0.5°C

• Minimum acceptable recording period between chart changes is 7 days

• USB interface is included



Model Type Power Supply (V/ph~Hz) Certificate Capacity (m³) Internal Temperature Range Defrost Mod
WIC (10 cbm) Monobloc 220/1N~50 WHO;PQS 10 2-8 Hot gas defrost
WIF (20 cbm) Monobloc 380/3N~50 WHO;PQS 20 -20 Hot gas defrost
WIC (30 cbm) Monobloc 380/3N~50 WHO;PQS 30 2-8 Hot gas defrost
WIC (40 cbm) Monobloc 380/3N~50 WHO;PQS 40 2-8 Hot gas defrost
Combi.40 cbm WIC/WIF Monobloc 380/3N~50 WHO;PQS 25/15 2-8/-20 Hot gas defrost
WIF (20 cbm) Split 380/3N~50 WHO;PQS 20 -20 Electrical heating
WIC (30 cbm) Split 380/3N~50 WHO;PQS 30 2-8 Electrical heating
WIC (40 cbm) Split 380/3N~50 WHO;PQS 40 2-8 Electrical heating

Documentation

SKUProductTypeLanguageFile
FlyerEnglishDownload
Model

Combi.40 cbm WIC/WIF Monobloc, WIC (10 cbm) Monobloc, WIC (30 cbm) Monobloc, WIC (30 cbm) Split, WIC (40 cbm) Monobloc, WIC (40 cbm) Split, WIF (20 cbm) Monobloc, WIF (20 cbm) Split

Related Products

Applicable for storing large quantities of vaccines, reagents, medicines and other biological products. Suitable for CDCs, animal epidemic prevention and control centers, hospitals, biopharmaceutical companies, etc.

This product has multiple variants. The options may be chosen on the product page

Applicable for storage of temperature-sensitive products such as large quantities of vaccines and medicines; National or regional vaccine centers, hospitals, biopharmaceutical and other industries.

Recently Viewed

Reagents

O-ANISIDINE LR

2-Aminoanisole, 2-Methoxyaniline

Eletronic Pipettes

CAPPMaestro Eletronic Pipette

CAPPMaestro electronic single channel pipette is one of the most user friendly digital pipettes on the market. CAPP single channel electronic pipette will optimize your serial work with advanced functions such as multi dispensing, dilution and mixing – all available while easily navigating through the self-explanatory graphic user interface.

This product has multiple variants. The options may be chosen on the product page

Biological Safety Cabinet

NSF Series Biological Safety Cabinet

Professional air purification equipment suitable for pharmaceuticals, medical and health industries, scientific research laboratories of universities and colleges as well as other related fields.

This product has multiple variants. The options may be chosen on the product page

Biosafety Air - UV - Cleaner Boxes

UV Cleaner–Recirculator UVR-Mi

Operation principle is based on a constant, forced air circulation through recirculator`s chamber in close vicinity to UV lamps, thus ensuring maximal efficiency of disinfection. The inner mirror surface of recirculator chamber reflects ultraviolet rays thereby increasing the density of UV radiation and enhancing the disinfection effect.

Laboratory Furniture

Table T-4L

New modular design of laboratory furniture provides flexibility and ease of use.

3,3-Bis(4-hydroxyphenyl)-1(3H)-isobenzofuranone

1-Hexanol, n-Hexyl alcohol

Products Best Selling

Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.

20 × 0.2 ml microtubes + 12 × 1.5 ml microtubes

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

New modular design of laboratory furniture provides flexibility and ease of use.

Contamination is especially problematic in the highly sensitive PCR technique. Originating from aerosolized fragments, contaminant DNA can lead to cross contamination thus resulting in inaccurate data and as a result misinterpreted analysis.

DNA/RNA UV-cleaner box UVC/T-M-AR is designed for clean operations with DNA samples. UV-cleaner box provide protection against contamination.

DNA/RNA UV-cleaner box UVT-B-AR is designed for clean operations with DNA samples. UV-Cabinet provide protection against contamination.

LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.

Products Favourite

The new CAPPSolo single channel pipettes are built to meet the liquid-transfer needs of the modern laboratory. These dependable work-horses are the ideal micropipette for research, clinical and academic laboratories that require great quality without breaking the bank. Here are some brief highlights of what you can expect from these excellent mechanical pipettes.

This product has multiple variants. The options may be chosen on the product page

Applicable for blood stations, hospitals, CDC's, scientific research institutes, chemical industry and other related industries. The -30°C Biomedical Freezer can cryopreserve plasma, biological products, components, materials, and other items that need to be kept at low temperature.

This product has multiple variants. The options may be chosen on the product page

LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.

A-12, adapter for work with tubes which are 12 mm in external diameter.

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.

20 × 0.2 ml microtubes + 12 × 1.5 ml microtubes

Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

This product is used in micro centrifugal scenarios (single tube capacity is less than or equal to 2ml)

This product has multiple variants. The options may be chosen on the product page

Cover of a unique sealed structure design provides a two-way guarantee and ensures the sealing property Conical thickened design at the bottom to increase the maximum centrifugal limit Max. centrifugal force: 7000 xg Tolerable temperature range: -80℃-120℃ Clear scale for accurate and convenient data reading Sterile and RNase, DNase, human DNA and Pyrogen Free

This product has multiple variants. The options may be chosen on the product page

The n-Safe Pro cabinets are designed, to provide superior operator and product protection according to EN-12469 and NSF/ANSI 49 The most versatile and popular model in the range, offering high performance, ergonomic design, quiet operation, and touchscreen. Ideal for routine and research labs.

This product has multiple variants. The options may be chosen on the product page

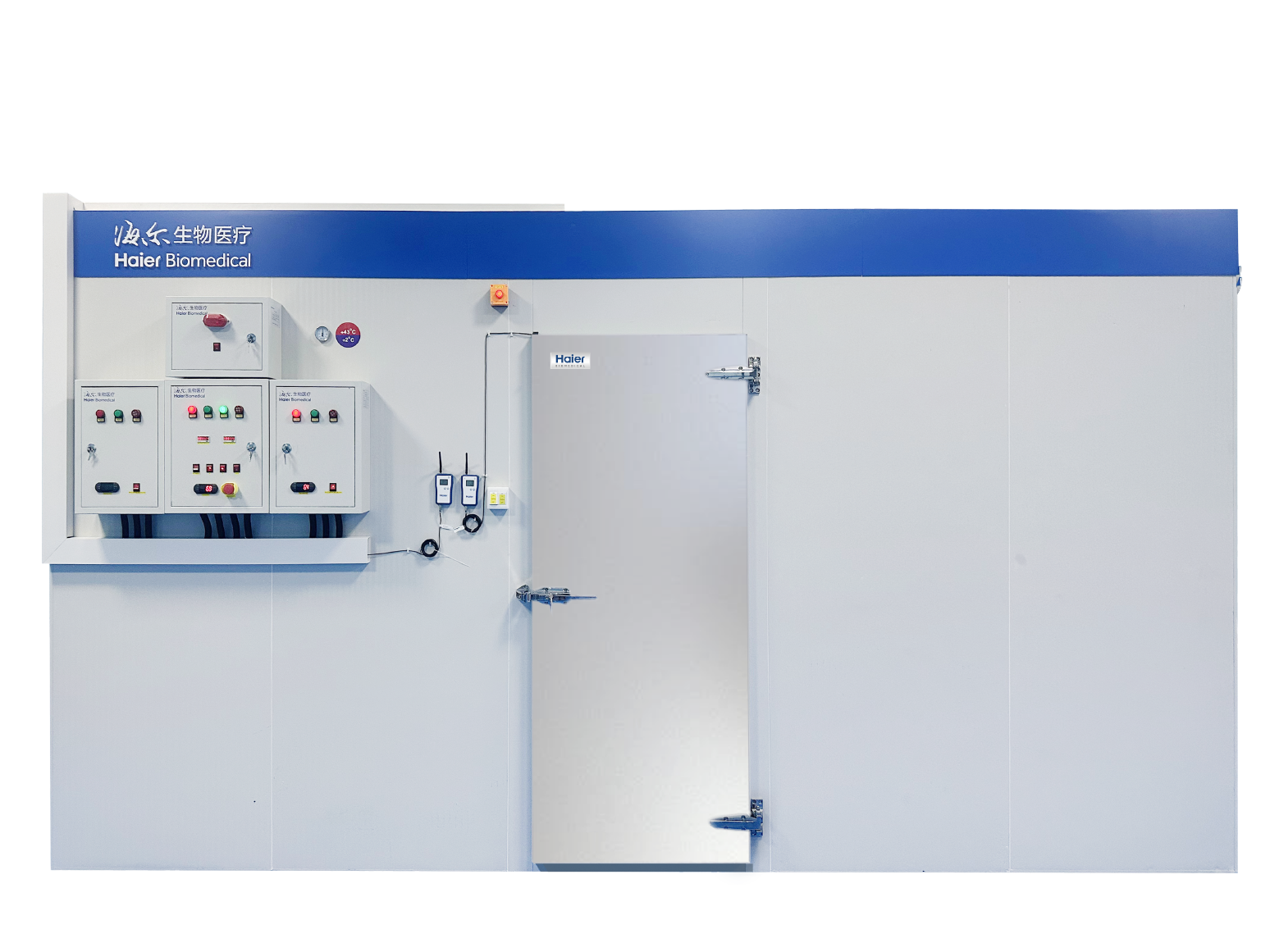

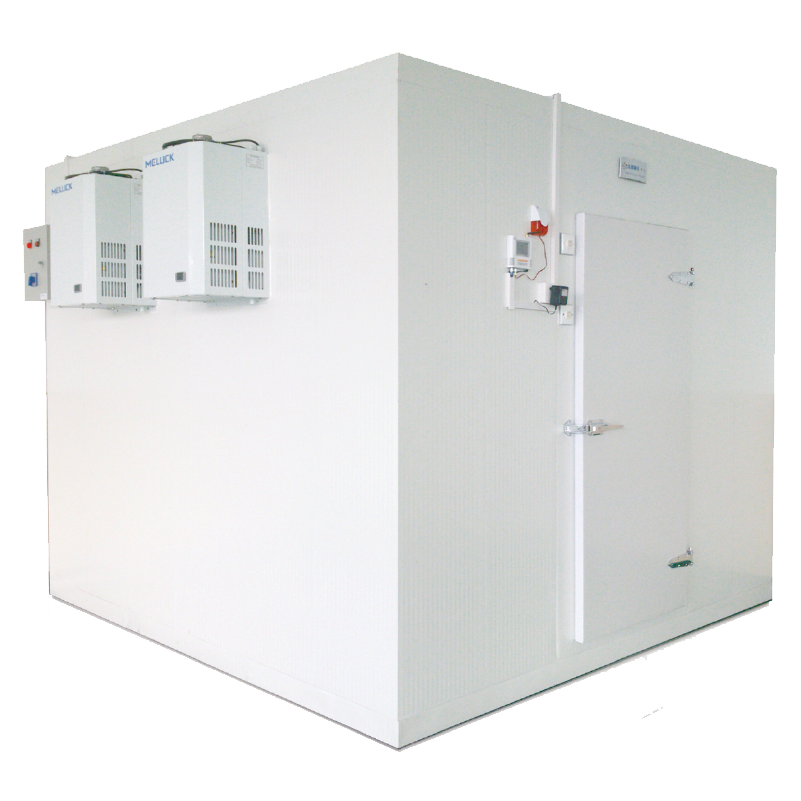

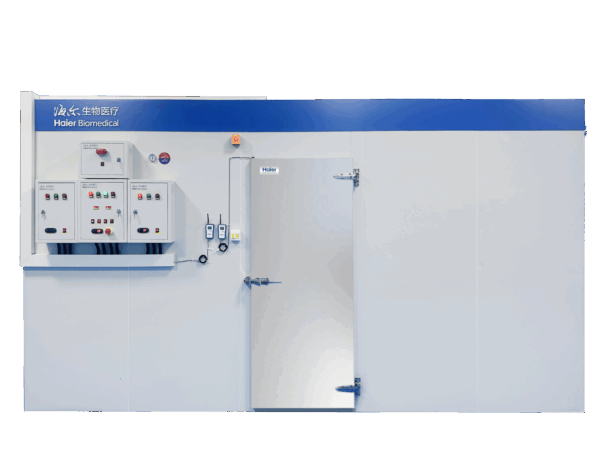

Walk-in Cold/Freezer Room
