Multi-Vortex V-32 is intended for intensive stirring of bacterial and yeast cell, washing from the culture medium and extraction of metabolites and enzymes from cells and cell cultures.

It is different from V-1 by the possibility of mixing up to 32 tubes simultaneously.

Vortex is applicable for:

  • Performing various DNA operations — deproteinisation of DNA/ protein complexes;
  • Purification of low-molecular DNA/RNA fragments in PCR-diagnostic.

Multi-Vortex has two operation modes:

  1. Continuous operation;
  2. Impulse operation.

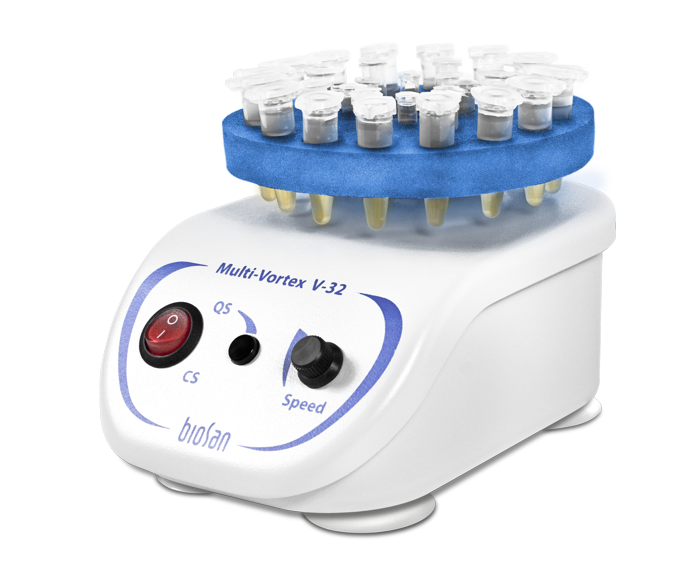

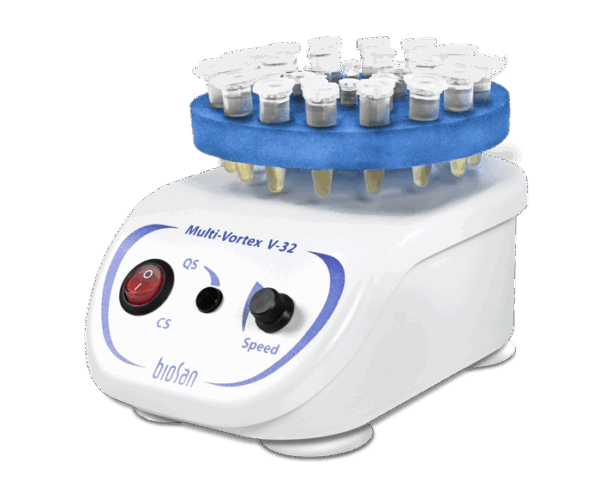

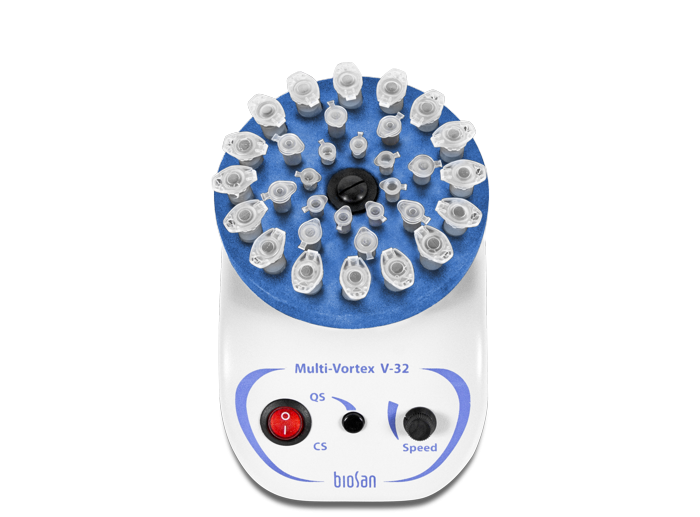

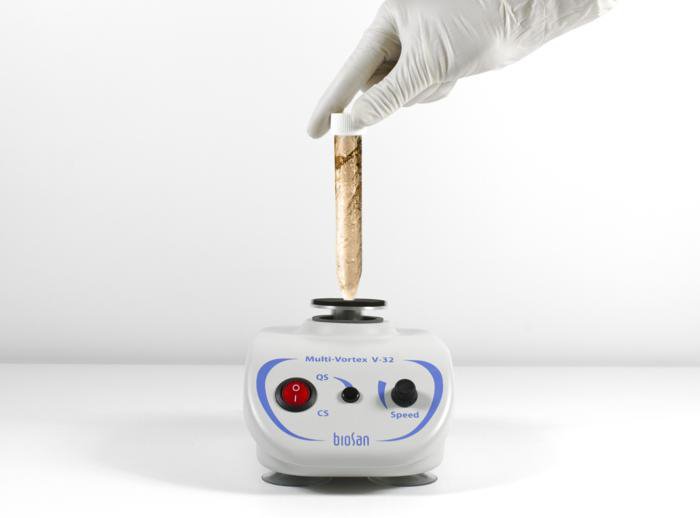

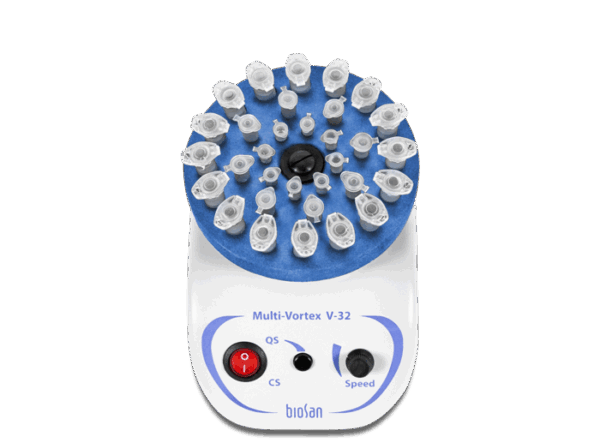

V-32 is supplied with a 32-socket universal platform for Eppendorf type tubes up to 2 ml (2-1.5/0.5/0.2 ml — 16/8/8 sockets) PV-32 and PL-1 platform for mixing single tube up to 50 ml.

An optional 6-socket platform PV-6/10 for 10 ml tubes (max. tube diameter 15 mm) or PV-48 for 48 – 0.2 ml microtubes can be supplied on request.

Eccentric mixing principle +
Speed control range 500-3000 RPM
Acceleration time 3 s
Maximum continuous operation time 24 h
Continuous / impulse operation +
Maximum load 70 g
Orbit 2 mm
Overall dimensions (W×D×H) 120x180x100 mm
Weight 1.5 kg
Input current/power consumption 12 V, 320 mA / 3.8 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Accessories

V-32 is supplied with a 32-socket universal platform for microtubes up to 2 ml (2-1.5/0.5/0.2 ml — 16/8/8 sockets) PV-32 and PL-1 platform for mixing single tube up to 50 ml.

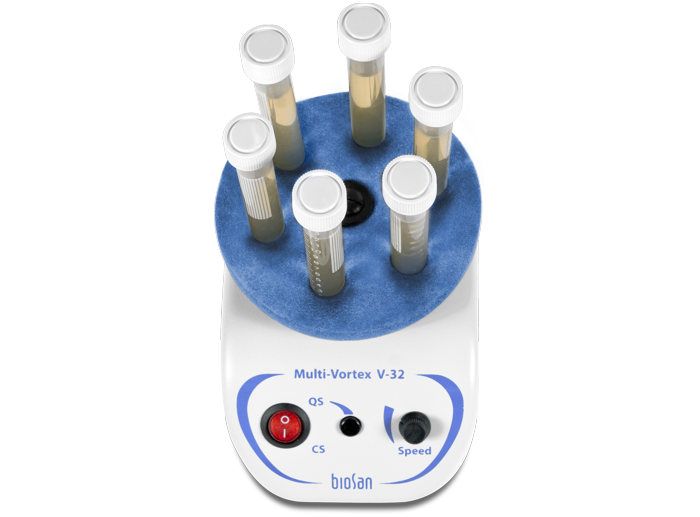

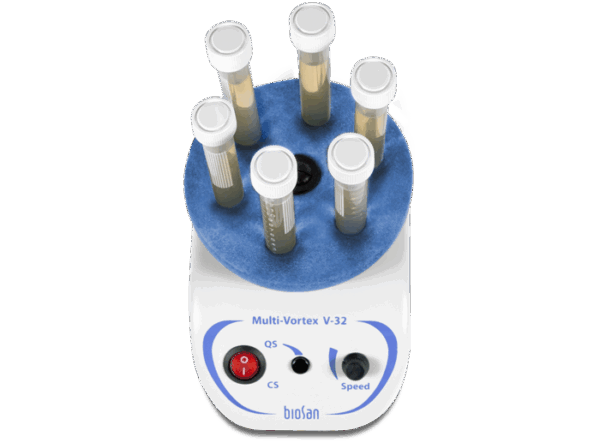

Platform for 6 × 10 ml tubes (max diameter 15 mm).

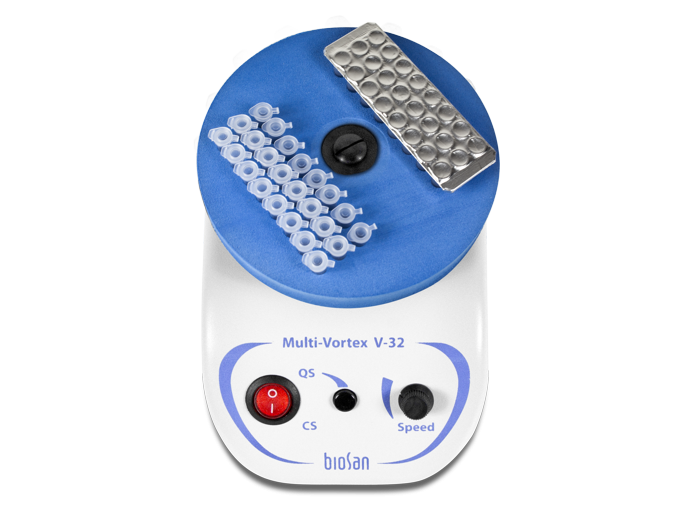

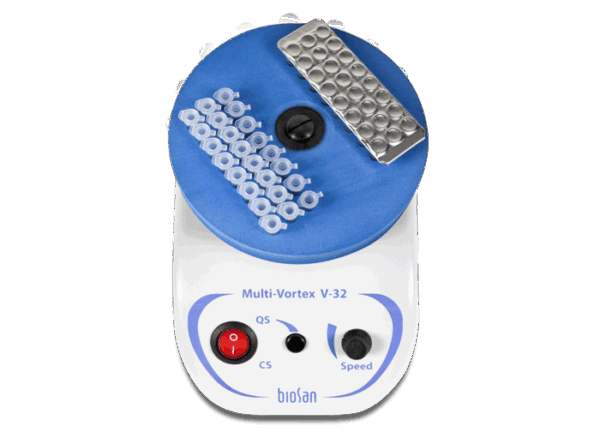

Platform for 6-8 × 0.2 ml strips or 48 tubes of 0.2 ml.

Documentation

SKUProductTypeLanguageFile
V-32V-32BrochureEnglishDownload
V-32V-32BrochureEnglishDownload
V-32V-32BrochureEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 1,5 kg
Dimensions 120 × 180 × 100 mm
Product class

Basic Plus
