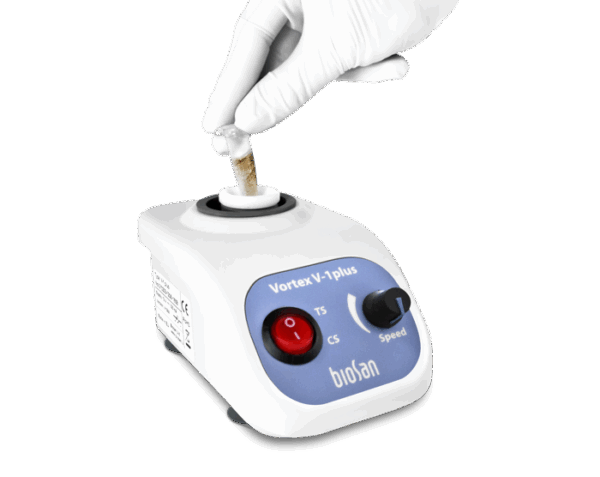

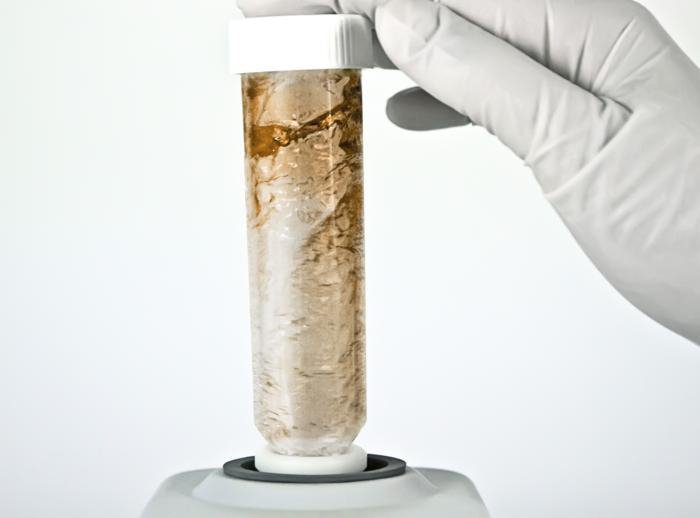

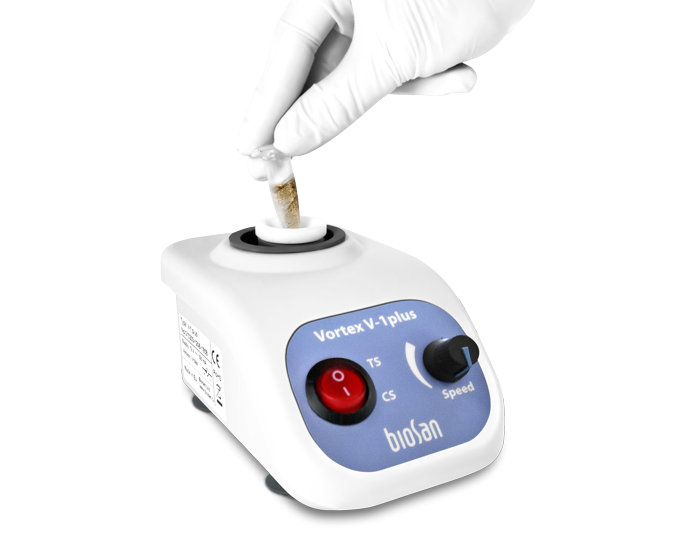

Vortex V-1 plus is an ideal instrument for gentle mixing to vigorous resuspension of cells and biological and chemical liquid components in tubes using eccentric mechanism.
Vortex has two modes:
- Continuous operation;
- Impulse operation (activated by pressing the cap with the tube’s bottom).
| Eccentric mixing principle | + |
|---|---|
| Speed control range | 500-3000 RPM |
| Acceleration time | 2 s |
| Maximum continuous operation time | 24 h |
| Mixing module for tubes | from 0.2 to 50 ml |
| Maximum load | 30 g |
| Orbit | 4 mm |
| Overall dimensions (W×D×H) | 90x150x80 mm |
| Weight | 0.8 kg |
| Input current/power consumption | 12 V, 320 mA / 3.8 W |
| External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| V-1 plus | V-1 plus | Brochure | English | Download |
| V-1 plus | V-1 plus | Declaration of Conformity | English | Download |
| V-1 plus | V-1 plus | User Instructions | English | Download |
General Documents
| Type | Name | Language | File |
|---|---|---|---|
| Catalogue | English | Download |
| Weight | 0,8 kg |
|---|---|
| Dimensions | 90 × 150 × 80 mm |
| Product class | Basic Plus |
