Easy to Install, Ergonomic and Reliable.

Haier Biomedical are pioneers in under-counter pharmacy refrigerator design and manufacturing, offering ultra-low noise system, safety lock, complete alarm system for sample safety and protection.

Product Features

Reliability and Key Features

Energy efficient hydrocarbon (HC) refrigeration system

Permanently lubricated cooling fan for safety and longevity

Forced-air cooling with optimized air distribution system designed to achieve maximum temperature uniformity and stability

Optimized refrigeration system design for more effective cooling and speedy recovery

Temperature variation within ±3°C

Chamber temperature range 2~8°C

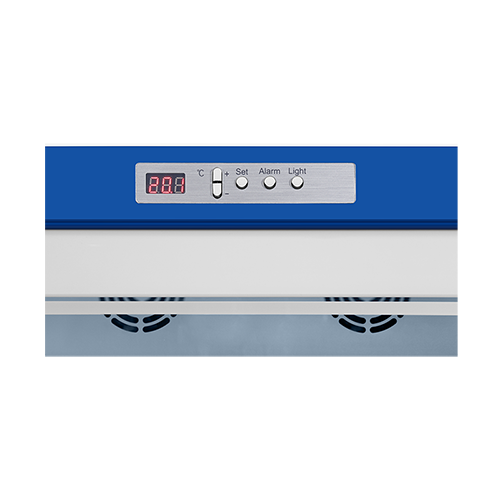

Microprocessor control, digital display and temperature adjustment with an increment of 0.1 °C

Designed for ambient temperature 10~32°C with humidity below 70%

Safety

Equipped with a complete temperature alarm system featuring audible buzzer and visual flashing light

Capable of alerting failures due to high and low temperature, sensor error, door ajar, power failure, and remote alarm interface

Ergonomic Design

Interior LED light

Safety lock to prevent unauthorized access



Model Cabinet Type Capacity (L/Cu.Ft) Power Supply (V/Hz) Display Shelves Temperature

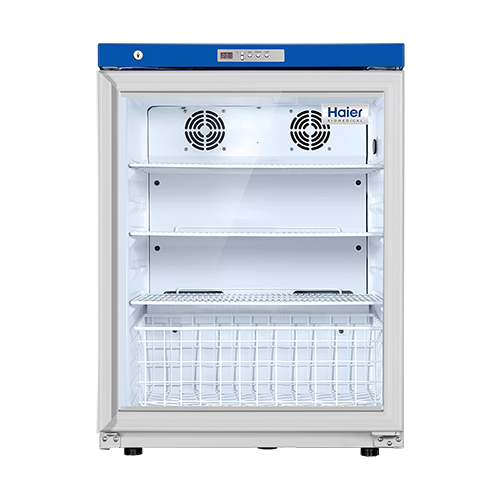

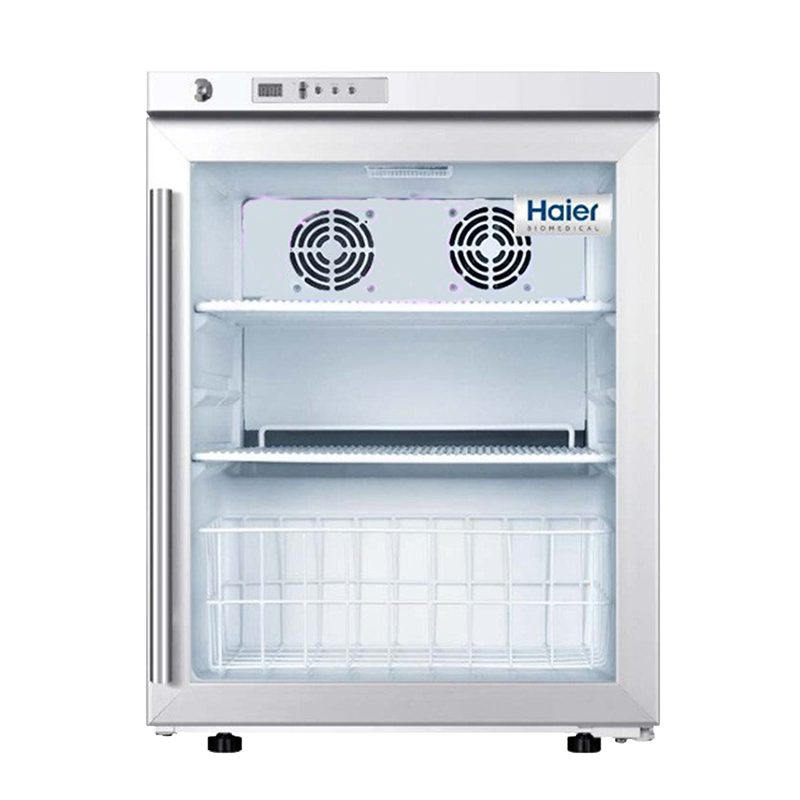

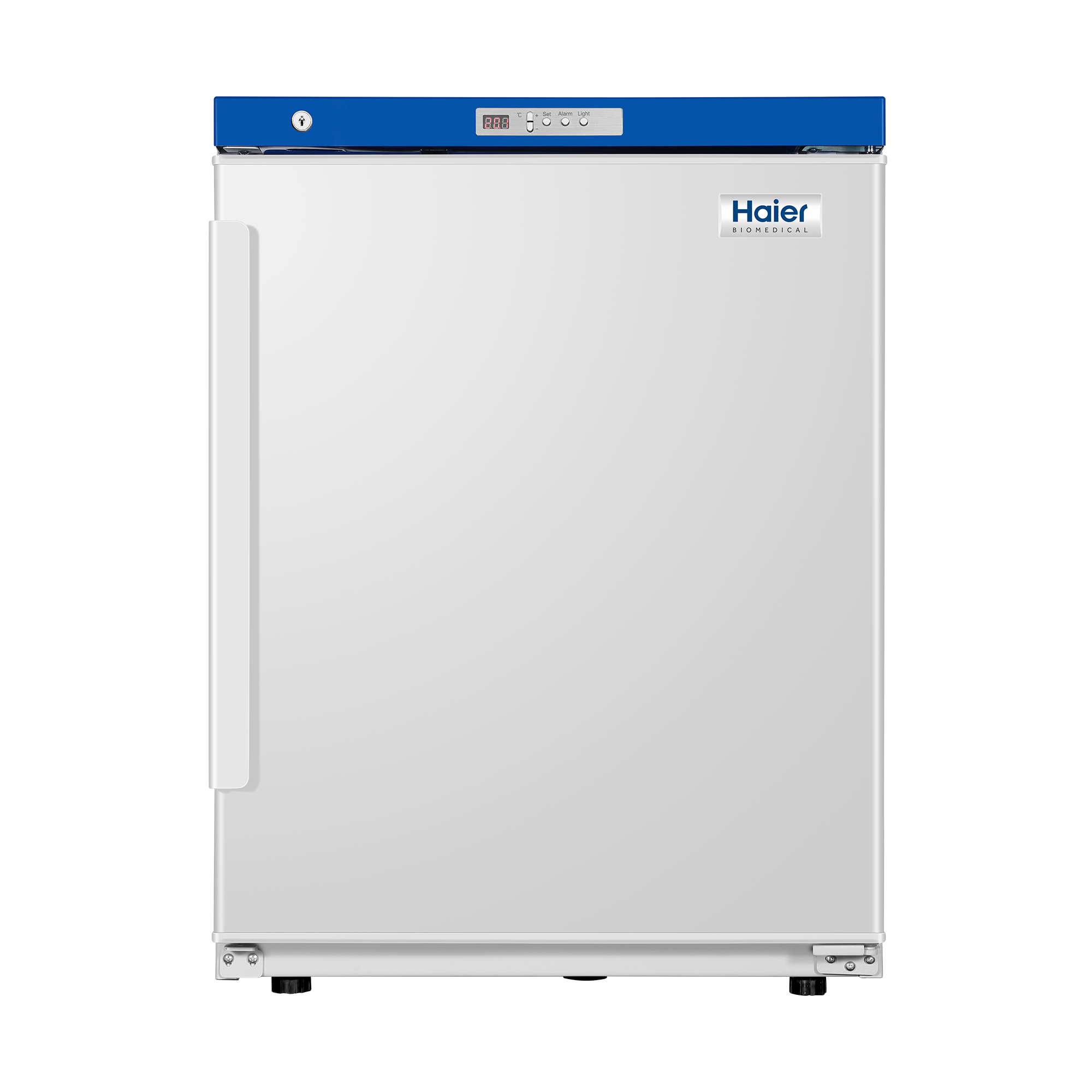

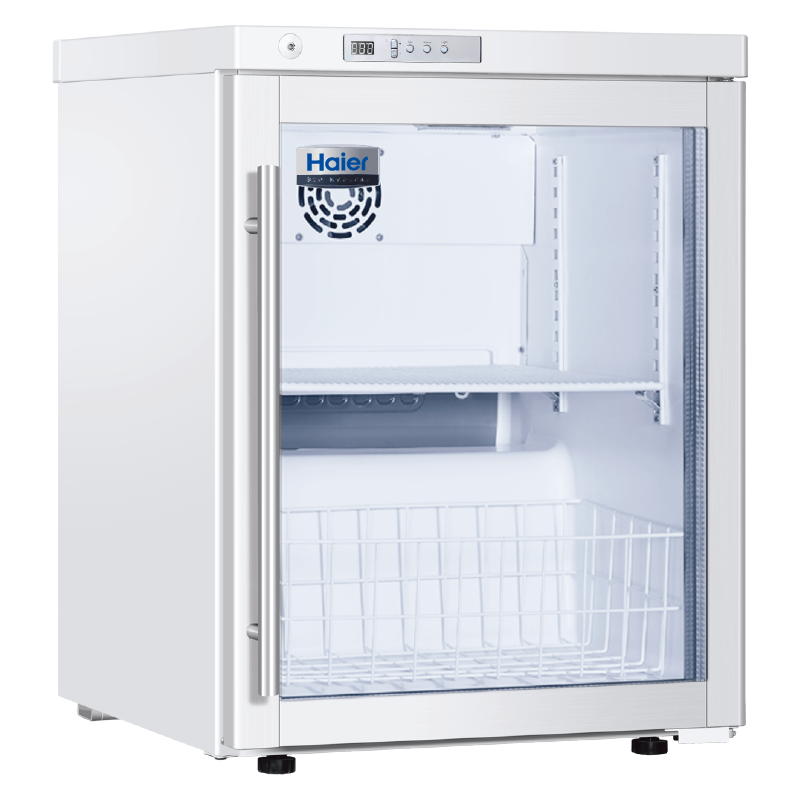

HYC-118 Upright, Single Solid Door 118/4.2 115/60, 220~240/50/60 LED 3 2-8
HYC-118A Upright, Single Glass Door 118/4.2 115/60, 220~240/50/60 LED 3 2-8
HYC-68 Upright, Single Solid Door 68/2.4 115/60, 220~240/50 LED 2 2-8
HYC-68A Upright, Single Glass Door 68/2.4 115/60, 220~240/50 LED 2 2-8

Documentation

SKUProductTypeLanguageFile
HYC-118AHYC-118AFlyerEnglishDownload
HYC-68 68AHYC-68 68AFlyerEnglishDownload
HYC-118HYC-118FlyerEnglishDownload
CatalogueEnglishDownload
Model

HYC-118, HYC-118A, HYC-68, HYC-68A
