Product Features

Large loading capacity

Maximum Capacity: 600 boxes (2 inch boxes with 10*10 configuration) 60,000 samples can be stored

Optional IoT System

The optional IoT monitors the operating status of the equipment in real time. Equipped with multiple alarm functions and a self-diagnostics system to identify and warns users to ensure sample safety

World-leading Energy Saving Refrigeration Technology

Intelligent frequency conversion technology and HC refrigeration system delivers a 50% reduction in energy usage when compared to traditional HFC refrigeration systems

Environmental Protection

Environmentally friendly hydrocarbon refrigerant and foam material LBA

Dual refrigeration system, double safety and optimal reliability

Double independent hydrocarbon refrigeration system design, each system can maintain -80ºC ensuring the safety of stored samples

Low Noise Design

Optimised systems and noise-reducing cabinet design lower noise out to 53dB for a quieter working experience

Adjustable Sample Loading Tray (Optional)

The adjustable height sample load tray provides users with a convenient place to hold samples while opening and accessing storagecompartments

Intelligent Control

10.1-inch high-performance touch screen, sensitive touch operation. Users can check the real-time operating status via IoT

Model Capacity (L/Cu.Ft) Temperature Range (ºC) Power Supply (V/Hz) Exterior Dimensions (W*D*H)(mm) Shelves/ Inner Doors Certification
DW-86L728BPST 728/25.7 -40~-86 100~230/50/60Hz 1046*998*1980 3/4 CE/UL/Energy Star
DW-86L578BPST 578/20.4 -40~-86 100~230/50/60Hz 895*998*1980 3/4 CE/UL/Energy Star
DW-86L828BPST 828/29.2 -40~-86 100~230/50/60Hz 1145*998*1980 3/4 CE/UL/Energy Star

Documentation

SKUProductTypeLanguageFile
FlyerEnglishDownload
BrochureEnglishDownload
Model

DW-86L578BPST, DW-86L728BPST, DW-86L828BPST

Related Products

Super energy-saving technology and precise temperature control. Designed to provide long-term storage for various biological samples and sensitive items to ensure the integrity and stability of precious materials. With its outstanding energy-saving features, it not only reduces electricity consumption but also contributes to a greener environment.

This product has multiple variants. The options may be chosen on the product page

It is suitable for biobanks, vaccination production and transportation users. Long-distance transportation: Satisfies the -80℃ ULT transportation application requirements of 24V(DC) vehicle power supply. Dry ice not required: The cooler maintains the temperature at -80℃ for a long period time. Superior temperature uniformity inside the cabinet. Multiple applications: The cooler can also be used with 220V power supply for long-term storage.

Haier Biomedical Salvum brand of ULT freezers has been designed to deliver energy savings and reduced carbon footprint. This range uses environmentally safe hydrocarbon refrigerants and high efficiency fan motors to maximize the cooling ability of the system and reduce energy consumption. While providing sample safety, the freezer design makes energy savings possible for laboratories.

This product has multiple variants. The options may be chosen on the product page

Suitable for clinical, medical, scientific research, quarantine and other departments to store items under low temperature conditions. Applicable for universities, hospitals, disease prevention and control centres, blood stations, scientific research institutes, electronics and chemical enterprise laboratories and biomedical engineering research institutes. For storage of biological products and biological samples such as red and white blood cells, viruses, bone and bacteria. Also used for electronic devices and other materials used for cryogenic tests.

This product has multiple variants. The options may be chosen on the product page

Water cooled ULT freezers use less energy and heat emissions are reduced by 90%. Suitable for high ambient environments with limited options for air conditioning.

This product has multiple variants. The options may be chosen on the product page

Applicable for products and samples which require strict storage conditions such as viruses, pathogens, red blood cells, white blood cells, skin, bones, bacteria, semen, biological products, electronics and special materials. Suitable for long term storage applications and compliant with typical storage requirements found in hospitals, disease control and prevention centres, scientific research institutions biomedical engineering institutes, agriculture/ fishery companies as well as the electronics and chemical industry.

This product has multiple variants. The options may be chosen on the product page

This product line is designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes and leucocytes. Applications can be found in blood banks, hospitals, epidemic prevention services, research institutes, biological engineering institutes, laboratories in electronic and chemical plants.

This product has multiple variants. The options may be chosen on the product page

It is applicable to products and samples with strict storage requirements, and ideal for long-term storage, meeting the typical storage needs of hospitals, disease control centers, research institutions, and biomedical engineering institutes.

Recently Viewed

Easy to Install, Ergonomic and Reliable. Haier Biomedical are pioneers in under-counter pharmacy refrigerator design and manufacturing, offering ultra-low noise system, safety lock, complete alarm system for sample safety and protection.

This product has multiple variants. The options may be chosen on the product page

Reveal® 3-D for Soy offers results in just 5 minutes and can be used in virtually any environment to screen environmental swabs and clean-in-place rinses. The Reveal 3-D line of food allergen tests kits is uniquely designed to guard against oversaturation and false negative results, with results displayed in three visual lines on the lateral flow test strip. A control line assures the test is working properly, and two other lines outline nondetectable, low, and high levels of soy.

Aminobenzene; Aminophen; Aniline oil; Benzenamine; Benzene,amino; Phenylamine

Reagents

NEOCUPROINE AR

2,9-Dimethyl-1,10-phenanthroline; DMPHEN

6-O-a-D-Galactopyranosyl-D-glucose

Centrifuge Adapters

Adapter set (2 pcs) – AP-384

2 adapters for 384-well plates - made of Ertacetal® C. Autoclavable.

Products Best Selling

Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.

20 × 0.2 ml microtubes + 12 × 1.5 ml microtubes

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

New modular design of laboratory furniture provides flexibility and ease of use.

Contamination is especially problematic in the highly sensitive PCR technique. Originating from aerosolized fragments, contaminant DNA can lead to cross contamination thus resulting in inaccurate data and as a result misinterpreted analysis.

DNA/RNA UV-cleaner box UVC/T-M-AR is designed for clean operations with DNA samples. UV-cleaner box provide protection against contamination.

DNA/RNA UV-cleaner box UVT-B-AR is designed for clean operations with DNA samples. UV-Cabinet provide protection against contamination.

LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.

Products Favourite

The new CAPPSolo single channel pipettes are built to meet the liquid-transfer needs of the modern laboratory. These dependable work-horses are the ideal micropipette for research, clinical and academic laboratories that require great quality without breaking the bank. Here are some brief highlights of what you can expect from these excellent mechanical pipettes.

This product has multiple variants. The options may be chosen on the product page

Applicable for blood stations, hospitals, CDC's, scientific research institutes, chemical industry and other related industries. The -30°C Biomedical Freezer can cryopreserve plasma, biological products, components, materials, and other items that need to be kept at low temperature.

This product has multiple variants. The options may be chosen on the product page

LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.

A-12, adapter for work with tubes which are 12 mm in external diameter.

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.

20 × 0.2 ml microtubes + 12 × 1.5 ml microtubes

Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

This product is used in micro centrifugal scenarios (single tube capacity is less than or equal to 2ml)

This product has multiple variants. The options may be chosen on the product page

Cover of a unique sealed structure design provides a two-way guarantee and ensures the sealing property Conical thickened design at the bottom to increase the maximum centrifugal limit Max. centrifugal force: 7000 xg Tolerable temperature range: -80℃-120℃ Clear scale for accurate and convenient data reading Sterile and RNase, DNase, human DNA and Pyrogen Free

This product has multiple variants. The options may be chosen on the product page

The n-Safe Pro cabinets are designed, to provide superior operator and product protection according to EN-12469 and NSF/ANSI 49 The most versatile and popular model in the range, offering high performance, ergonomic design, quiet operation, and touchscreen. Ideal for routine and research labs.

This product has multiple variants. The options may be chosen on the product page

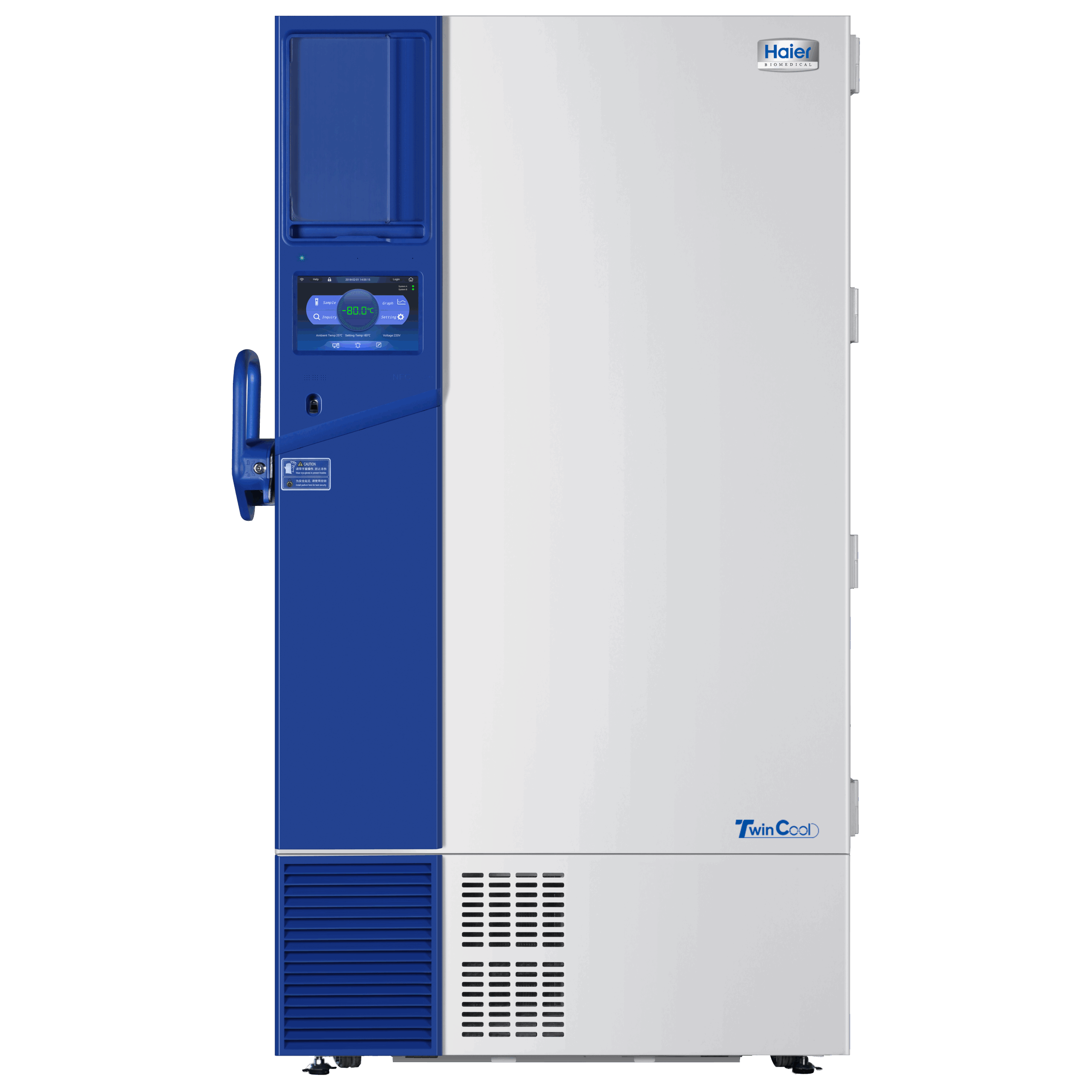

TwinCool Frequency Conversion ULT Freezer
