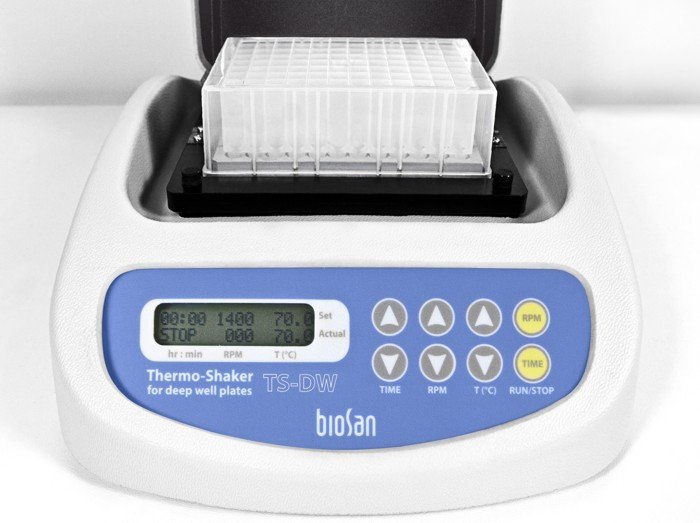

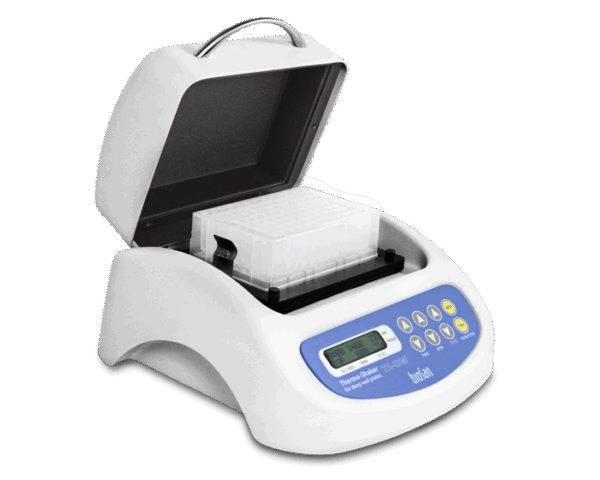

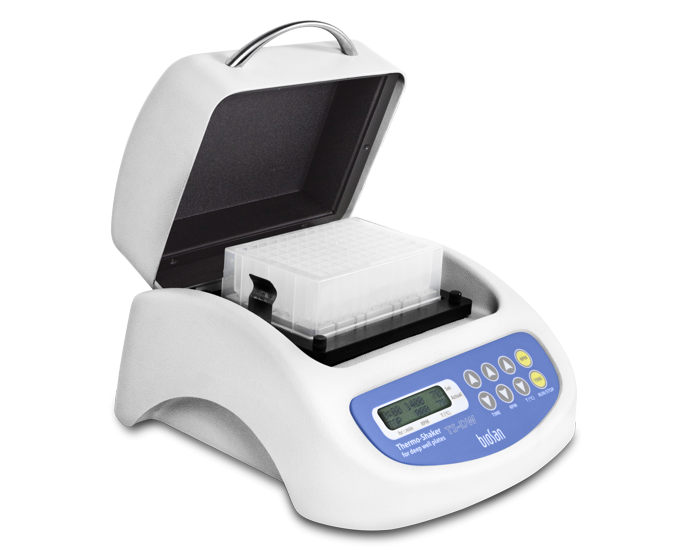

TS-DW Thermo–Shaker is designed for shaking and incubating deep well plates.

A multisystem principle, used in the design of the Thermo-Shaker, allows operating it as 3 independent devices: Incubator, Plate shaker and Thermo–Shaker.

TS-DW provides excellent temperature uniformity across the plate due to patented two-sided heating of the block and the lid, contour heating of the block and close proximity of heating elements to plate walls.

There is a number of interchangeable blocks to suit different plates such as Eppendorf® 96/1000 μl, Sarstedt® Megablock 96/2200 μl,  Porvair® 96/2000 μl, Axygen® 96/2200 μl. Also we can manufacture a customized block on request.

Deep Well Plate Thermo–Shaker provides:

  • Soft or intensive sample shaking
  • Rotation speed regulation, stabilization and indication
  • Even rotation amplitude throughout the Thermo-Shaker platform
  • Exceptional temperature uniformity across the plate
  • Required operation time setting and indication
  • Automatic stopping of the platform movement after expiration of the set time
  • Setting and indication of the required temperature on the platform
  • A variety of changeable blocks that can accommodate most popular deepwell plates
  • Automatic fault diagnostics (temperature sensor, platform heating, lid heating etc.)

Application fields:

  • Сytochemistry — for in situ reactions
  • Immunochemistry — for immunofermentative reactions
  • Biochemistry — for enzyme and protein analysis
  • Molecular biology — for nucleic acid extraction

Separate blocks to accommodate different deepwell plates will be released. For example:

Deep Well Plates NUNC® 96/2000 μl
Deep Well Eppendorf® 96/0.5 ml

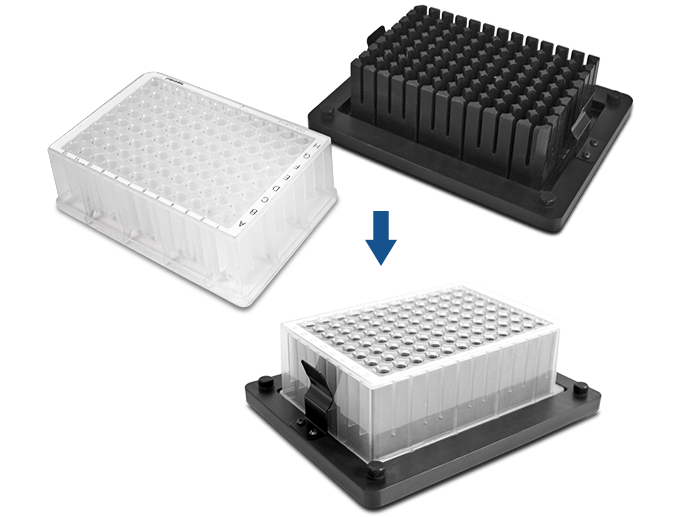

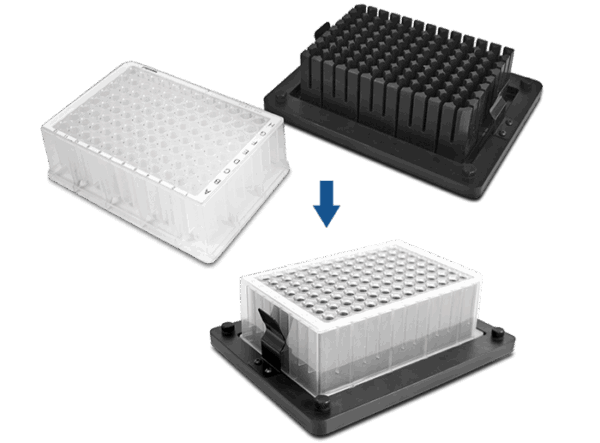

The block for deepwell plate is mountable, thus a custom plate module can be manufactured on request

Temperature Calibration Function

With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of plates from different manufacturers.

Temperature setting range +25°C ... +100°C
Temperature control range 5°C above ambient ... +100°C
Temperature setting resolution 0.1°C
Temperature uniformity at +37°C ±0.1°C*
Temperature accuracy at +37°C ±0.5°C*
Time of platform heating from +25°С to +37°С 6 min*
* for B-2E thermoblock -
Temperature calibration coefficient range 0.936...1.063 (± 0.063)
Speed control range 250–1400 rpm
Digital time setting 1 min–96 hrs (1 min increment)
Timer sound signal +
Orbit 2 mm
Display LCD, 16 x 2 signs
Overall dimensions (W×D×H) 240 x 260 x 160 mm
Weight 5.1 kg
Input current/power consumption 12 V, 4.8 A / 58 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Accessories

Block for one 96-well unskirted, skirted or semi-skirted PCR plate.

Block for one deep-well plate Eppendorf® 96/1000 μl - Cat.No. 0030505204, 0030506200, 0030502205

Block for one deep-well plate Eppendorf® 96/500 μl - Cat.No. 0030501101

Block for one deep-well plate Axygen® 96/2200 μl - Cat.No. P-2ML-SQ-C.

B-06A block for one deep-well plate Axygen® 96/600 μl - Cat.No. P-DW-500C

Block for one deep-well plate Sarstedt® Megablock 96/2200 μl

Block for one Abgene™ Storage Plate 96/800 μl

Block for one deep-well plate Abgene™ 96/1200 μl

Block for one deep-well plate Porvair® 96/2000 μl

Block for one deep-well plate Riplate® 96/1000 μl

Block for one deep-well plate Riplate® 96/2000 μl

Block for one deep-well plate PlateOne® 96/500 μl

Block for one deep-well plate PlateOne® 96/2000 μl

Block for one deep-well plate Nunc® 96/2000 μl

Block for one deep-well plate Starlab® 96/1200 μl

Block for one deep-well plate KingFisher™ Deepwell 96 Plate

Block for one deep-well plate Slicprepᵀᴹ 96

Block for one deep-well plate PowerMag® Glass Bead Plate 96.

Block for one deep-well plate cluster SSI Bio.

B-2V block for one deep-well plate Vector-Best® 96/1000 μl.

Documentation

SKUProductTypeLanguageFile
TS-DWTS-DWDeclaration of ConformityEnglishDownload
TS-DWTS-DWBrochureEnglishDownload
New B-PCR block launch brochureNew B-PCR block launch brochureFlyerEnglishDownload
TS-DWTS-DWUser ManualEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 5,1 kg
Dimensions 240 × 260 × 160 mm
Product class

Premium
