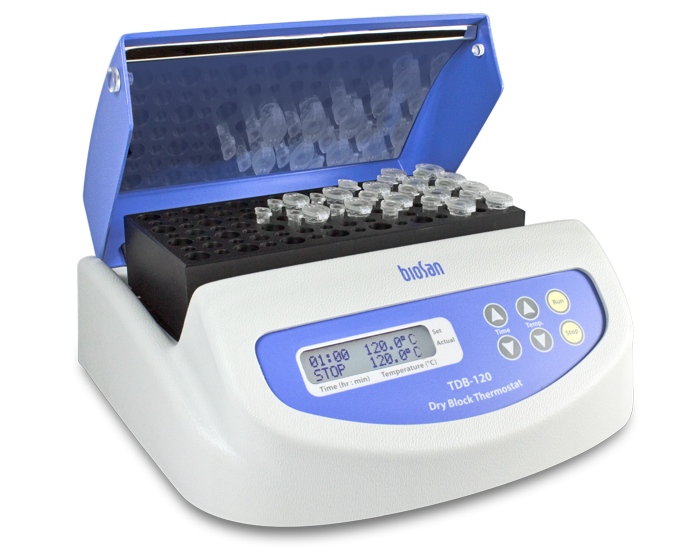

TDB-120 is a traditional Biosan’s dry block thermostat for laboratory analysis. Thermostat is designed for maintaining constant temperature of samples in tubes inserted in the aluminium block sockets. Unprecedented high precision and uniformity of temperature over the block. TDB-120 is widely used for PCR–analysis.

Microprocessor controlled temperature and time. Simultaneous indication of set and actual temperature and time.

Blocks (built in) specifications:

Two models are available offering a choice of tube configurations to meet the needs of many standard laboratory procedures:

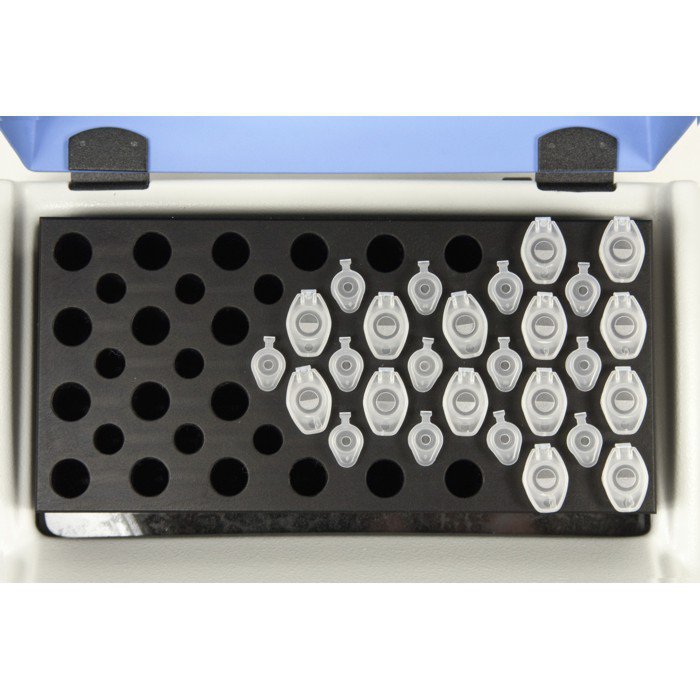

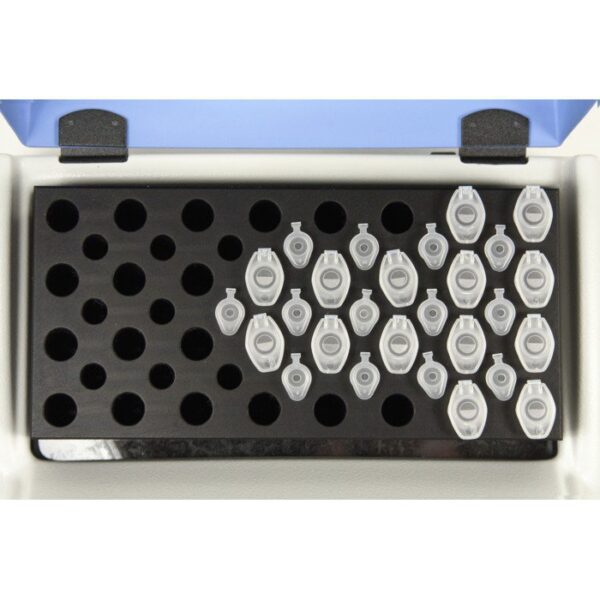

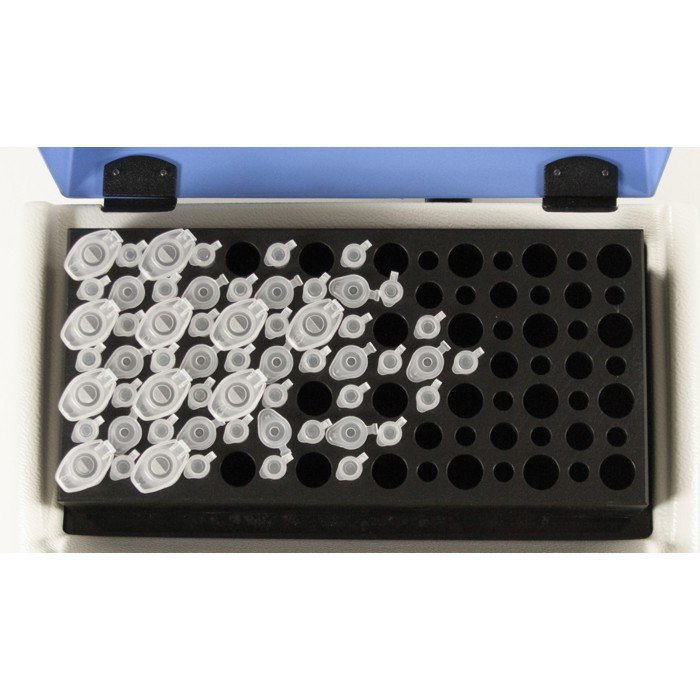

Block A-103
21 × 0.5 ml + 32 × 1.5 ml + 52 × 0.2 ml microtubes

Block A-53
21 × 0.5 ml + 32 × 1.5 ml microtubes

Temperature setting range +25°C ... +120°C
Temperature control range 5°C above ambient ... +120°C
Temperature setting resolution 0.1°C
Temperature stability at +37°C ±0.1°C
Temperature uniformity at +37°C ±0.1°C
Temperature calibration coefficient range 0.968...1.031 (± 0.031)
Digital time setting 1 min–96 hrs / non–stop (increment 1 min)
Timer sound signal +
Display LCD, 2х16 signs
Overall dimensions (W×D×H) 230 × 210 × 110 mm
Weight 2.8 kg
Power consumption (230 V) 200 W (870 mA)
Nominal operating voltage 230 V, 50/60 Hz or 120 V, 50/60 Hz

Documentation

SKUProductTypeLanguageFile
TDB-120TDB-120BrochureEnglishDownload
TDB-120TDB-120Declaration of ConformityEnglishDownload
TDB-120TDB-120User InstructionsEnglishDownload
Weight 2,8 kg
Dimensions 230 × 210 × 110 mm
Product class

Basic Plus

Block

With block A-103, With block A-53
