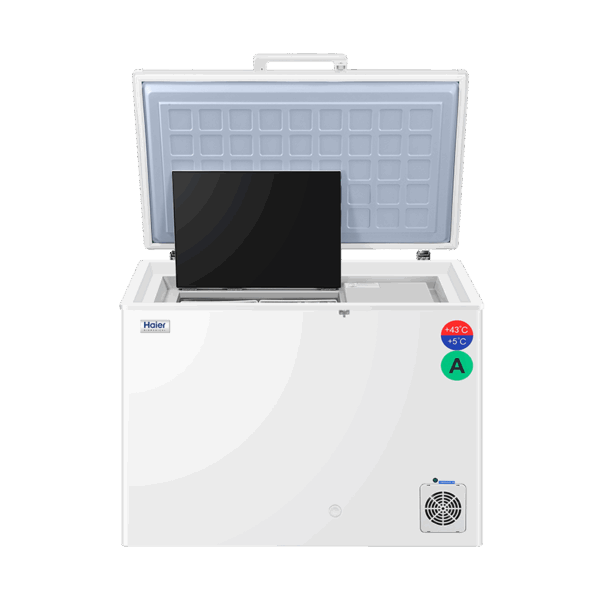

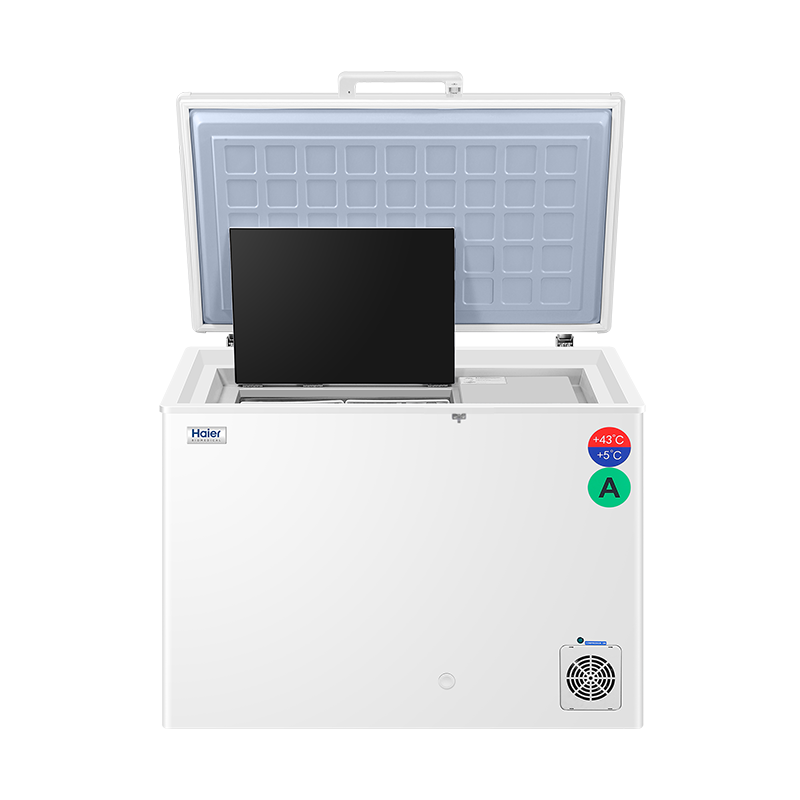

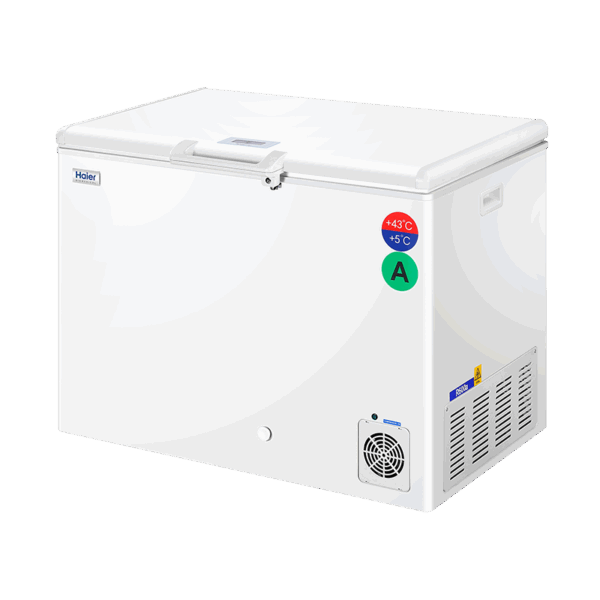

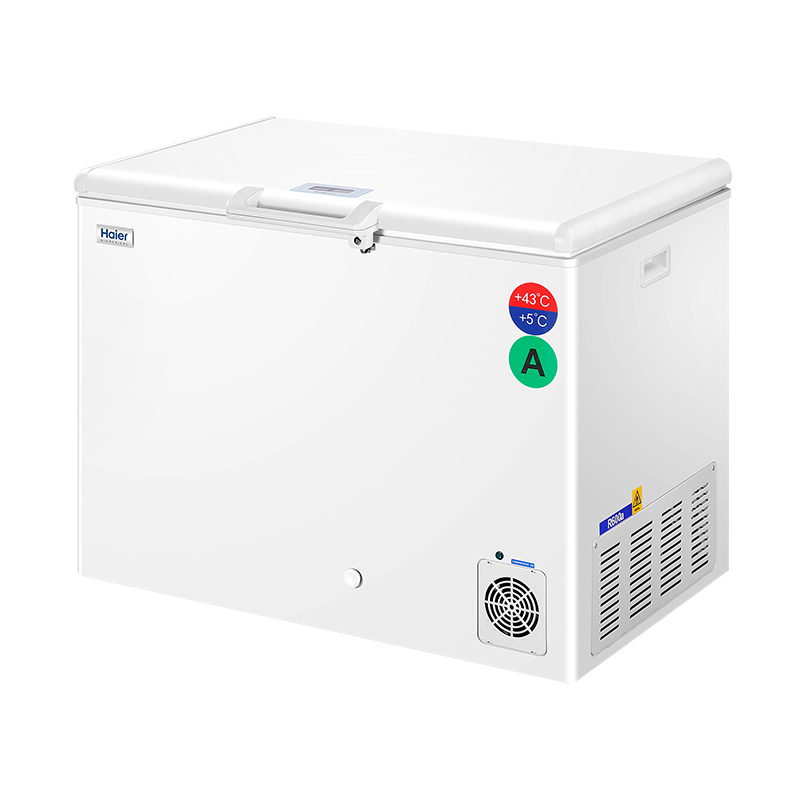

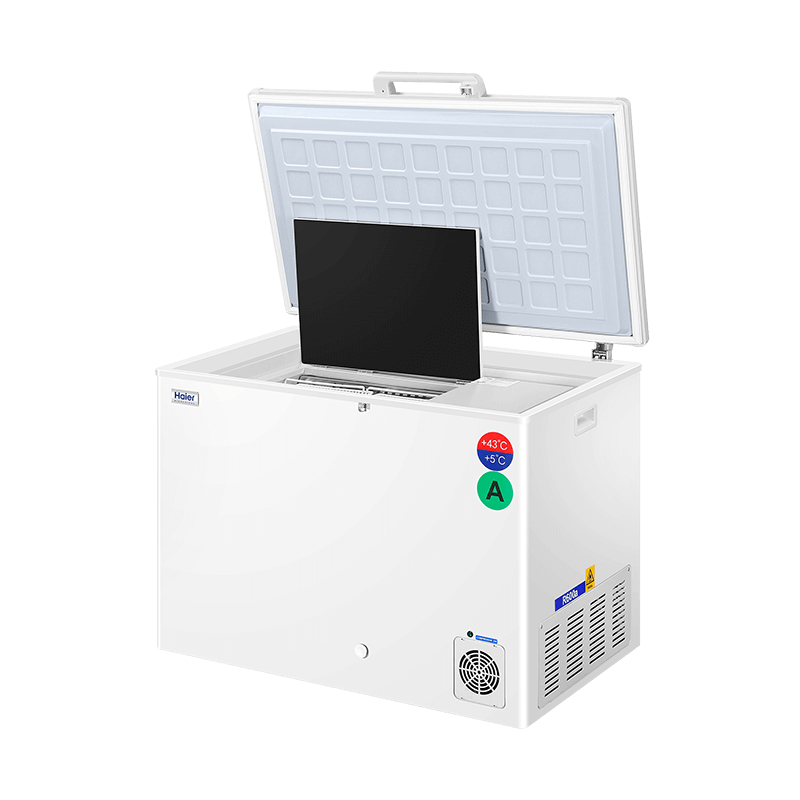

This product is designed to store vaccine, reagents, etc. in remote, sunny regions liable to power shortages.

Product Features

Advantages

Solar direct drive, a greener and more environment-friendly technology than traditional refrigeration

Microprocessor control, solar powered display panel shows interior temperature

Patented technology maintains interior temperature, with longer holding times when power is off

Cooling chamber meets the A level WHO requirements for anti-freezing protection

Patented technology ensures better temperature uniformity

Inner lid configuration offers additional temperature protection

Wide working ambient range will function normally within an ambient range of 5-43°C

Ergonomic Design

Lockable to ensure no unauthorized access

Equipped with USB charging socket, for charging a mobile phone, etc

Quick and efficient sample retrieval, equipped with easy-to-reach storage baskets

Low noise

Corrosion-resistant and ease to clean aluminium interior

Equipped with handles on both sides of the cabinet, making it easier to move around

Model Cabinet Type Power Supply (V/Hz) Gross Volume (L/Cu.Ft) Holdover Time at 43℃ Temperature Vaccine Storage Capacity (L/Cu.Ft)

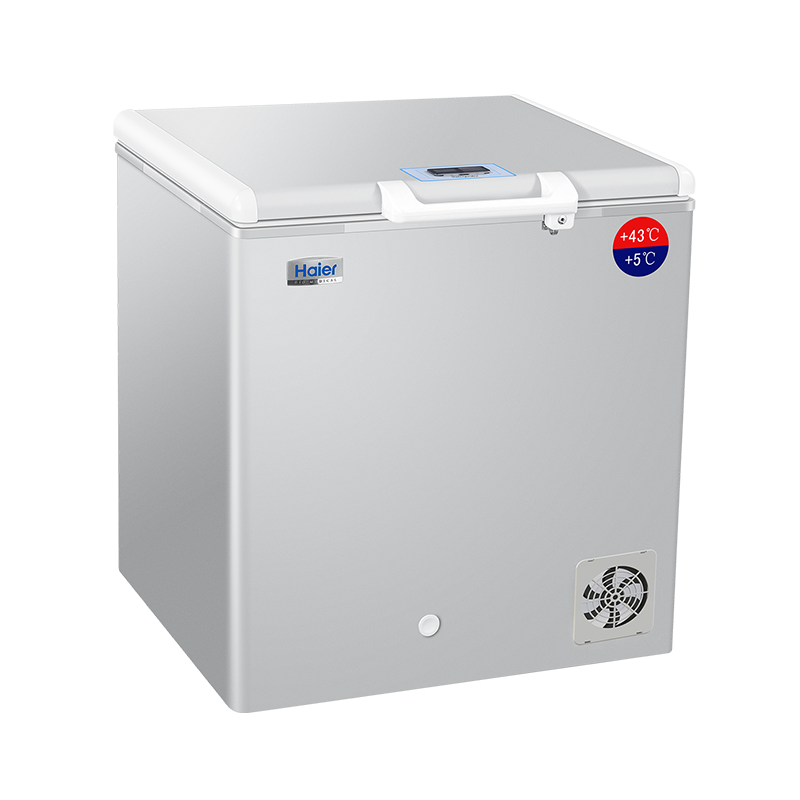

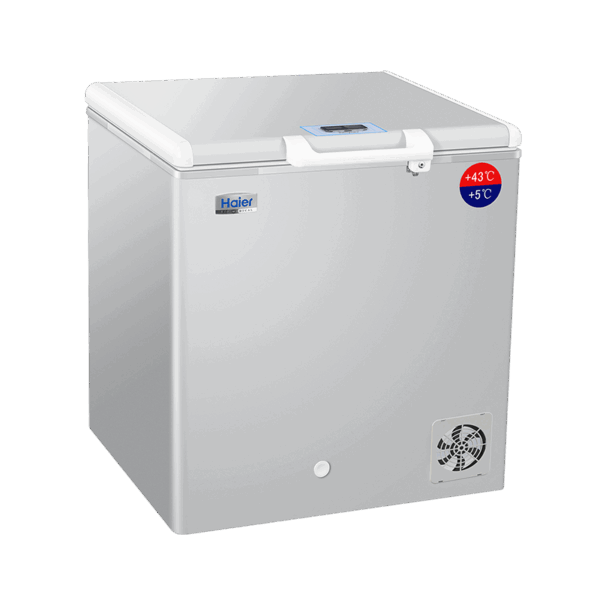

HTC-40 Chest Solar Power 40/1.4 122hrs18mins 2-8 22.5/0.8

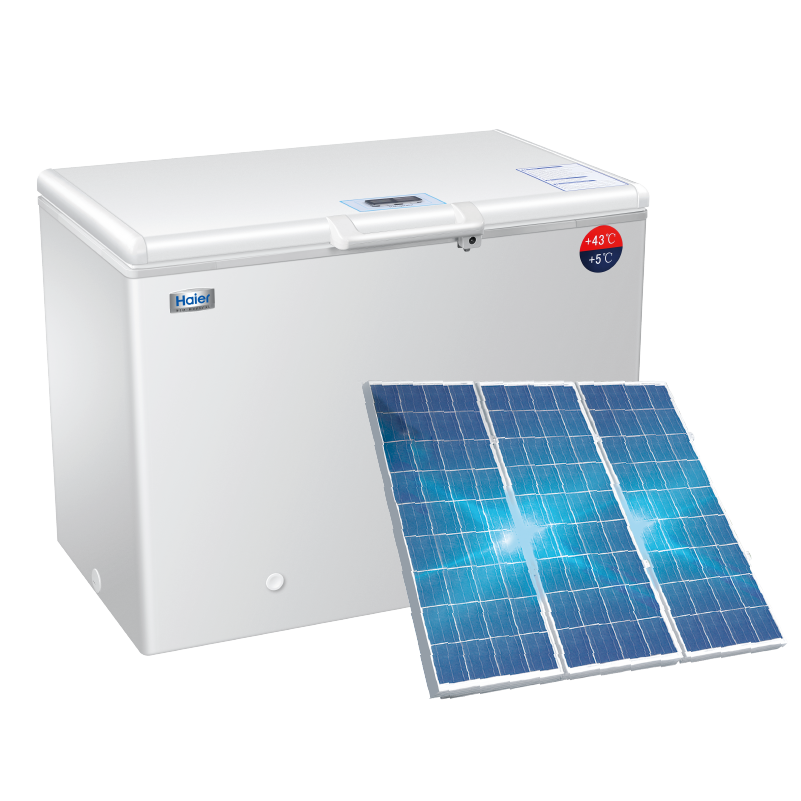

HTC-110 Chest Solar Power 110/3.88 106hrs17mins 2-8 59/2.08
HTC-112 Chest Solar Power 110/3.88 / 2-8 75/2.65

Documentation

SKUProductTypeLanguageFile
FlyerEnglishDownload
BrochureEnglishDownload
Model

HTC-110, HTC-112, HTC-40
