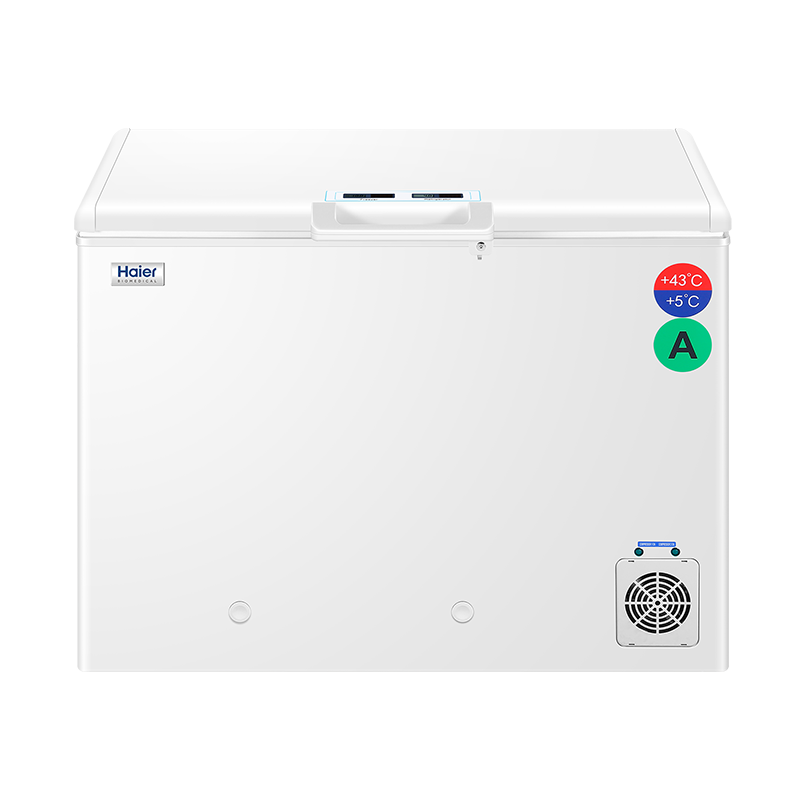

Designed to store vaccine, reagents, etc. in remote, sunny regions liable to power shortages.The combined refrigerator with freezer can be used to store vaccines, reagents and freeze ice packs. Suitable for remote and sunny regions where power shortages are common.
Product Features
Ergonomic Design
Lockable to ensure no unauthorized access
Equipped with USB charging socket, for charging a mobile phone, etc

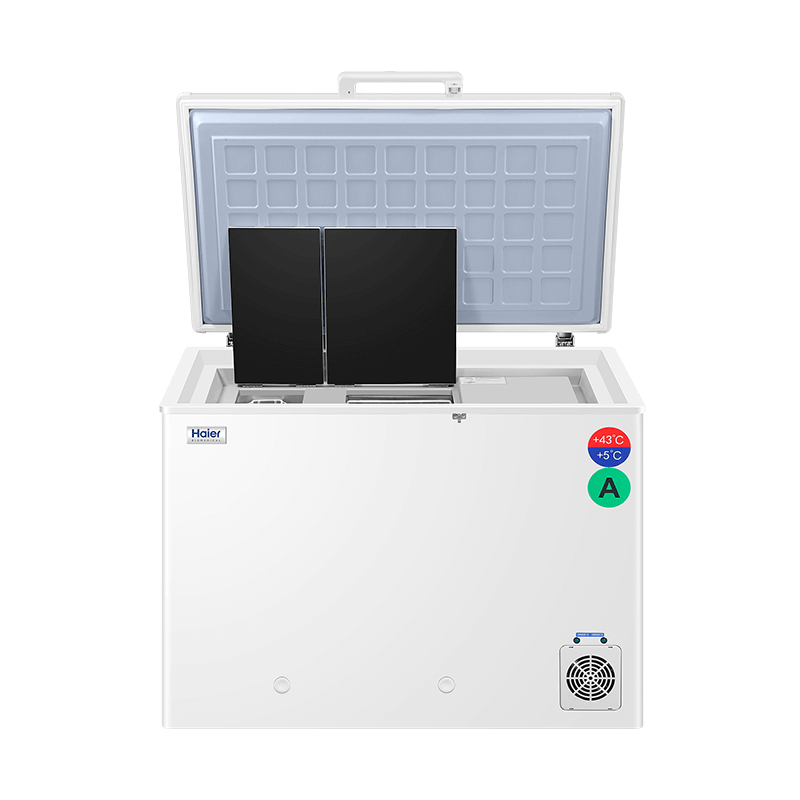

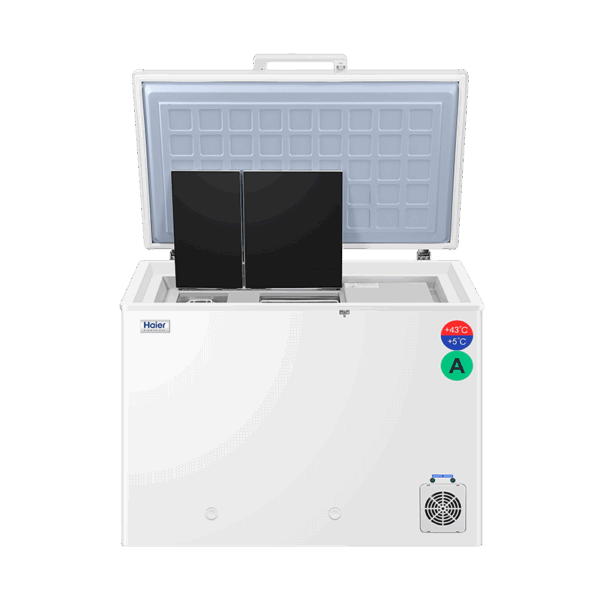

Quick and efficient sample retrieval, equipped with easy-to-reach storage baskets
Low noise
Corrosion-resistant and easy to clean aluminium interior

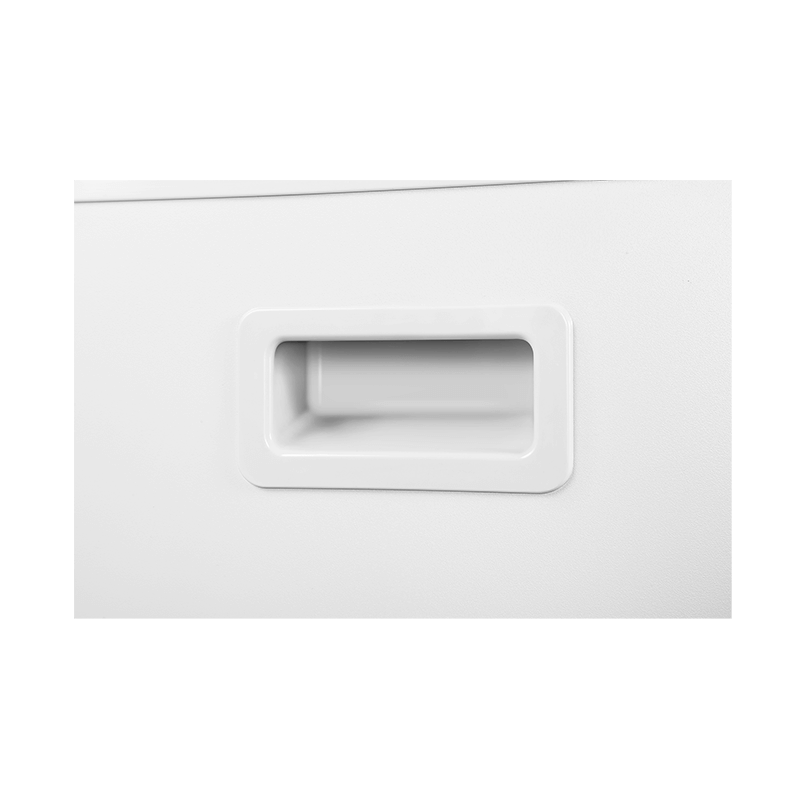

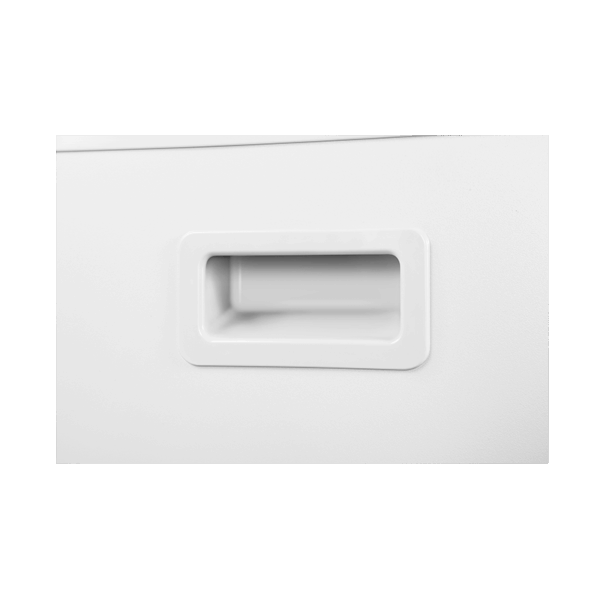

Equipped with handles on both sides of the cabinet, making it easier to move around
Advantages

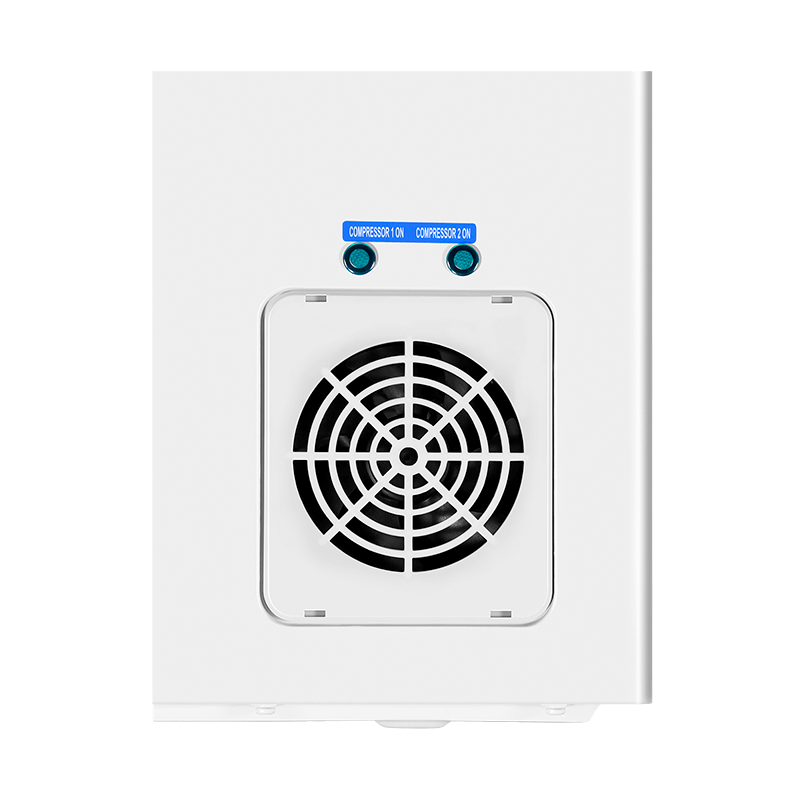

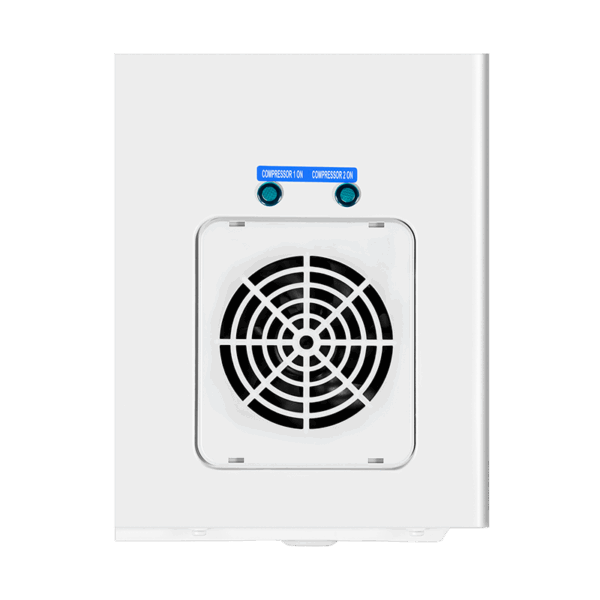

The refrigerating chamber and freezing chamber both have separate refrigeration systems; to ensure safe vaccine storage
Solar direct drive is a greener and environment-friendly technology compared with traditional refrigeration

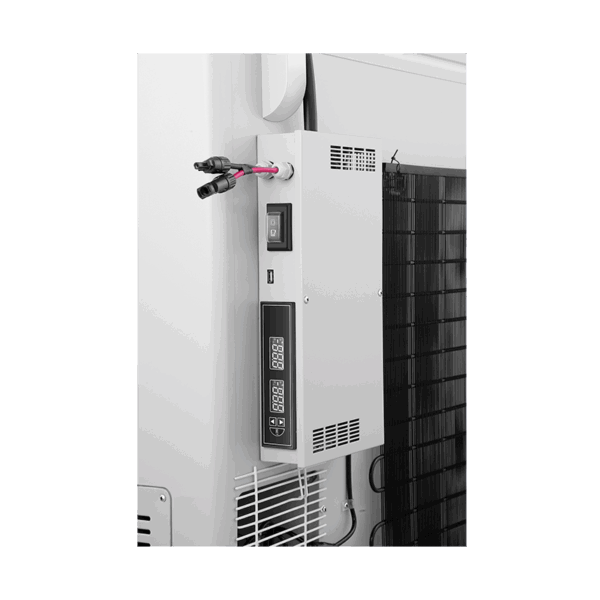

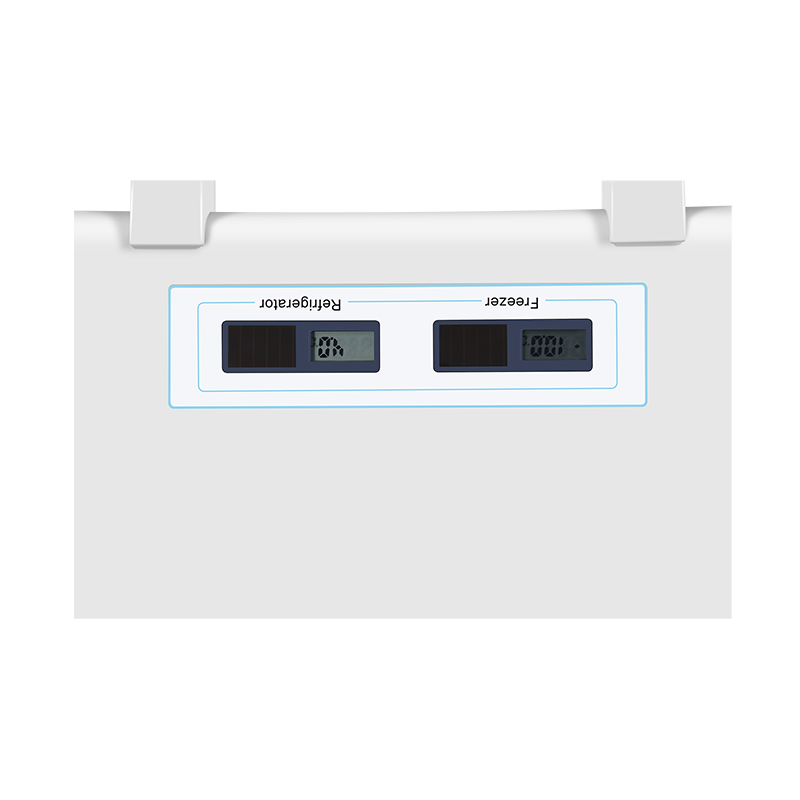

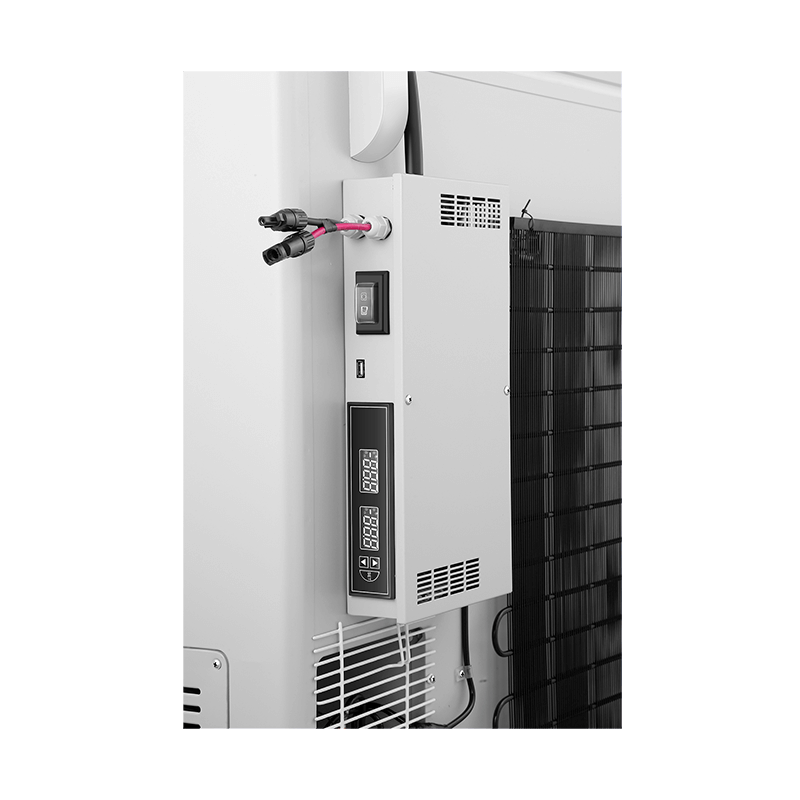

Microprocessor control, solar powered display panel shows refrigerator and freezer interior temperature, refrigerator temperature range is 2~8°C, freezer temperature is less than -10°C
Patented technology within the cooling chamber maintains the interior temperature, to ensure longer holding times when powered off
Cooling chamber meets the A level WHO requirements for anti-freezing protection
Patented technology, better temperature uniformity
Wide working ambient range will function normally within an ambient range of 5~43°C
| Model | Cabinet Type | Gross Volume (L/Cu.Ft) | Holdover Time at 43℃ | Temperature | Vaccine Storage Capacity (L/Cu.Ft) | Power Supply (V/Hz) |
| HTCD-90 | Chest | 90/3.2 | 137hrs47mins | 2-8,＜-10 | 37.5/1.3 | 24/6(V/A) |
