• Results in just 5 minutes
  • Easy-to-use lateral flow test strip — no equipment needed

Materials Provided

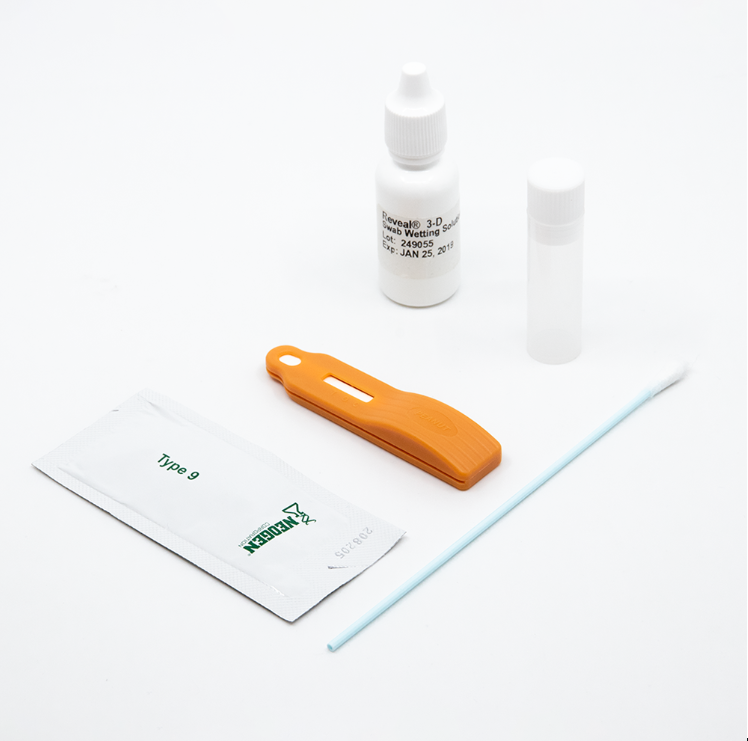

The Reveal 3-D for Peanut kit contains the following:

  1. 1 foil pouch, containing 10 orange Reveal 3-D Peanut Test devices
  2. 10 bottles or sachets containing Type 9 Extraction Buffer
  3. 10 sample tubes and caps
  4. 10 individually packaged, sterile swabs with break-off tips
  5. 1 bottle of swab wetting solution

Materials Required But Not Provided

The extraction of food samples requires the following:

  1. 3-D Food Buffer (Item Number 8504)
  2. Graduated 50 mL polypropylene test tubes (Item Number 9381)
Specifications
Brand Reveal®
Analyte Peanut
Platform Lateral Flow
Result Type Qualitative
Approvals AOAC-RI 111901
Limit of Detection Screens samples at 1.3 ppm peanut protein (5 ppm total peanut). Screens samples at 3-4 µg/100 cm2 peanut.
Testing Time 5.00
Quantity per Package 10 tests
Package Weight 0.50 lb

Documentation

SKUProductTypeLanguageFile
901041LReveal® 3-D for PeanutMaterial Safety Data SheetEnglishDownload
901041LReveal® 3-D for PeanutUser InstructionsEnglishDownload
901041LReveal® 3-D for PeanutUser ManualEnglishDownload

Related Products

Veratox® for Mustard Allergen is used for the quantitative analysis of mustard proteins in food products such as spices, sauces, dressings, meats and clean-in-place rinses. Can also be used to screen environmental swabs.

Veratox® for Sesame is used for the quantitative analysis of sesame residue in food products such as spices, bakery products, cereal products, and clean-in-place rinses. It can also be used to screen environmental swabs.

Veratox® for Crustacea Allergen is used for the quantitative analysis of crustacea proteins in food products, ingredients and clean-in-place rinses. Can also be used to screen environmental swabs.

The Soy Protein Rapid kit is a qualitative immunochromatographic lateral flow test designed for screening for the presence of soy protein residues in food products, ingredients, clean in place (CIP) final rinse water and environmental swabs. A control line assures the test is working properly, and the other two lines outline nondetectable, low, and high levels of soy protein.

Reveal® 3-D for Coconut offers results in just 5 minutes and can be used in virtually any environment to screen for coconut in liquid products (like UHT beverages, juices, drink flavours, etc.), clean-in-place rinses and environmental surfaces. The Reveal 3-D line of food allergen tests kits is uniquely designed to guard against over-saturation and false negative results, with results displayed in three visual lines on the lateral flow test strip. A control line assures the test is working properly, and two other lines outline non-detectable, low, and high levels of coconut.

Reveal® 3-D for Hazelnut offers results in just 5 minutes and can be used in virtually any environment to screen environmental swabs and clean-in-place rinses. The Reveal 3-D line of food allergen tests kits is uniquely designed to guard against oversaturation and false negative results, with results displayed in three visual lines on the lateral flow test strip. A control line assures the test is working properly, and two other lines outline nondetectable, low, and high levels of hazelnut.

The Peanut Protein Rapid kit is a qualitative immunochromatographic lateral flow test designed for screening for the presence of peanut protein residues in food products, ingredients, clean in place (CIP) final rinse water and environmental swabs. A control line assures the test is working properly, and the other two lines outline nondetectable, low, and high levels of peanut protein.

Veratox for Total Milk Allergen is used for the quantitative analysis of milk residue in food products and clean-in-place rinses. Can also be used to screen environmental swabs.

Veratox® for Soy Allergen is used for the quantitative analysis of soy residue in food products such as cookies, crackers, granola/power bars, ice cream, salad dressings, cereal, liquid products (e.g., juices and milk) and clean-in-place rinses. Can also be used to screen environmental swabs.

The Milk Protein Rapid kit is a qualitative immunochromatographic lateral flow test designed for screening for the presence of milk protein residues in food products, ingredients, clean in place (CIP) final rinse water and environmental swabs. A control line assures the test is working properly, and the other two lines outline nondetectable, low, and high levels of milk protein.

Reveal 3-D for Gluten is Neogen’s new lateral flow gluten test that streamlines qualitative gluten testing and optimizes the users’ experience. This test offers a new testing method for measuring gluten content in both food products and ingredients. This test standardizes the test procedure into a simpler, easy to follow format, which facilitates your training and your process. This test also standardizes the detection limit of gluten, allowing for increased consistency. Combined with our industry-leading time to result, these enhancements allow for real-time decision making and rapid turnaround of product.

The Egg White Protein ELISA Kit is a microwell sandwich ELISA, used for the quantitative analysis of low levels of egg white residues in food products, ingredients, clean in place (CIP) rinses and environmental swabs in a 96 well format. The quantity of protein in the sample can be extrapolated from the standard curve, constructed from standards of know concentration, and adjusted to consider the sample dilution.

Recently Viewed

Products Best Selling

Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.

20 × 0.2 ml microtubes + 12 × 1.5 ml microtubes

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

New modular design of laboratory furniture provides flexibility and ease of use.

Contamination is especially problematic in the highly sensitive PCR technique. Originating from aerosolized fragments, contaminant DNA can lead to cross contamination thus resulting in inaccurate data and as a result misinterpreted analysis.

DNA/RNA UV-cleaner box UVC/T-M-AR is designed for clean operations with DNA samples. UV-cleaner box provide protection against contamination.

DNA/RNA UV-cleaner box UVT-B-AR is designed for clean operations with DNA samples. UV-Cabinet provide protection against contamination.

LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.

Products Favourite

The new CAPPSolo single channel pipettes are built to meet the liquid-transfer needs of the modern laboratory. These dependable work-horses are the ideal micropipette for research, clinical and academic laboratories that require great quality without breaking the bank. Here are some brief highlights of what you can expect from these excellent mechanical pipettes.

This product has multiple variants. The options may be chosen on the product page

Applicable for blood stations, hospitals, CDC's, scientific research institutes, chemical industry and other related industries. The -30°C Biomedical Freezer can cryopreserve plasma, biological products, components, materials, and other items that need to be kept at low temperature.

This product has multiple variants. The options may be chosen on the product page

LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.

A-12, adapter for work with tubes which are 12 mm in external diameter.

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.

20 × 0.2 ml microtubes + 12 × 1.5 ml microtubes

Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

This product is used in micro centrifugal scenarios (single tube capacity is less than or equal to 2ml)

This product has multiple variants. The options may be chosen on the product page

Cover of a unique sealed structure design provides a two-way guarantee and ensures the sealing property Conical thickened design at the bottom to increase the maximum centrifugal limit Max. centrifugal force: 7000 xg Tolerable temperature range: -80℃-120℃ Clear scale for accurate and convenient data reading Sterile and RNase, DNase, human DNA and Pyrogen Free

This product has multiple variants. The options may be chosen on the product page

The n-Safe Pro cabinets are designed, to provide superior operator and product protection according to EN-12469 and NSF/ANSI 49 The most versatile and popular model in the range, offering high performance, ergonomic design, quiet operation, and touchscreen. Ideal for routine and research labs.

This product has multiple variants. The options may be chosen on the product page

Reveal® 3-D for Peanut

SKU: 901041L Category: Brand:

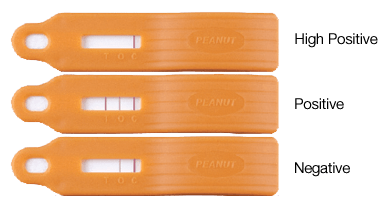

Reveal® 3-D for Peanut offers results in just 5 minutes and can be used in virtually any environment to screen environmental swabs and clean-in-place rinses. The Reveal 3-D line of food allergen tests kits is uniquely designed to guard against oversaturation and false negative results, with results displayed in three visual lines on the lateral flow test strip. A control line assures the test is working properly, and two other lines outline nondetectable, low, and high levels of peanut.
