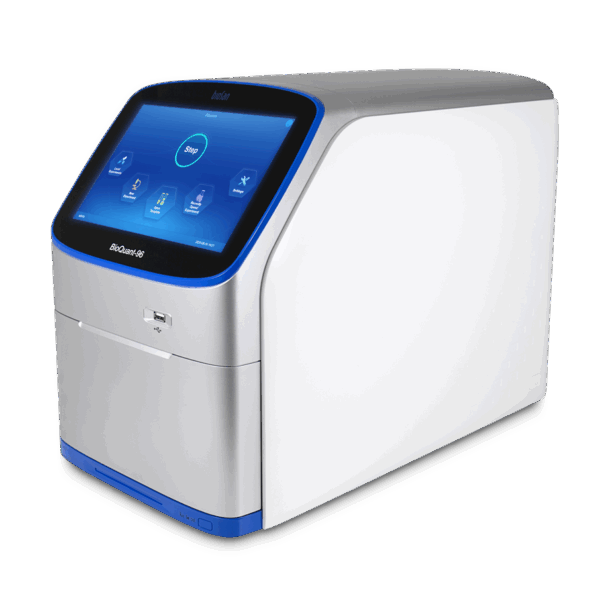

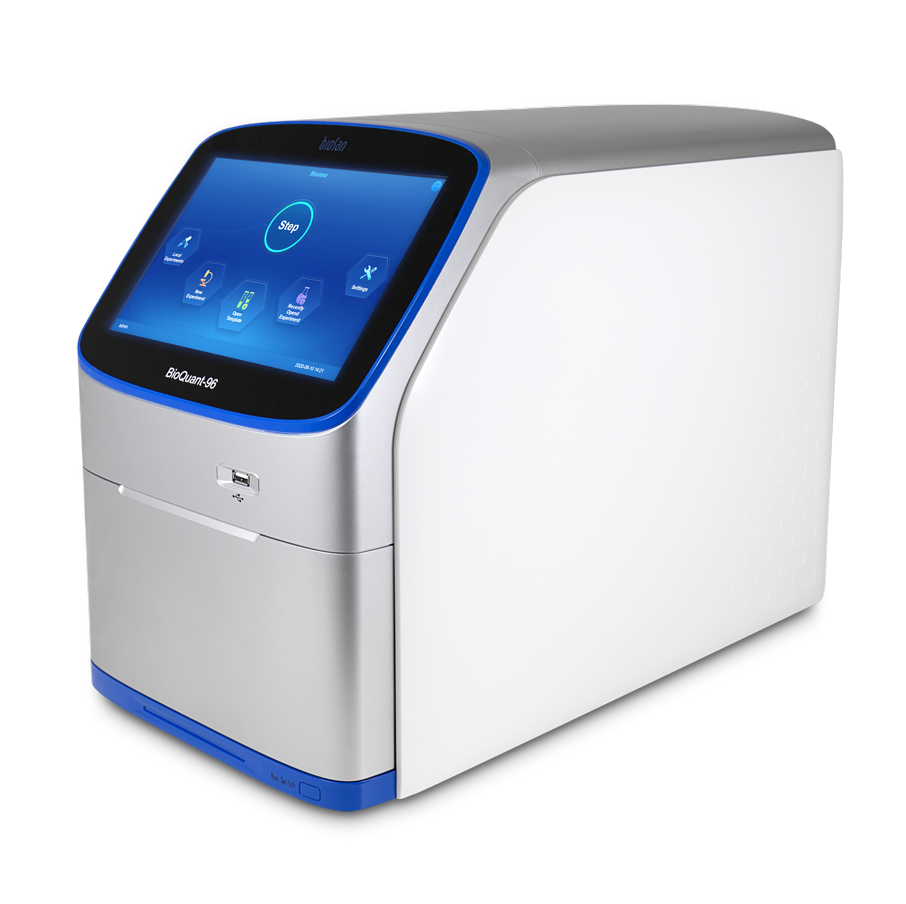

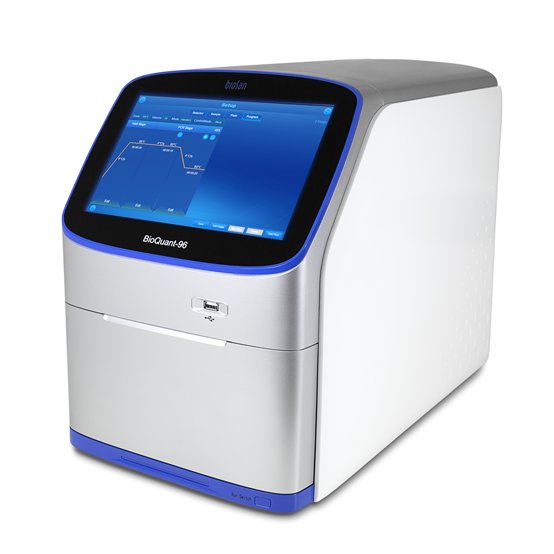

BioQuant-96 is the newest product of Biosan Molecular diagnostic product family.

It has adopted innovative thermoelectric refrigeration technology, brand-new light source and light path design. Detection from the top allows using different consumables – 0,2 tubes, 8-tube strips and semi-skirted and non-skirted 96-well PCR plates. The unique constant current power and 6-zone independent temperature control method ensure more rapid, correct and stable fluorescence quantitative analysis, while maintaining its excellent performance in lowest possible energy consumption.

Device is available in 5-channel configuration. Meanwhile, it has been added with functions including independent temperature control, low temperature storage of sample at 4℃ and FAST mode for more faster cycling (confirm reagent compatibility with fast mode).

BioQuant-96 is comprehensively realizing automatic gain setting and improving user experience.

Specification:

Sample capacity 0.2ml single tube (transparent cap), 96×0.2(0.1)ml Plate (transparent cap), 8-strip tubes (transparent cap)
Dynamic range 1~10^10 copies
Excitation wavelength 300-800 nm
Emission wavelength 500-800 nm
Channels 5
Temperature setting range 4 ~99.9°C (increment: 0.1°C)
Heating/cooling rate Max 6.0 °C/s / 5.5 °C/s
Temperature accuracy ≤±0.1°C
Temperature fluctuation ≤±0.1°C
Temperature uniformity ≤±0.3°C
Temperature control mode Block/6-zone gradient
Sample volume 1 ~ 100 μl
Gradient temperature range Stable and accurate gradient functions of 1 ~ 36°C ensure optimized PCR conditions
Hot-lid temperature range 30 ~110°C (adjustable default: 105°C, Automatic Hot-lid)
Repeatability 5%
Scan mode Full plate simultaneously
Program Max. 20 segments for each program, max. 99 cycles
Continuous operation +
Scan period 5.5 s
Software BioQuant-96 Software
Operating system Windows 7/8/10/11
Software required Microsoft Excel
Minimum PC requirements Built-in touchscreen PC / Memory: 512MB, Hard Disk:10GB, CPU: Pentium® 4, Virtual Memory: ≥1000MB
Nominal operating voltage 100-240V; ~50/60Hz
Power consumption 1000 VA
Dimensions (W×D×H) 490×290×391 mm
Number of sockets USB adapter, Bluetooth adapter
Interface WIN 10 on built-in touchscreen PC
Dimensions 490 × 290 × 391 mm
