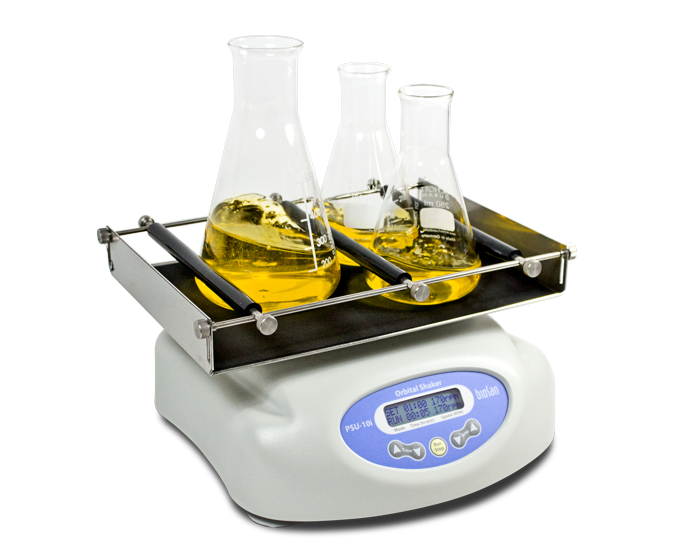

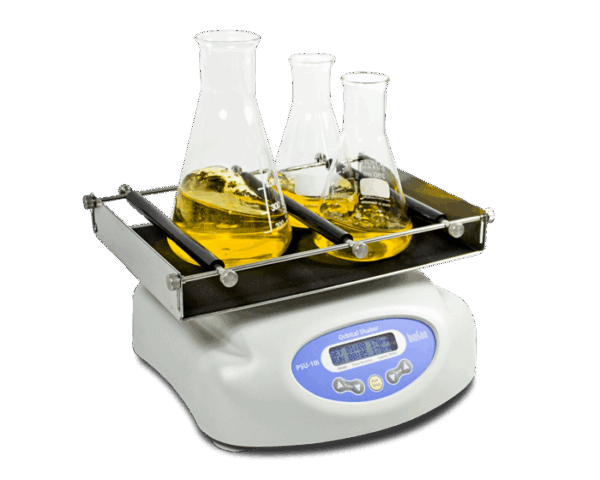

Shaker PSU-10i provides regulated orbital motion of the platform and is designed for use both in small specialized biotechnological laboratories and in large multidisciplinary laboratories: a choice of five (5) interchangeable platforms provides the possibility of performing various procedures and techniques.

Shaker PSU-10i incorporates a direct drive system, a brushless motor with a guaranteed service life up to 35,000 hours and an automatic loading balancing system. These innovations allow for continuous mixing up to 7 days, ensure reliable, trouble-free operation for more than 2 years and significantly expand the range of the device performance in both high and low limits.

Shaker can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C.

Speed control range 50 - 450* RPM (increment 10 rpm) *max. speed depends on the load and vessels' shape
Digital time setting 1 min–96 hrs / non–stop (increment 1 min)
Timer sound signal +
Digital speed control +
Maximum continuous operation time 168 h
Orbit 10 mm
Maximum load 3 kg
Overall dimensions (W×D×H) 255x255x100 mm
Weight 3.4 kg
Input current/power consumption 12 V, 470 mA / 5.7 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Accessories

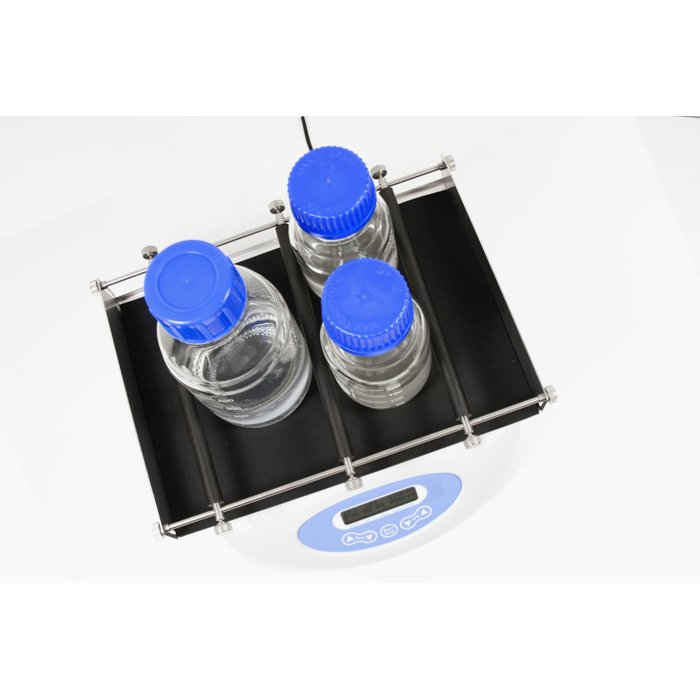

Universal platform with adjustable bars for different types of flasks, bottles, and beakers with silicone mat.

Flat platform with non-slip silicone mat for Petri dishes, culture flasks, agglutination.

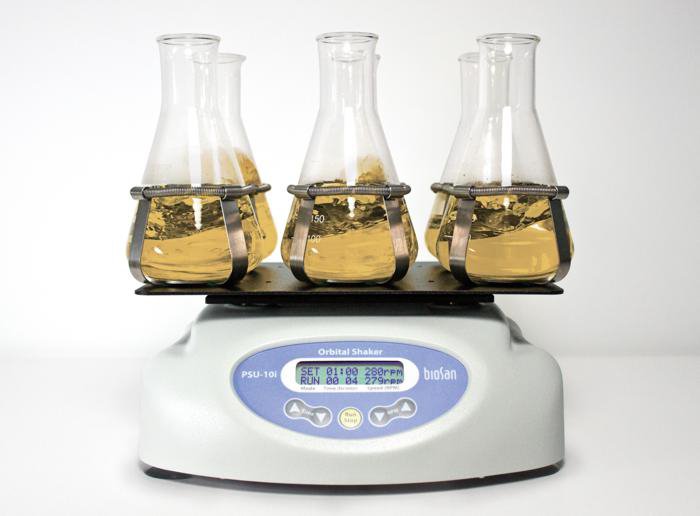

Platform with clamps for flasks.

Platform with clamps for flasks.

Platform with spring holders for up to 88 tubes up to 30 mm diameter (e. g. 10 ml, 15 ml, 50 ml tubes).

Additional holding bar for UP-12

Flat platform with non-slip silicone mat for Petri dishes, culture flasks, agglutination cards.

Convenient alternative to traditional steel holders, an easy way to fix tubes, plates, flasks and other laboratory wares on platforms for cultivation, incubation and mixing.

Documentation

SKUProductTypeLanguageFile
PSU-10iPSU-10iBrochureEnglishDownload
PSU-10iPSU-10iUser InstructionsEnglishDownload
PSU-10iPSU-10iDeclaration of ConformityEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 3,4 kg
Dimensions 255 × 255 × 100 mm
