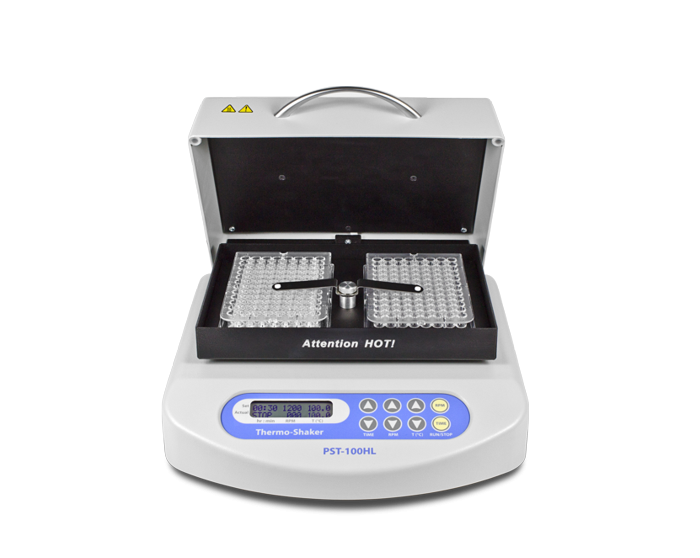

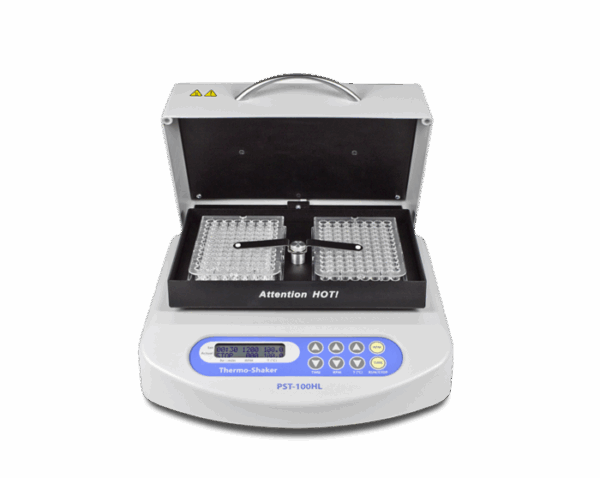

Plate Thermo–Shakers are designed for shaking and thermostating 2 standard 96–well microplates.
A multisystem principle, used in design of the Thermo–Shaker, allows operating it as 3 independent devices:
- Incubator;
- Microplate shaker;
- Thermo–Shaker.
A distinctive feature of Biosan Plate Thermo–Shakers is the patented by the company Two–Side Microplates Heating, which allows to achieve full correspondence of the set and actual temperature in the microplate wells.
Thermo-shaker PST-100HL with the ability to stabilize the temperature up to 100 ° C is specially designed for the hybridization reactions.
Plate Shaker–Thermostat provides:
- Soft or intensive sample shaking
- Rotation speed regulation, stabilization and indication
- Even rotation amplitude throughout the Thermo-Shaker platform
- Required operation time setting and indication
- Automatic stopping of the platform movement after expiration of the set time
- Setting and indication of the required temperature on the platform
Application fields:
- Сytochemistry — for in situ reactions
- Immunochemistry — for immunofermentative reactions
- Biochemistry — for enzyme and protein analysis
- Molecular biology — for micro array analysis
| Temperature setting range | +25°C ... +100°C |
|---|---|
| Temperature control range | +5°C above ambient ... +100°C |
| Temperature setting resolution | 0.1°C |
| Temperature stability | ±0.1°C |
| Temperature uniformity at +37°C | ±0.2°C |
| Temperature calibration coefficient range | 0.936...1.063 (± 0.063) |
| Heating | Patented two–side microplate heating |
| Speed control range | 250–1200 rpm (increment 10 rpm) |
| Digital time setting | 1 min–96 hrs / non–stop (increment 1 min) |
| Timer sound signal | + |
| Orbit | 2 mm |
| Display | LCD, 16 x 2 signs |
| Maximum continuous operation time | 168 h |
| Max. height of microtest plate | 18 mm |
| Number of microtest plates | 2 |
| Platform dimensions (w x d) | 250 x 150 mm |
| Overall dimensions (W×D×H) | 270 x 260 x 125 mm |
| Weight | 5.9 kg |
| Input current/power consumption | 12 V, 5 A / 60 W |
| External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
| Temperature setting range | +25°C ... +100°C |
|---|---|
| Temperature control range | +5°C above ambient ... +100°C |
| Temperature setting resolution | 0.1°C |
| Temperature stability | ±0.1°C |
| Temperature uniformity at +37°C | ±0.2°C |
| Temperature calibration coefficient range | 0.936...1.063 (± 0.063) |
| Heating | Patented two–side microplate heating |
| Speed control range | 250–1200 rpm (increment 10 rpm) |
| Digital time setting | 1 min–96 hrs / non–stop (increment 1 min) |
| Timer sound signal | + |
| Orbit | 2 mm |
| Display | LCD, 16 x 2 signs |
| Maximum continuous operation time | 168 h |
| Max. height of microtest plate | 18 mm |
| Number of microtest plates | 2 |
| Platform dimensions (w x d) | 250 x 150 mm |
| Overall dimensions (W×D×H) | 270 x 260 x 125 mm |
| Weight | 5.9 kg |
| Input current/power consumption | 12 V, 5 A / 60 W |
| External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| PST-100HL | PST-100HL | Brochure | English | Download |
| PST-100HL | PST-100HL | Brochure | English | Download |
| PST-100HL | PST-100HL | Brochure | English | Download |
General Documents
| Type | Name | Language | File |
|---|---|---|---|
| Catalogue | English | Download |
| Weight | 5,9 kg |
|---|---|
| Dimensions | 270 × 260 × 125 mm |
| Product class | Premium |
