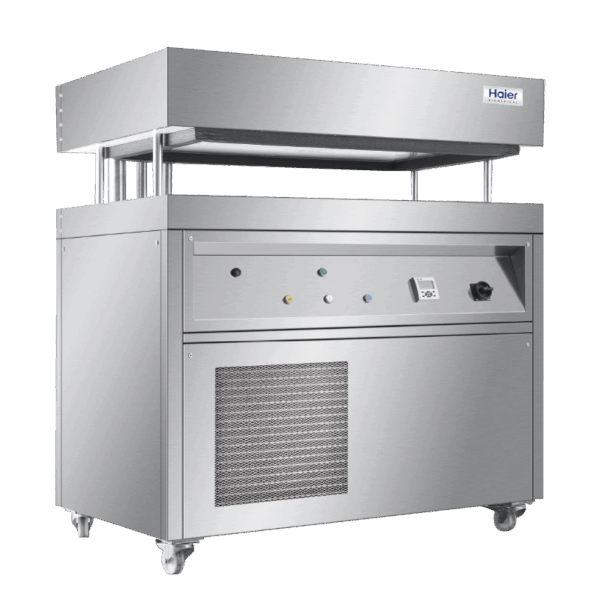

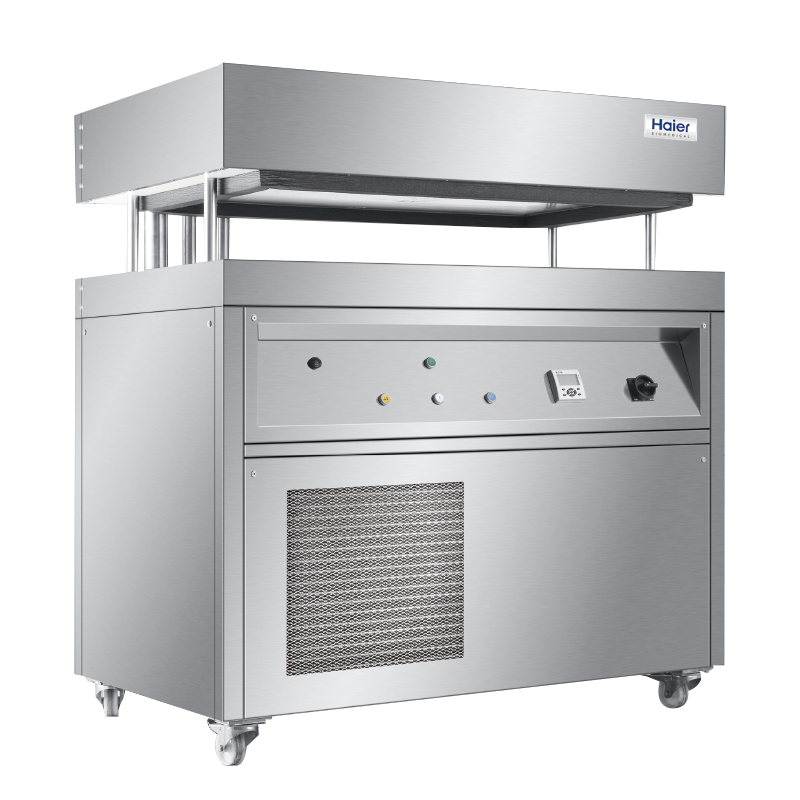

Mainly intended for the quick-frozen treatment of blood plasma or biological samples to a core below -30°C within 1 hour in blood stations or medical institutions.

Product Features

Flexible set up

The storage temperature, freezing time, and defrosting time can be flexibly set as required

Electric lifting system

Height control is more accurate and quieter than pneumatic lifting system

Simple operation

All pre-cooling, freezing, defrosting procedures are controlled by PLC control module, simple operation, avoid wrong operation, ensure plasma safety

Password protection

Parameter setting is password protected to ensure plasma safety

Rapid-freezing tray design

Rapid-freezing tray design, not only to improve the efficiency of plasma rapid-freezing, but also easy to save labor

Friendly interface

Friendly interface display design, clearer temperature observation

Low rapid-freezing temperature

Rapid-freezing temperature can be reduced to -60ºC, superior performance

Data is printable and the information traceable

Plasma storage data and corresponding curves can be exported via USB, which is convenient for information traceability

Efficient core components, energy saving

High efficiency compressor and dual-cooling system, better performance; Hydrocarbon refrigerant, energy saving and environmental protection



Model Rapid-cooling type Power Supply(V/Hz) External Dimension(mm) Weight(kg)
XSD-24FL Plate contact quick-freezing 3N 380-50/60 1455*915*1575 480
XSD-48WFL Plate contact quick-freezing 3N 380-50/60 2040*880*1895/1500*860*1850 320/360

Documentation

SKUProductTypeLanguageFile
XSD-24FLXSD-24FLFlyerEnglishDownload
XSD-48WFLXSD-48WFLFlyerEnglishDownload
CatalogueEnglishDownload
Model

XSD-24FL, XSD-48WFL
