The n-SAFE MCCU Mobile Cage Changing Station, highlights:
• It contains the latest technology in filters and fans as well as controller
• Compact design with rounded corners
• High quality silent wheels, one pair lockable
• Super silent operation with noise level <52 dB(A)
• Full operator protection – fully EN12469 compliant with >0,42 m/s inflow with both sides open!
• Double ventilated table tops prevent any cross contamination between right and left side
• Several table tops options in different material to choose from
• Low weight <200 kg makes it easy to move
• High light intensity – dimmable 0-1500 Lux
• Electrically elevated support, programmable for different users
•Worldwide remote support for fast and easy service
• Easy-to-change prefilter cassettes
• H14 filters for supply and exhaust air
• Optional activated carbon filter for exhaust air – reducing e.g. carcinogenicgasses as well as odours
• Optional autoclavable stainless steel food doser
• Optional battery backup for running the unit w/o electrical connectio
Technical specifications
| Type | nS mccu 1300 | nS mccu 1600 |
| Dimensions | ||
| External dimensions, WxDxH (mm) | 1295 x 795 x 1935–2285 | 1595 x 795 x 1935–2285 |
| Internal dimensions, WxD (mm) | 1045 x 677 | 1345 x 677 |
| Front window opening (mm) | 350 / 700 (open) | |
| Work height, standard support stand (mm) | 854–1204 | |
| Minimum door way (mm) | 800 | |
| Weight | ||
| Equipment (kg) | 195 | 220 |
| Air velocity | ||
| Vertical flow (m/s) | 0.28 (adjustable 0.25–0.38) | |
| Inflow (m/s) | 0.42 | |
| Deviation (±%) | <8 | |
| Noise | ||
| Noise level ISO3744 (dB(A)) | 52 | 54 |
| Ventilation | ||
| Down flow rate (m³/h) | 710 | 920 |
| Exhaust flow rate (m³/h) | 2060 | 2350 |
| Filter technology | ||
| Main/Exhaust Type | HEPA H14 EN1822, 99.999% at 0.3 µm particle size, Optional exhaust activated carbon | |
| Light | ||
| LED (Lux) | 0–1500, dimmable | |
| Electrical data | ||
| Voltage frequency (V/Hz) | 220–240/50–60 or 110–120/50–60 | |
| Power consumption, from (W) | 100 | 130 |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| Brochure | English | Download |
| Dimensions | 1300, 1600 |
|---|
Related Products
Recently Viewed
Reagents
Calgon S; Glassy sodium; Graham's salt; Hexasodium metaphosphate; Metaphosphoric acid hexasodium salt
Cold and Freezer Rooms
Haier Biomedical walk-in cold rooms are for storage of vaccines and other temperature sensitive products. The complete unit is also designed for installations in housed areas such as warehouses to meet specified temperature standards. These units have been installed in India, Guinea, Syria, Pakistan, Burundi, Zimbabwe and other regions across the world.
This product has multiple variants. The options may be chosen on the product page
Platforms
Flat platform with non-slip silicone mat for Petri dishes, culture flasks, agglutination cards.
Reagents
Bromoethanoic acid; a-Bromoacetic acid; Monobromoacetic acid; Carboxymethyl bromide,
Products Best Selling
For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.
Applicable for storing wholeblood, medicines, biological products and other laboratory products that need to be stored at 4℃. Suitable for the storage of blood and blood articles in areas that have power shortages.
The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program
LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.
Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.
Products Favourite
Applicable for blood stations, hospitals, CDC's, scientific research institutes, chemical industry and other related industries. The -30°C Biomedical Freezer can cryopreserve plasma, biological products, components, materials, and other items that need to be kept at low temperature.
This product has multiple variants. The options may be chosen on the product page
LN2 backup cooling system is an independent refrigeration system for a ULT freezer. When there is a loss of power or the temperature of the freezer rises to the high alarm set point, the LN2 backup system can be automatically activated to inject LN2 into the chamber to maintain the freezer temperature. The backup system operates on a rechargeable battery when there is a loss of main power.
The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program
For the separation and purification of samples of cells, macromolecular proteins, blood, body fluids, DNA/RNA, plasmids, bacteria and viruses.
Sterile TPP TubeSpin® Bioreactor vessel, 50 ml, with pH and O2 sensor spots, 1 pce.

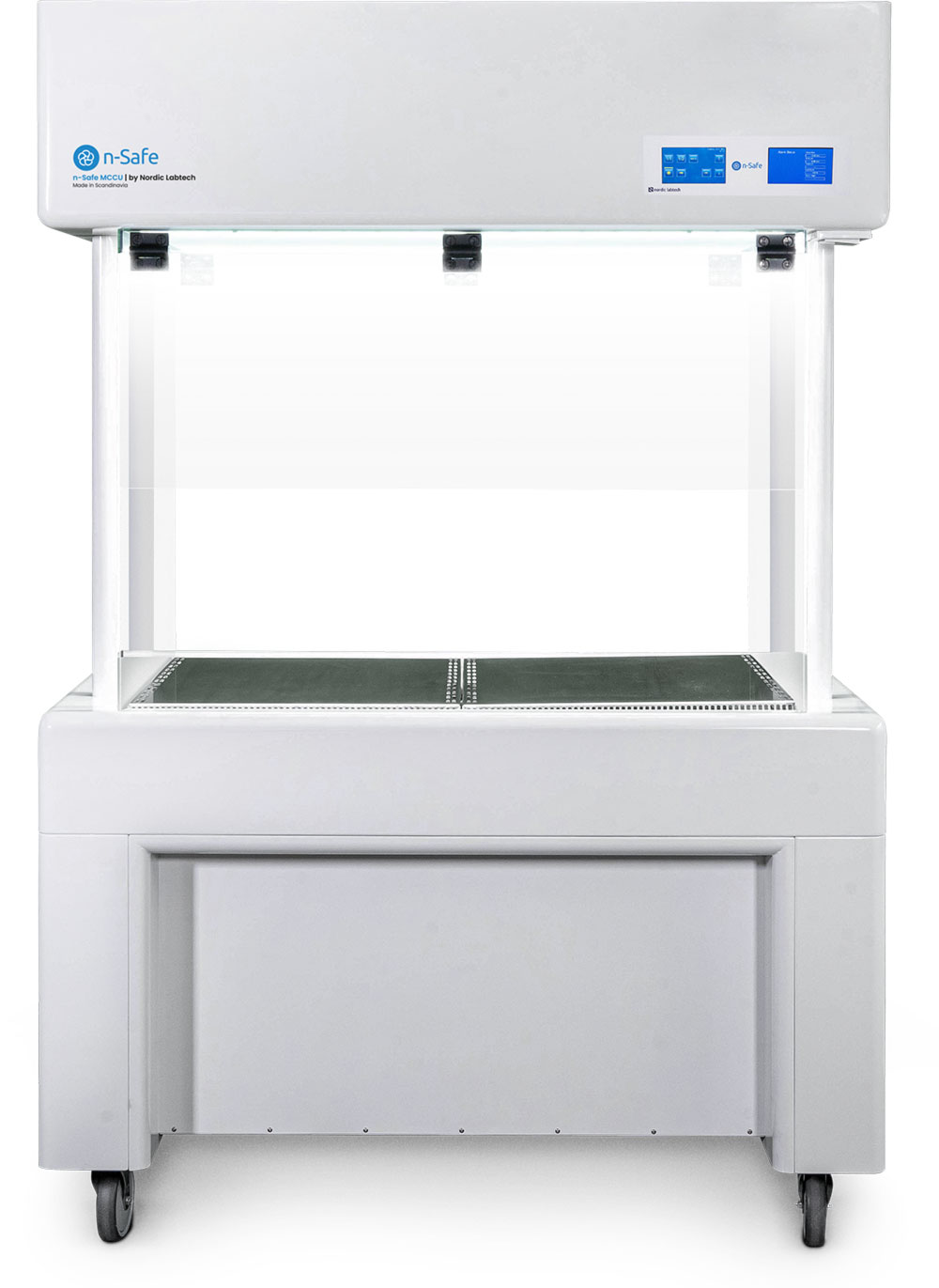

nSAFE MCCU
