Used for storage of medicines, vaccines, reagents, biological products and other items that require a temperature between 2-8°C in hospitals, pharmacies, pharmaceutical factories, clinics and laboratories etc.
(GD for Glass Door and FD for Solid Door)
Product Features
- Low energy consumption: 2.5 kWh/day
- Excellent performance: temperature uniformity ≤±1°C
- Quiet operation: 39dB (A)
- Intelligent anti-condensation: triple-paned tempered glass door with door frame heater, effectively reduces condensation even at 32° C, 80% RH ambient temperature
- Eco-friendly hydrocarbon refrigerant (R290)and CFC-free polyurethane insulation for reduced global warming
- Hermetically sealed compressor, forced-air circulation and automatic defrost to ensure high cooling performance
- Microprocessor controller, display with resolution of 0.1°C
- Self-closing door with magnetic gasket for positive seal
- Multiple alarm functions for safer monitoring
- Optional USB, RS485 and printer, easy to export temperature data; all events and alarms will be recorded by the USB module
| Model | Power Supply (V/Hz) | Capacity (L/Cu.Ft) | Exterior Dimensions (W*D*H)(mm) | Shelves/Baskets | Certification |

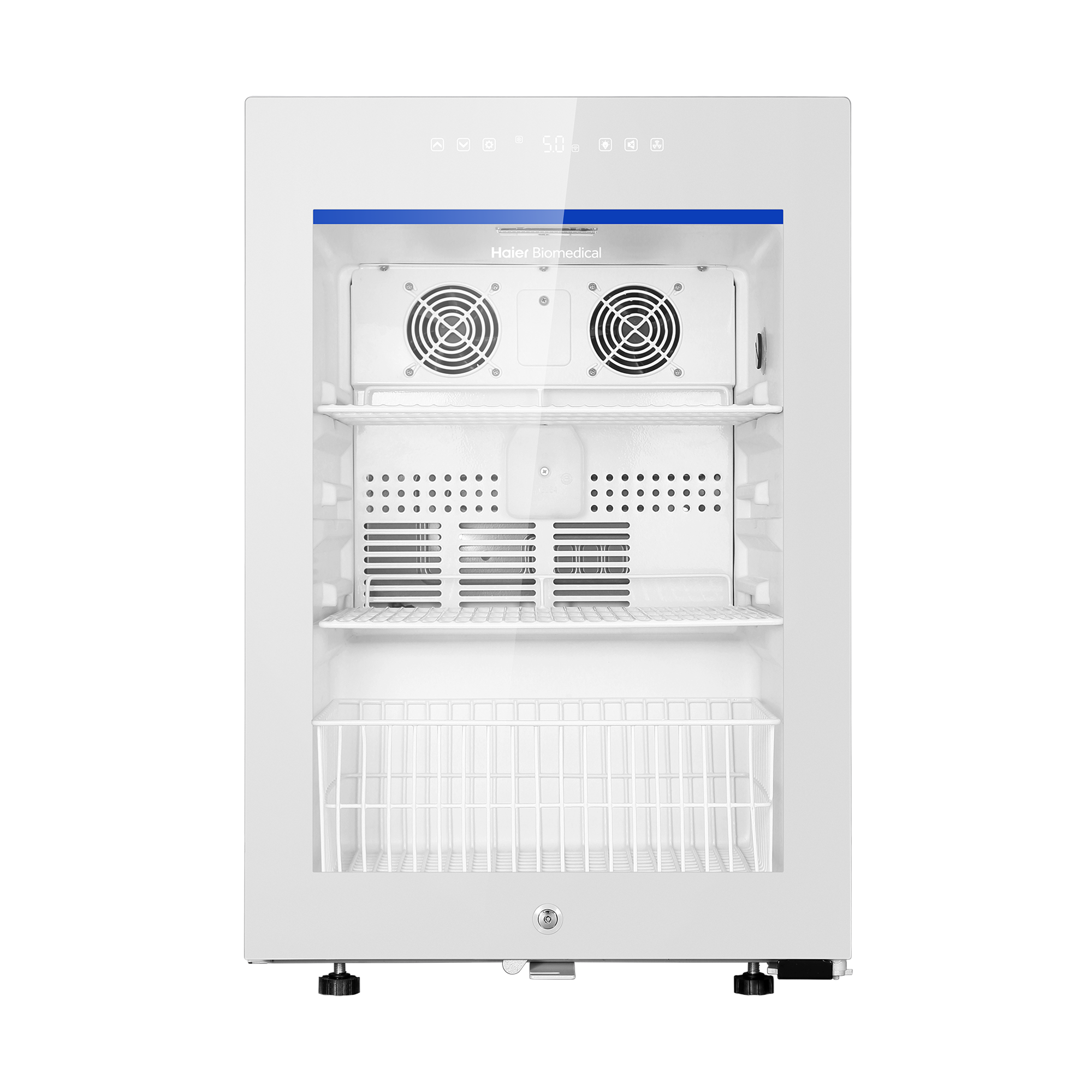

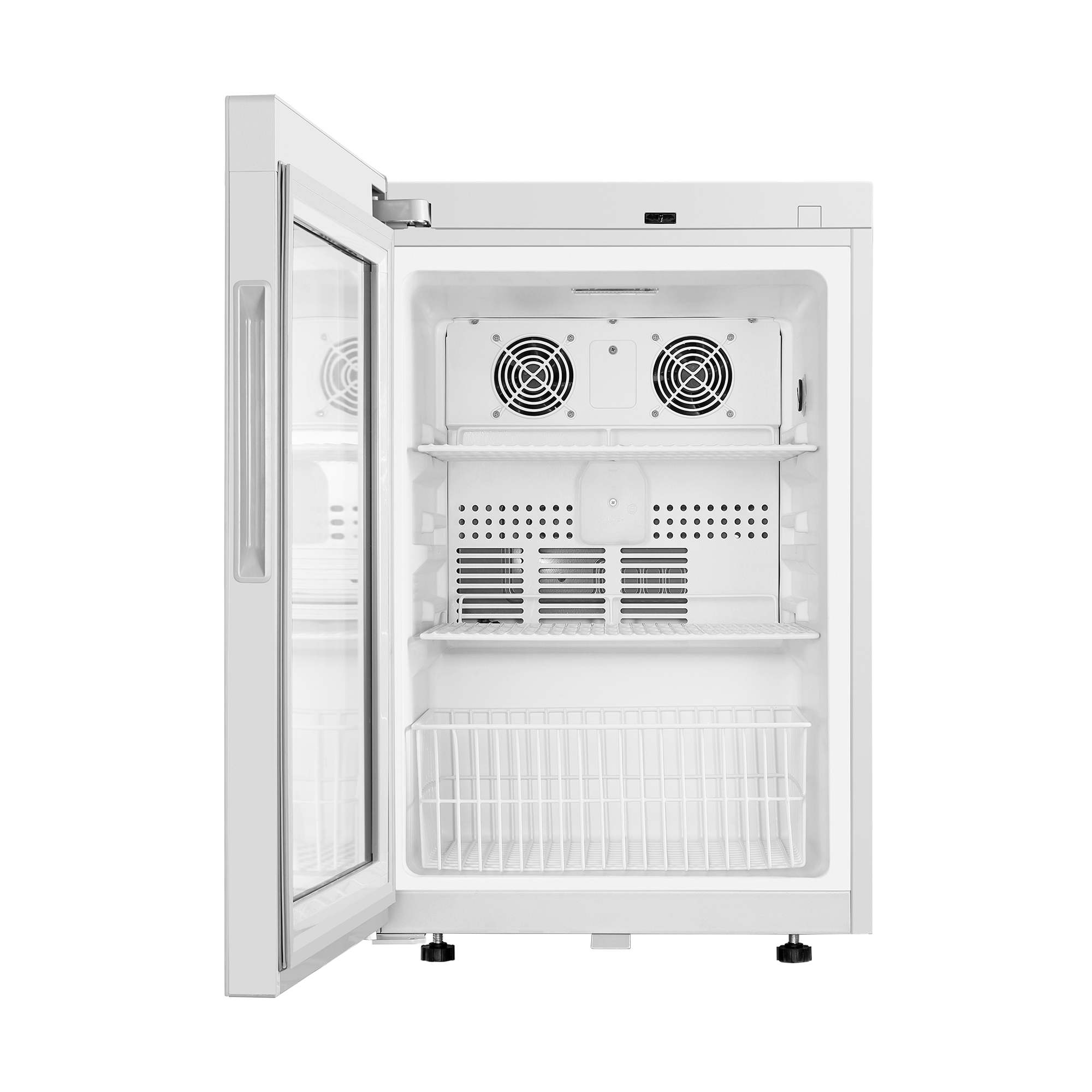

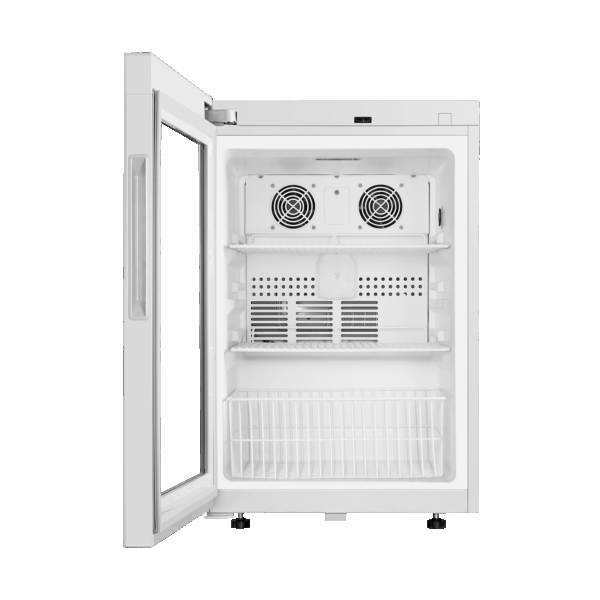

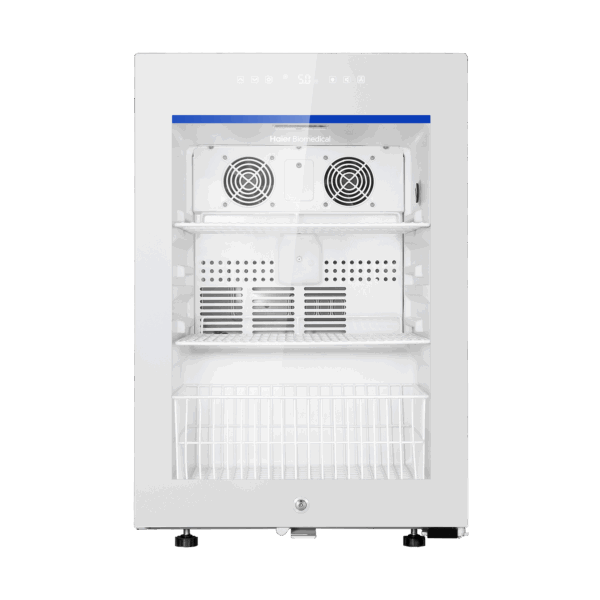

| HYC-85GD | 220~240/50 | 85/3.0 | 495*550*740 | 2/1 | CE, UKCA, DIN13277 (Optional) |
| HYC-130GD | 220~240/50/60 | 130/3.0 | 595*670*840 | 3/1 | CE, UKCA, DIN13277 (Optional) |

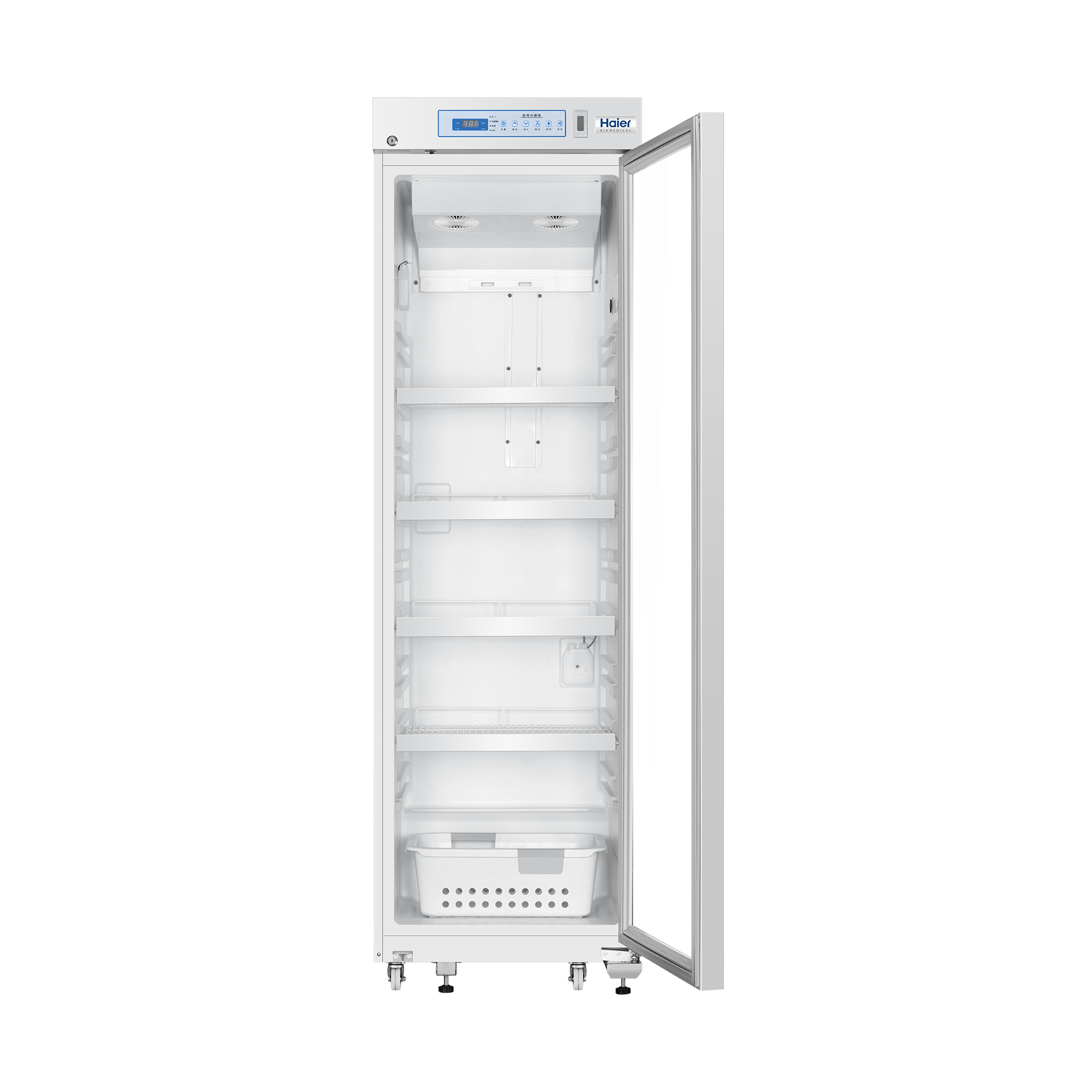

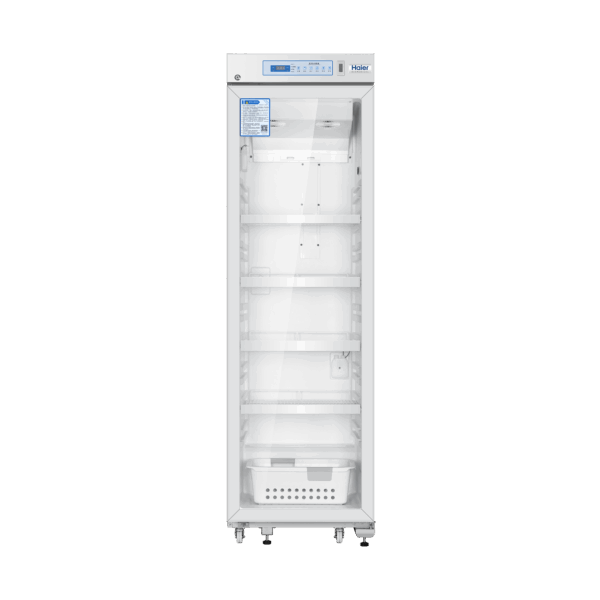

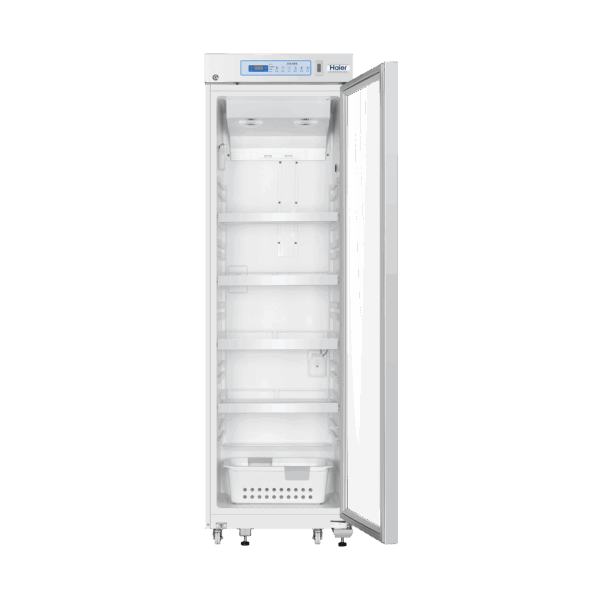

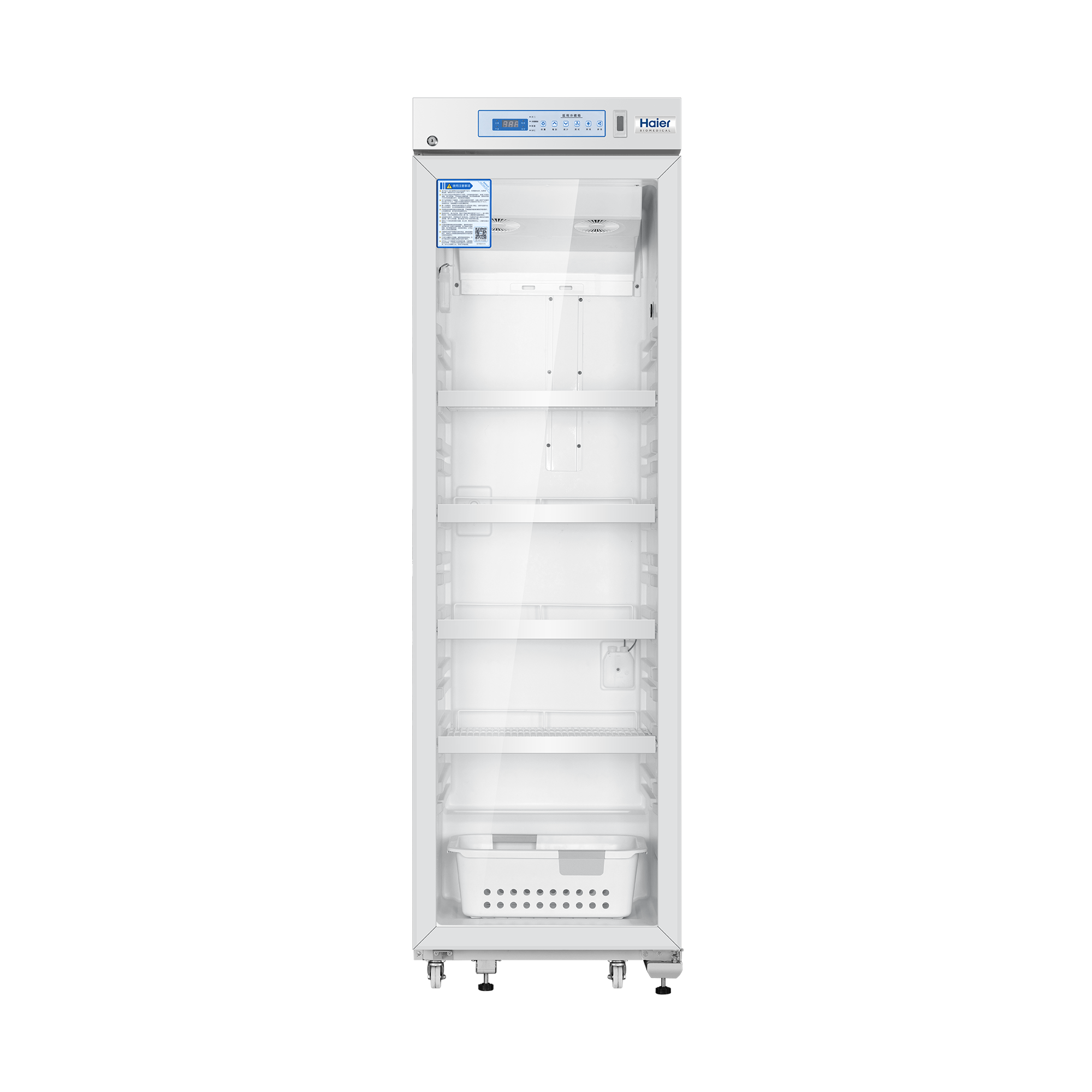

| HYC-461GD | 220~240/50 | 461/16.3 | 595*800*1990 | 6/- | CE, DIN13277 (Optional) |

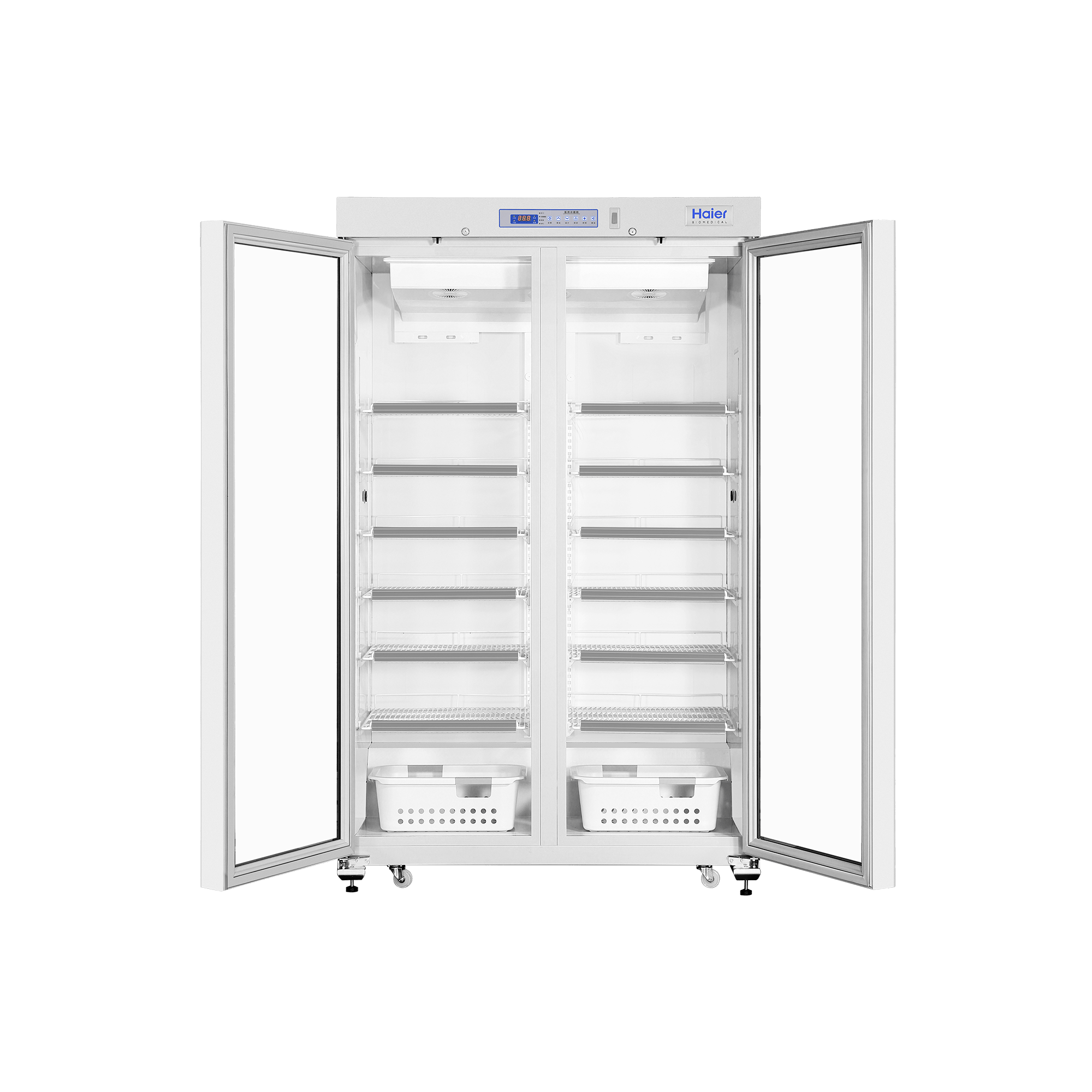

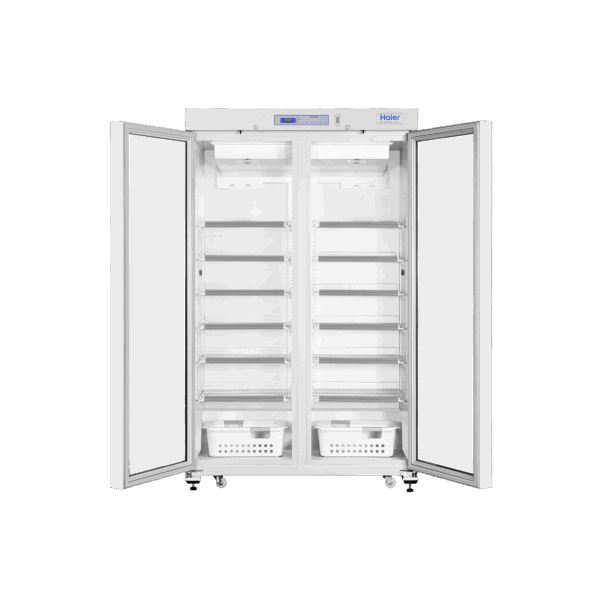

| HYC-1031GD | 220~240/50/60 | 1031/36.4 | 1205*800*1990 | 14/- | CE, DIN13277 (Optional) |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| HYC-130GD | HYC-130GD | Flyer | English | Download |
| HYC-461GD | HYC-461GD | Flyer | English | Download |
| HYC-85GD | HYC-85GD | Flyer | English | Download |
| HYC-1031GD | HYC-1031GD | Flyer | English | Download |
| Catalogue | English | Download |
| Model | HYC-1031GD, HYC-130GD, HYC-461GD, HYC-85GD |
|---|
