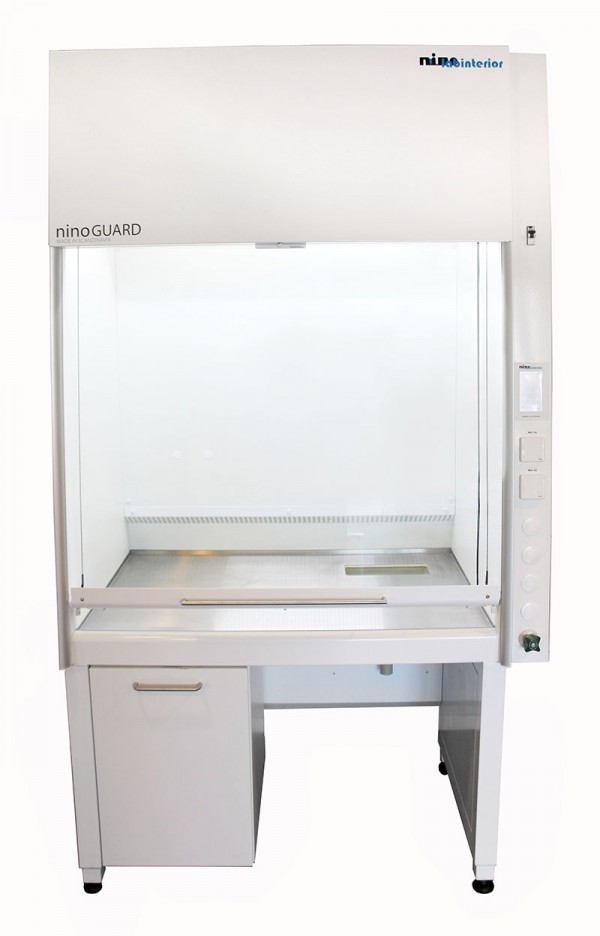

The n-GUARD – Fume Cupboard Benefits:

  • Stable and robust support stand prepared for ventilation in the back when you have a ventilated storage cupboard. Available as manually adjustable every 25 mm from 700-950 mm and electrically height-adjustable which is controlled from the touch display in the side panel;
  • Ventilated chemical cabinet with split extendable front in the same shape as the fume cupboard 300x600x2000 mm (WxDxH) and 400x800x2000 mm;
  • Chipboard frame with melamine laminate and drawer front in high-pressure laminate with stainless steel handle. 3 shelves in the upper part and 2 pcs. Shelves in the lower part;
  • Ventilated cupboard storage with complete pull-out drawer in sizes B: 400 mm and W: 500 mm. Frame in chipboard with melamine laminate and drawer front in high-pressure laminate with stainless steel handle;

Available in sizes 900, 1200, 1500 and 1800.



Technical specifications

Specification nGUARD 900 PRO nGUARD 1200 PRO nGUARD 1500 PRO nGUARD 1800 PRO
External width (mm) 900 1200 1500 1800
Internal width (mm) 750 1050 1350 1650
External depth (mm) 845
External depth incl. media (mm) 865
Internal depth (mm) 662
External height for ducting (mm) 2195, at 900 working height
External height incl support stand (mm) 2080 with recessed legs on stand
External height w/o support stand (mm) 1490
Max height with open sash (mm) 2062
Work height (mm) 700 - 1050 (Adjustable fixed) / 750 - 1050 (Electrical stand)
Free leg space underneath (mm) 830, at 900 work height
Light Min. 1000 Lux
Sash window (mm) 6 laminerat glas
Sash window design Double PVC-cover stainless steel wire
Material work top Stainless steel (316)
Side panel Standard
Media standard + Max no 5 pcs as standard
Electrical outlet standard + Max antal 2 pcs as standard
RCD, Residual circuit breaker Standard
Ø Duct connection (mm) 250 250 315 315

Dimensions

Specification n-GUARD 900 PRO n-GUARD 1200 PRO n-GUARD 1500 PRO n-GUARD 1800 PRO
External width (mm) 900 1200 1500 1800
Internal width (mm) 750 1050 1350 1650
Closed sash (6 cm open) l/s 30 40 50 60
40 cm sash opening l/s 150 210 270 330

Documentation

SKUProductTypeLanguageFile
BrochureEnglishDownload
Dimensions

900, 1200, 1500, 1800
