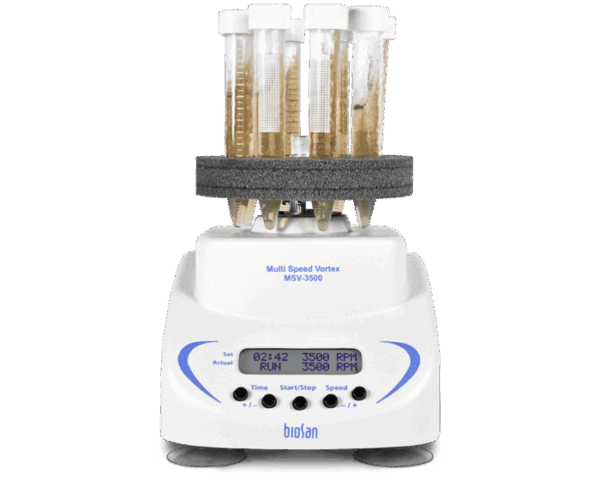

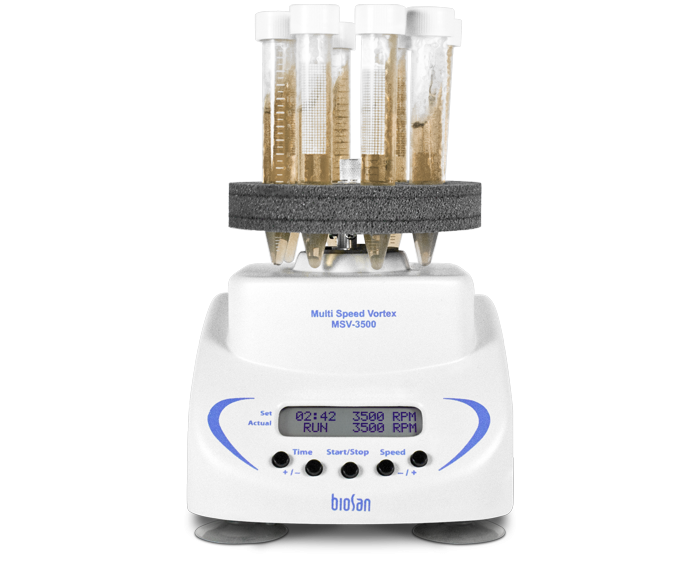

Multi Speed Vortex MSV-3500 is designed for soft or intensive mixing of reagents in different size and type plastic tubes (0.2 to 50 ml).

It is designed for operation in life science laboratories working in the fields of biochemistry, cell and molecular biology.

Unit has four types of interchangeable platforms: for Eppendorf type microtest tubes, 10/15/50 ml tubes (diameter 12/16/30 mm). Platforms can be ordered separately or as one set with MSV-3500.

Speed and time are under microprocessor control. LCD display indicates two lines of values: the set and actual values of speed and time.

Unit provides high maximum speed of platform rotation efficiently mixing microvolumes (less than 5 μl) of samples.

Eccentric mixing principle +
Speed control range 300–3500* rpm
* Maximum speed depends on load
Acceleration time 15 s (max)
Digital time setting 0–60 min / non-stop
Timer sound signal +
Maximum continuous operation time 8 h
Display LCD, 2 x 16 signs
Maximum load 0.2 kg
Orbit 4 mm
Overall dimensions (W×D×H) 180x170x145 mm
Weight 2.6 kg
Input current/power consumption 12 V, 1 A / 12 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Accessories

16/8/8 sockets for 2*-1.5/0.5/0.2 ml microtest tubes (Ø 11/8/6 mm). *at 75% volume, max 3400 rpm

10 sockets for 10 ml (Ø 12 mm) tubes.

8 sockets for 15 ml (Ø 16 mm) tubes

4 sockets for 50 ml (Ø 30 mm) tubes

Documentation

SKUProductTypeLanguageFile
MSV-3500MSV-3500BrochureEnglishDownload
MSV-3500MSV-3500Declaration of ConformityEnglishDownload
MSV-3500MSV-3500User ManualEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 2,6 kg
Dimensions 180 × 170 × 145 mm
Product class

Basic Plus

Platform

With all 4 platforms included, Without platform
