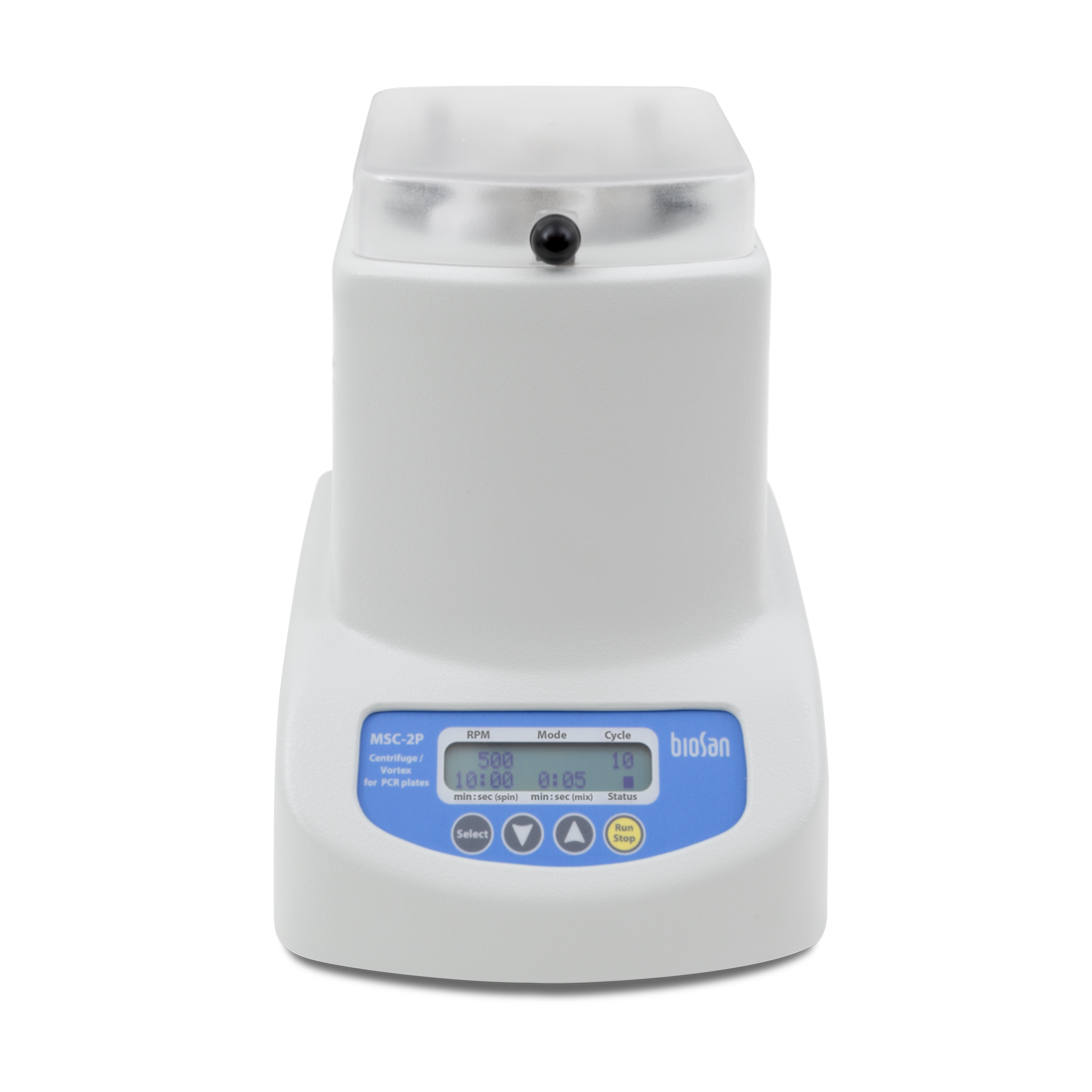

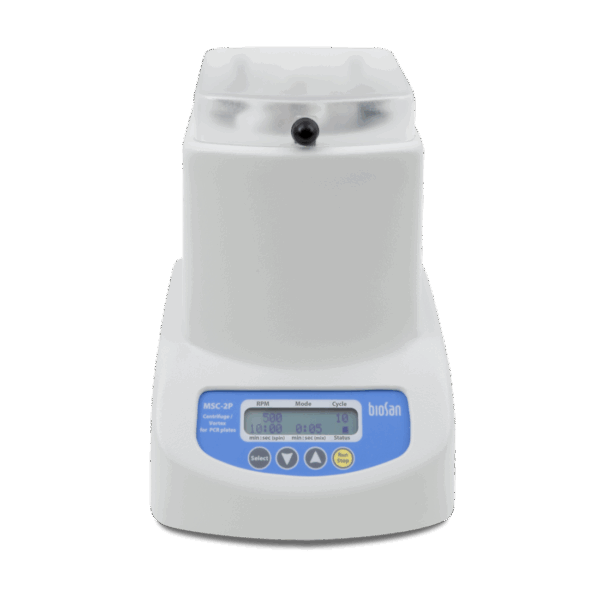

MSC-2P is a compact sized digital centrifuge intended to collect droplets, mix reagents and collect once more for improved PCR yield in subsequent analysis. The combination of spin-mix functions ensures fast operation, thorough mixing and repeatable results. Centrifuge rotor can accommodate 2 unskirted or semi-skirted PCR plates at the same time, thus saving time considerably.

MSC-2P is possible to operate in 4 independent modes:

  • Centrifuge — Max. 3500 RPM
  • Vortex — up to 5 min.
  • Centrifuge/Vortex — combined two motion types
  • Spin-mix-spin algorithm — up to 10 cycles

The spin-mix-spin algorithm (SMS-algorithm) is designed to collect (or reset) micro volumes of reagents to the bottom of the PCR plate tubes (the first centrifugation or spin), then vortexing (mix) and re-collecting reagents (repeated spin) from the walls and cover. This repetitive algorithm of operations, aimed at reducing sample preparation errors, we call the SMS algorithm.

Compatible plates:

  • Semi-skirted 96-well plates:
    • up to 8-8.5mm – use MSC-2P-1 or MSC-2P-2 adapter set provided with device,
    • up to 9-10mm high.
  • Unskirted 96-well Plates:
    • 1.2mm thick – use MSC-2P-1 adapter set,
    • 2mm thick – use MSC-2P-2 adapter set.
  • 384-well plates up to 10 mm.
SMS-cycle regulation 1 - 10 cycles
Speed regulation range 500–3500 rpm
Max. RCF 610 x g
Setting resolution 100 rpm
Display LCD, 2 x 16 signs
Centrifugation mode time range 0–10 min (increment 1 s; after 1 min - 1 min)
Vortex mode time range 0–5 min (increment 1 s; after 1 min - 1 min)
Overall dimensions (W×D×H) 165 × 220 × 230 mm
Weight 2.7 kg
Input current/power consumption 12 V, 2 A / 24 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Documentation

SKUProductTypeLanguageFile
MSC-2PMSC-2PFlyerEnglishDownload
MSC-2PMSC-2PDeclaration of ConformityEnglishDownload
MSC-2PMSC-2PBrochureEnglishDownload
MSC-2PMSC-2PUser InstructionsEnglishDownload
Weight 2,7 kg
Dimensions 165 × 220 × 230 mm
