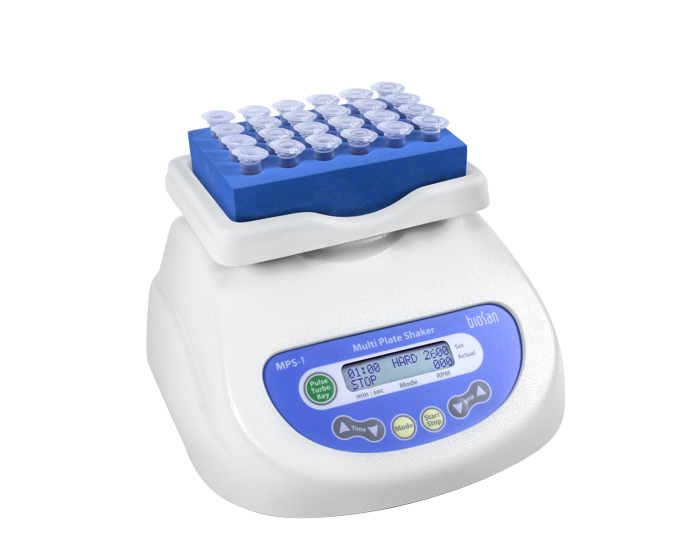

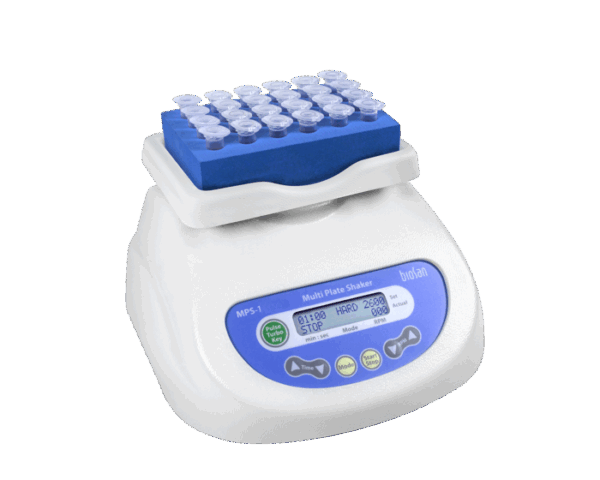

High–Speed Multi Plate Shaker MPS-1 can be used in virtually any application by providing adjustable mixing of reagents in microtest plates, PCR plates, deepwell plates and test tubes (shaking tubes 0.2 to 2 ml and vortexing any volume up to 50 ml).

The shaker is compact and user–friendly. The shaker is ideal for personal use.

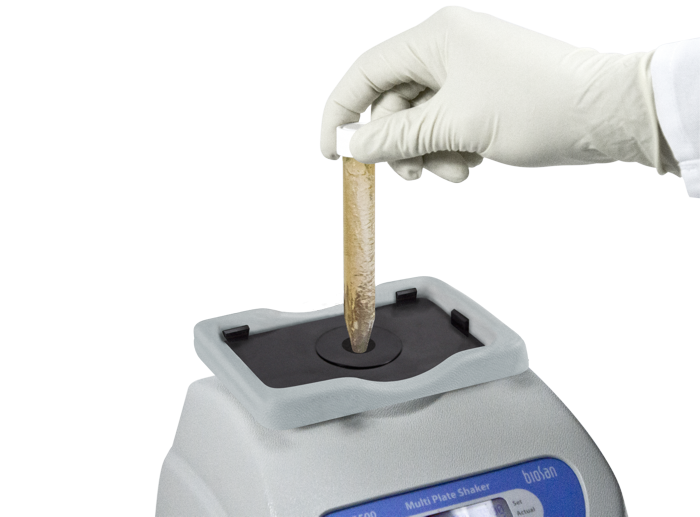

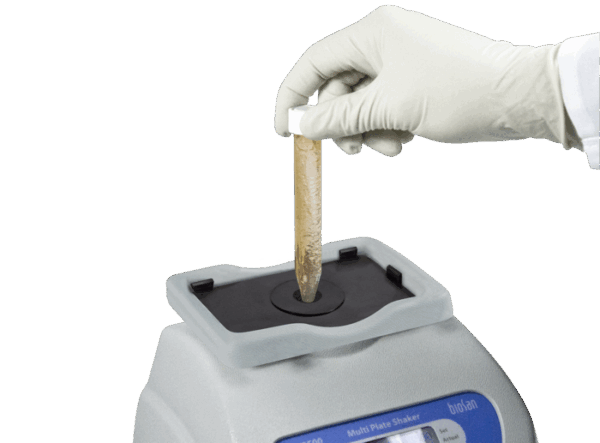

MPS-1 features a head for vortexing a single tube.

Shaker can be used in cold  rooms or incubators, operating at ambient temperature range +4°C to +40°C. Low voltage external power supply (12 V) provides electrical safety in humid environment.

MPS-1 features Pulse Mode mixing function that works on the principle of giving a periodic impulse: the tube is accelerated to the set speed, holds it for 3 seconds and then drops the speed to zero. This motion is repeated until the timer runs out. This method provides a constant  state of resuspension of the particles inside a tube, as the acceleration is always changing. The advantage of this method is the high  throughput of mixed samples compared to vortexing a single tube.

Features:

  • Speed control range 300–3,200 rpm
  • Smooth mixing with 3 mm orbit
  • Mixing presets
  • Pulse Mode mixing function
  • Quiet operation — low noise at maximum speed
  • High stability — stationary at maximum speed

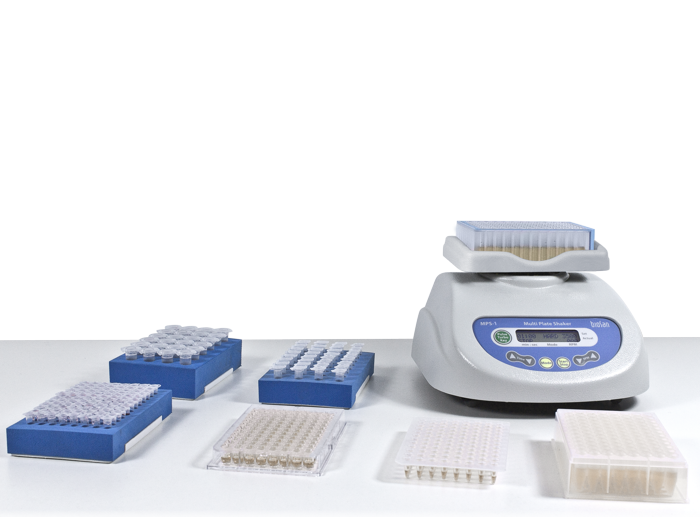

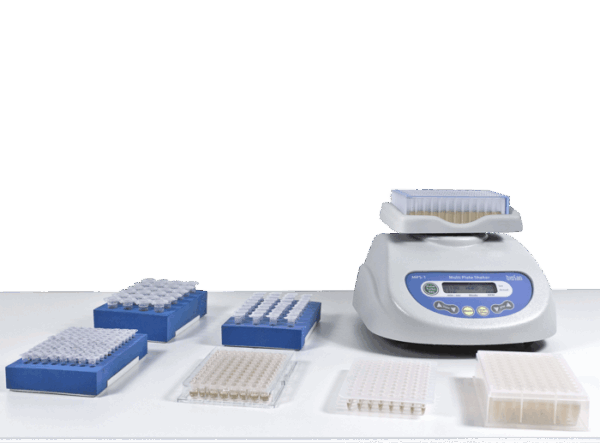

  • Universal platform holder for Deepwell plates and Microtest plates
  • Additional platforms for semi- and unskirted PCR plates 200 μl as well as for tubes from 0.2 to 2 ml
  • Can be used in cold rooms or incubators (temperature range +4°C to +40°C)
Mixing speed control range 300–3,200 rpm (100 rpm increment)
Universal platform for deepwell plates, 96-well microtest plates (U, V or flat bottomed), 384-well microtest plates +
Types of mixing presets: ->
VORTEX 3,200 rpm
HARD 2,600 rpm
MEDIUM 1,800 rpm
SOFT 1,000 rpm
CUSTOM adjustable rpm
Digital time setting 0–60 min (15 s increment) / non–stop
Timer sound signal +
Maximum continuous operation time 8 h or more - with longer pauses
Orbit 3 mm
Acceleration time to maximum speed 5 sec
Maximum load 0.3 kg
Features a Pulse Mode mixing function +
Features a Vortex function +
Noise level, not more 65 dB
Overall dimensions (W×D×H) 225 × 215 × 150 mm
Weight 5.1 kg
Input current/power consumption 12 V, 800 mA / 10 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Documentation

SKUProductTypeLanguageFile
MPS-1MPS-1BrochureEnglishDownload
MPS-1MPS-1User InstructionsEnglishDownload
MPS-1MPS-1Declaration of ConformityEnglishDownload
Weight 5,1 kg
Dimensions 225 × 215 × 150 mm
Product class

Premium

Platform

With all 4 platforms included, With built-in universal platform
