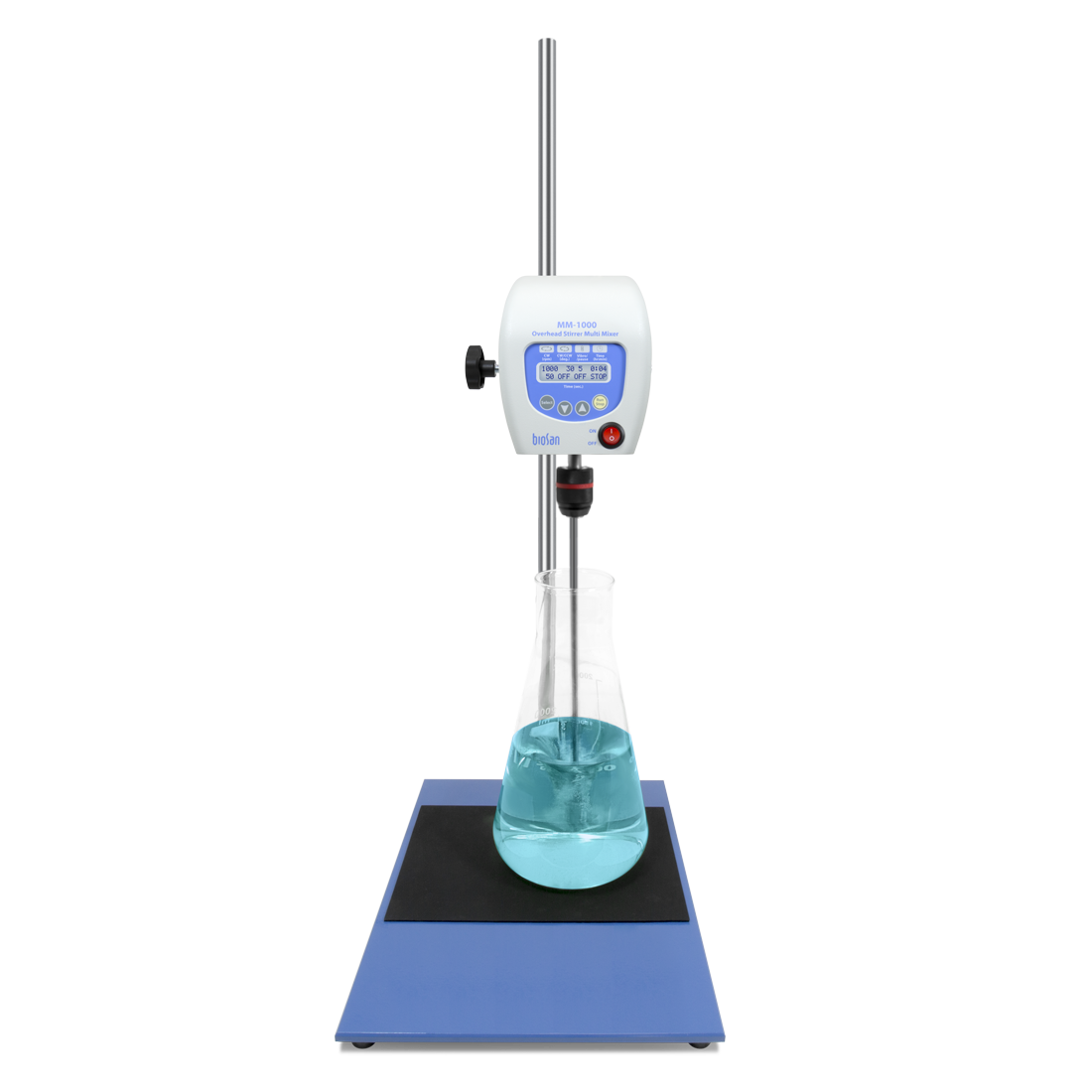

Overhead Stirrer Multi Mixer MM-1000 is designed for stirring liquids up to 20 litres. Quiet and reliable mixer that can provide stable  continuous mixing up to 7 days. It can realize three types of motion:

  1. Rotational
  2. Reciprocal
  3. Vibration

MM-1000 performs separate  (mono–) (1; 2; 3), consecutive binary cycles (c) (1–2) × c; (1–3) × c and (2–3) × c and complex tri-cycles (1–2–3) × c.

Speed, angle and time of stirrer rotation is under microprocessor control.

Multi-mixer can be used for stirring solutions up to the “medium viscosity” range (from  1,000 to 10,000 mPa.s). It is an ideal instrument for biotechnology, organic synthesis, analytical laboratories.

The innovative combination of three motion types provides high level of homogeneity due to consecutive combination of laminar and turbulent flows that cause substances to dissolve faster.

Electrically safe and energy efficient — powered by 12 V external power supply.

Rotation - Speed control range 40–1000 rpm
Rotation - Time 0–250 s
Reciprocal motion - Turning angle 0°–360° (increment 30°)
Reciprocal motion - Time 0–250 s
Vibro motion - Turning angle 0°–5° (increment 1°)
Vibro motion - Time 0–5 s
Timer sound signal +
Max. stirring volume (water) 20 litres
Digital time setting 1 min–96 hrs / non–stop (increment 1 min)

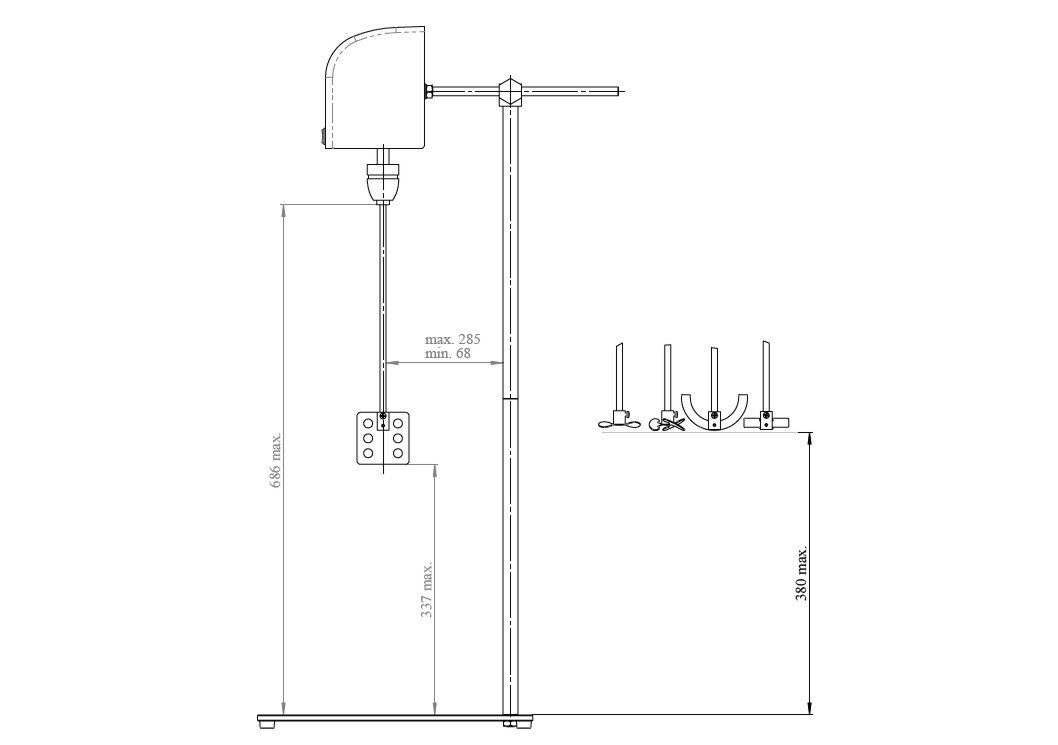

Overall dimensions (W×D×H) 140x135x250 mm
Weight 2.4 kg
Input current/power consumption 12 V, 700 mA / 8.4 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

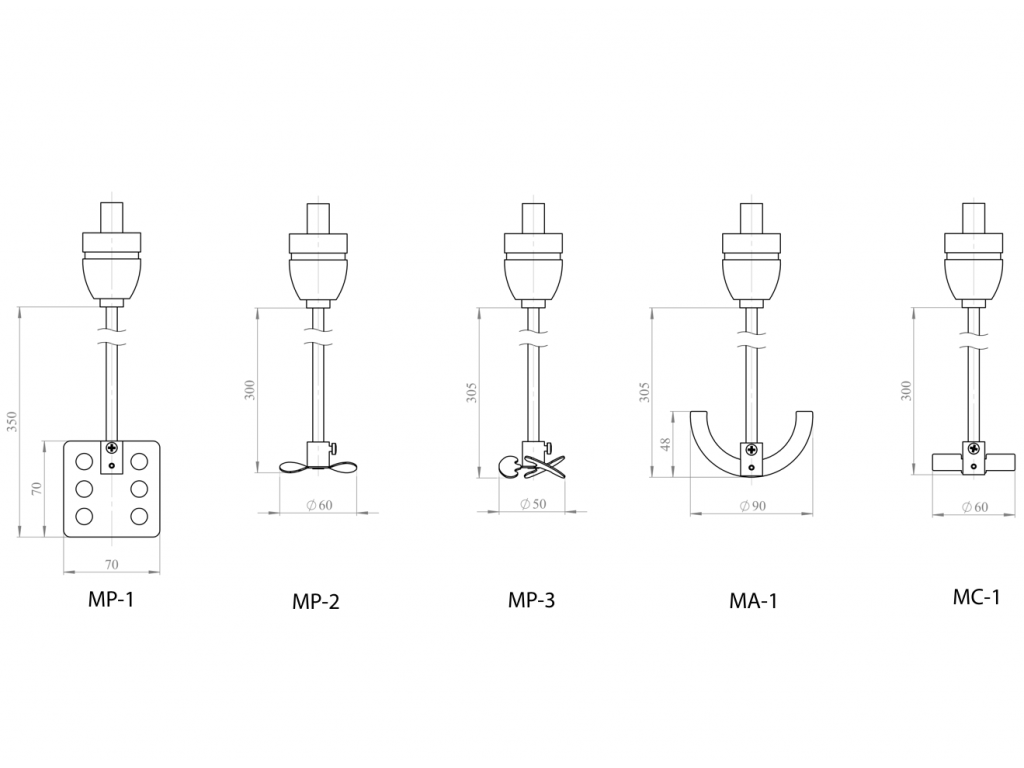

Accessories

Paddle stirrer (70 х 70 mm).

Propeller stirrer 2 folded blades (ø 60mm),

Propeller stirrer 3 folded blades (ø 50mm).

Anchor stirrer (ø. 90 mm, height 48 mm).

Centrifugical stirrer (ø 60 mm).

Support rod and base for device mounting.

Documentation

SKUProductTypeLanguageFile
MM-1000MM-1000BrochureEnglishDownload
MM-1000MM-1000Declaration of ConformityEnglishDownload
MM-1000MM-1000User InstructionsEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 2,4 kg
Dimensions 140 × 135 × 250 mm
Product class

Basic Plus
