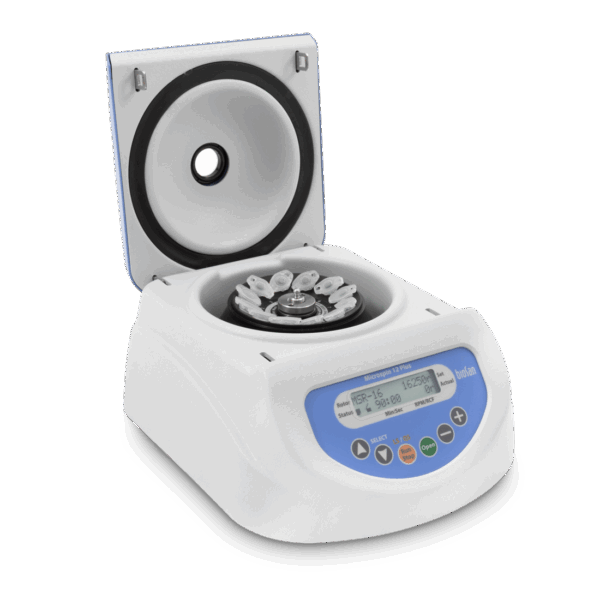

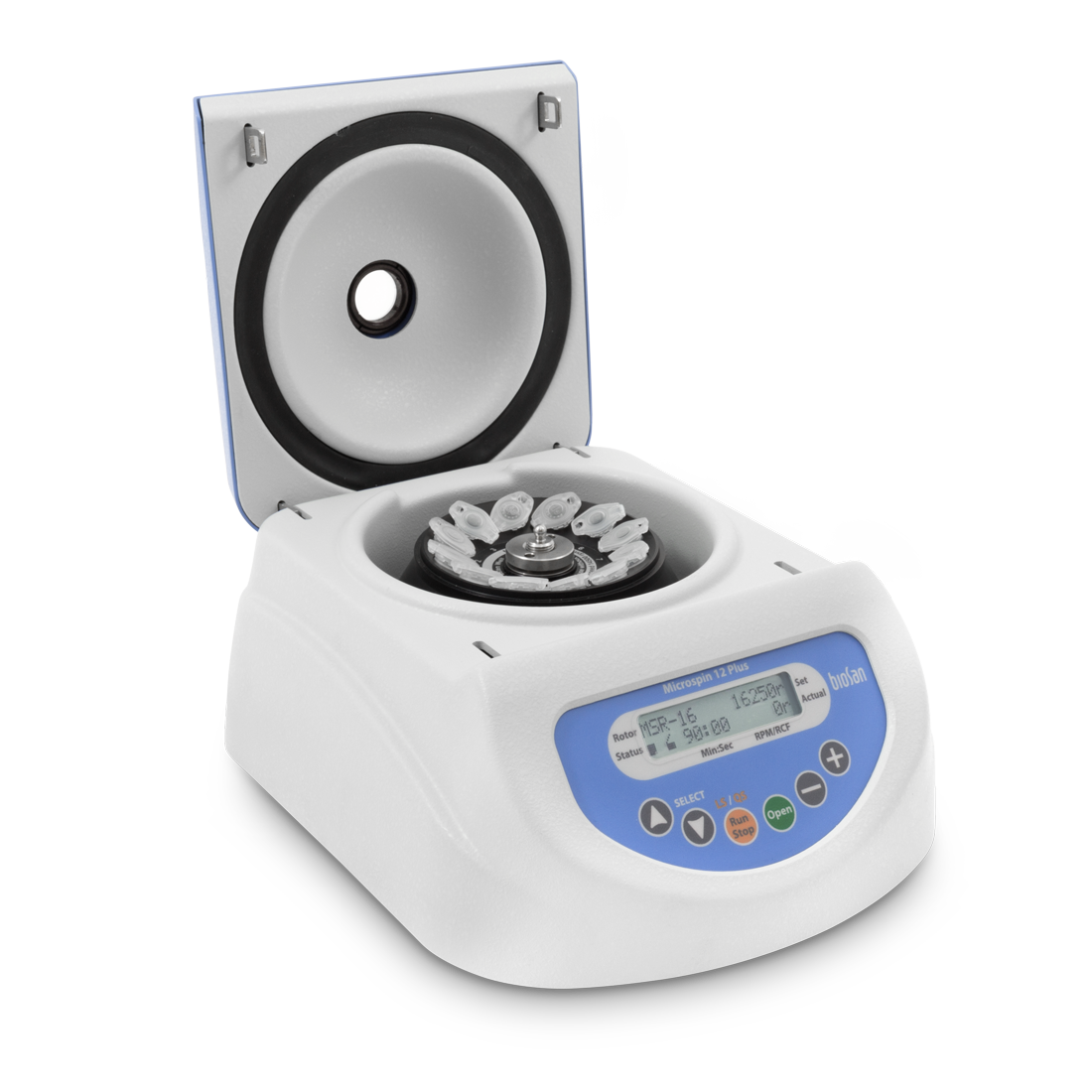

High-speed mini-centrifuge Microspin 12 Plus is a compact desktop centrifuge designed for biomedical laboratories.

Microspin 12 Plus is used for extracting RNA/DNA samples, sedimentation of biological components, biochemical and chemical analysis of microsamples.

A brushless motor provides noiseless performance at the maximal speed and long service life. An angular rotor is designed for  accommodation of 12 Eppendorf microtubes and spin columns. The rotor is made of aluminium, it is equipped with fixing lid and included in the standard specification of the centrifuge. Constant airflow around the rotor reduces risk of samples overheating during operation.

Metal protective inserts inside the casing and lid, automatic imbalance switch-off and locking of a lid provide safe operation. Completion of centrifugation is indicated by a sound signal.

The external power supply unit allows operation of Microspin 12 Plus in cold rooms (at ambient temperatures from +4°C to +40°C).

Standard set:

Rotor MSR-12 (12 places for microtubes 1.5/2 ml, spin columns) with protection lid MSL-12 and adapters A-02, A-05

A-02 adapter    12 pieces for microtubes 0.2 ml
A-05 adapter    12 pieces for microtubes 0.5 ml



Speed control range 1000 - 16250 rpm (increment 100 rpm)
Relative centrifugal force control range 53 – 15 588 × g
Digital time setting 15 s – 90 min (increment 15 s - 1 min)
Timer sound signal +
Rotor imbalance diagnostics (automatic stop, “IMBALANCE” warning) +
Quick spin button +
Acceleration time up to 16,250 rpm 24 s
Slowdown time, not more 10 s
Display LCD, 2 x 16 signs
Overall dimensions (W×D×H) 200x240x125 mm
Weight 3.5 kg
Input current/power consumption 24 V, 2.5 A / 60 W
External power supply Input AC 100–240 V 50/60 Hz, Output DC 24 V

Accessories

Adapter 12 pieces for microtubes 0.2 ml

Adapter 12 pieces for microtubes 0.5 ml

Rotor for two 8 x 0.2 ml PCR strip rows or 16 individual 0.2 ml PCR tubes.

Documentation

SKUProductTypeLanguageFile
Microspin 12 PlusMicrospin 12 PlusDeclaration of ConformityEnglishDownload
Microspin 12 PlusMicrospin 12 PlusBrochureEnglishDownload
Microspin 12 PlusMicrospin 12 PlusUser InstructionsEnglishDownload
Microspin 12 PlusMicrospin 12 PlusFlyerEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 3,5 kg
Dimensions 200 × 240 × 125 mm
