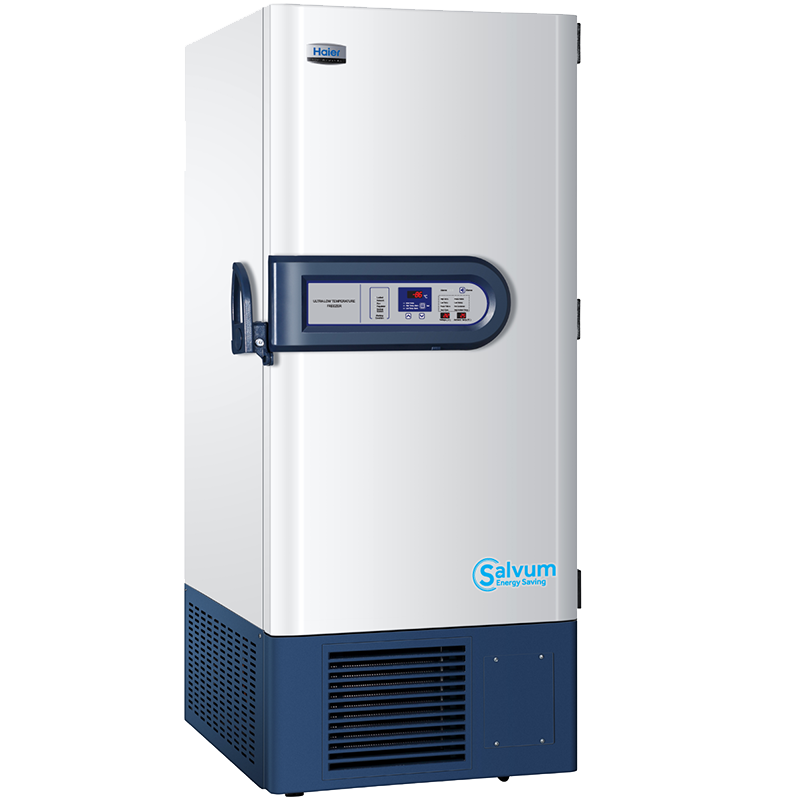

This product line is designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes and leucocytes. Applications can be found in blood banks, hospitals, epidemic prevention services, research institutes, biological engineering institutes, laboratories in electronic and chemical plants.
Product Features
Field Proven Reliablity
Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber
Specialized control system design for a well-balanced operation of cascade refrigeration system
Positive field proven reliability record
Safety
Malfunction alarms including high and low temperature, power failure, sensor error, clean -filter, and extremely high ambient
Capable of producing two types of alarm outputs: audible buzzer and visible flashing light
Multiple built-in system protection features including user-settable protection code for controls, user settable delay to start, voltage compensation system, and protection against extreme high voltages
Door open feature standard and USB port for temperature data downloading standard on upright models
Remote alarm contacts
Installation & Application
Wide range operating voltage system from 185V to 260 V designed to allow units installed in areas with poor voltage condition
Suitable for 10°C to 32°C ambient temperature
Input voltage and ambient temperature shown simultaneously for ease of monitoring environmental conditions
Robust door latch designed for secure door closing
Compact casters for ease of maneuvering
Low Sound Level
Specialized refrigeration system design using whisper quiet fan and compressors
Freezer chassis designed to absorb vibration and sound
Energy Saving
Unique door seal design for the minimum loss of cold temperature during a door opening
High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability
Patented cabinet insulation system designed for optimal performance of cold storage temperature and minimal frost buildup

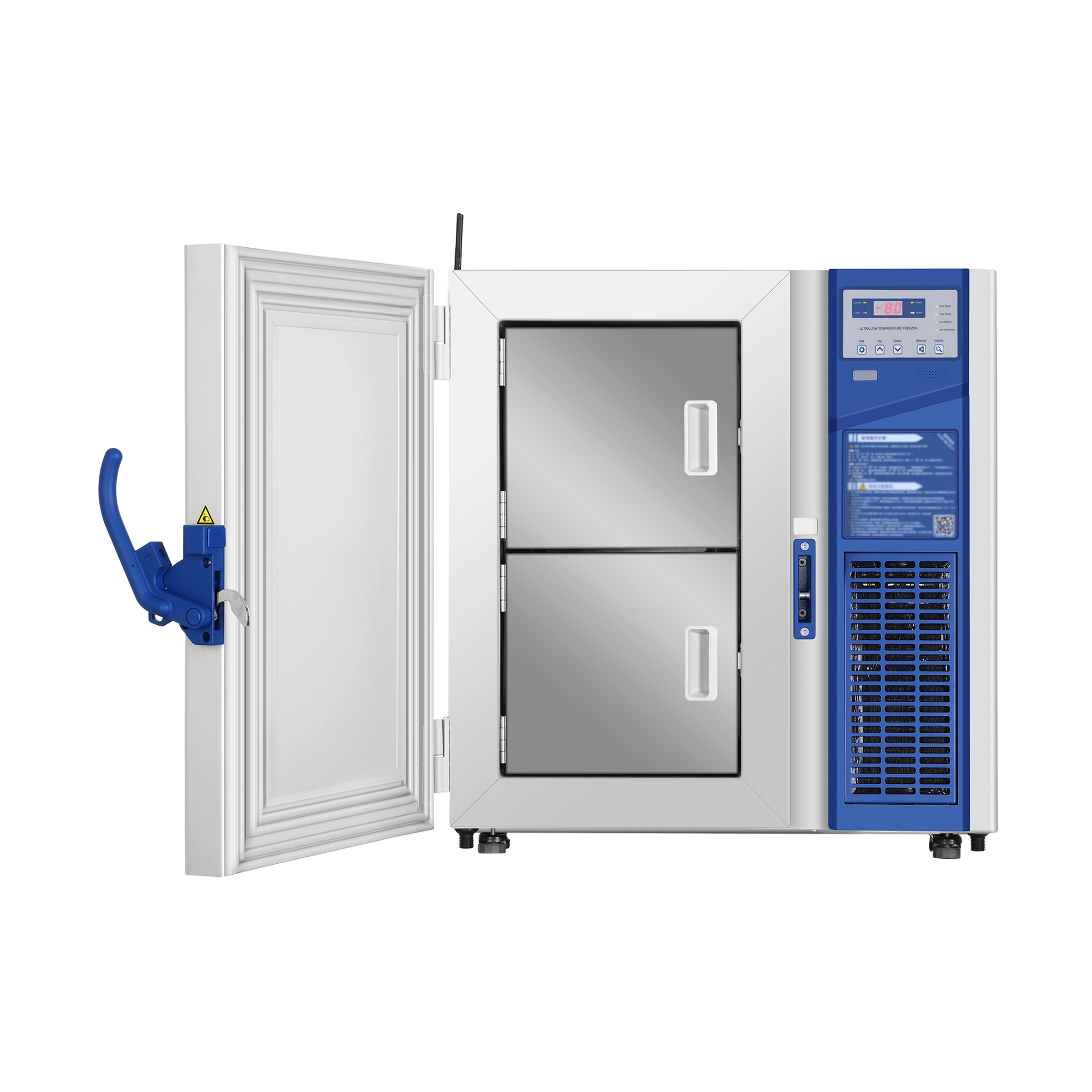

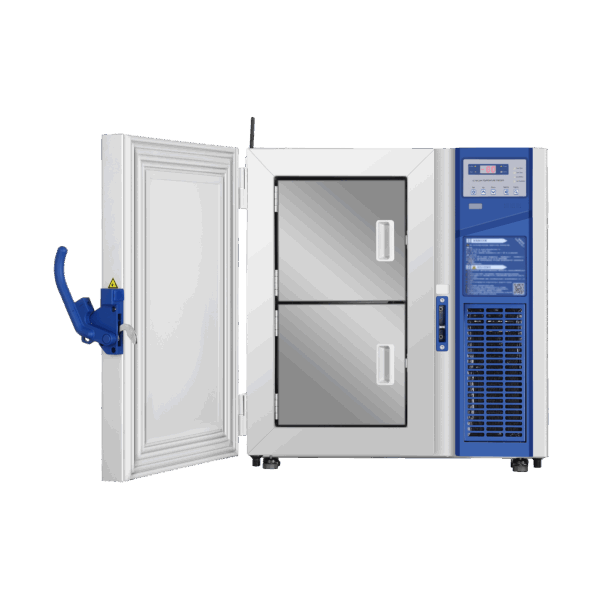

Unique design of independent insulated inner door systems for independent access of storage space to provide the maximum protection of stored samples
Key Design Features
Microprocessor-controlled system designed for controllable range of -40°C to -86°C for cabinet space with 1°C increment

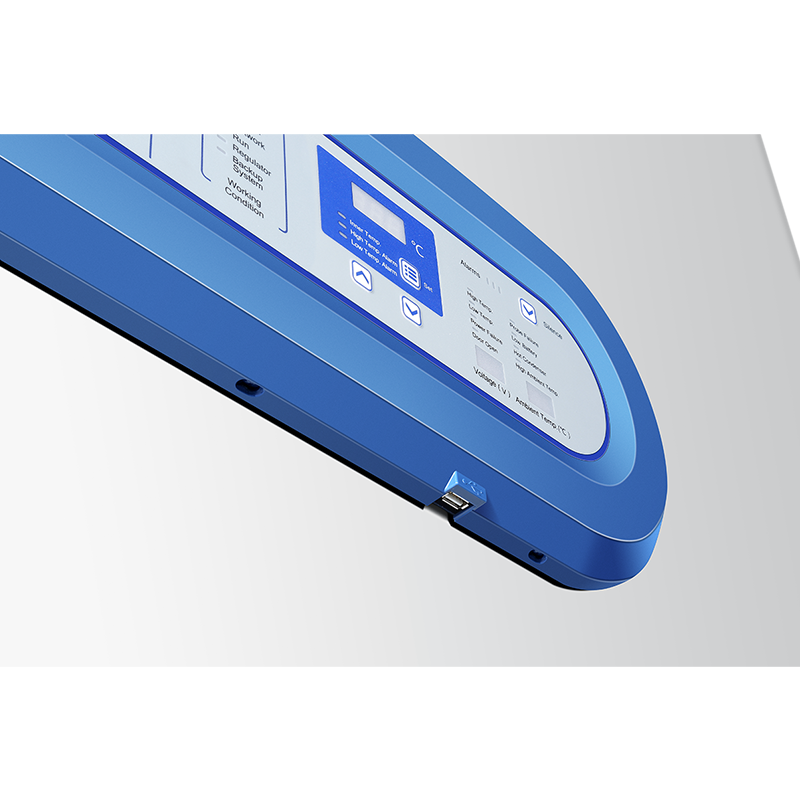

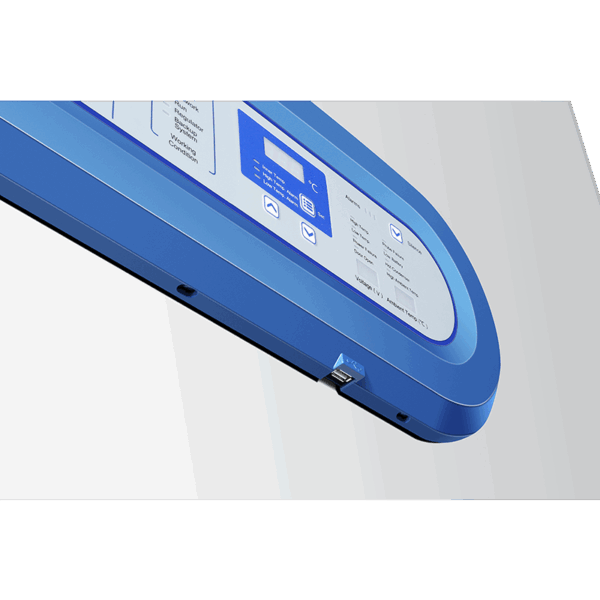

Large LED display for cabinet temperature, set temperature, ambient temperature, and input voltage
Settable high temperature and low temperature alarms
Automatic clean-filter alarm and sensor error alert

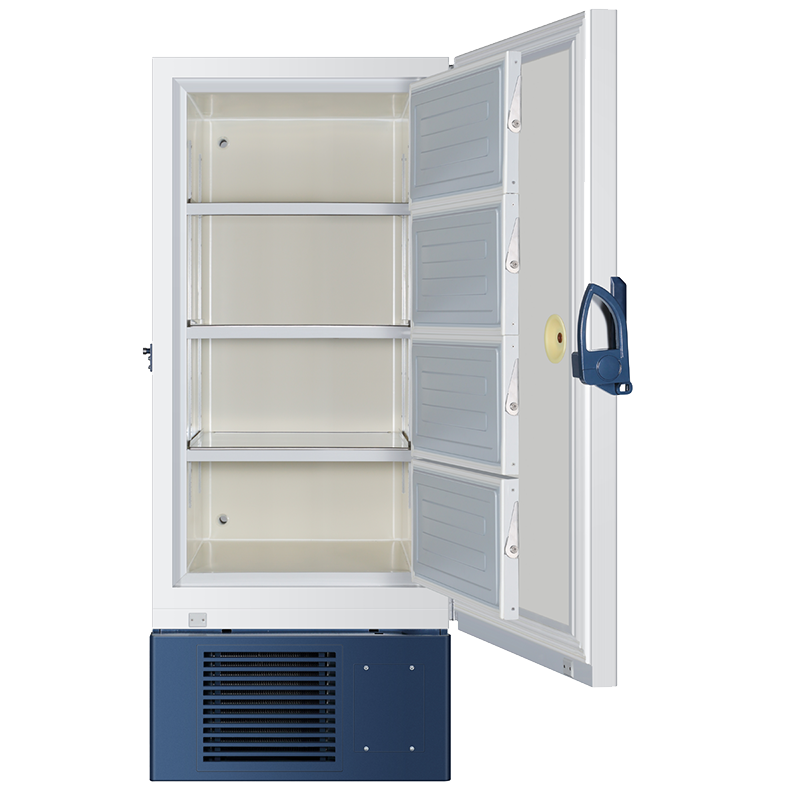

Adjustable storage shelf height

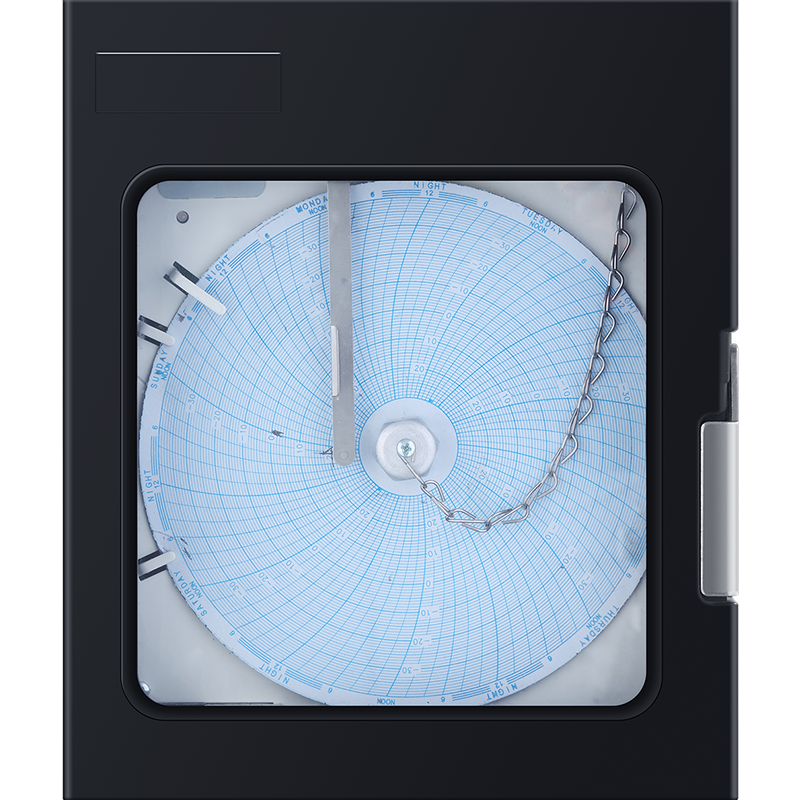

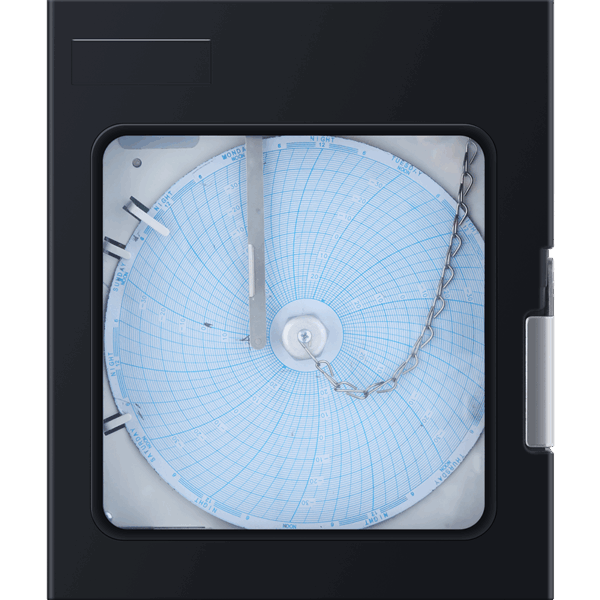

Optional temperature recorder, storage racks and storage boxes
| Model | Cabinet Type | Capacity (L/Cu.Ft) | Power Supply (V/Hz) | Display | Inner Doors | Certificate |
| DW-86L338J | Upright | 338/11.9 | 220～240/50,120/60 | LED | 2 | CE,UL |
| DW-86L338JA | Upright | 338/11.9 | 208～230/60 | LED | 2 | UL |
| DW-86L388J | Upright | 388/13.7 | 220～240/50 | LED | 2 | CE |
| DW-86L486E | Upright | 486/17.1 | 220～240/50 | LED | 4 | CE |
| DW-86L490J | Upright | 490/17.3 | 220～240/50 | LED | 4 | CE |
| DW-86L490JA | Upright | 490/17.3 | 208～230/60 | LED | 4 | UL |
| DW-86L578J | Upright | 578/20.4 | 120/60,220～240/50 | LED | 4 | CE,UL,Energy Star |
| DW-86L578JA | Upright | 578/20.4 | 208～230/60 | LED | 4 | UL |
| DW-86L628E | Upright | 626/22.1 | 220～240/50 | LED | 4 | CE |
| DW-86L728J | Upright | 728/25.7 | 220～240/50,115/60 | LED | 4 | CE,UL,Energy Star |
| DW-86L728JA | Upright | 728/25.7 | 208～230/60 | LED | 4 | UL |
| DW-86L828J | Upright | 828/29.2 | 220～240/50 | LED | 4 | CE |
| DW-86L828JA | Upright | 828/29.2 | 208～230/60 | LED | 4 | UL,Energy Star |
| DW-86W100J | Chest | 100/3.5 | 220～240/50 | LED | 1 | CE |
| DW-86W420J | Chest | 420/14.8 | 220～240/50 | LED | 3 | CE |
| DW-86W420JA | Chest | 420/14.8 | 208～230/60 | LED | 3 | UL |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| Flyer | English | Download | ||
| Flyer | English | Download | ||
| User Instructions | English | Download | ||
| Brochure | English | Download |
| Model | DW-86L338J, DW-86L338JA, DW-86L388J, DW-86L486E, DW-86L490J, DW-86L490JA, DW-86L578J, DW-86L578JA, DW-86L628E, DW-86L728J, DW-86L728JA, DW-86L828J, DW-86L828JA, DW-86W100J, DW-86W420J, DW-86W420JA |
|---|
