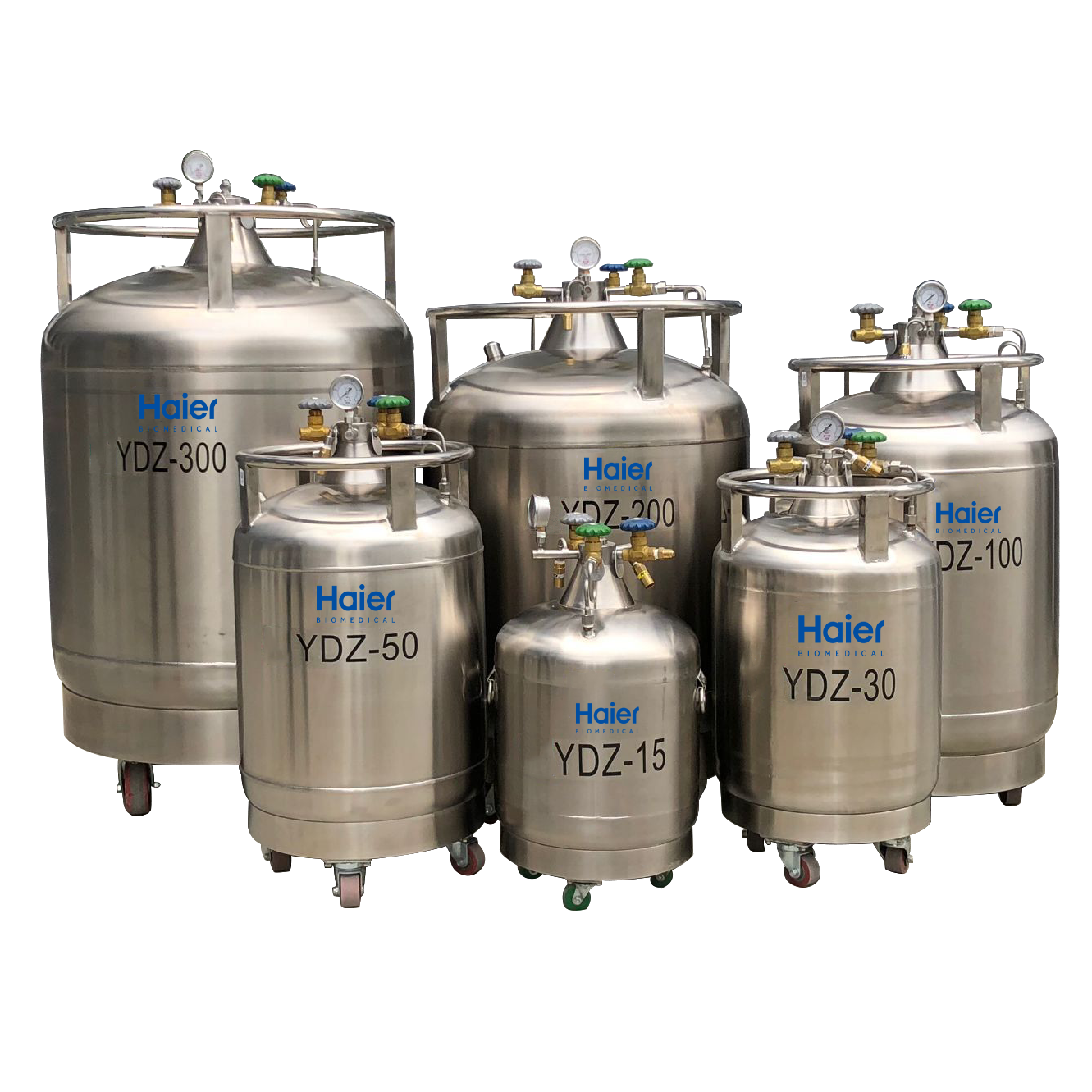

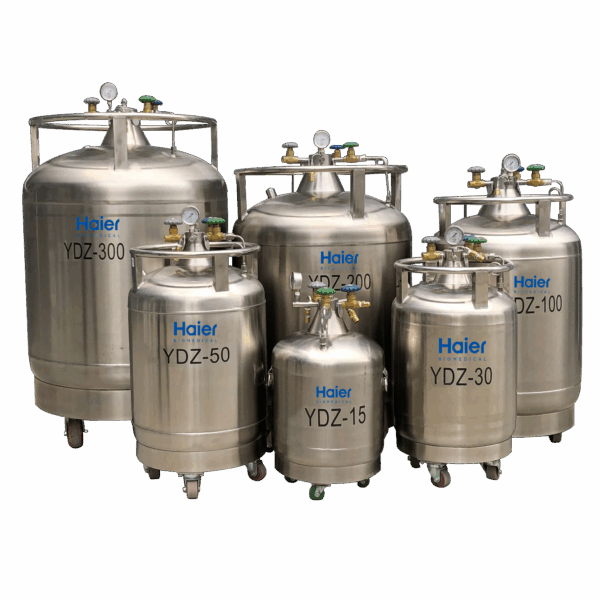

Liquid Nitrogen Supplement Series for LN2 Storage and Supply incorporates the latest innovation, its unique design utilises the pressure generated from the vapourisation of a small amount liquid nitrogen to discharge LN2 into other containers. Storage capacities range from 5 to 500 litres.
Product Features:
- All Models are Equipped with Safety Valve. Models 200L and Above Have Additional Rupture Disc
- Rotary Ring Construction
- Labelled Valves for Easy Identification
- All Welded Stainless Steel Construction
- 5 year Vacuum Warranty
| Model | Volume of LN2(L) | LN2 Output (L/Min) | Static Evapouration Rate* (%/d) |
| YDZ-5 | 5L | 2 | 0.15 |
| YDZ-15 | 15L | 2 | 0.38 |
| YDZ-30 | 30L | 3 | 0.75 |
| YDZ-50 | 50L | 3 | 1 |
| YDZ-100(K) | 100L | 4 | 1.3 |
| YDZ-150 | 150L | 6 | 1.95 |
| YDZ-200(K) | 200L | 8 | 2.4 |
| YDZ-240K | 240L | 8 | 2.9 |
| YDZ-300(K) | 300L | 8 | 3.3 |
| YDZ-500(K) | 500L | 10 | 5.5 |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| Flyer | English | Download | ||
| Flyer | English | Download | ||
| Brochure | English | Download |
| Model | YDZ-100(K), YDZ-15, YDZ-150, YDZ-200(K), YDZ-240K, YDZ-30, YDZ-300(K), YDZ-5, YDZ-50, YDZ-500(K) |
|---|
