Biobank series for large scale storage is designed to ensure the maximum storage capacity with the minimum consumption of liquid nitrogen to lower the overall cost of operation.

Product Features

  • Large Scale Storage Capacities from 13,000 to 94,875 x Standard 2ml Cryovials
  • Vapour Phase Storage to Prevent Cross Contamination
  • Excellent Temperature Uniformity

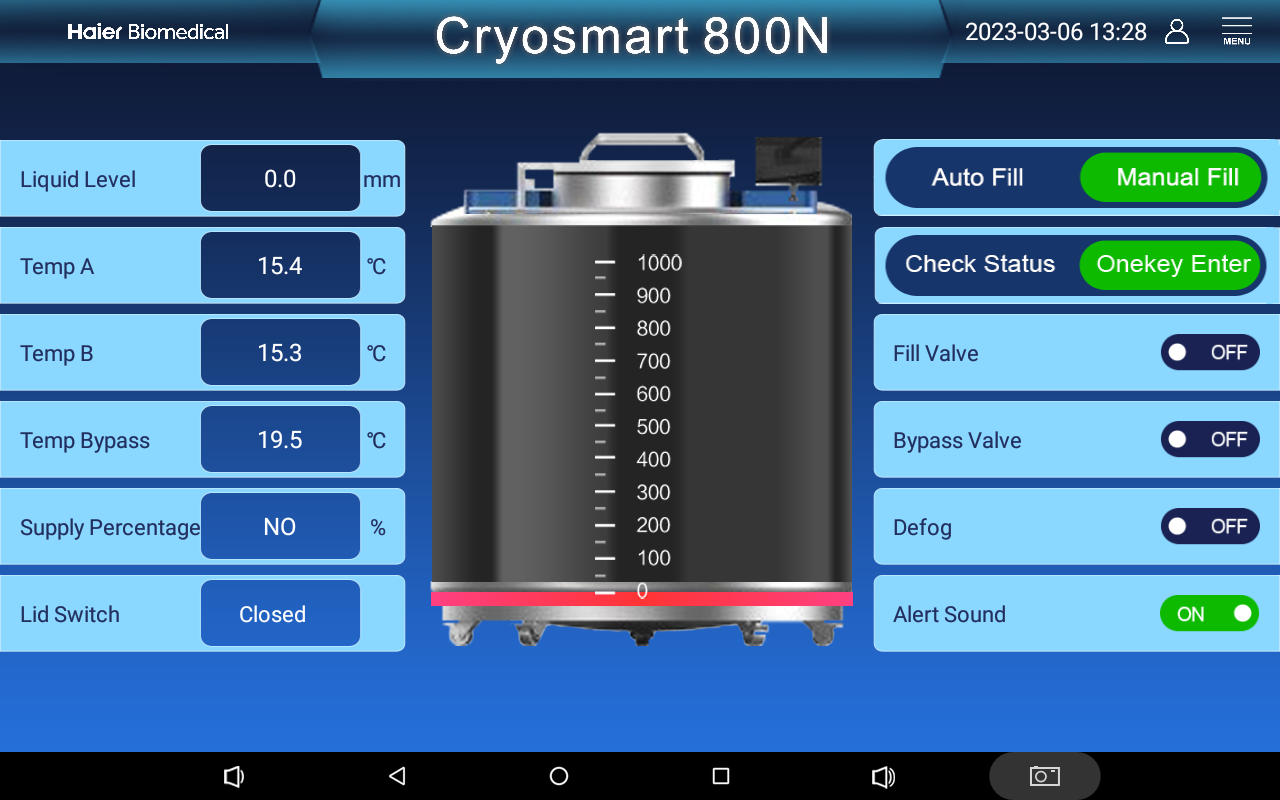

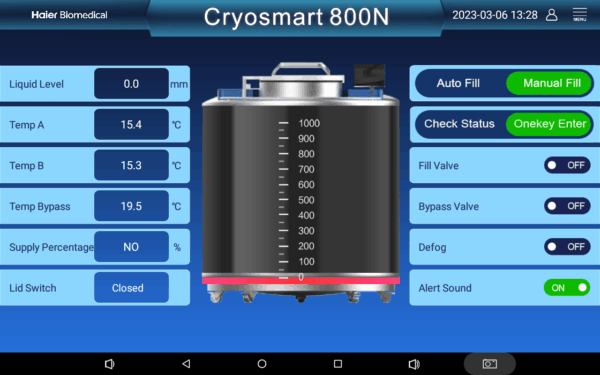

  • One-Touch Defogging for Easier Access
  • Liquid Nitrogen Splash-Proof Feature Provides Safer Operation
  • Can be used to store all kinds of biological sample



Model Volume of LN2(L) 2ml Volume Inside Neck Diameter (mm) Operating Height (mm)
YDD-1000-465 1014 51000 465mm 1090

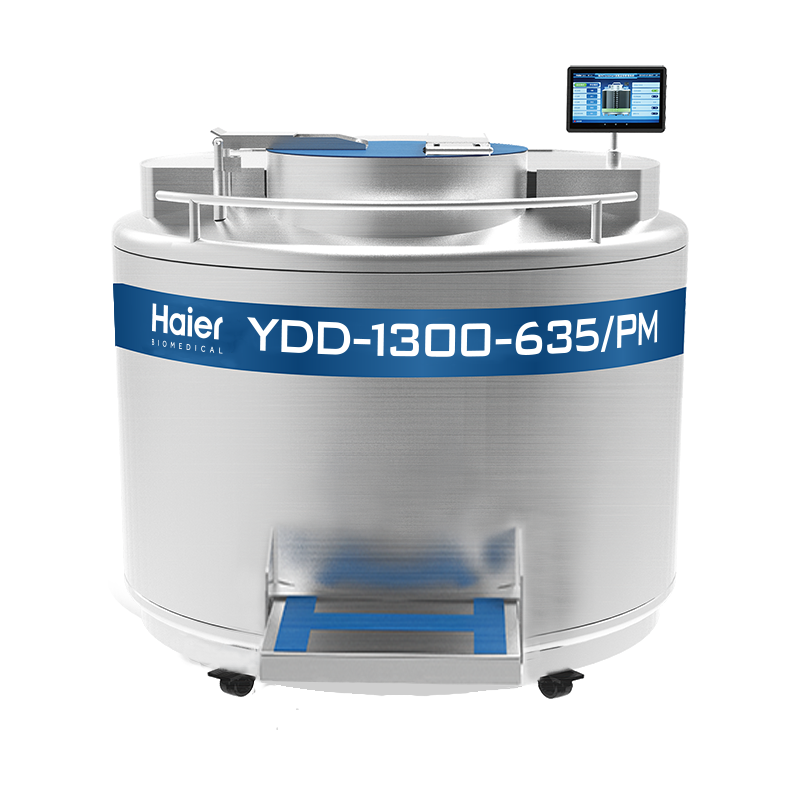

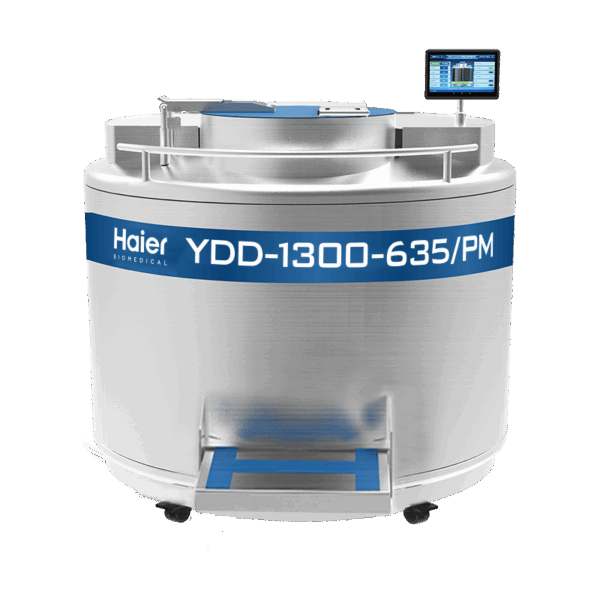

YDD-1300-635 1340 58500 635mm 997
YDD-1600-635 1660 76050 635mm 967
YDD-1800-635 1880 94875 635mm 1097
YDD-350-326 350L 13000 326mm 1263
YDD-370-326 370L 15600 326mm 1096
YDD-450-326 460L 21000 326mm 1212

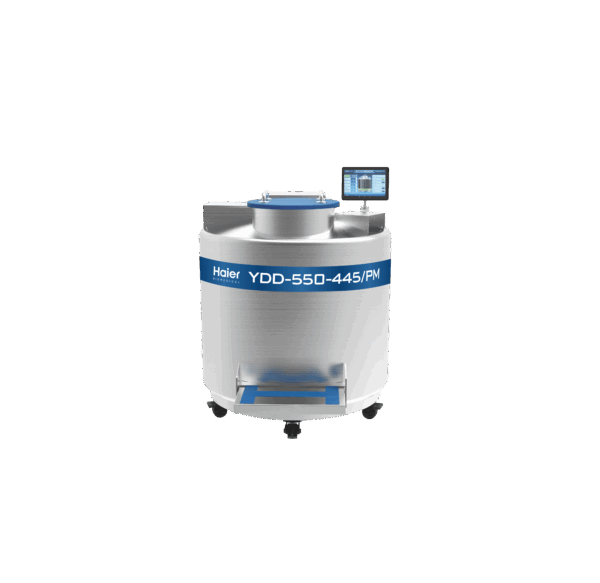

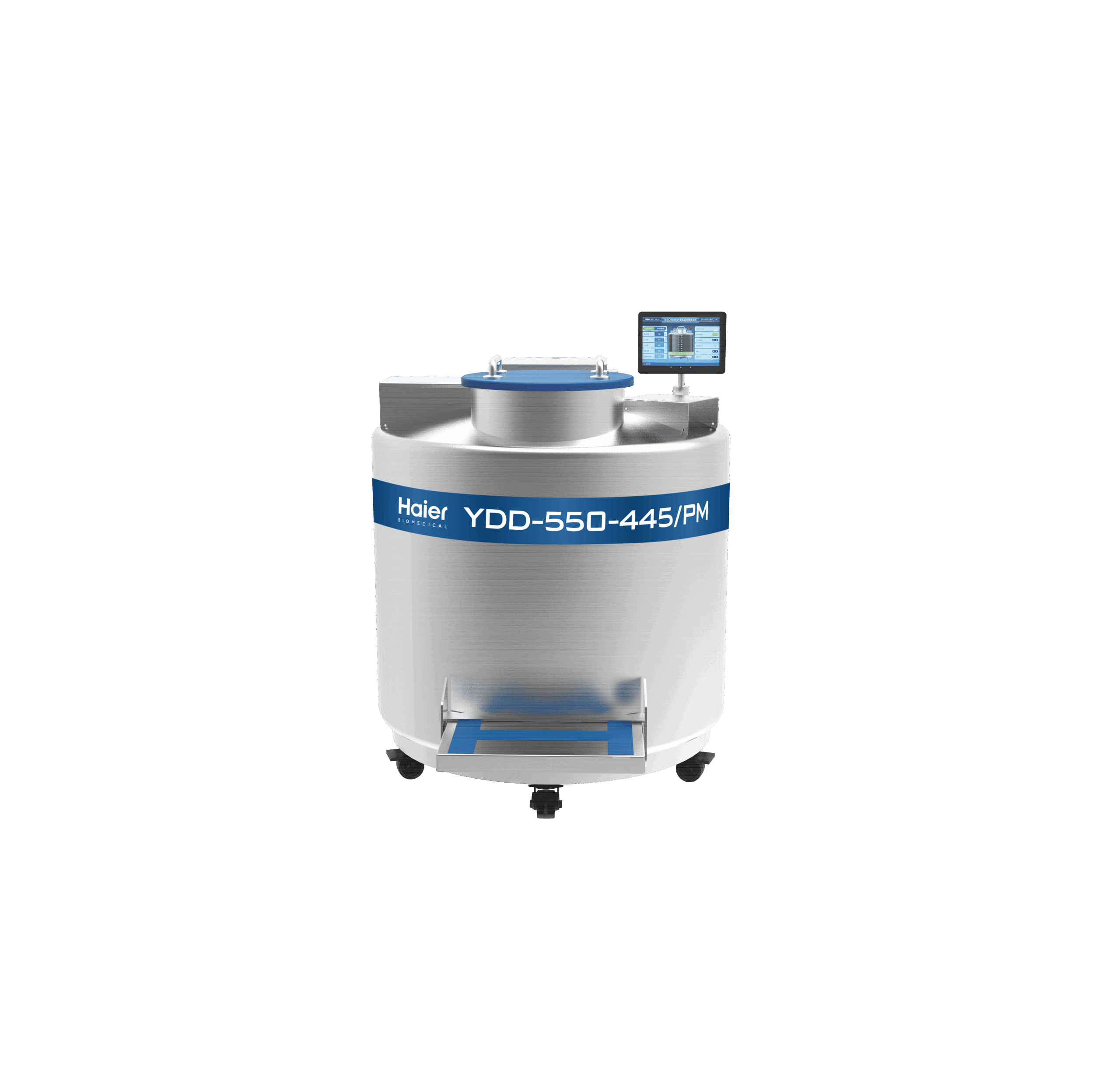

YDD-550-445 587L 27000 445mm 970

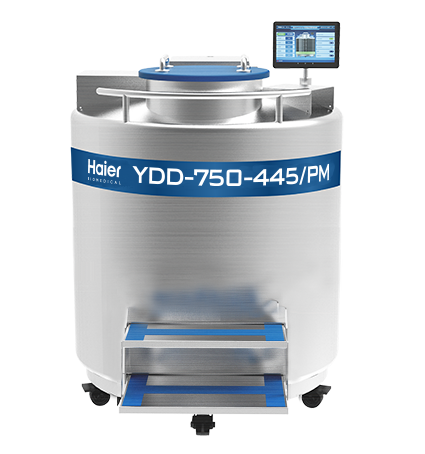

YDD-750-445 783L 37800 445mm 995

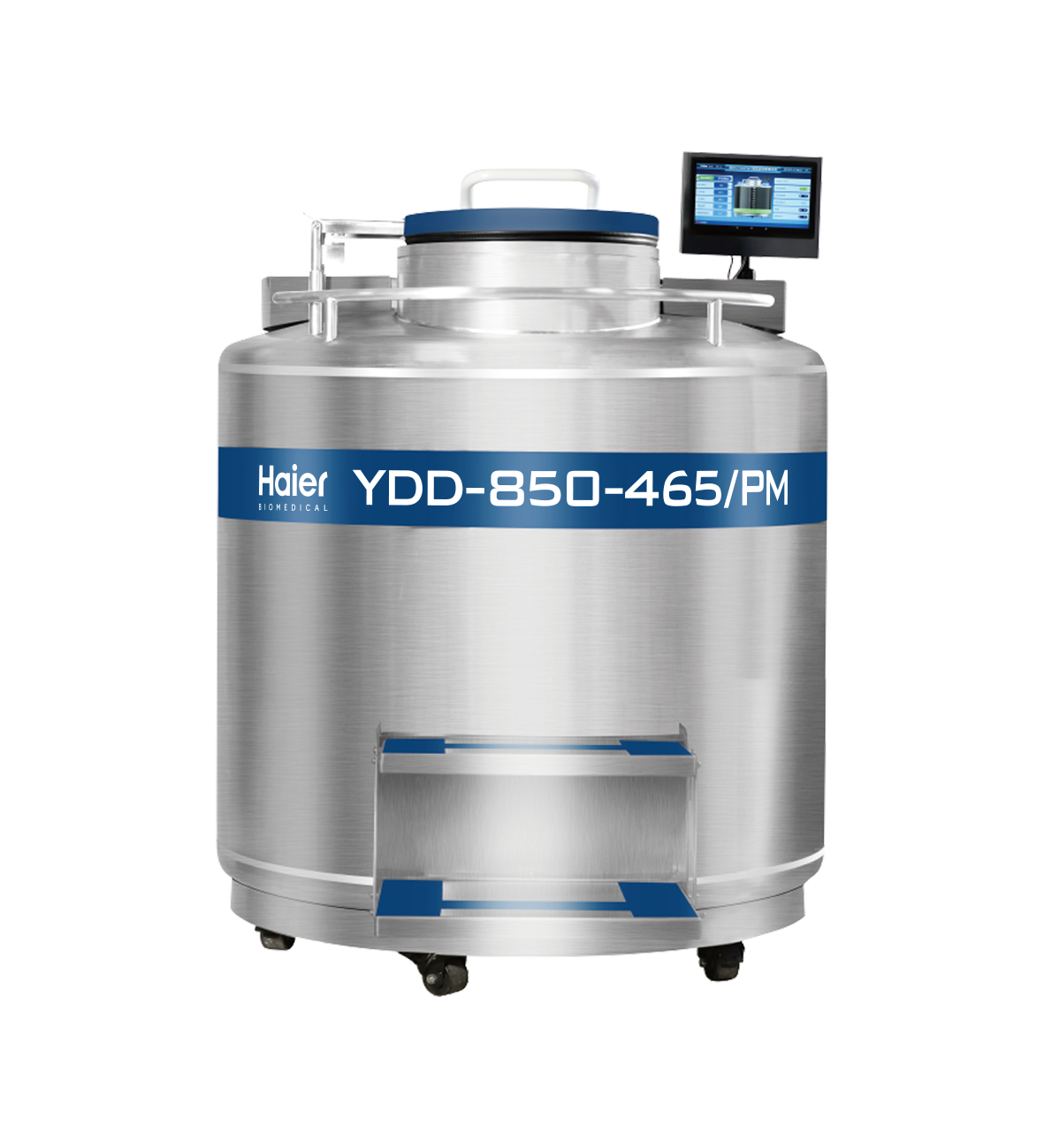

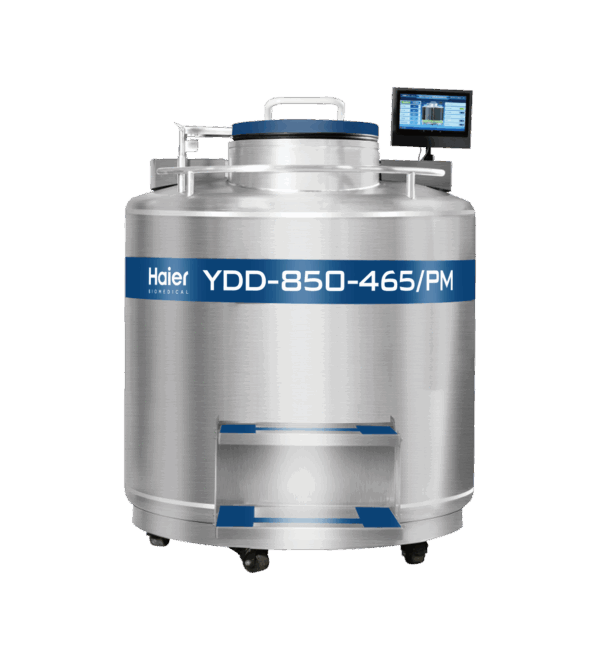

YDD-850-465 890L 42900 465mm 980

Documentation

SKUProductTypeLanguageFile
FlyerEnglishDownload
BrochureEnglishDownload
Model

YDD-1000-465, YDD-1300-635, YDD-1600-635, YDD-1800-635, YDD-350-326, YDD-370-326, YDD-450-326, YDD-550-445, YDD-750-445, YDD-850-465
