The combined refrigerator with freezer can be used to store vaccines, reagents and freeze ice packs.
Product Features
Ergonomic Design
● Safety lock for unauthorized access control

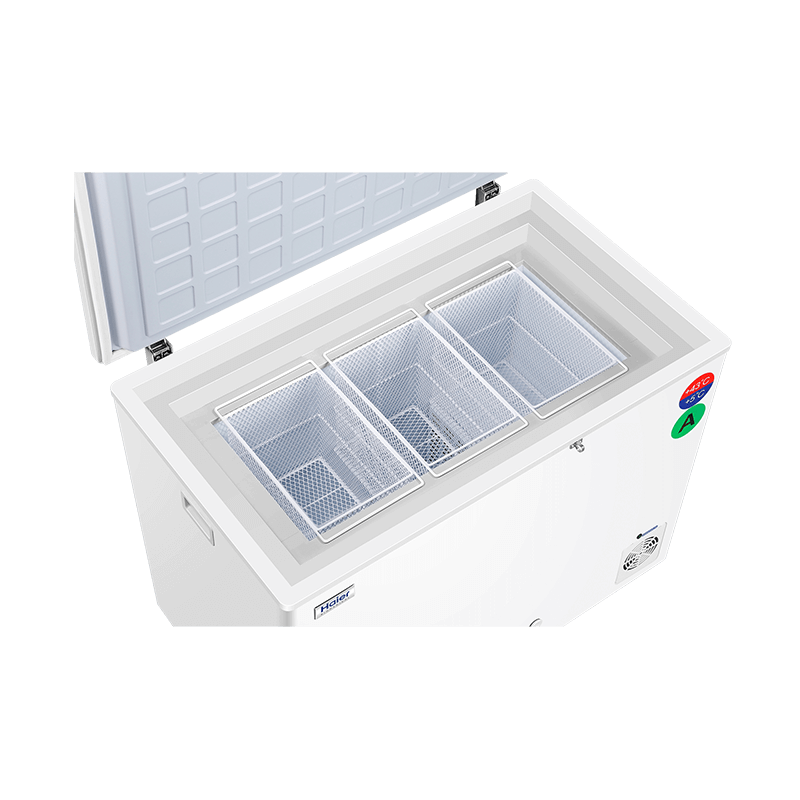

● Equipped with storage basket, easy-reach retrieval of sample
● Low noise
● Aluminium and stainless steel chamber interior, corrosion-proof and easy to clean
● Equipped with handles on both sides of the cabinet, easy to move
Advantages
● The refrigerating chamber and freezing chamber both have the separate refrigeration systems to ensure safe vaccine storage
● Green and environment-friendly
● Microprocessor control, solar powered display panel shows refrigerator and freezer interior temperature, refrigerator temperature range is 2~8°C, freezer temperature is less than -10°C
● Cooling chamber with water tank maintains interior temperature, extending the holding time when power is off
● Cooling chamber meets the A level WHO requirements for anti-freezing protection
● Patented technology, better temperature uniformity
● Wide working ambient range, will function normally within an ambient range of 5-43°C
| Model | Cabinet Type | Power Supply (V/Hz) | Gross Volume (L/Cu.Ft) | Holdover Time at 43℃ | Temperature | Vaccine Storage Capacity (L/Cu.Ft) |
| HBCD-90 | Chest | 220～240/50 | 74/2.6 | 63hrs48mins | 2-8,＜-10 | 30/1.1 |
| HBC-80 | Chest | 220～240/50 | 80/2.8 | 59hrs58mins | 2-8 | 61/2.2 |
| HBC-150 | Chest | 220～240/50 | 150/5.3 | 60hrs50mins | 2-8 | 122/4.3 |
| HBC-260 | Chest | 220～240/50 | 260/9.2 | 62hrs | 2-8 | 211/7.5 |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| HBC-260 | HBC-260 | Flyer | English | Download |
| HBC-150 | HBC-150 | Flyer | English | Download |
| HBC-80 | HBC-80 | Flyer | English | Download |
| Brochure | English | Download |
| Model | HBC-150, HBC-260, HBC-80, HBCD-90 |
|---|
