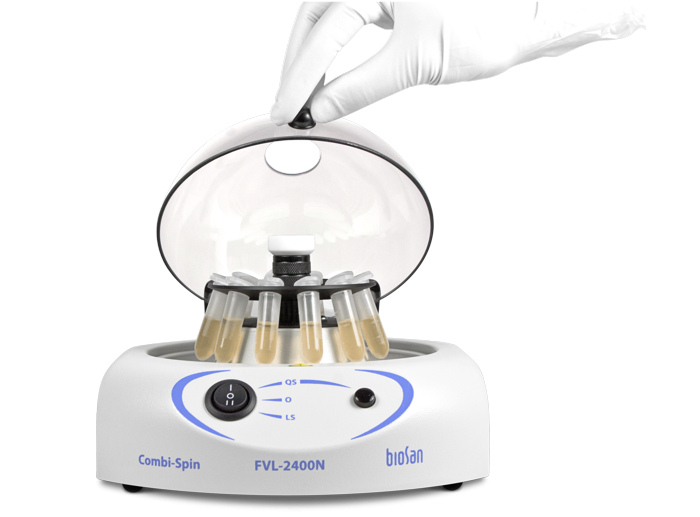

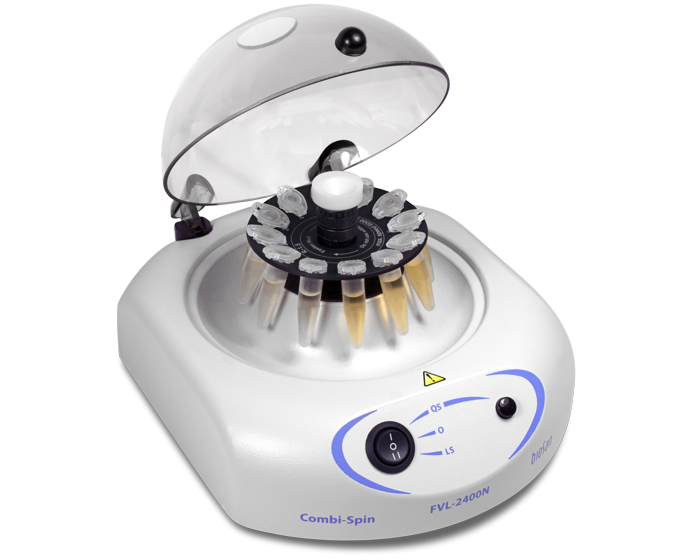

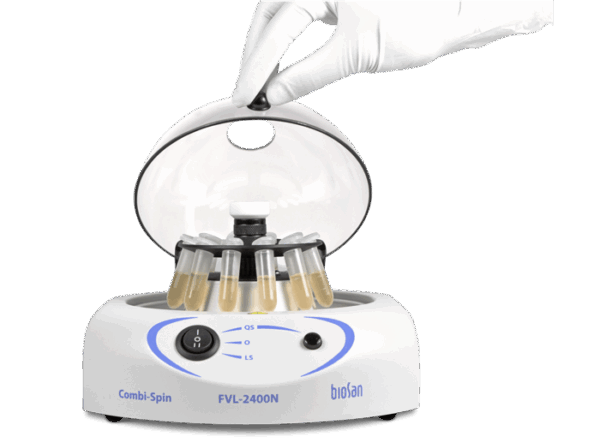

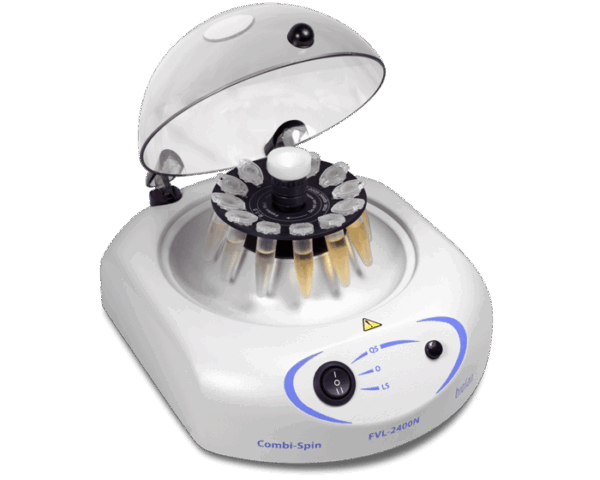

Minicentrifuge-vortex Combi–Spin FVL-2400N is specially designed for genetic engineering research (for PCR–diagnostics experiments). Units can be used in microbiological, biochemical, clinical laboratories and industrial biotechnological laboratories.

Combi–Spin provides simultaneous mixing and separation of samples, using centrifuge and mixing modules, located on the common spin–module.

FVL-2400N is provided with protection mechanism that stops the rotor motion when the lid is opened.

Rotation speed (fixed) (50 Hz) 2800 rpm
Max. RCF (50 Hz) 500 x g
Rotation speed (fixed) (60 Hz) 3500 rpm
Max. RCF (60 Hz) 700 x g
Continuous and impulse operation modes +
Safety Stop at open lid
Overall dimensions (W×D×H) 190x235x125 mm
Weight 1.7 kg
Power consumption (230V / 120 V) 25 W (0.1 A) / 30 W (0.27 A)
Nominal operating voltage 120 or 230 V; 50/60 Hz

Accessories

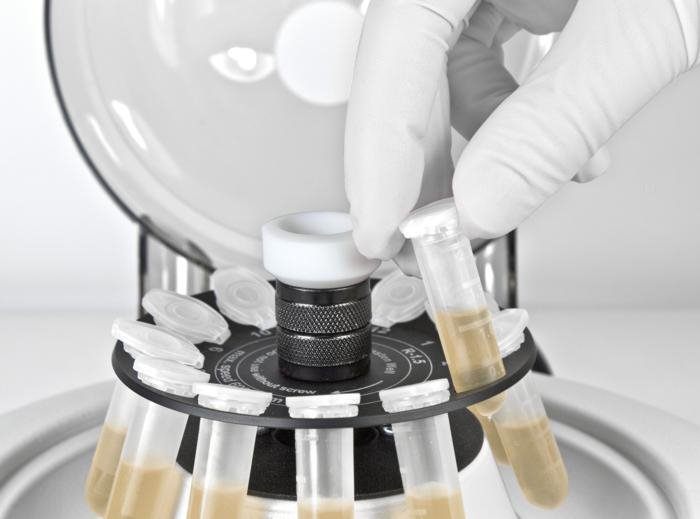

Rotor for 8 x 2/1.5 ml and 8 x 0.5 ml microtest tubes.

Rotor for 6x2/1.5 ml + 6x0.5 ml + 6x0.2 ml microtest tubes.

Rotor for 2 x 8-section 0,2 ml microtube strips.

Rotor for 12 x 0.5 ml and 12 x 0.2 ml microtest tubes.

Rotor for 12 x 1.5/2 ml microtest tubes.

Rotor for 4 x 8-section 0,2 ml microtube strips * not compatible with Combi-Spins produced before 2015.

Documentation

SKUProductTypeLanguageFile
FVL-2400NFVL-2400NDeclaration of ConformityEnglishDownload
FVL-2400NFVL-2400NBrochureEnglishDownload
FVL-2400NFVL-2400NUser InstructionsEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 1,7 kg
Dimensions 1290 × 235 × 125 mm
Product class

Basic Plus
