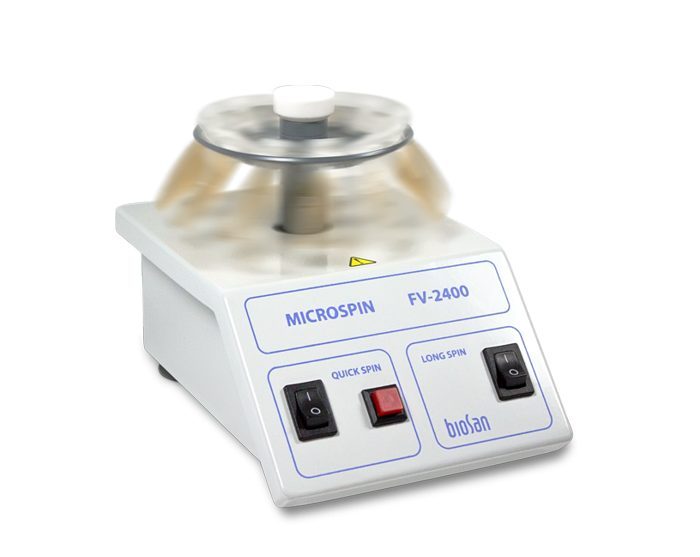

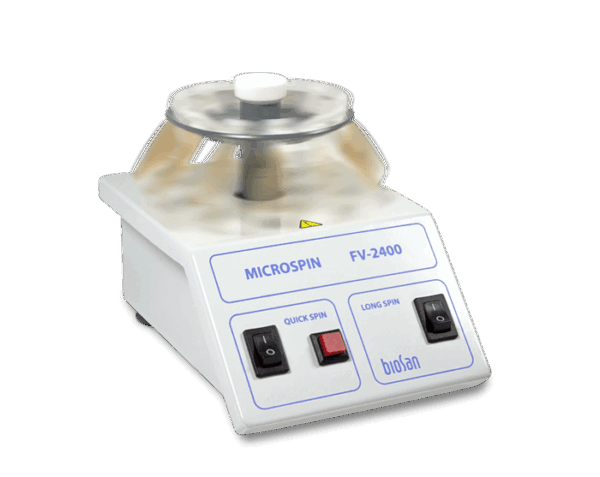

Minicentrifuge-vortex Microspin FV-2400 is specially designed for genetic engineering research (for PCR–diagnostics experiments). Units can be used in microbiological, biochemical, clinical laboratories and industrial biotechnological laboratories.

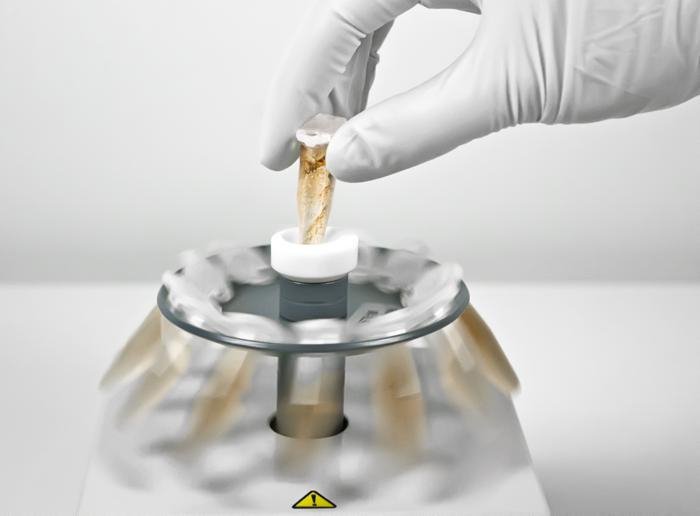

Micro–Spin provides simultaneous mixing and separation of samples, using centrifuge and mixing modules, located on the common spin–module.

FV-2400 is an “open type” centrifuge (without lid), that increases the speed of centrifugation and resuspension operations.

Rotation speed (fixed) (50 Hz) 2800 rpm
Max. RCF (50 Hz) 500 x g
Rotation speed (fixed) (60 Hz) 3500 rpm
Max. RCF (60 Hz) 700 x g
Continuous and impulse operation modes +
Overall dimensions (W×D×H) 120x170x120 mm
Weight 1.4 kg
Power consumption (230V / 120 V) 25 W (0.1 A) / 30 W (0.27 A)
Nominal operating voltage 120 or 230 V; 50/60 Hz

Accessories

Rotor for 12 × 0.5 ml and 12 × 0.2 ml microtest tubes.

Rotor for 12 x 1.5/2 ml microtest tubes.

Rotor for 8 x 2/1.5 ml and 8 x 0.5 ml microtest tubes.

Rotor for 6x2/1.5 ml + 6x0.5 ml + 6x0.2 ml microtest tubes.

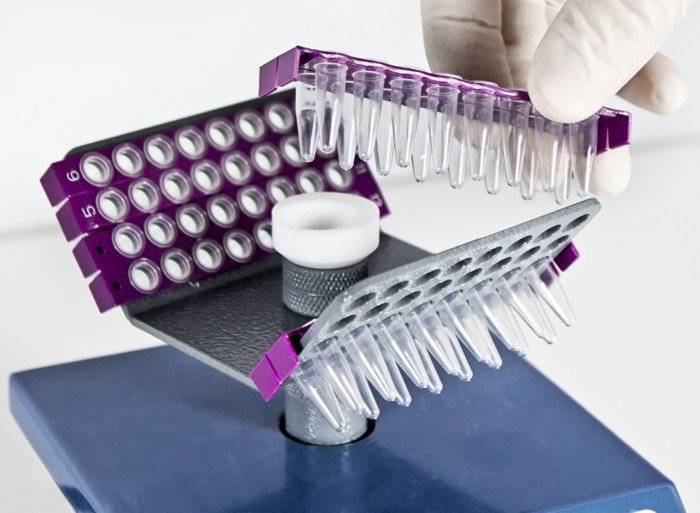

Rotor for 2 x 8-section 0,2 ml microtube strips.

Rotor for 8 x 8-section 0,2 ml microtube strips - for any type of strips including paired.

Documentation

SKUProductTypeLanguageFile
FV-2400FV-2400Declaration of ConformityEnglishDownload
FV-2400FV-2400BrochureEnglishDownload
FV-2400FV-2400User InstructionsEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 1,4 kg
Dimensions 120 × 170 × 120 mm
Product class

Basic Plus
