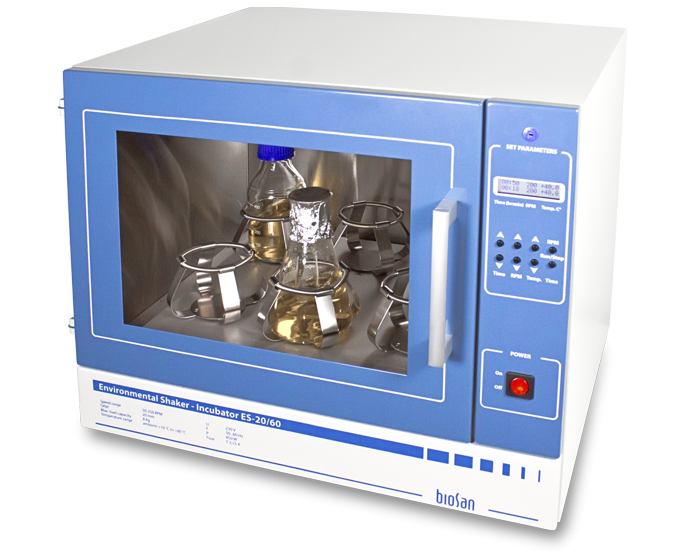

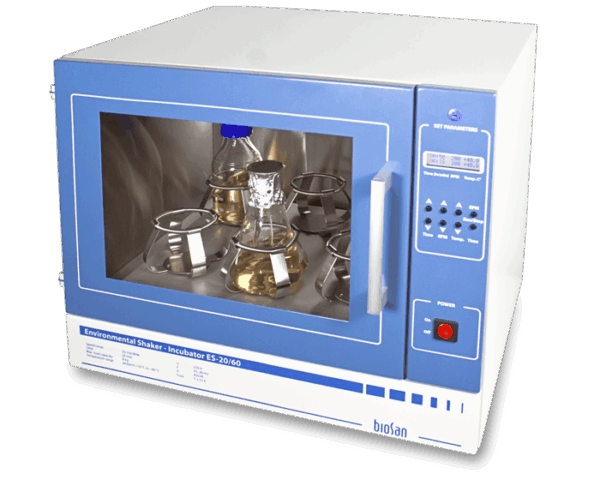

Orbital Shaker–Incubator ES-20/60 for biotechnological and pharmaceutical laboratories is a professional category equipment designed for cultivation of microorganisms and eukaryotic cells including animal, plant and insect cells. It is also possible to cultivate thermofilic bacteria in ES-20/60 shaker-incubator.

Shaker is equipped with a direct-drive mechanism for platform motion. It provides reliable and stable operation for the long term experiments needed for cell growth.

Shaker–Incubator ES-20/60 provides smooth or intensive mixing in flasks installed on the platform.

Built-in noiseless thermoresistant brushless fan provides precise temperature distribution inside the chamber (adjustable for up to +80°C). The inner chamber is made of stainless steel. State–of–the–art motor, newest thermal insulation materials, soft-start of the platform motion and temperature PID–control decrease the energy consumption and make the Shaker–Incubator highly energy efficient despite its relatively large size.

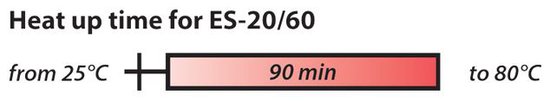

Temperature setting range +25°C... +80°C
Temperature control range 10°C above ambient... +80°C
Speed control range 50–250 rpm (increment 10 rpm)
Temperature stability ±0.5°C
Temperature setting resolution 0.1°C
Temperature accuracy at +37°C ±2°C
Temperature uniformity at +37°C ±2°C
Orbit 20 mm
Display LCD, 2 × 16 signs
Digital time setting 1 min–96 hrs / non–stop (1 min increment)
Timer sound signal +
Maximum load 8 kg
Maximum continuous operation time 30 days
Dimensions of the inner chamber 460 × 400 × 310 mm
Overall dimensions (W×D×H) 590 × 525 × 510 mm
Weight 41.1 kg
Power consumption (230V / 120 V) 450 W (2 A) / 450 W (4.5 A)
Nominal operating voltage 230 V, 50/60 Hz or 120 V, 50/60 Hz

Accessories

Platform with clamps for flasks.

Platform with clamps for flasks.

Platform with clamps for flasks.

Platform with clamps for flasks.

Universal platform with clamps can accommodate flasks or bottles of different volume sizes. Clamps are not included with platform and need to be ordered separately.

Convenient alternative to traditional steel holders, an easy way to fix tubes, plates, flasks and other laboratory wares on platforms for cultivation, incubation and mixing.

Adjustable angle test tube rack for UP-168

Adjustable angle test tube rack for UP-168

Clamp 50 ml - Ø50 mm for UP-168

Clamp 100 ml - Ø65 mm for UP-168

Clamp 250 ml - Ø85 mm for UP-168

Clamp 500 ml - Ø105 mm for UP-168

Clamp 1000 ml - Ø130 mm for UP-168

Flat platform with non-slip silicone mat can accommodate various low profile containers.

Documentation

SKUProductTypeLanguageFile
ES-20/60ES-20/60User ManualEnglishDownload
ES-20/60ES-20/60BrochureEnglishDownload
ES-20/60ES-20/60User InstructionsEnglishDownload
ES-20/60ES-20/60Declaration of ConformityEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 41,1 kg
Dimensions 590 × 525 × 510 mm
