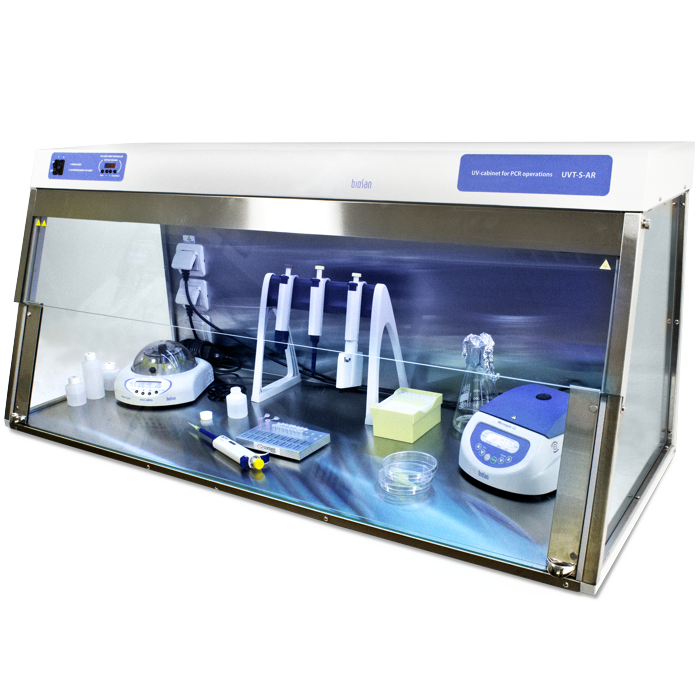

DNA/RNA UV-cleaner box UVT-S-AR is designed for clean operations with DNA samples. UV-cleaner box provide protection against contamination.

Model is a bench-top type, made of metal framework, glass walls, working surface made of stainless steel.

UV-cleaner boxes are equipped with an open UV lamp installed in the upper hood. UV-radiation from the open lamps disinfects the working area inactivating DNA/RNA fragments during 15–30 min of exposure. A digital timer controls duration of the direct UV irradiation. A daylight lamp provides proper illumination of the working surface.

UV-cleaner boxes are equipped with a flow-type bactericidal UV cleaner–recirculator AR, which provides constant decontamination inside the box during operation. They are recommended for operations with DNA/RNA amplicons.

UV cleaner–recirculator AR consists of a UV lamp, a fan and dust filters organized in a special body so that a user working with a UV-cleaner box is protected against UV light. Recirculator increases the maximum density of UV light making it  sufficiently effective for DNA/RNA inactivation. The UV–recirculator processes 100 UV-cleaner box volumes per hour, creating permanent aseptic conditions of operation inside the UV-cleaner box.

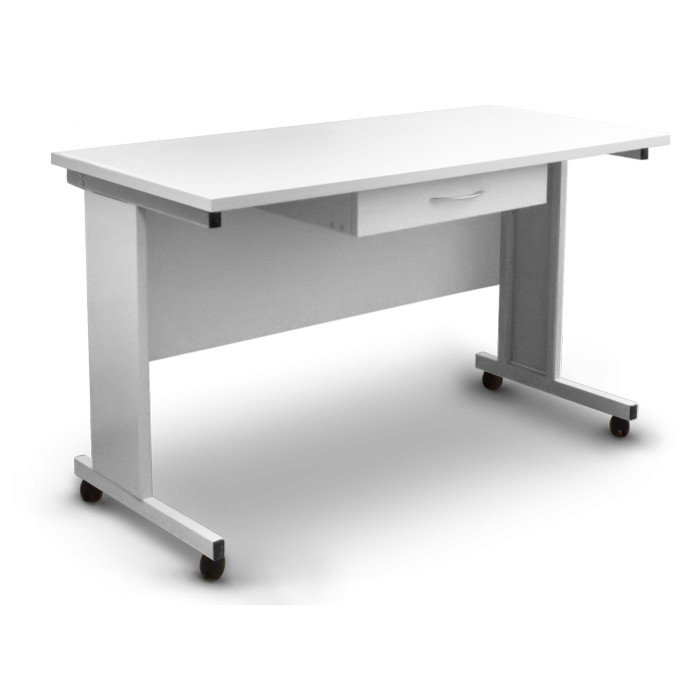

Specially assigned moving tables T-4L (with wheel locks) with a drawer are available on request.

Advantages of Biosan UV-cleaner boxes:

  • Ozone free high density UV decontamination
  • Long living UV lamps (9,000 hours average)
  • Automatic switch off of UV-lamps when the protective screen is opened
  • Bactericidal flow-type recirculator providing permanent decontamination inside UV – cleaner box during operation
  • Shockproof glass walls
  • Low noise, low energy consumption
  • Tables for installation of UV-cleaner boxes
  • UV-cleaner boxes with the bactericidal UV cleaner–recirculator AR is the patented Biosan solution

Specification:

Walls material Rear: stainless steel Sides and front: glass (EUROGLASS, Germany)
Working surface material Stainless steel
Open UV-lamp 2x30W built‑in bactericidal UV-C, TUV 30W 1SL/25
UV radiation level 18 mW / cm2 / sec
Radiation type UV (λ = 253.7 nm), ozone-free
Digital time setting of direct UV exposure 1 min–24 hrs / non–stop (increment 1 min)
UV-recirculator 1 х 30W (efficiency >99% per 1 hour)
Daylight lamp (for working area illumination) 1 x TLD-30W
Thickness of side panels 4 mm
Thickness of upper front panel 8 mm
Thickness of screen 5 mm
Optical transmission 95%
UV protection >96%, UV-protection film
Working area 1210 × 500 mm
Opening dimensions (fully raised protective screen) 1210 × 190 mm
Safety features Automatic open UV-lamp switch off when screen is open
Power outlets inside the unit 3 Built-in sockets max. 1000 W and inlet for power cords
Overall dimensions (W×D×H) 1250 × 600 × 590 mm
Weight (net / gross) 58 / 68.5 kg
Power consumption 135 W
Nominal operating voltage 100-240 V, 50/60Hz
Optional table T-4L (1290 × 600 × 770 mm)

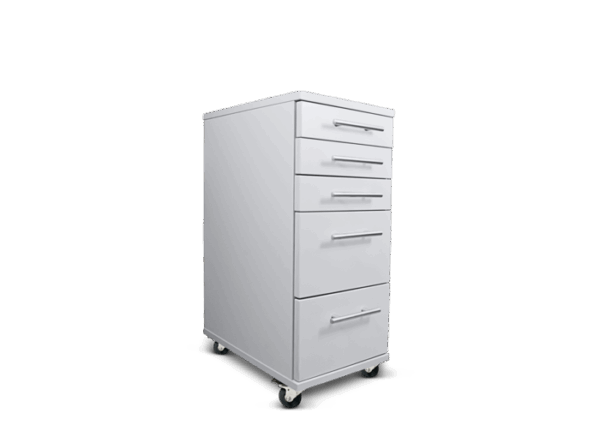

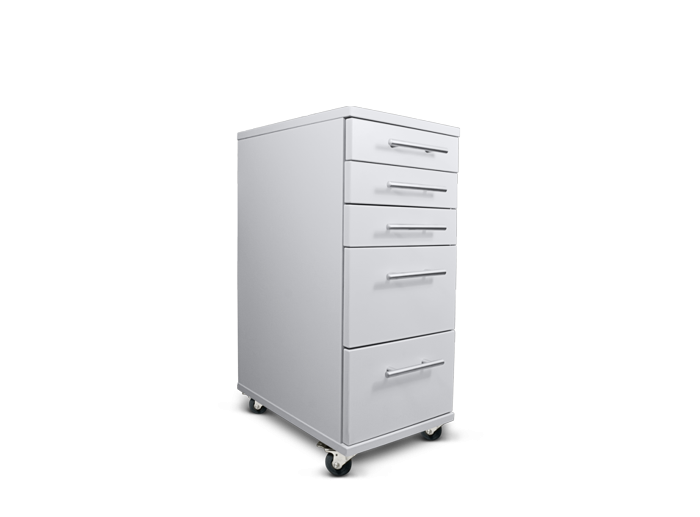

Optional drawer unit LF-1 (300 × 450 × 705 mm)

Specification

Specification

Accessories

New modular design of laboratory furniture provides flexibility and ease of use.

New modular design of laboratory furniture provides flexibility and ease of use.

Contamination is especially problematic in the highly sensitive PCR technique. Originating from aerosolized fragments, contaminant DNA can lead to cross contamination thus resulting in inaccurate data and as a result misinterpreted analysis.

Contamination is especially problematic in the highly sensitive PCR technique. Originating from aerosolized fragments, contaminant DNA can lead to cross contamination thus resulting in inaccurate data and as a result misinterpreted analysis.

Weight 58 kg
Dimensions 1250 × 600 × 590 mm
Product class

Premium

Related Products

Operation principle is based on a constant, forced air circulation through recirculator`s chamber in close vicinity to UV lamps, thus ensuring maximal efficiency of disinfection. The inner mirror surface of recirculator chamber reflects ultraviolet rays thereby increasing the density of UV radiation and enhancing the disinfection effect.

Operation principle is based on a constant, forced air circulation through recirculator`s chamber in close vicinity to UV lamps, thus ensuring maximal efficiency of disinfection. The inner mirror surface of recirculator chamber reflects ultraviolet rays thereby increasing the density of UV radiation and enhancing the disinfection effect.
