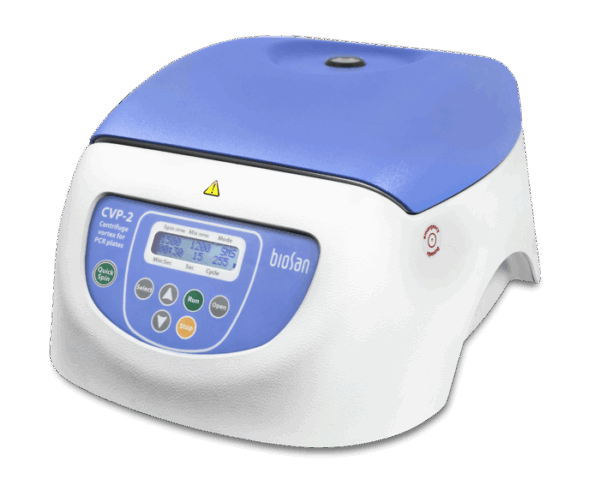

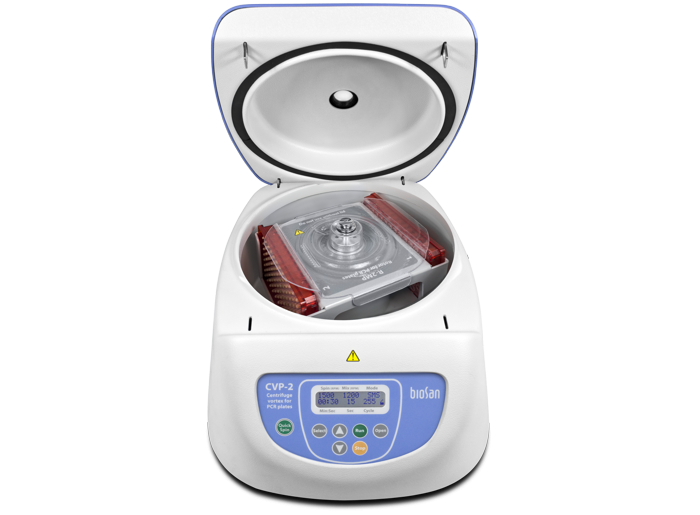

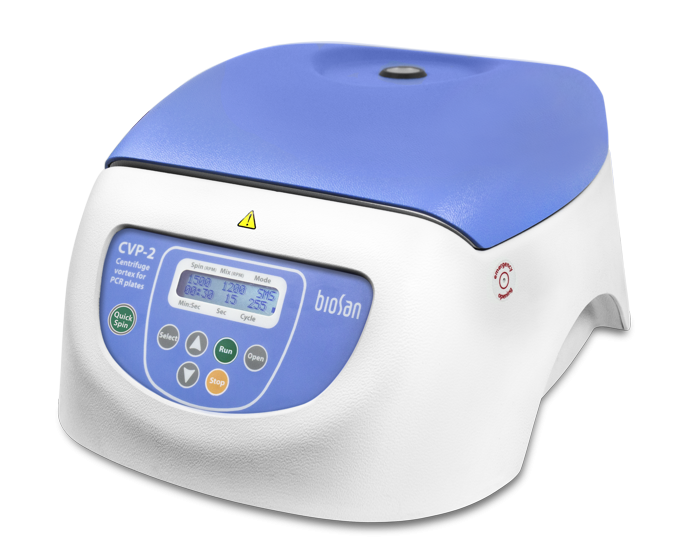

After many years of Combined Centrifuge-Vortex concept success, we are proud to introduce the long awaited Centrifuge/Vortex for PCR plates, CVP-2, to the sample preparation market.

The Spin–Mix–Spin technology is intended to spin-down micro volumes of reagents on the well’s bottom (first centrifugation spin), following mixing (mix) and spin-down the reagents again from the walls and cap of the well (second spin). We named this repetitive algorithm of operation that is aimed at reducing the mistakes during sample preparation for PCR analysis a “sms–algorithm”. This algorithm is registered by Biosan.

CVP-2 is a fully automatic device for reproducing sms–algorithm for 2 PCR plates at the same time, thus saving time considerably. A must-have instrument for PCR and DNA analyses laboratory.

CVP-2 is 4 devices combined in 1:

  1. Centrifuge — Maximum RCF: 225 × g (1500 rpm)
  2. Vortex (300–1200 rpm; Vortexing regulation timer 0–60 sec)
  3. Centrifuge/Vortex
  4. SMS–cycler for realization of the “sms–algorithm”

Plate type:

Without adapter:
96-well skirted PCR plates, PCR strips in a frame;

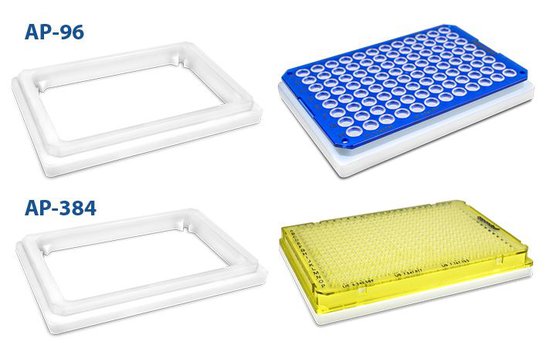

With adapter AP-96*:
96-well semi-skirted and non-skirted PCR plates;

With adapter AP-384*:
384-well PCR plates;

* – Adapters are made of Ertacetal® C. Autoclavable

SMS-cycle regulation 1 - 999 cycles
Speed regulation range 300–1500 rpm
Min. RCF at 1500 rpm 185 x g
Vortex regulation range 300–1200 rpm
Setting resolution 100 rpm
Timer sound signal +
Display LCD, 2 x 16 signs
Centrifugation mode time range 0–30 min (increment 1 s; after 1 min - 1 min)
Vortex mode time range 0–60 sec (increment 1 sec)
Chamber diameter 210 mm
Overall dimensions (W×D×H) 285 × 350 × 190 mm
Weight 6.15 kg
Input current/power consumption 12 V, 1.5 A / 18 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Accessories

2 adapters for 96-well semi-skirted and non-skirted PCR plates - made of Ertacetal® C. Autoclavable.

2 adapters for 384-well plates - made of Ertacetal® C. Autoclavable.

Documentation

SKUProductTypeLanguageFile
CVP-2CVP-2Declaration of ConformityEnglishDownload
CVP-2CVP-2BrochureEnglishDownload
CVP-2CVP-2White PaperEnglishDownload
CVP-2CVP-2User InstructionsEnglishDownload
Weight 6,15 kg
Dimensions 285 × 350 × 190 mm
Product class

Premium
