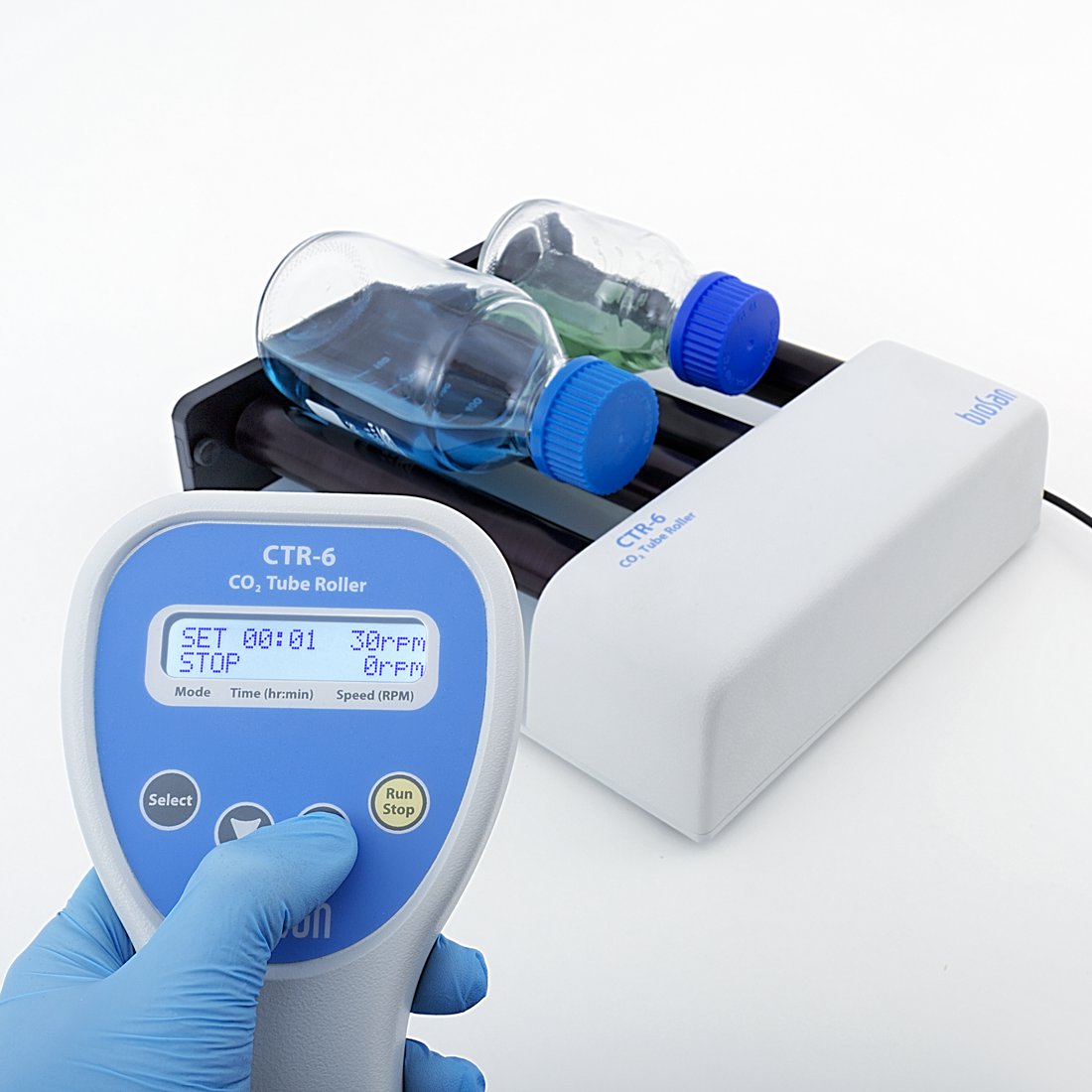

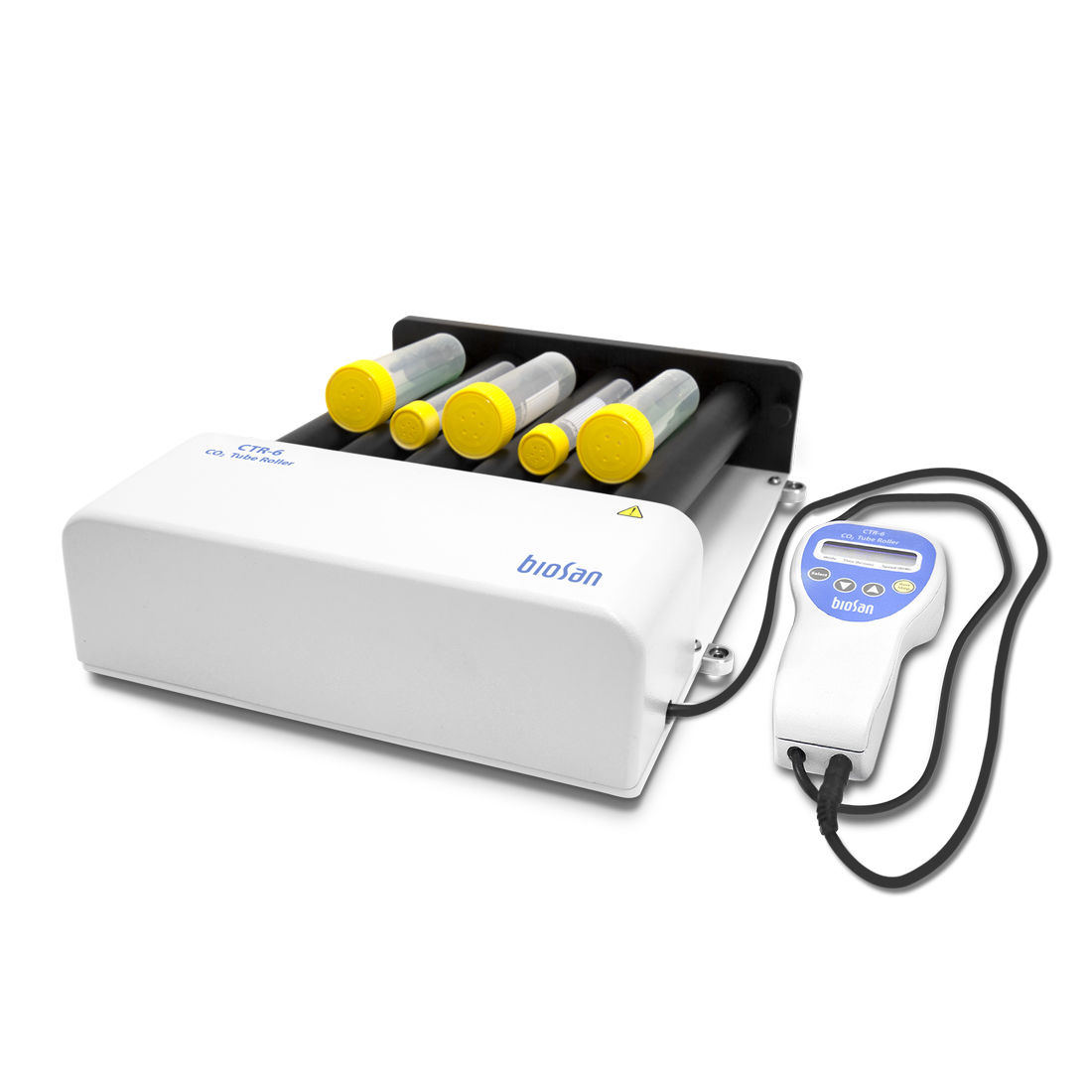

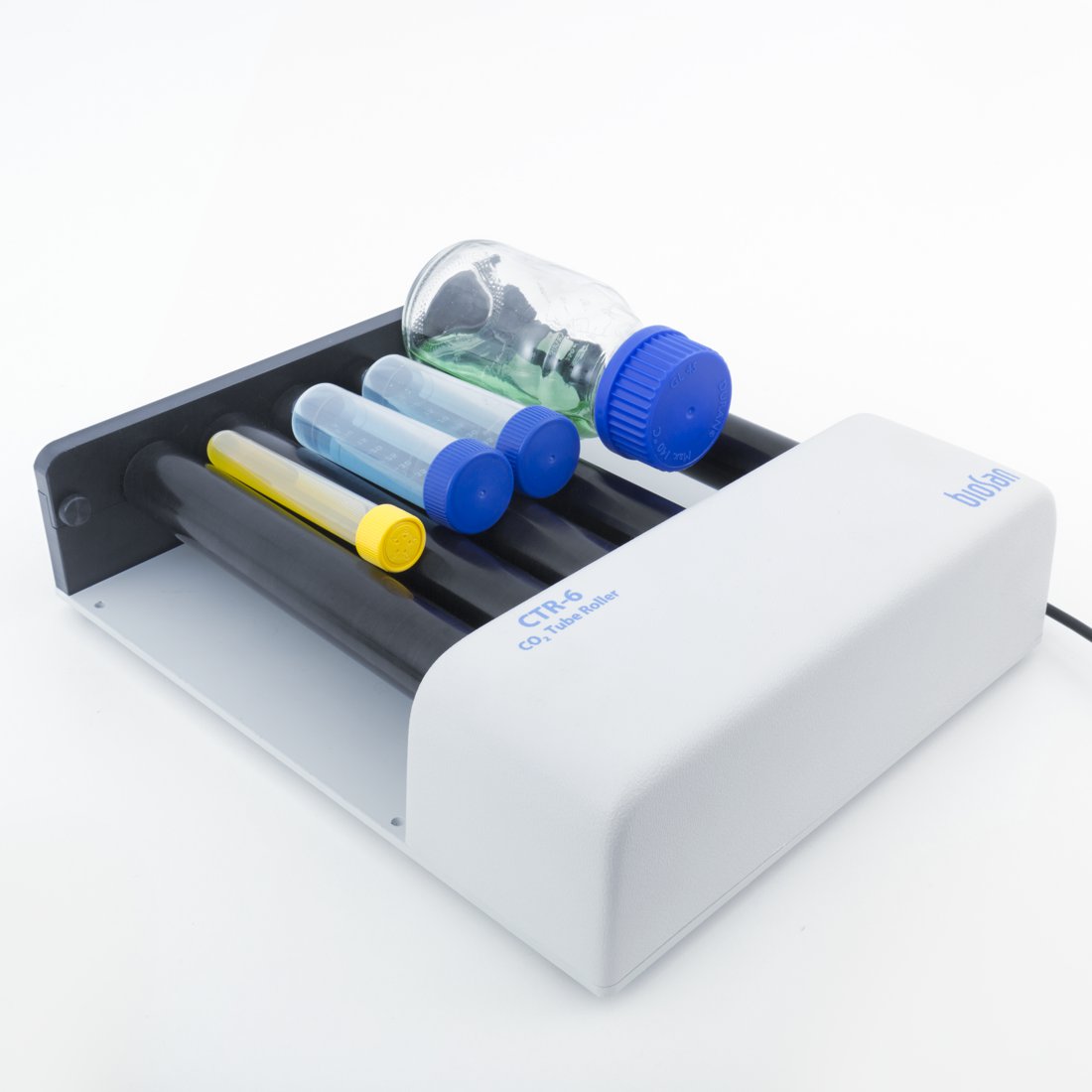

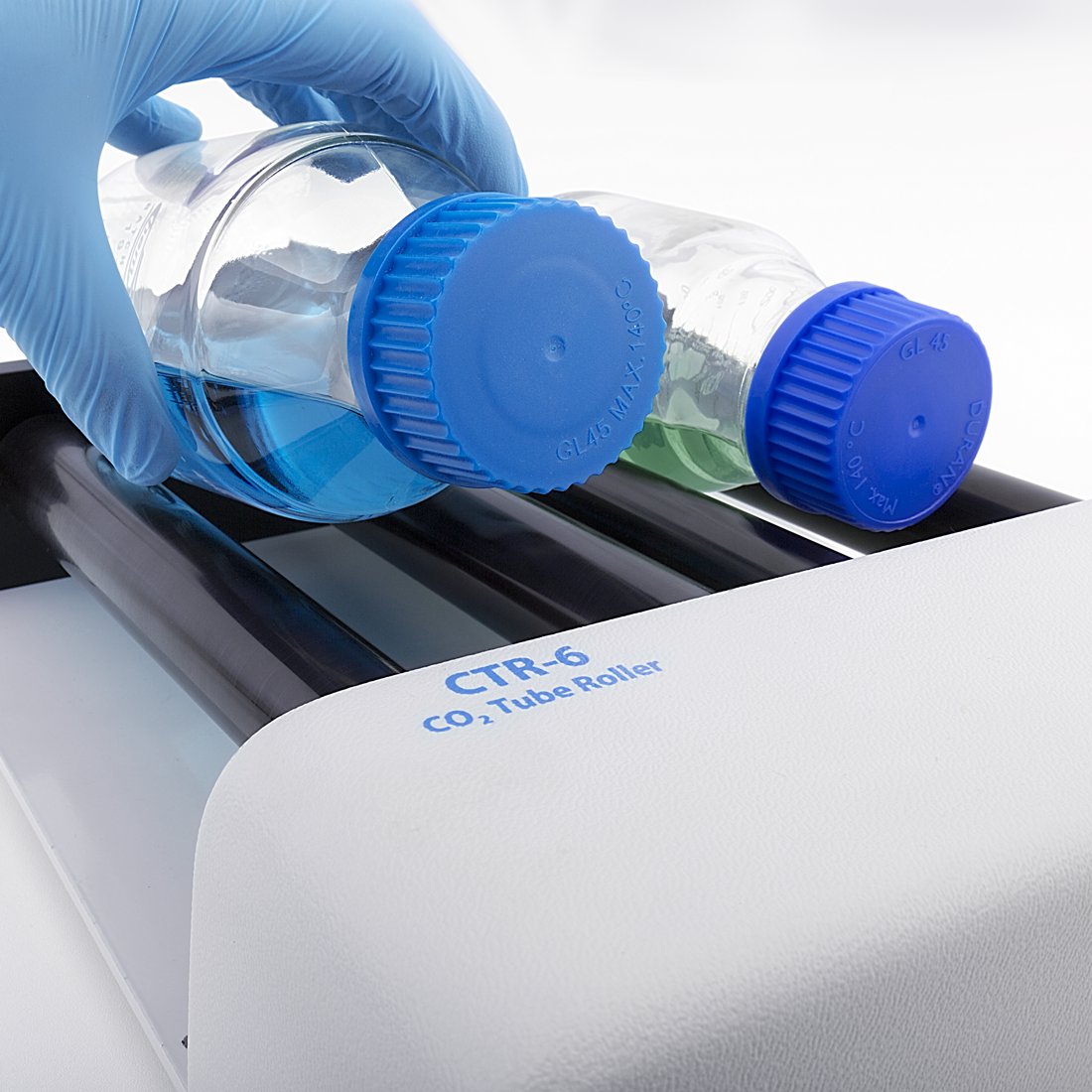

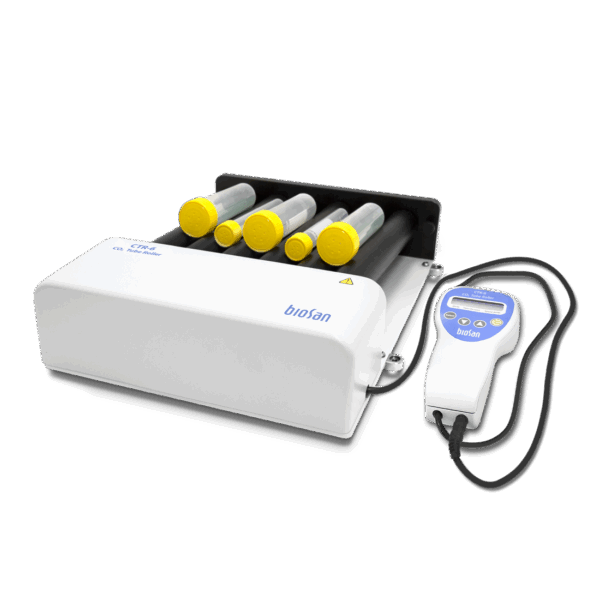

CO2 Tube Roller CTR-6 provides regulated rocking and rolling of maximum up to 6 rollers and is designed for use specifically in CO2 incubators. CTR-6 is specifically designed for use in harsh environments such as CO2 and humidity and provides reproducible results for cell culture growth. Possibility to remove rollers makes the unit flexible and allows for performing various procedures and techniques in various cultivation vessels. The specially designed remote controller allows for protection of electronics from CO2 incubator environment, as well as does not interfere with the experiment.

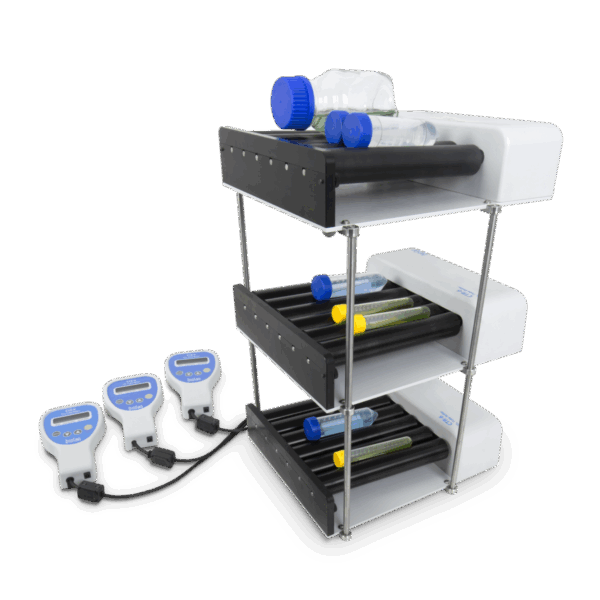

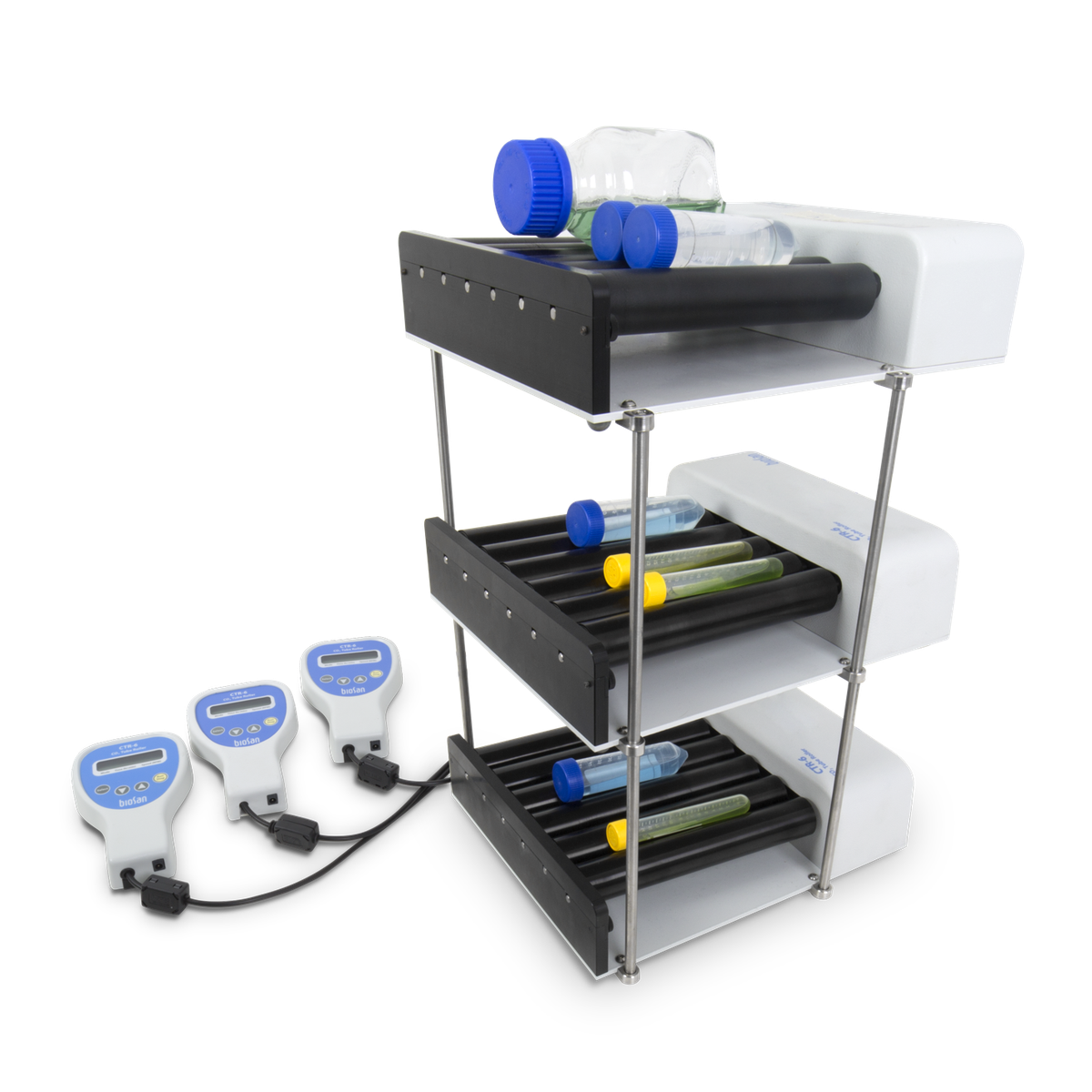

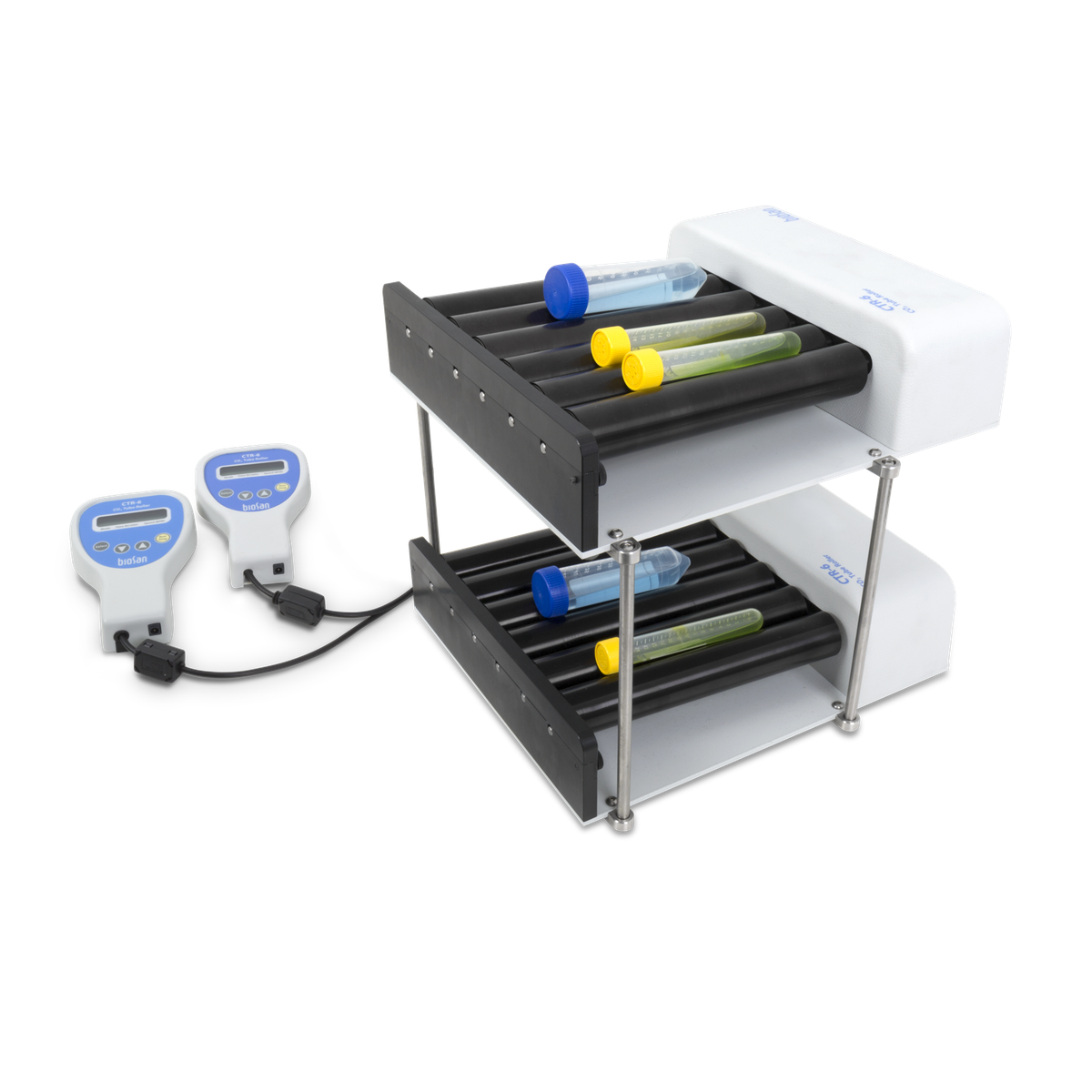

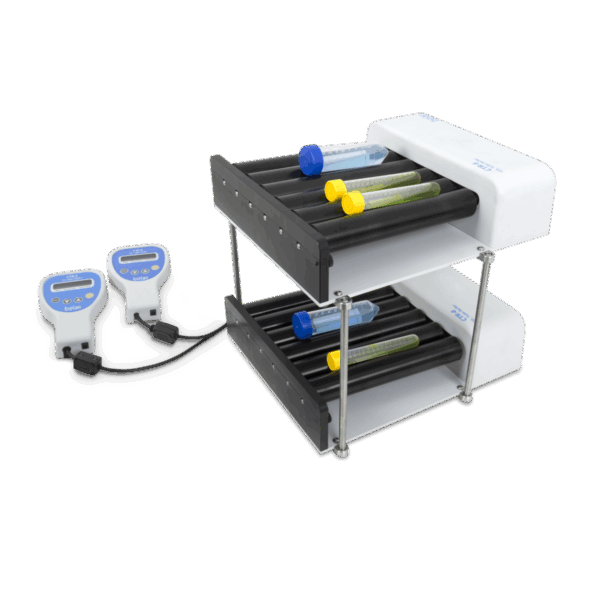

Tube roller CTR-6 incorporates a stepper motor with a guaranteed service life up to 10000 hours. It is possible to stack up to 3 units, saving valuable bench space. Typical applications include cells cultivation (eukaryotic, microbial) and general mixing (resuspension, viscous and liquid-solid suspensions).

Speed control range 5 - 80* RPM (increment 1 rpm) *max. speed depends on the load and vessels' shape
Digital time setting 1 min–96 hrs / non–stop (increment 1 min)
Tilt angle
Digital speed control +
Maximum load 3 kg
Overall dimensions (W×D×H) 310x262x80 mm
Weight 3 kg
Input current/power consumption 12 V, 415 mA / 5 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Accessories

S-Bt Smart Biotherm is designed for work in the areas of cell biology (operations with animal cell cultures and tissues), molecular biology (DNA/RNA reaction analysis, hybridization reactions), biotechnology (synthesis of target proteins and other molecules), immunology (synthesis of antibodies and other proteins of immune system).

Documentation

SKUProductTypeLanguageFile
CTR-6CTR-6BrochureEnglishDownload
CTR-6CTR-6Declaration of ConformityEnglishDownload
CTR-6CTR-6User InstructionsEnglishDownload
Weight 3 kg
Dimensions 310 × 262 × 80 mm
