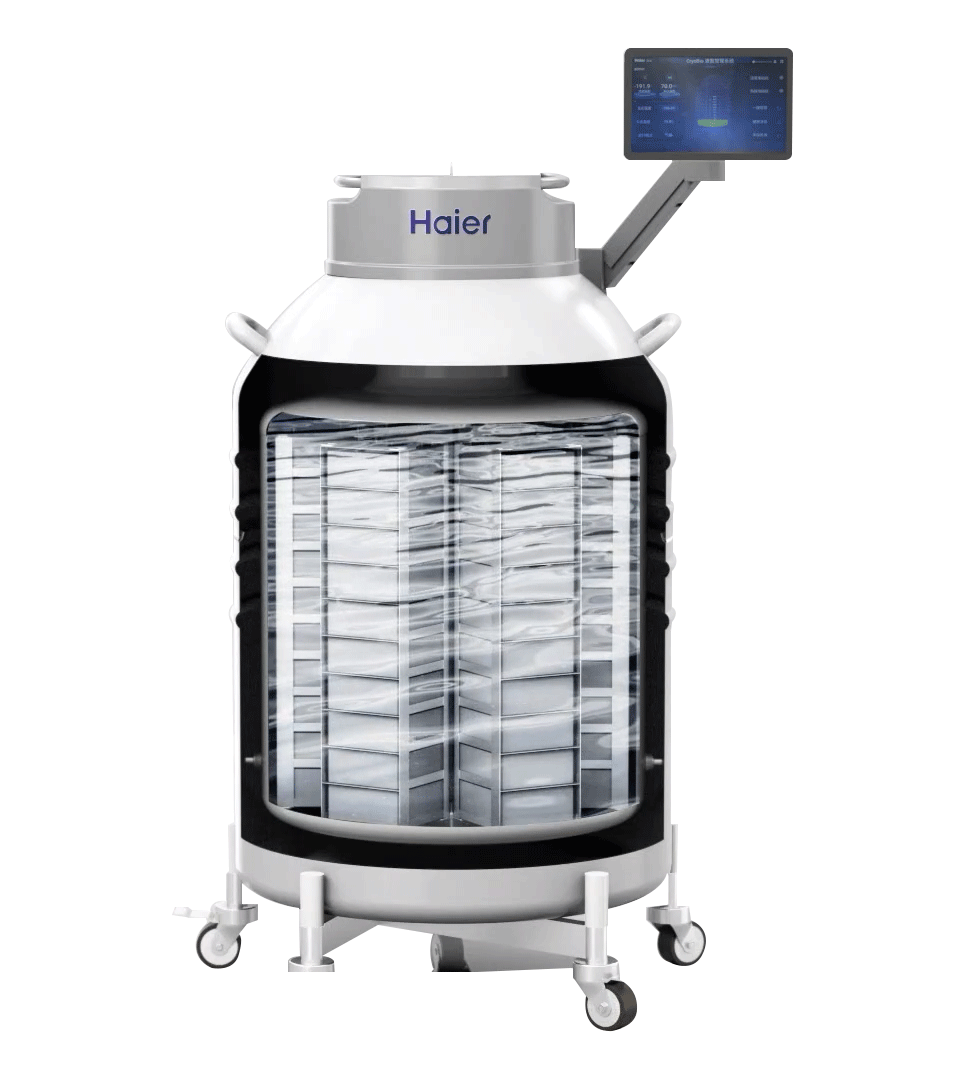

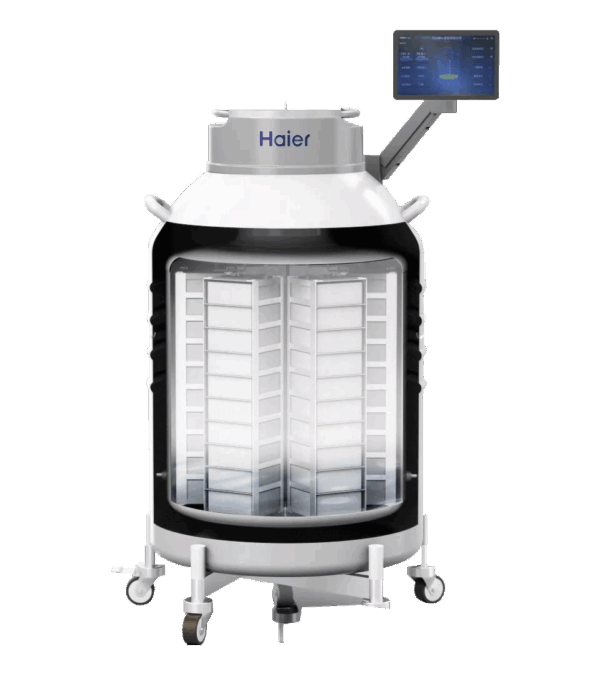

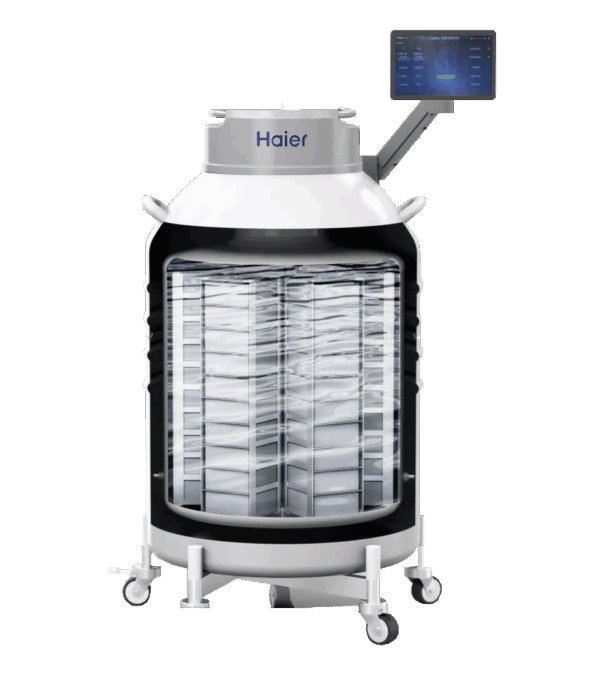

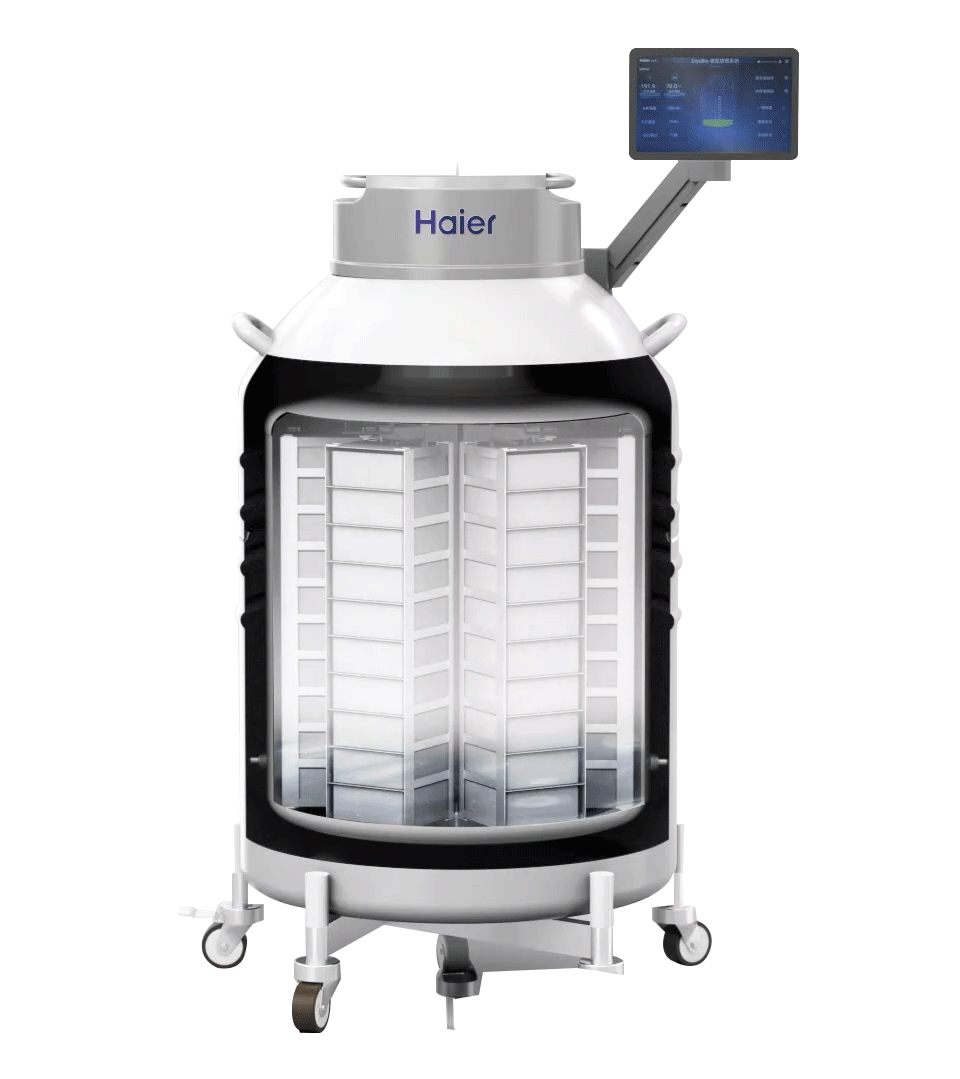

A new liquid nitrogen biological container – CryoBio 6S, with auto refill. Suitable for mid-to-high end biological sample storage requirements of laboratories, hospitals, sample banks and animal husbandry.

Product Features

Automatic refilling

It is equipped with an innovative automatic refilling system which reduces the risks associated with manual filling.

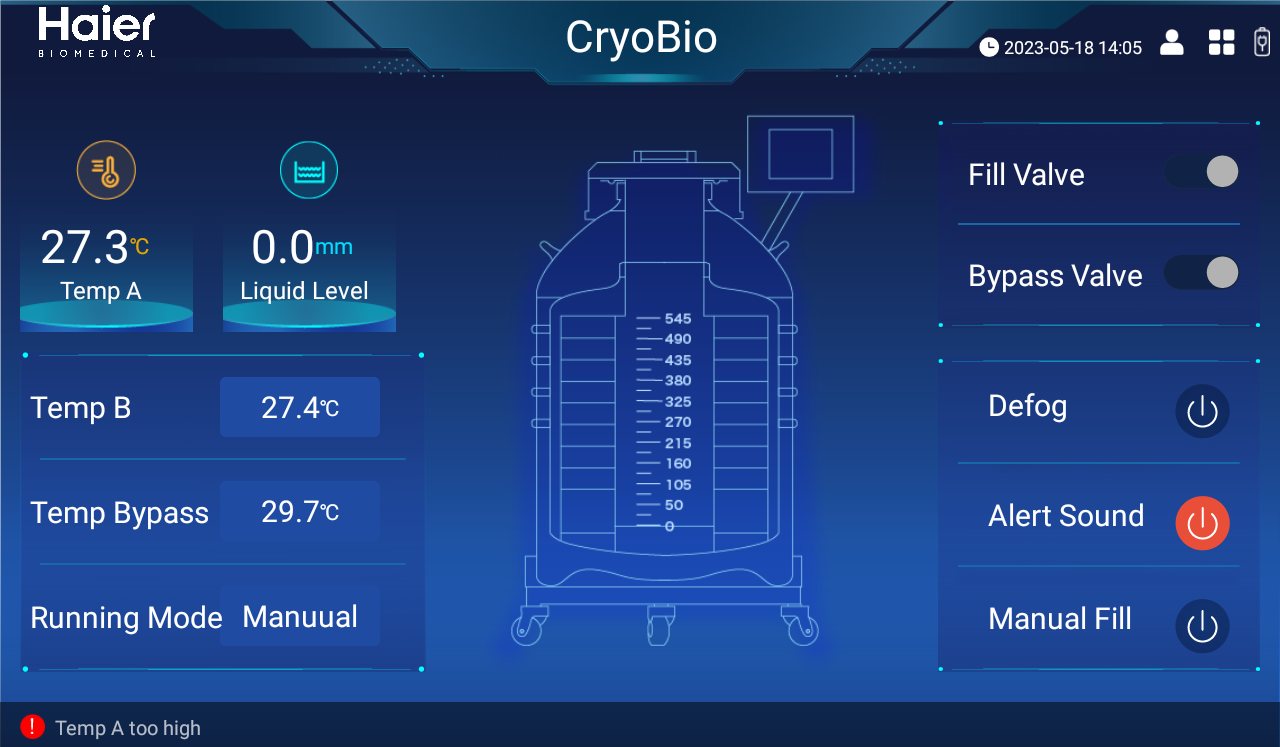

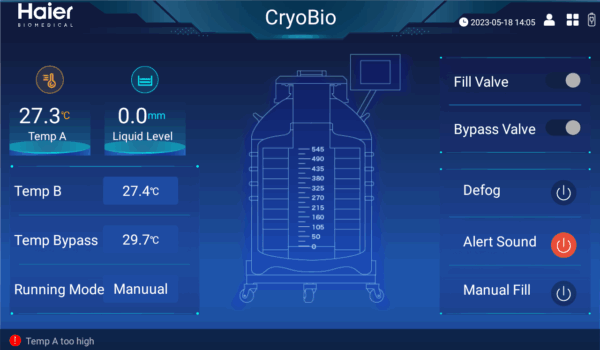

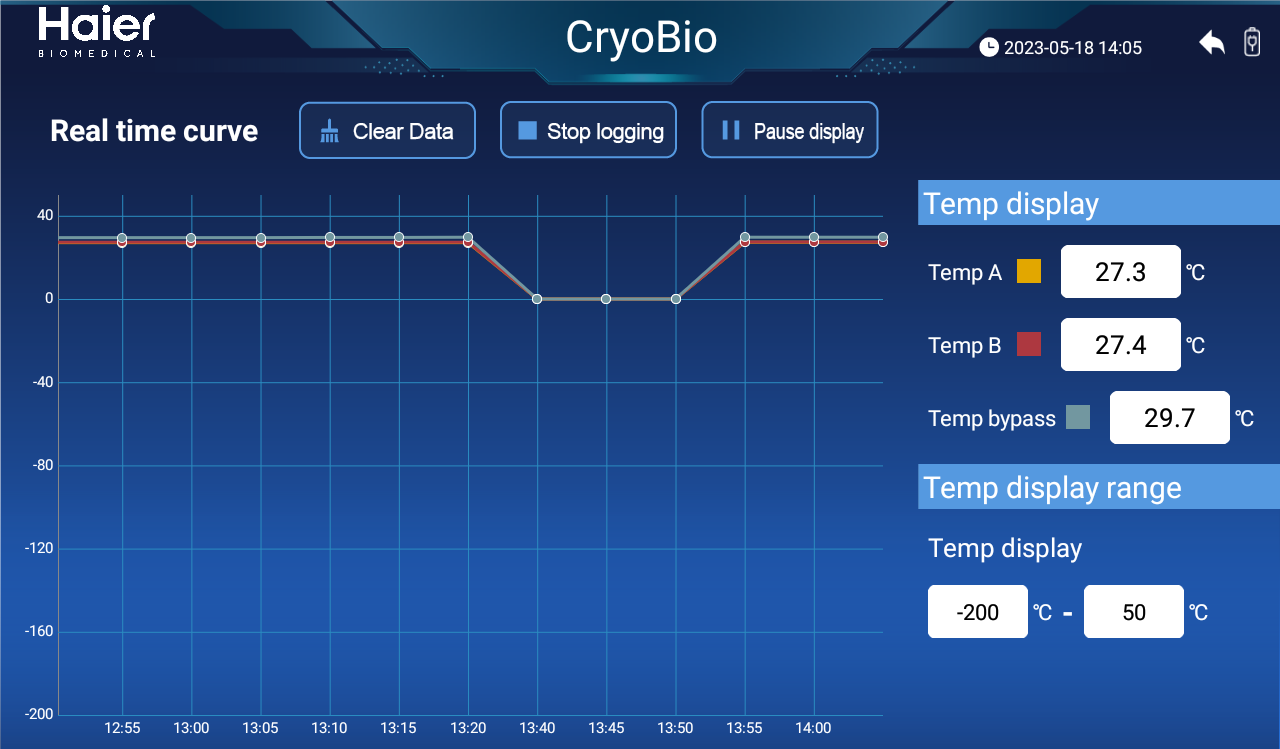

Monitoring and Data Records

It is equipped with a complete data recording system, temperature, liquid level, refilling and alarm records can be viewed at any time. It automatically stores data and download via USB.

Low LN2 Consumption

The multi-layer insulation technology and advanced vacuum technology ensures a low liquid nitrogen consumption and stable temperature.The top level of the storage racks keeps a temperature of -190℃ while

the evaporation of working liquid nitrogen is only 1.5L.

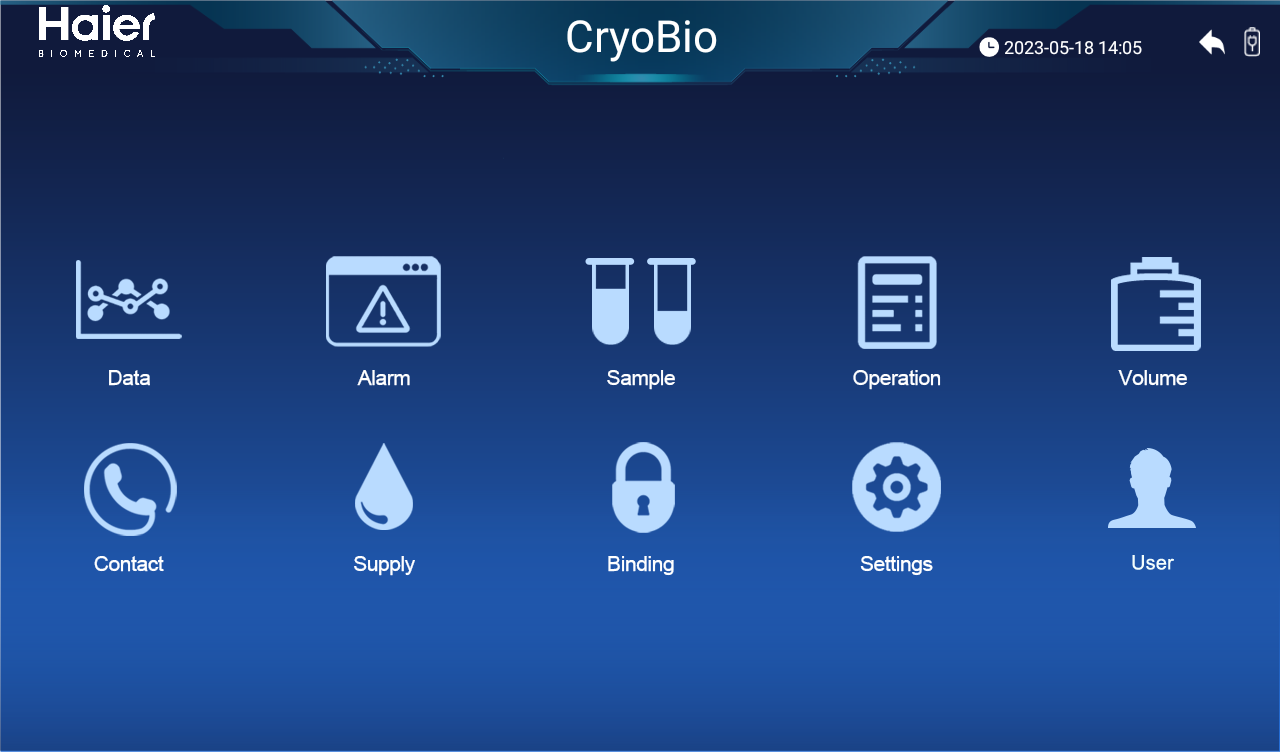

Easy to Use – Smart and Interactive

Touch screen controller is very sensitive to touch, even if you wear rubber gloves; Normal operating parameters are displayed in green and abnormal operating parameters are displayed in red, with clearly visible

data; Users can set their own authorities, making management smarter.

Use in Vapour or Liquid Phase

Designed for both liquid and vapor phase storage.

Model Volume LN2 (L) Empty Weight (kg) Capacity 2ml vials No of Racks Display Auto-refill
CryoBio 6S 175 60 6,000 6 (10 levels) liquid, temperature Yes

Documentation

SKUProductTypeLanguageFile
FlyerEnglishDownload
BrochureEnglishDownload
