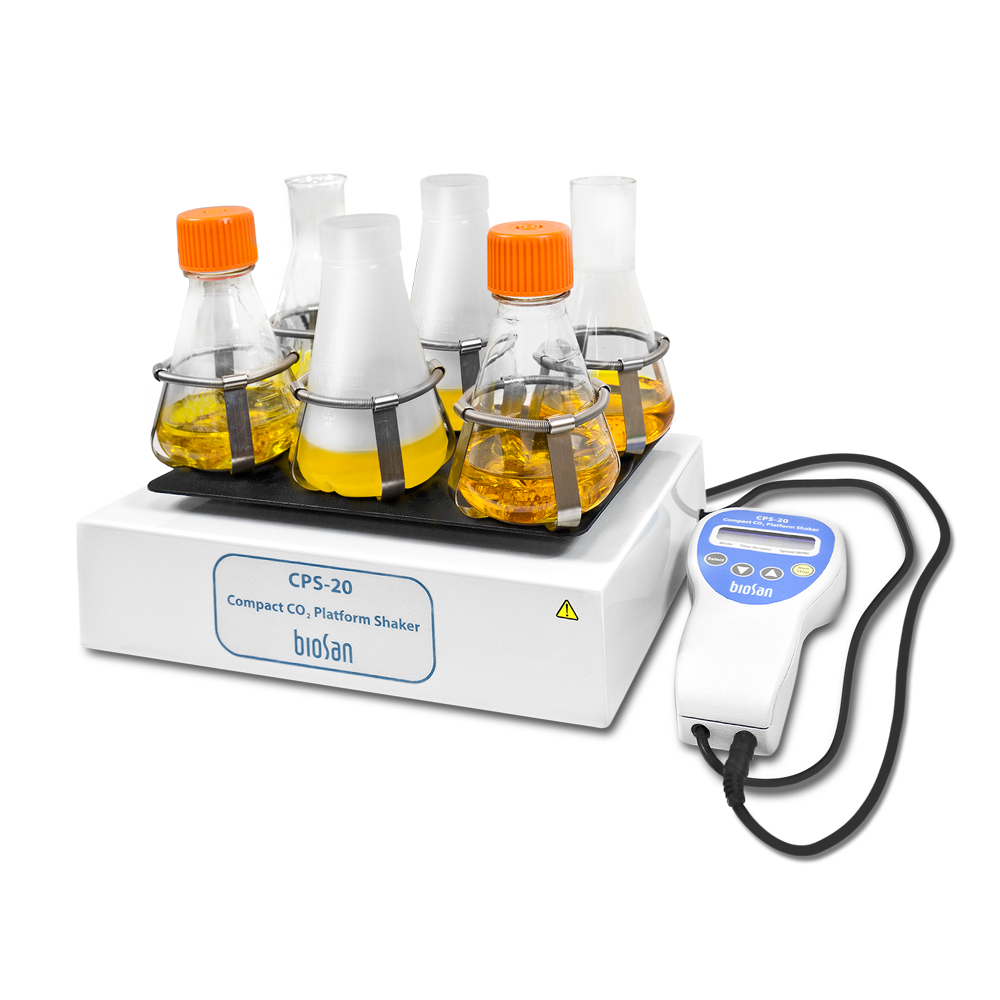

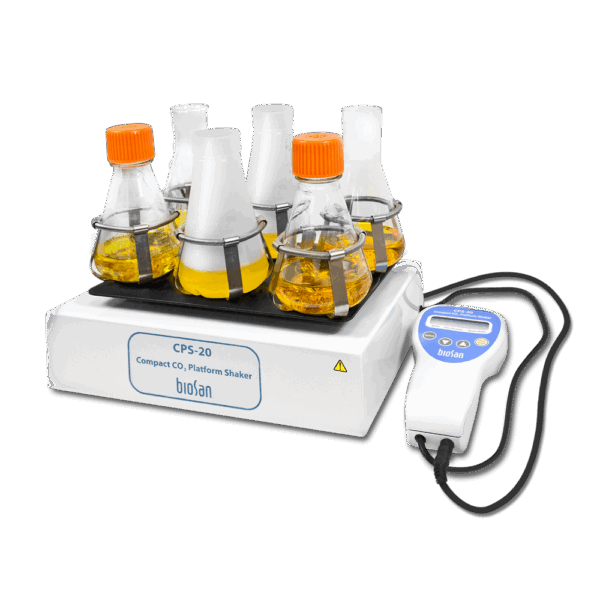

CO₂ Shaker CPS-20 provides regulated orbital motion of the platform and is designed for use specifically in CO₂ incubators. CPS-20 is specifically designed for use in harsh environments such as CO₂ and humidity and provides reproducible results for cell culture growth. A choice of 5 interchangeable platforms provides the possibility of performing various procedures and techniques in various cultivation vessels. The specially designed remote controller allows for protection of electronics from CO₂ incubator environment, as well as, does not interfere with the experiment.

Shaker CPS-20 incorporates a brushless motor with a guaranteed service life up to 35,000 hours. The unit is equipped with a triple eccentric mechanism for platform motion that provides supreme balancing characteristics, superior reliability and quiet operation. Typical applications include eukaryotic cells cultivation.

Speed control range 50 - 250* RPM (increment 10 rpm) *max. speed depends on the load and vessels' shape
Digital time setting 1 min–96 hrs / non–stop (increment 1 min)
Digital speed control +
Maximum continuous operation time 168 h
Orbit 20 mm
Maximum load 3 kg
Overall dimensions (W×D×H) 255x255x100 mm
Weight 3.4 kg
Input current/power consumption 12 V, 470 mA / 5.7 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Accessories

S-Bt Smart Biotherm is designed for work in the areas of cell biology (operations with animal cell cultures and tissues), molecular biology (DNA/RNA reaction analysis, hybridization reactions), biotechnology (synthesis of target proteins and other molecules), immunology (synthesis of antibodies and other proteins of immune system).

Universal platform with adjustable bars for different types of flasks, bottles, and beakers with silicone mat.

Flat platform with non-slip silicone mat for Petri dishes, culture flasks, agglutination.

Platform with clamps for flasks.

Platform with clamps for flasks.

Platform with spring holders for up to 88 tubes up to 30 mm diameter (e. g. 10 ml, 15 ml, 50 ml tubes).

Additional holding bar for UP-12

Used with

S-Bt Smart Biotherm is designed for work in the areas of cell biology (operations with animal cell cultures and tissues), molecular biology (DNA/RNA reaction analysis, hybridization reactions), biotechnology (synthesis of target proteins and other molecules), immunology (synthesis of antibodies and other proteins of immune system).

Documentation

SKUProductTypeLanguageFile
CPS-20CPS-20BrochureEnglishDownload
CPS-20CPS-20Declaration of ConformityEnglishDownload
CPS-20CPS-20User InstructionsEnglishDownload
Weight 3,4 kg
Dimensions 255 × 255 × 100 mm
