This product is designed to store frozen biomaterials, vaccines, electronic devices and low temperature tests of special materials, in hospitals, epidemic prevention stations, universities, scientific research institutes, electronic chemical industry and other enterprise laboratories.
Product Features
Temperature Control
Refrigerator temperature ranges from 2°C to 8°C.
Freezer temperature ranges adjustable from -10°C to -40 °C.
Microprocessor temperature control accuracy 0.1°C (refrigerator) and 1°C (freezer) .
Safety
Separate doors for refrigerator and freezer with independent lock catches, dual padlocks available to ensure product safety.
Multiple alarm functions including high or low temperature, sensor error, high ambient temp, power failure and remote alarm.
Two types of alarm indications: audible buzzer and visible flashing light.
Refrigerator System
Refrigerator and freezer have independently controlled variable frequency refrigeration systems, standalone displays as well as separate on and off controls.
Robust compressor system operating with environmentally friendly hydrocarbon refrigerant.
Refrigerator with high quality and high efficiency cooling fan provides better temperature uniformity and stability.
Ergonomic Design

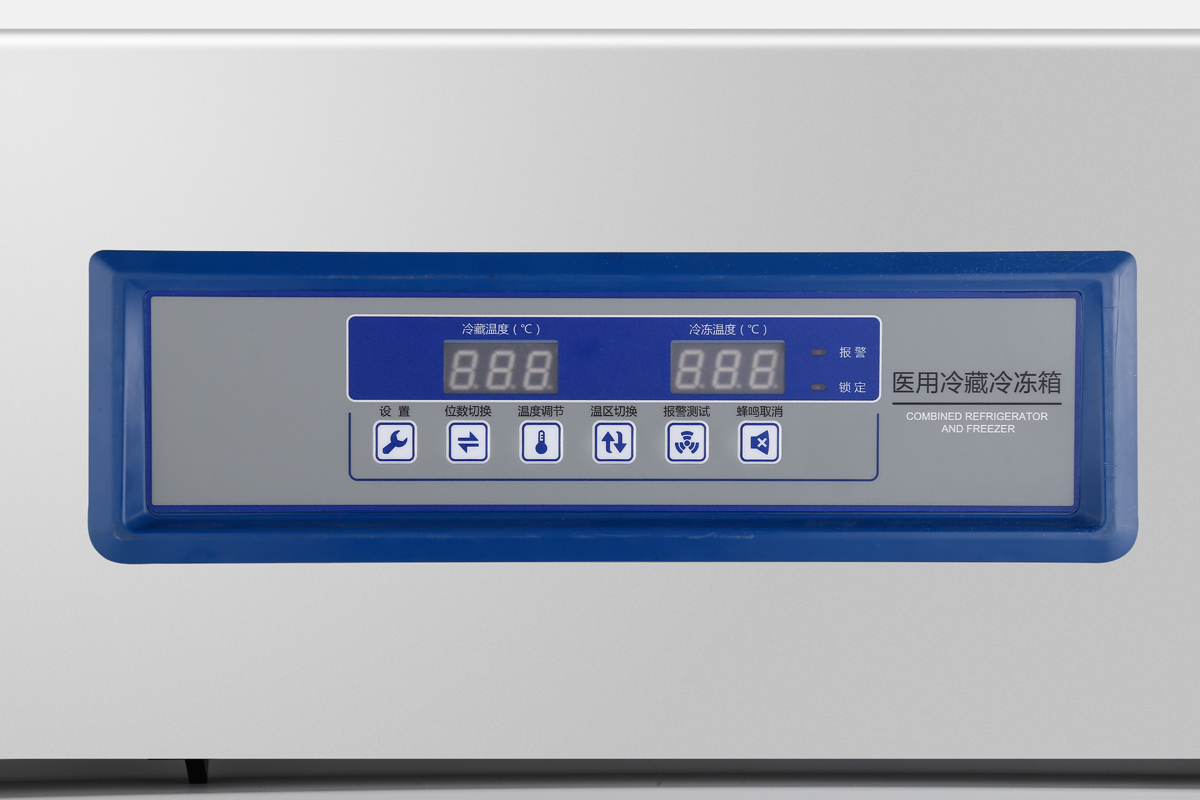

Large LED screen display for excellent user interface experience.

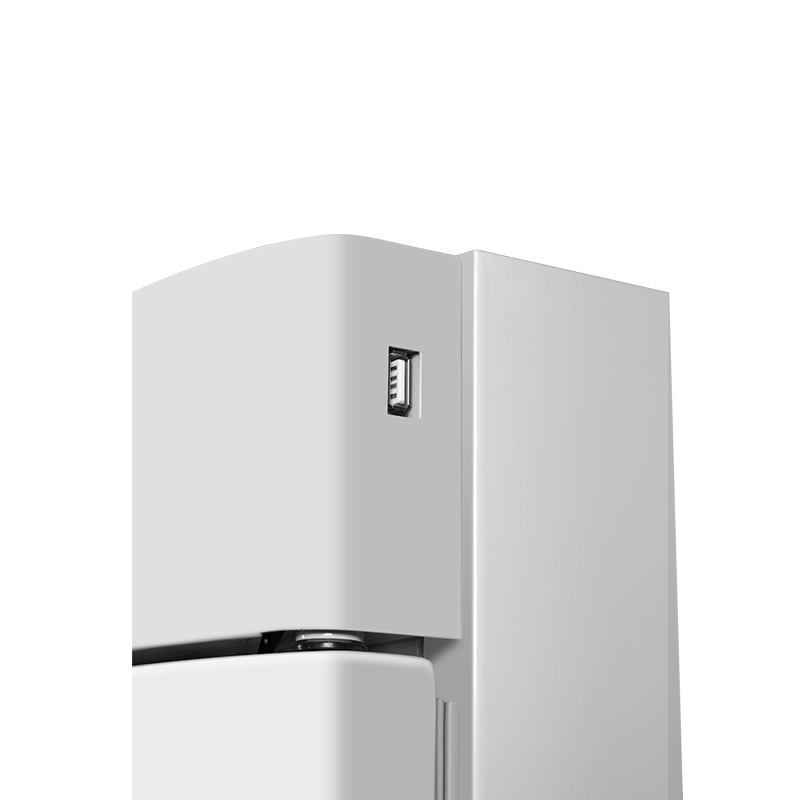

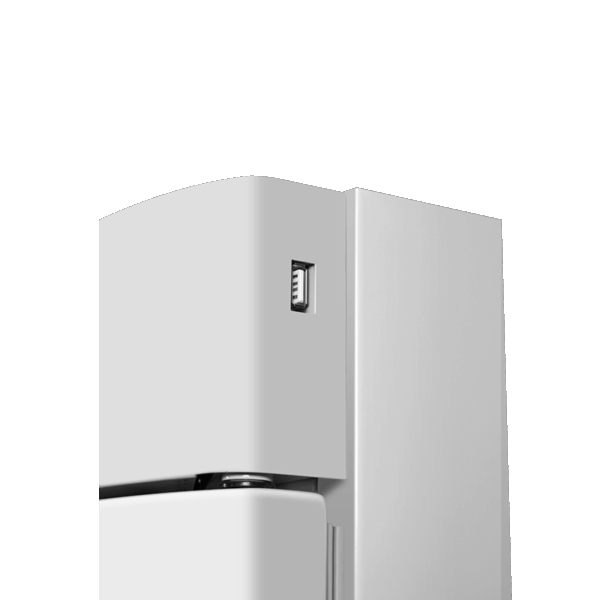

USB port automatically saves temperature data for up to 10 years for convenient inquiry and record keeping.
Optional printer to simultaneously print out temperatures of the refrigerator and the freezer.
Four casters and two levelling legs design for ease of maneuvering.
| Model | Cabinet Type | Capacity (L/Cu.Ft) | Power Supply (V/Hz) | Display | Shelves | Temperature |
| HYCD-319A | Upright;Refrigerator | Freezer | 200/7.06 | 100/3.53 | 115/60 | LED | 3 | 1 | 2~8 | -15~-40 |
| HYCD-469 | Upright;Refrigerator | Freezer | 269/9.5 | 200/7.1 | 220~240/50/60 | LED | 3 | 2~8 | -10~-40 |
| HYCD-469A | Upright;Refrigerator | Freezer | 269/9.5 | 200/7.1 | 220~240/50/60 | LED | 3 | 2~8 | -10~-40 |
| HYCD-282 | Upright;Refrigerator | Freezer | 185/6.5 | 97/3.4 | 220~240/50/60 | LED | 3 | 1 | 2~8 | -10~-40 |
| HYCD-282A | Upright;Refrigerator | Freezer | 185/6.5 | 97/3.4 | 220~240/50/60 | LED | 3 | 1 | 2~8 | -10~-40 |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| HYCD-469A | HYCD-469A | Flyer | English | Download |
| HYCD-319A | HYCD-319A | Flyer | English | Download |
| HYCD-469(A) | HYCD-469(A) | Flyer | English | Download |
| HYCD-282(A) | HYCD-282(A) | Flyer | English | Download |
| Catalogue | English | Download |
| Model | HYCD-282, HYCD-282A, HYCD-319A, HYCD-469, HYCD-469A |
|---|
