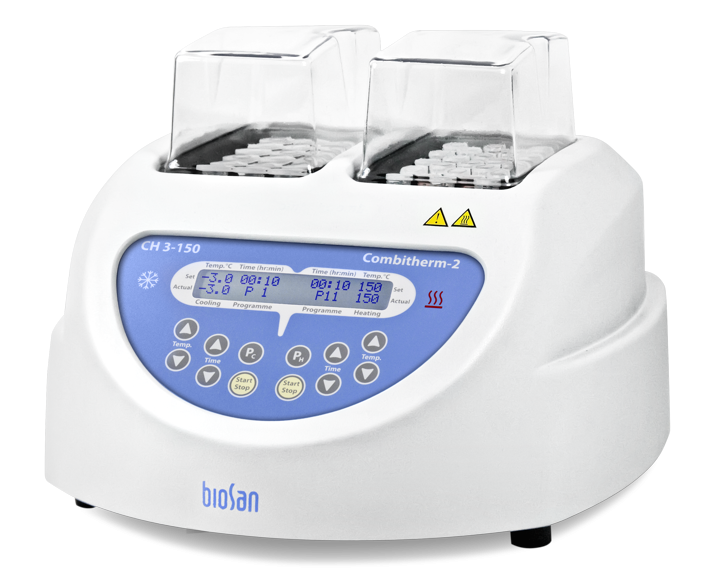

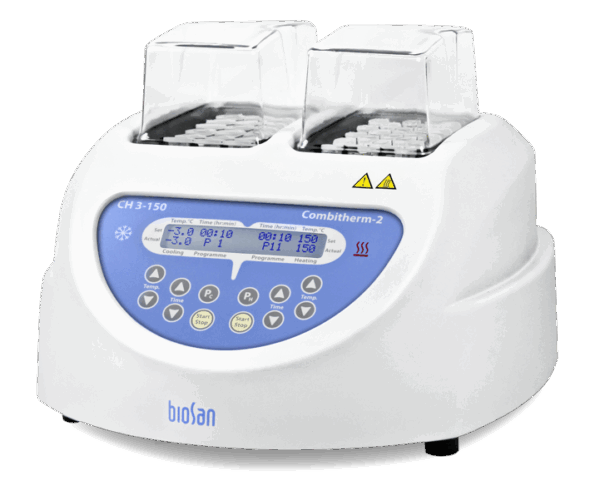

Combitherm-2 CH 3-150 is specially designed to thermostabilise materials at temperatures from –3°C to +150°C according to methods of analysis. To obtain useful functionality and decrease foot-print of instruments Combitherm-2 consists of 2 independent cooling and heating plug-in thermoblocks combined in a common electronic circuit board as well as inside a common external body. The left part of the front keyboard is responsible for setting parameters for cooling plug-in blocks and the right part — for heating plug-in blocks. Both of them are regulated independently and can realize up to 16 programs including temperature and time in each program. Peltier technology is used for cooling below room temperature; PCB is used for heating till +150°C.
Separation of cooling and heating parts from each other increases durability of the instrument and speed of temperature changing after setting a new program.
Different block types can be provided on request
| Heating block Temperature setting range | +25°C ... +150°C |
|---|---|
| Heating block Temperature control range | 5°C above ambient ... +150°C |
| Heating block Setting resolution | 1°C |
| Heating block Stability | ±0.1°C |
| Temperature calibration coefficient range | 0.936...1.063 (± 0.063) |
| --- | --- |
| Cooling block Temperature setting range | –3°C ... +20°C |
| Cooling block Temperature control range | 23°C below ambient ... 5°C below ambient |
| Cooling block Setting resolution | 0.1°C |
| Cooling block Stability | ±0.1°C |
| ---- | ---- |
| Digital time setting | 1 min–99 hrs 59 min (increment 1 min) |
| Timer sound signal | + |
| Display | LCD |
| User adjustable programs (temperature and time) | 16 (heating) + 16 (cooling) |
| Overall dimensions (W×D×H) | 295х285х220 mm |
| Weight | 5.6 kg |
| Input current/power consumption | 1.8 A / 430W |
| Power supply | 230 V, 50/60 Hz |
Accessories
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| CH 3-150 | CH 3-150 | Brochure | English | Download |
| CH 3-150 | CH 3-150 | Declaration of Conformity | English | Download |
| CH 3-150 | CH 3-150 | User Instructions | English | Download |
General Documents
| Type | Name | Language | File |
|---|---|---|---|
| Catalogue | English | Download |
| Weight | 5,6 kg |
|---|---|
| Dimensions | 295 × 285 × 220 mm |
| Product class | Premium |
