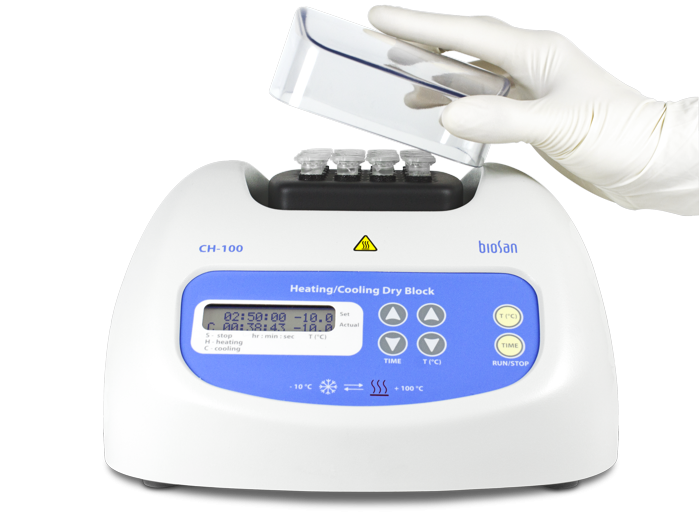

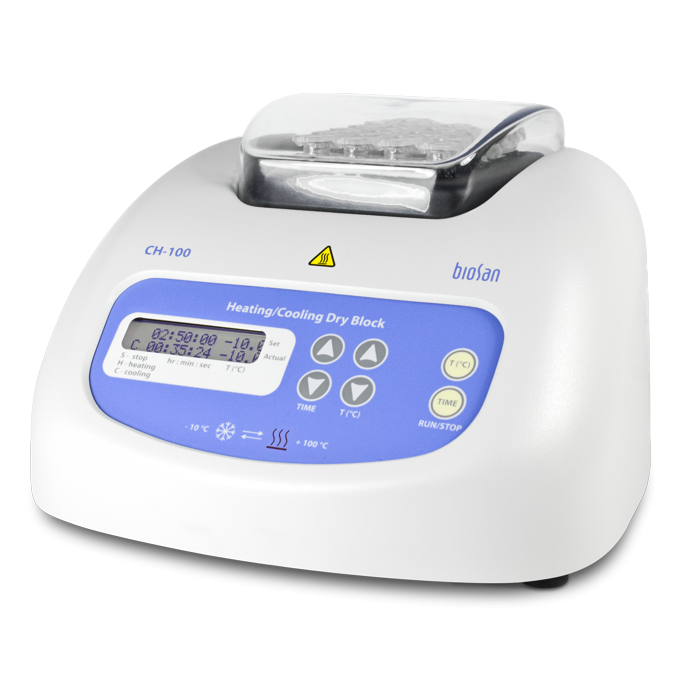

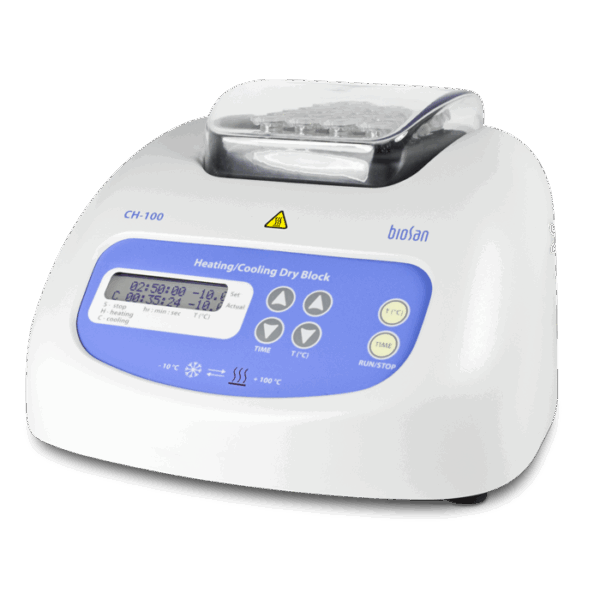

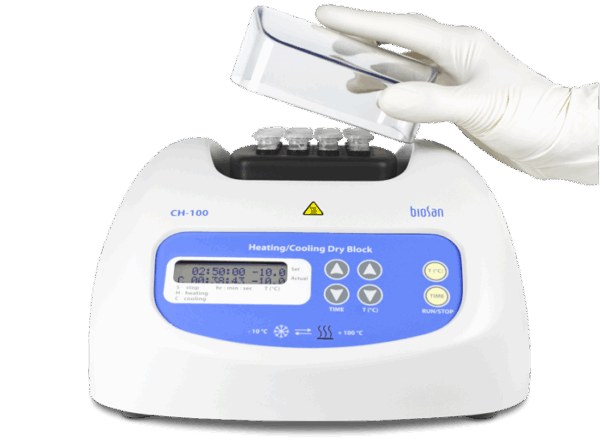

CH-100 is the result of combining two popular Biosan instruments:

  1. Heating Dry block and
  2. Cooling Dry block thermostat

The combined construction of aluminium block and Peltier element module cooled with the forced ventilation radiator provides fast  changing of the cooling and heating modes.

CH-100 is a very effective instrument of sample preparation during enzyme reactions,  hybridization reactions, DNA analysis.

Microprocessor controlled time and temperature. Simultaneous indication of set and actual  temperature and time.

Blocks (built in) capacity:
1) with CH-1 block for 20 x 0.5 ml + 12 x 1.5 ml microtubes;
2) with CH-2 block for 20 x 1.5 ml microtubes;
3) with CH-3 block for 20 x 2 ml microtubes.

Temperature setting range –10°C ... +100°C
Temperature control range 30°C below ambient ...+100°C
Temperature setting resolution 0.1°C
Temperature stability ±0.1°C
Temperature uniformity at +37°C ±0.25°C
Temperature calibration coefficient range 0.936...1.063 (± 0.063)
Digital time setting 1 min–96 hrs / non–stop (increment 1 min)
Timer sound signal +
Display LCD, 2х16 signs
Overall dimensions (W×D×H) 240х260х165 mm
Weight 3.2 kg
Input current/power consumption 12 V, 4.4 A / 55 W
External power supply Input AC 100–240 V 50/60 Hz, Output DC 12 V

Documentation

SKUProductTypeLanguageFile
CH-100CH-100BrochureEnglishDownload
CH-100CH-100Declaration of ConformityEnglishDownload
CH-100CH-100User InstructionsEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 3,2 kg
Dimensions 240 × 260 × 165 mm
Product class

Basic Plus

Block

With block CH-1, With block CH-2, With block CH-3
