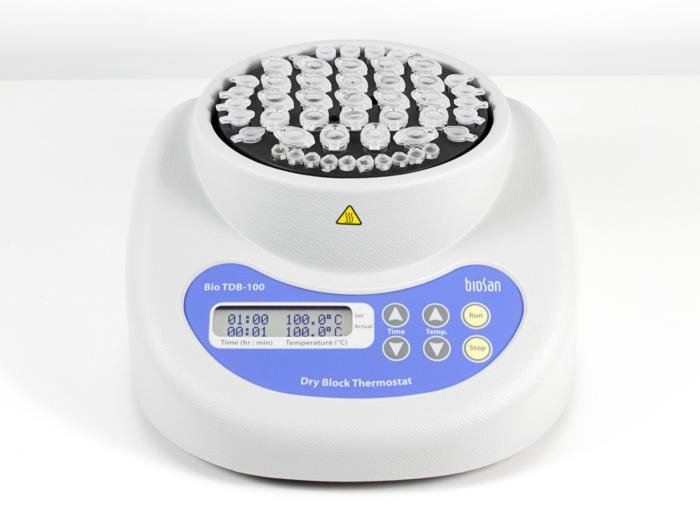

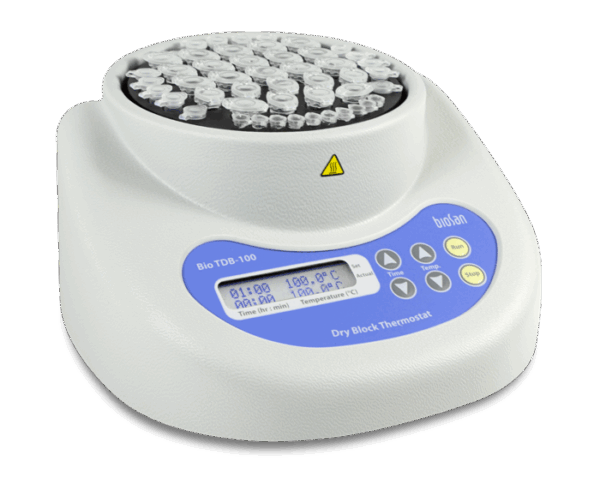

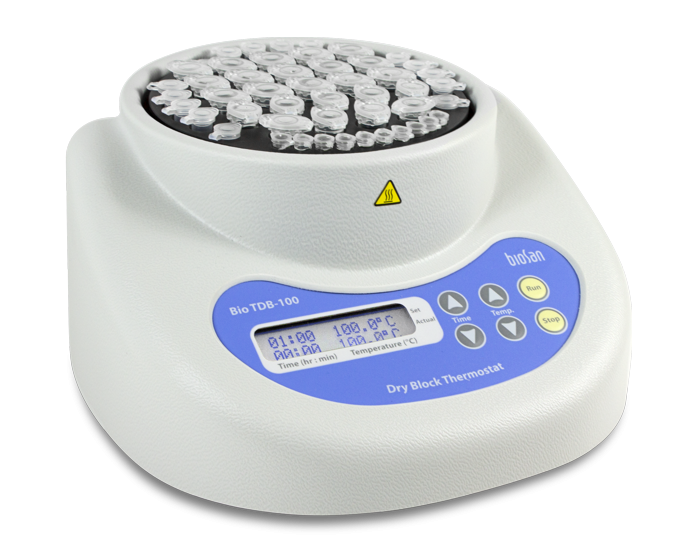

Bio TDB-100 is a compact easy–to–use dry block thermostat designed for long incubation processes at various temperatures. The universal aluminium block can accommodate 3 most popular microtest tubes’ types.

Simultaneous indication of set and actual temperature and time.

Temperature setting range +25°C ... +100°C
Temperature control range 5°C above ambient ... +100°C
Temperature setting resolution 0.1°C
Temperature stability at +37°C ±0.1°C
Temperature uniformity at +37°C ±0.1°C
Temperature calibration coefficient range 0.936...1.063 (± 0.063)

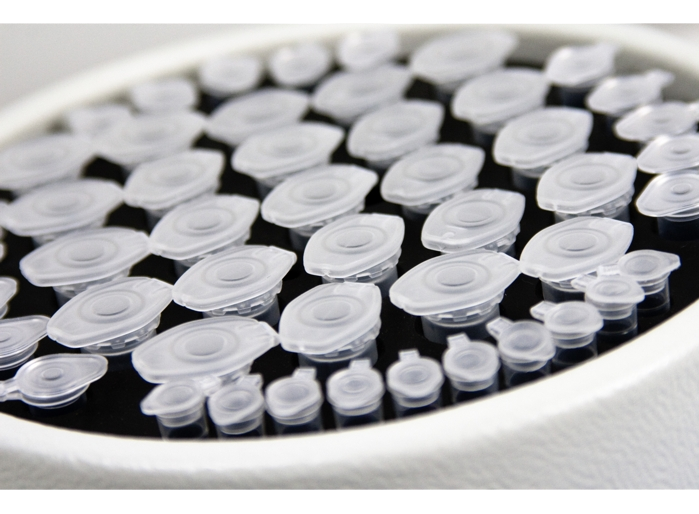

Block capacity 24х2/1.5 ml + 15х0.5 ml + 10х0.2 ml microtubes
Block diameter / depth Ø 130 mm / 45 mm
Digital time setting 1 min–96 hrs / non–stop (increment 1 min)
Timer sound signal +
Display LCD, 2х16 signs
Overall dimensions (W×D×H) 210х230х115 mm
Weight 2.8 kg
Power consumption (230 V) 200 W (870 mA)
Nominal operating voltage 230 V, 50/60 Hz or 120 V, 50/60 Hz

Documentation

SKUProductTypeLanguageFile
Bio TDB-100Bio TDB-100BrochureEnglishDownload
Bio TDB-100Bio TDB-100Declaration of ConformityEnglishDownload
Bio TDB-100Bio TDB-100User InstructionsEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 2,8 kg
Dimensions 210 × 230 × 115 mm
Product class

Basic Plus
