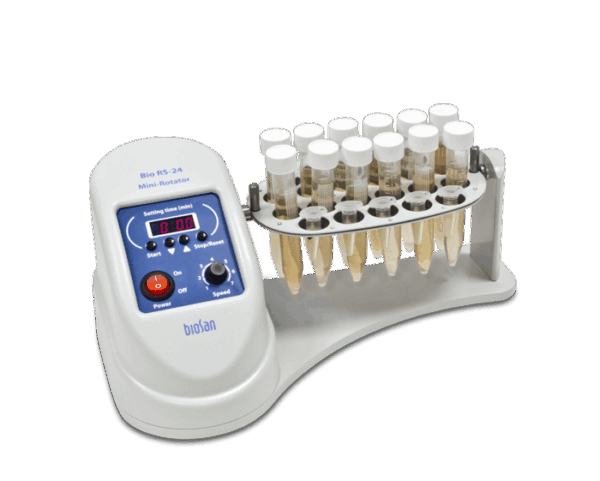

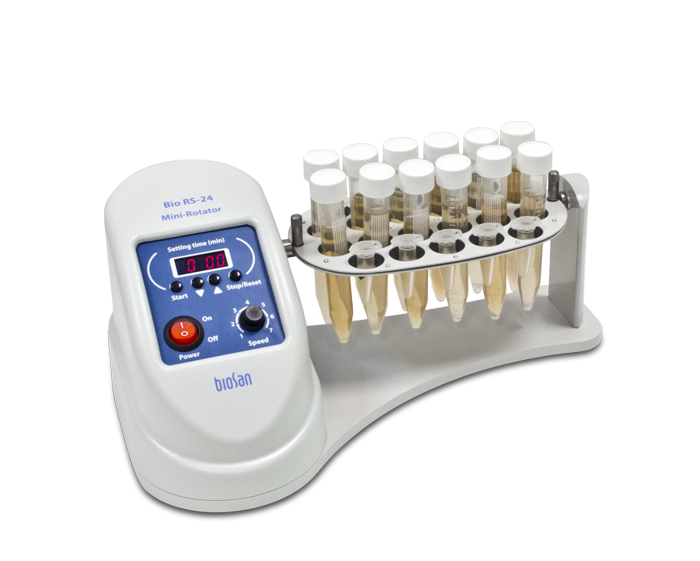

Mini-rotator Bio RS-24 provides vertical rotation of the platform. The rotator is an ideal instrument for preventing blood coagulation in tubes and for fulfilment of procedures of biological components extraction.

The device is simple to operate; it is designed as a low cost solution.

Rotator can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C.

PRS – series platforms are equipped with universal rubber clamps for different size tube fixation;
PRSC – series platforms have metal clamps able to hold heavier solutions (e.g. soil, sand)

Speed control range 5-30 RPM
Digital time setting 1 min–24 hrs / non–stop (increment 1 min)

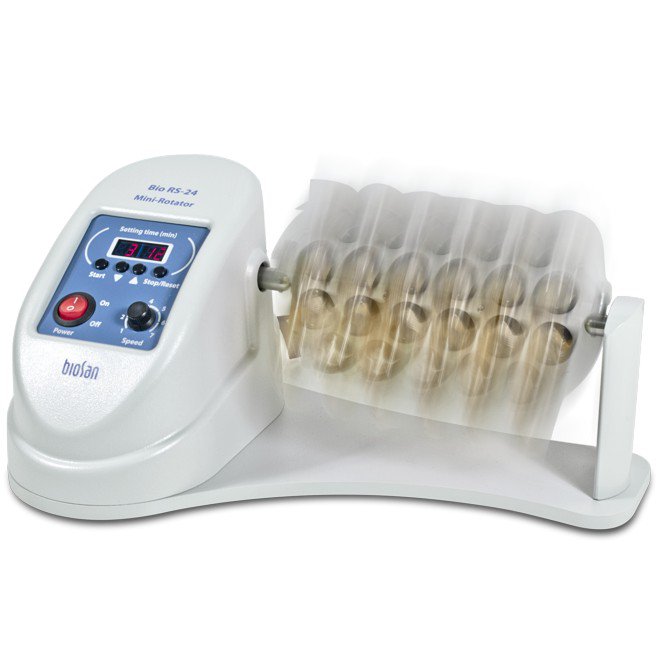

Vertical rotation movement overhead, 360°
Maximum continuous operation time 8 h or more - with longer pauses
Maximum load 0.375 kg
Overall dimensions (W×D×H) 325×190×155 mm
Weight 1.4 kg
Input current/power consumption 12 V, 110 mA/1.3 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

Accessories

Can accommodate 22 tubes, 10-16 mm diameter (1.5 ml - 15 ml tubes).

Can accommodate 18 tubes, 16 mm diameter (15 ml).

Can accommodate 4 tubes, 20-30 mm diameter (up to 50ml tubes) and 12 tubes, 10-16 mm diameter (1.5 ml - 15 ml tubes).

Documentation

SKUProductTypeLanguageFile
Bio RS-24Bio RS-24BrochureEnglishDownload
Bio RS-24Bio RS-24User InstructionsEnglishDownload
Bio RS-24Bio RS-24Declaration of ConformityEnglishDownload

General Documents

TypeNameLanguageFile
CatalogueEnglishDownload
Weight 1,4 kg
Dimensions 325 × 190 × 155 mm
Product class

Basic Plus

Platform

With all 4 platforms included, With built-in universal platform
