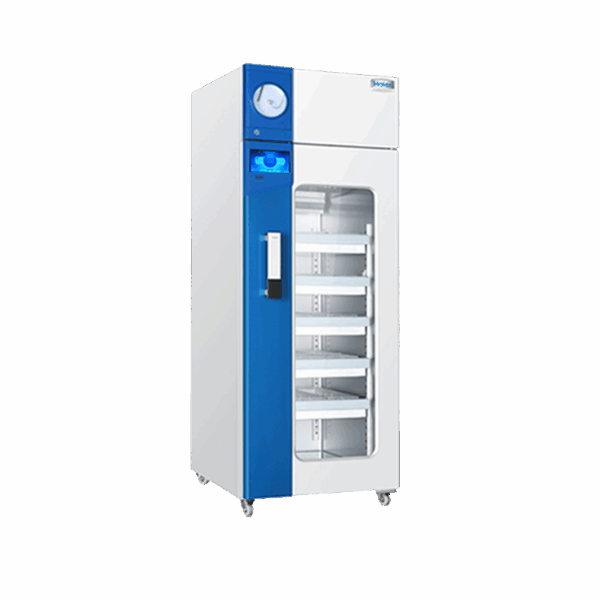

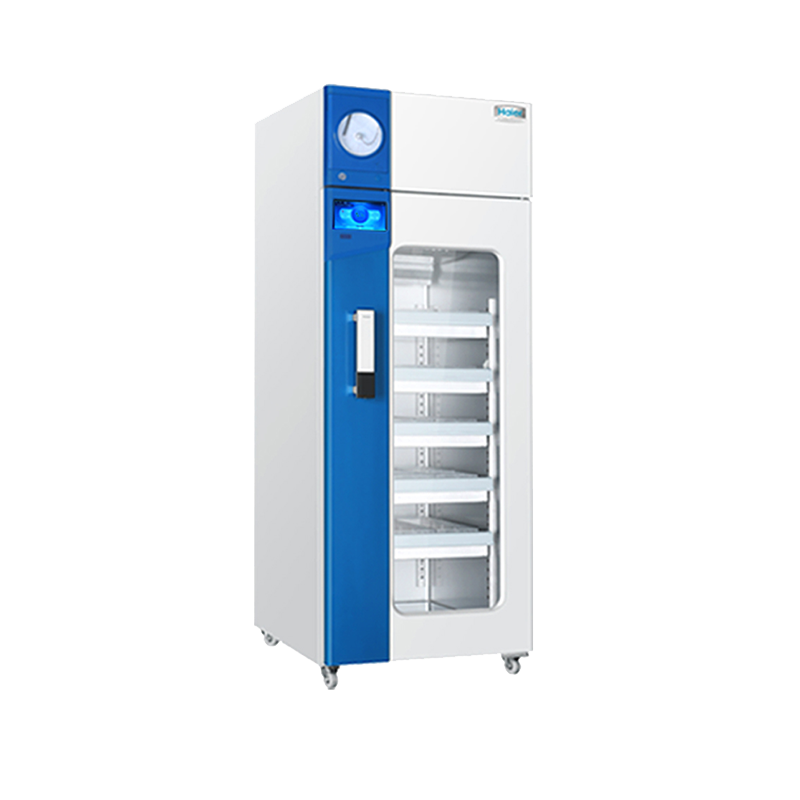

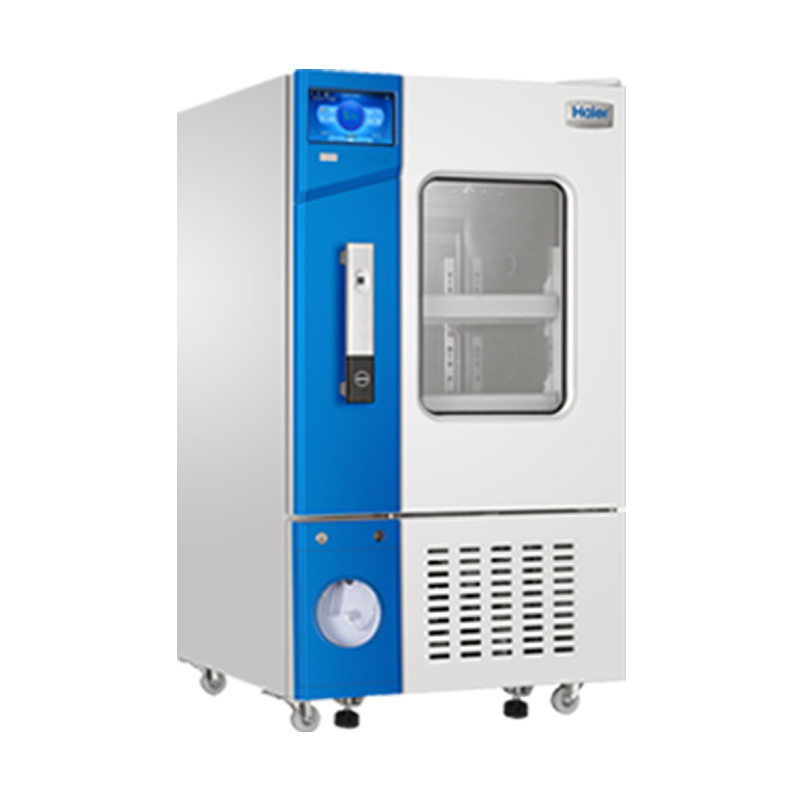

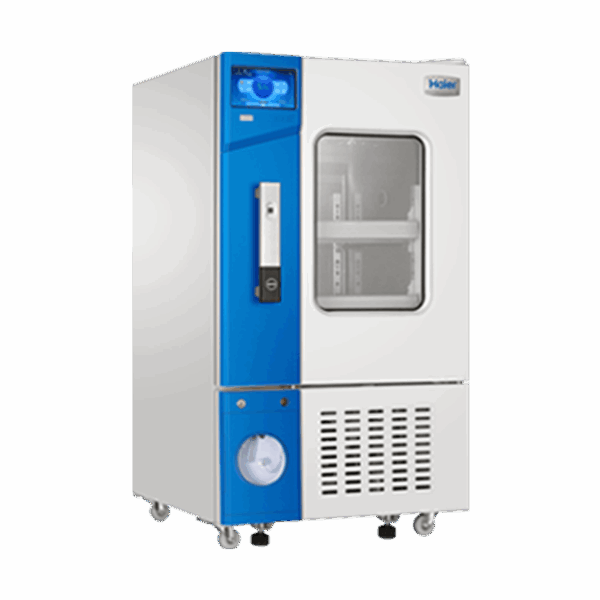

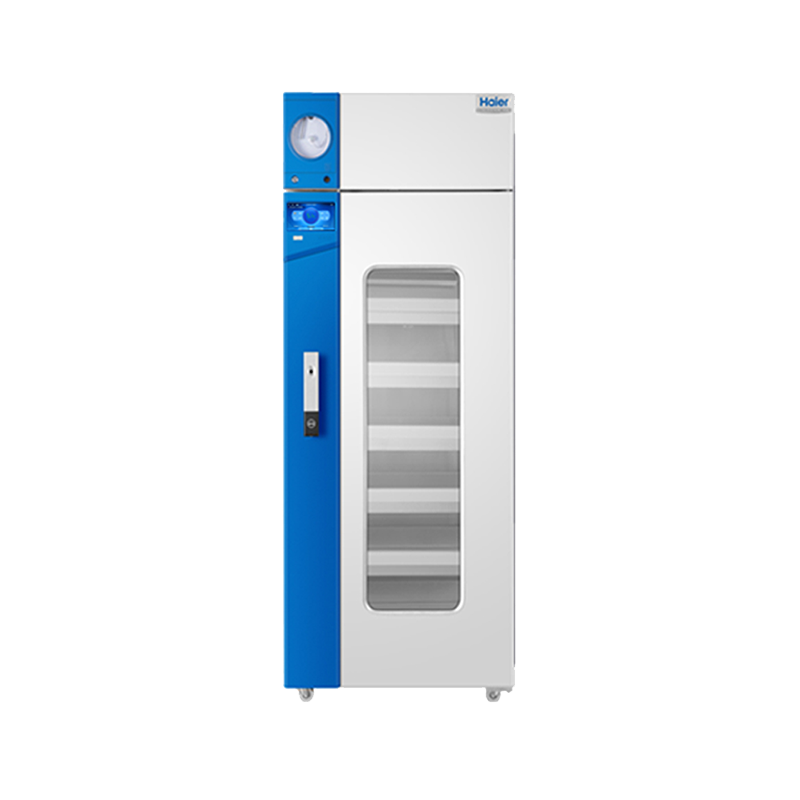

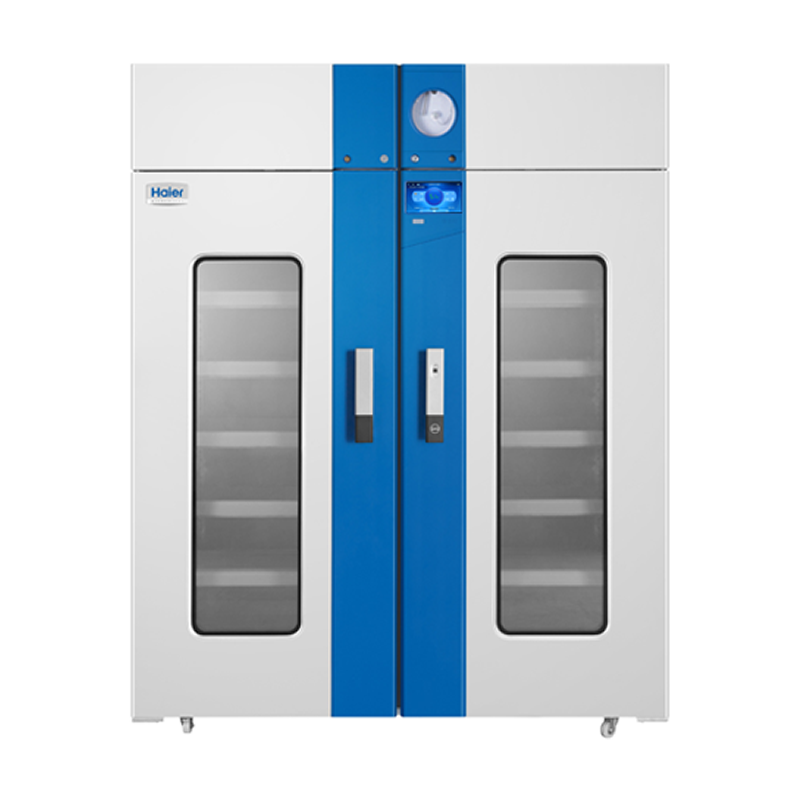

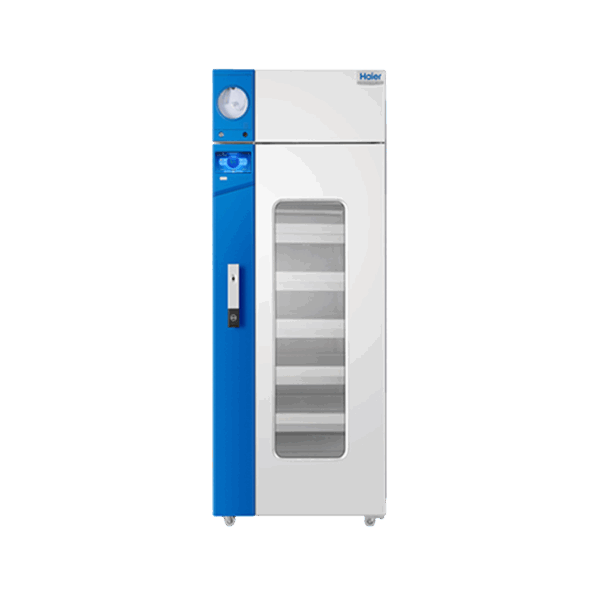

Advanced Blood Bank Refrigerator with LCD Touchscreen

Control Interface

The simple and intuitive high-definition LCD touch screen can display temperature graph, working status, events and alarm record.

Microprocessor Control

A dual control system of six high-precision sensors and mechanical thermostat ensures that the temperature inside the cabinet is maintained at 4±1°C.

Stable and Reliable Operation

The refrigeration system is powered with a high-quality, energy-efficient inverter compressor and variable speed fan motors. Temperature control responses quickly and reliably for a more uniform temperature using less power and lower noise.

Multiple Safety Protection

  • Multiple alarms include high and low temperature, power failure, door ajar, sensor error, and low battery. Sound buzzer, visual flashing light and remote contacts are standard alarm features. Built-in battery provides power to the alarm system in the event of a main power failure. Fingerprint and standard NFC swipe card module are optional.
  • Optional fingerprint and standard NFC swipe card module.
Model Capacity (L/Cu.Ft) Power Supply (V/Hz) Certificate Type Drawers Blood Bags Capacity(450ml)
HXC-1369T 1369/48.3 220~240/50;230~/50;230~/60 CE;UL Drawer 12 624
HXC-629T 629/22.2 220~240/50;230~/50;230~/60 CE;UL Drawer 6 312
HXC-429T 429/15.1 220~240/50;230~/50;230~/60 CE;UL Drawer 5 195
HXC-149T 149/5.3 220~240/50;230~/50;230~/60 CE;UL Drawer 2 60

Documentation

SKUProductTypeLanguageFile
HXC-279THXC-279TBrochurePortugueseDownload
Model

HXC-1369T, HXC-149T, HXC-429T, HXC-629T
