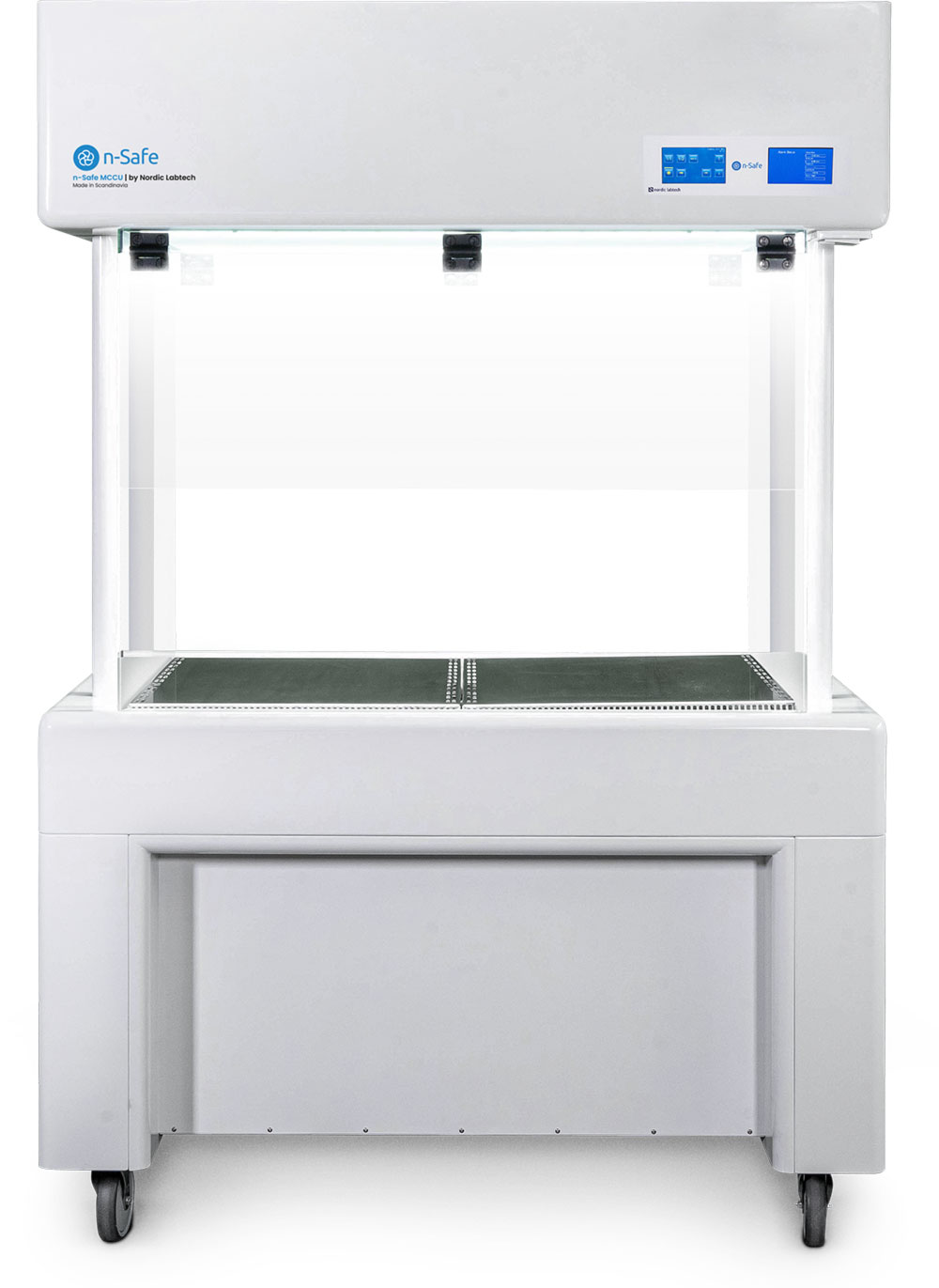

The n-SAFE MCCU Mobile Cage Changing Station, highlights:
• It contains the latest technology in filters and fans as well as controller
• Compact design with rounded corners
• High quality silent wheels, one pair lockable
• Super silent operation with noise level <52 dB(A)
• Full operator protection – fully EN12469 compliant with >0,42 m/s inflow with both sides open!
• Double ventilated table tops prevent any cross contamination between right and left side
• Several table tops options in different material to choose from
• Low weight <200 kg makes it easy to move
• High light intensity – dimmable 0-1500 Lux
• Electrically elevated support, programmable for different users
•Worldwide remote support for fast and easy service
• Easy-to-change prefilter cassettes
• H14 filters for supply and exhaust air
• Optional activated carbon filter for exhaust air – reducing e.g. carcinogenicgasses as well as odours
• Optional autoclavable stainless steel food doser
• Optional battery backup for running the unit w/o electrical connectio
Technical specifications
| Type | nS mccu 1300 | nS mccu 1600 |
| Dimensions | ||
| External dimensions, WxDxH (mm) | 1295 x 795 x 1935–2285 | 1595 x 795 x 1935–2285 |
| Internal dimensions, WxD (mm) | 1045 x 677 | 1345 x 677 |
| Front window opening (mm) | 350 / 700 (open) | |
| Work height, standard support stand (mm) | 854–1204 | |
| Minimum door way (mm) | 800 | |
| Weight | ||
| Equipment (kg) | 195 | 220 |
| Air velocity | ||
| Vertical flow (m/s) | 0.28 (adjustable 0.25–0.38) | |
| Inflow (m/s) | 0.42 | |
| Deviation (±%) | <8 | |
| Noise | ||
| Noise level ISO3744 (dB(A)) | 52 | 54 |
| Ventilation | ||
| Down flow rate (m³/h) | 710 | 920 |
| Exhaust flow rate (m³/h) | 2060 | 2350 |
| Filter technology | ||
| Main/Exhaust Type | HEPA H14 EN1822, 99.999% at 0.3 µm particle size, Optional exhaust activated carbon | |
| Light | ||
| LED (Lux) | 0–1500, dimmable | |
| Electrical data | ||
| Voltage frequency (V/Hz) | 220–240/50–60 or 110–120/50–60 | |
| Power consumption, from (W) | 100 | 130 |
Documentation
| SKU | Product | Type | Language | File |
|---|---|---|---|---|
| Brochure | English | Download |
| Dimensions | 1300, 1600 |
|---|
